15.39.FU.08
General | |
---|---|
Item number | 15.39.FU.08 |
Material | Steel |
Number | 1 |
Capacity (Liters) | 22 |
Type tank | Pressure Tank |
Fixation | 3 legs |
Model of the tank | Vertical |
Shape of the tank | Cylindrical |
Bottom | Dished bottom |
Tank model | Single wall |
Number lifting lugs | 2 |
Tank with total drain? | Yes |
Type of outlet (s) | Flens |
Diameter of outlet (mm) | 40 |
locality | B-7711 Belgium |
Provision tank cleaning | None |
Condition | Used |

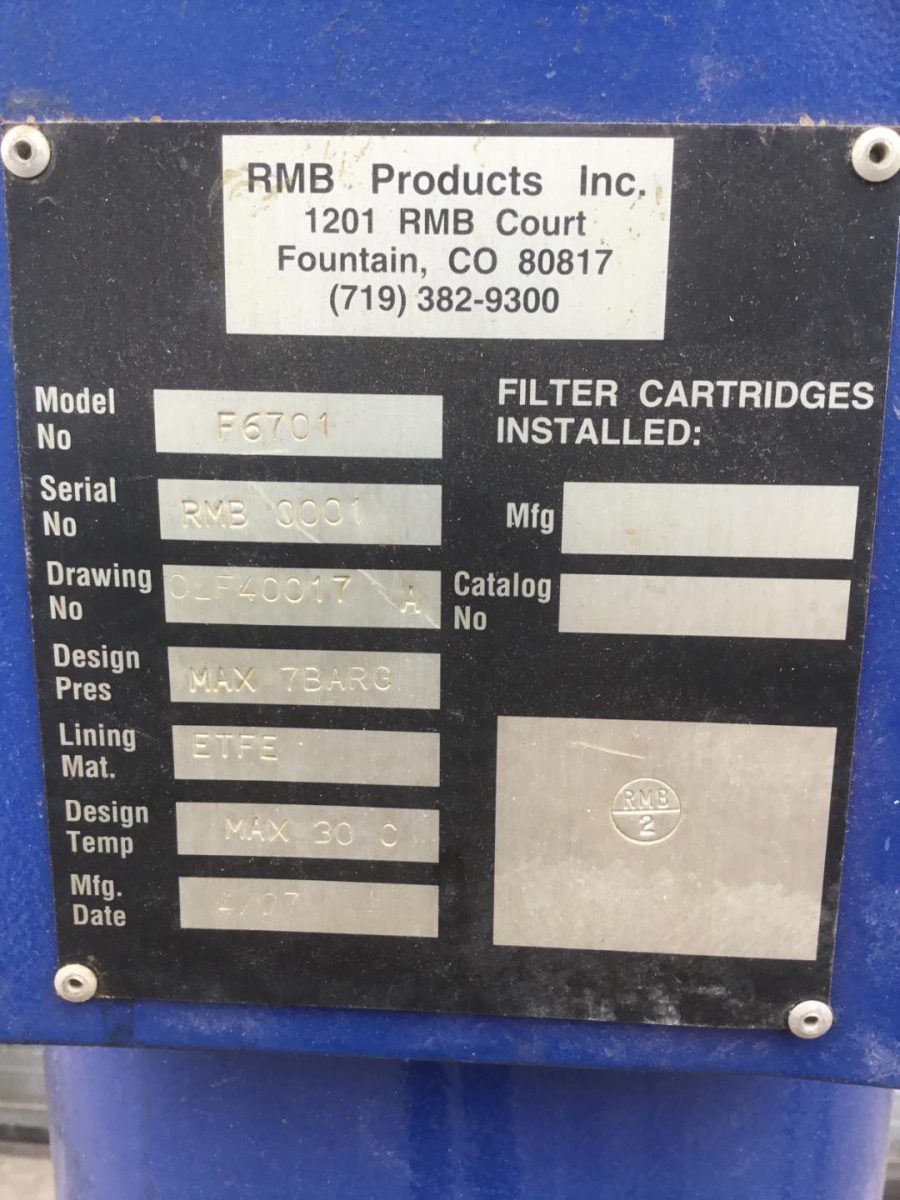

Type plate manufacturer | Yes |
Manufacturer | RMB products Court Fountain |
Year Built | 1997 |
Design Code | F670 |
Construction data available | No |
Working temperature (° C) | 30 |
Top side | |
---|---|
Configuration top-side | Closed |
Detail closed top side | Flat bottom |
Thickness closed dome (mm) | 30 |
Dimensions | |
---|---|
Cylindrical length (mm) | 760 |
Height bottom (mm) | 50 |
Total height (mm) | 1570 |
Diameter tank (mm) | 195 |
Insulation | |
---|---|
Insulation | No |
