15.39.FU.05
| General | |
|---|---|
| Item number | 15.39.FU.05 |
| Material | Steel |
| Number | 2 |
| Capacity (Liters) | 51 |
| Type tank | Pressure Tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flens |
| Diameter of outlet (mm) | 40 |
| locality | B-7711 Belgium |
| Condition | Used |

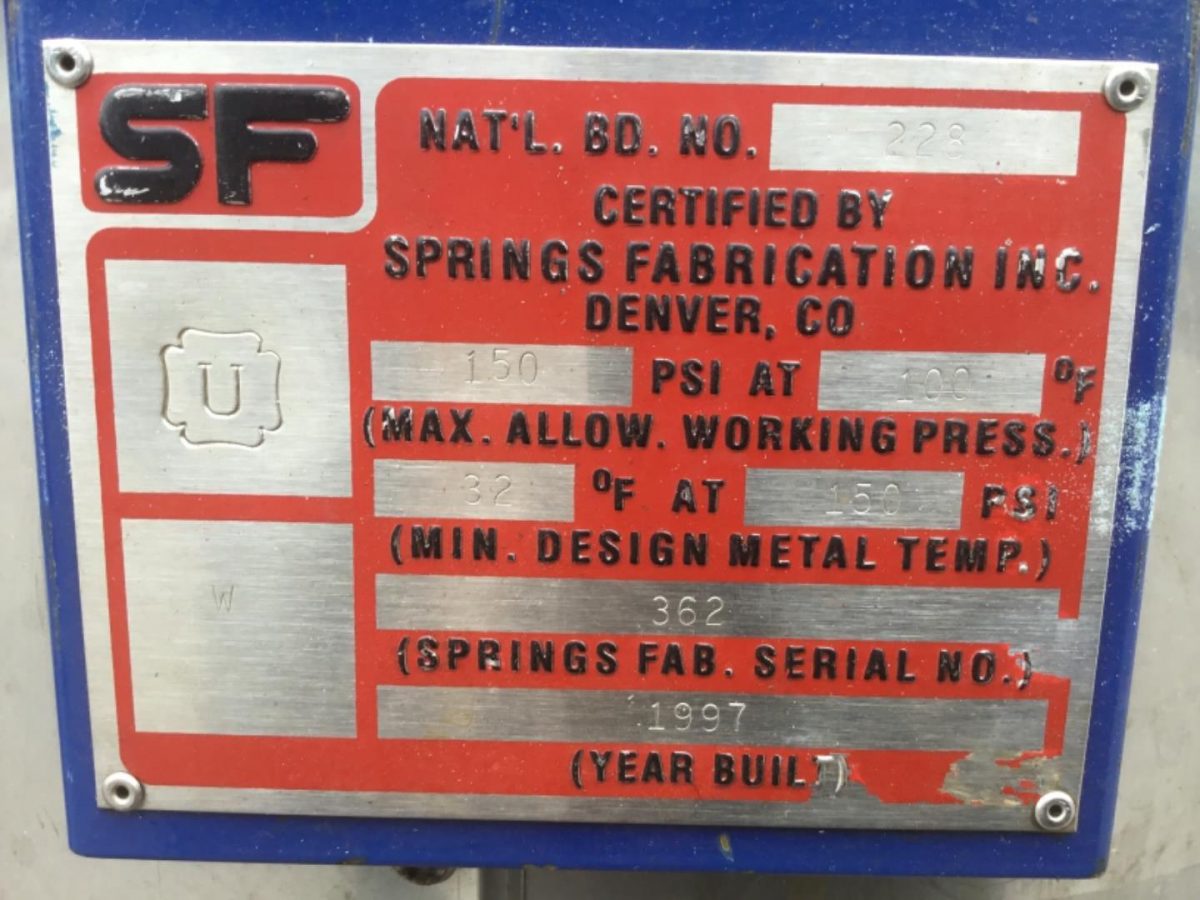

| Type plate manufacturer | Yes |
| Manufacturer | Springs Fabrication Denver |
| Year Built | 1997 |
| Construction data available | No |
| Working temperature (° C) | 30 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 30 |
| Dimensions | |
|---|---|
| Cylindrical length (mm) | 760 |
| Height bottom (mm) | 75 |
| Total height (mm) | 1900 |
| Diameter tank (mm) | 295 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | electrical tracing |
| Heating 1: Max. design pressure °C | 30 |
