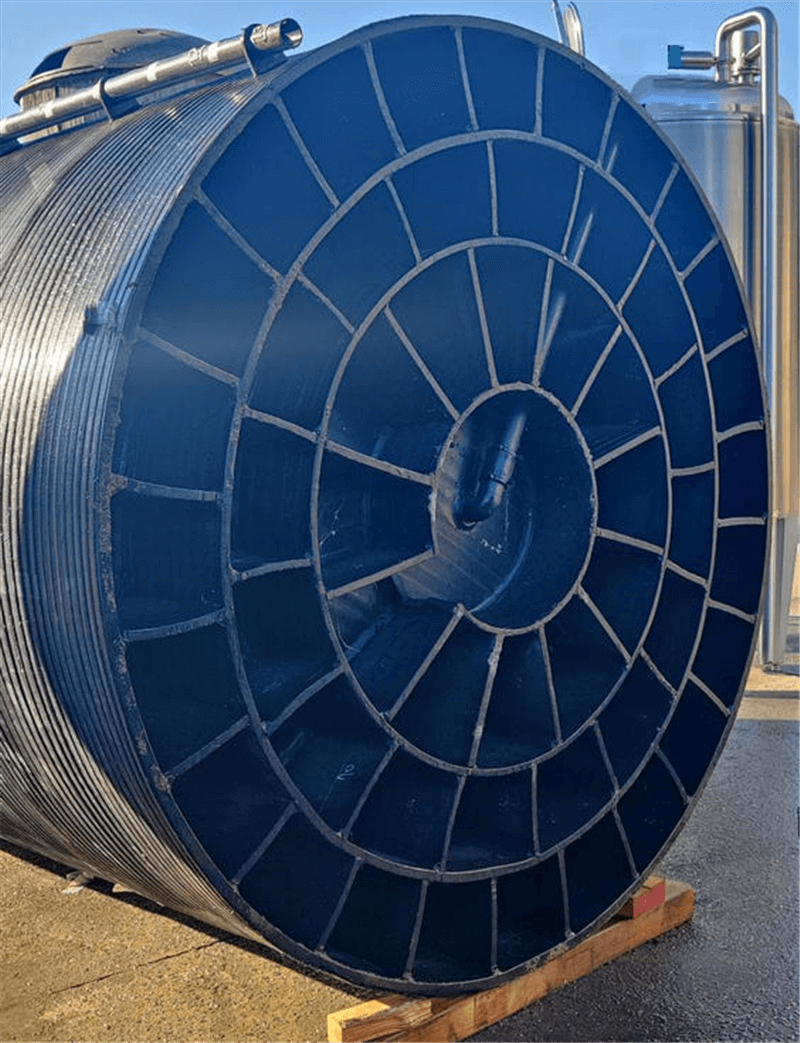

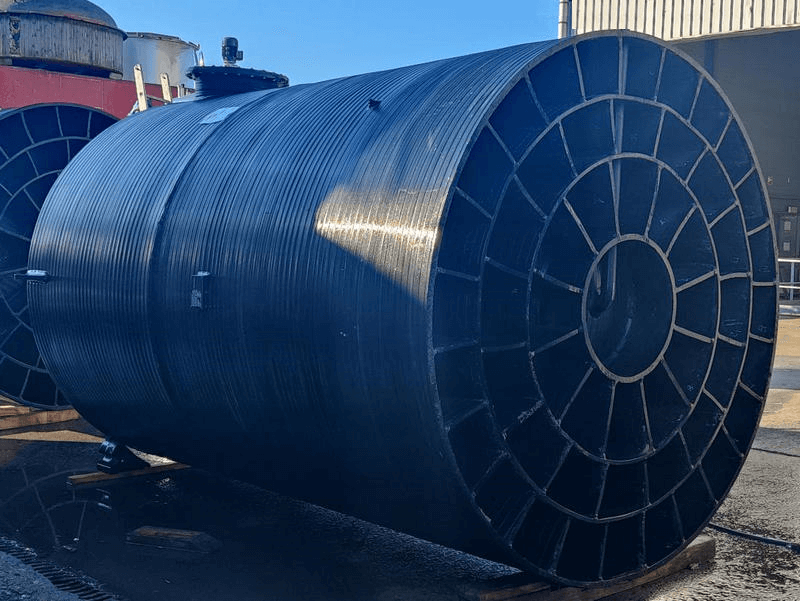

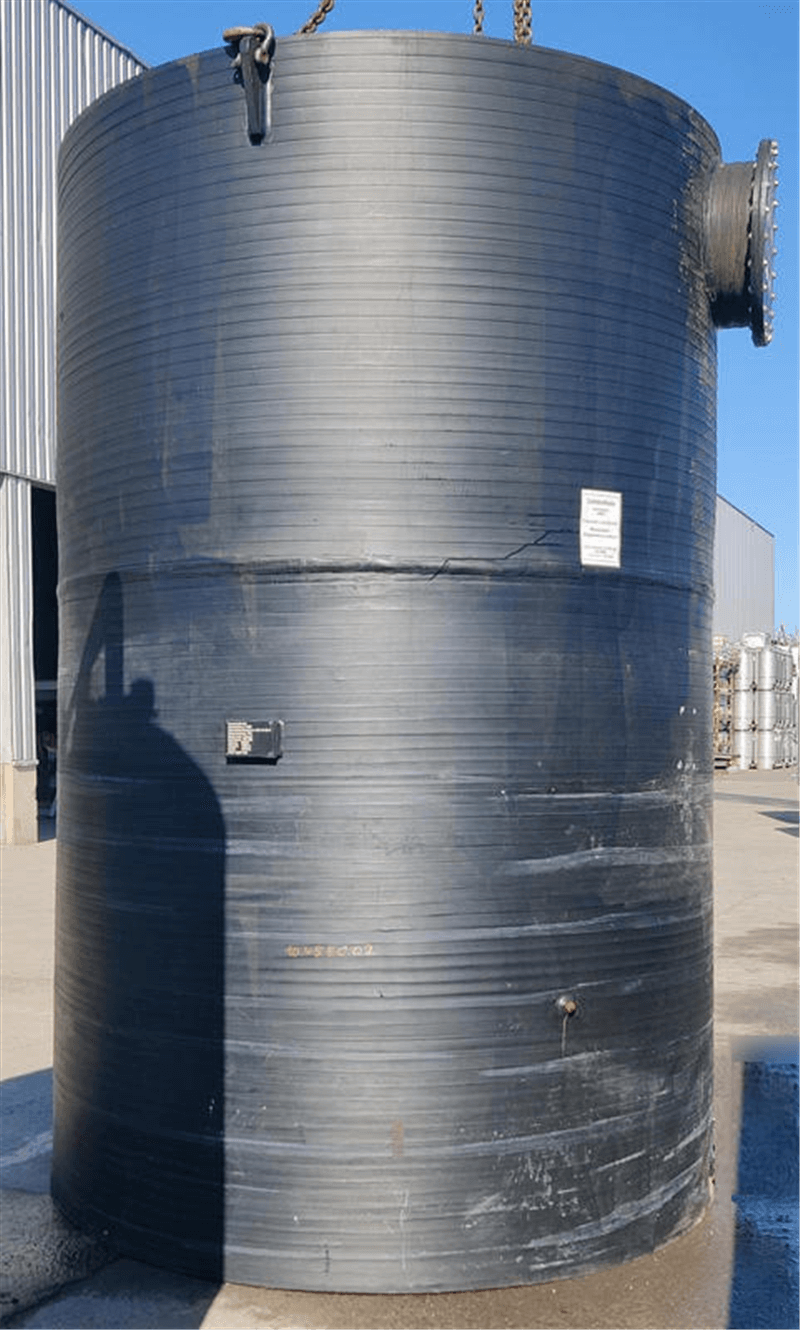

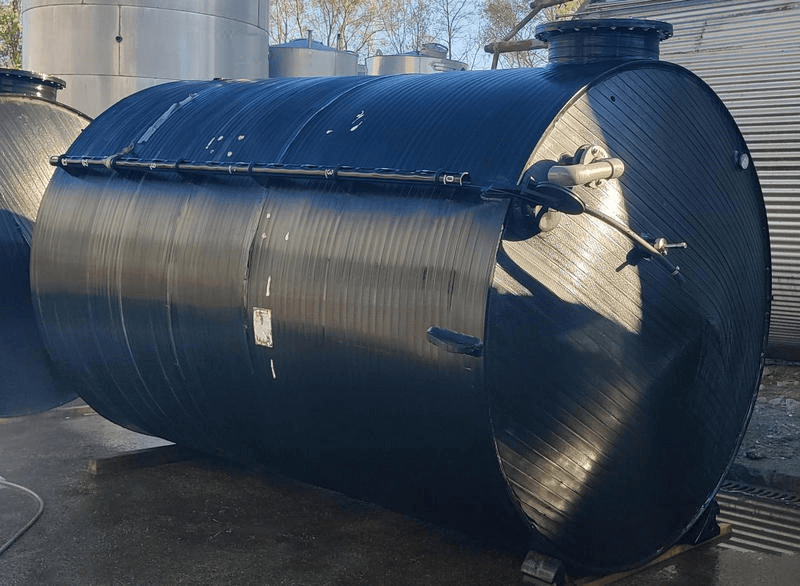

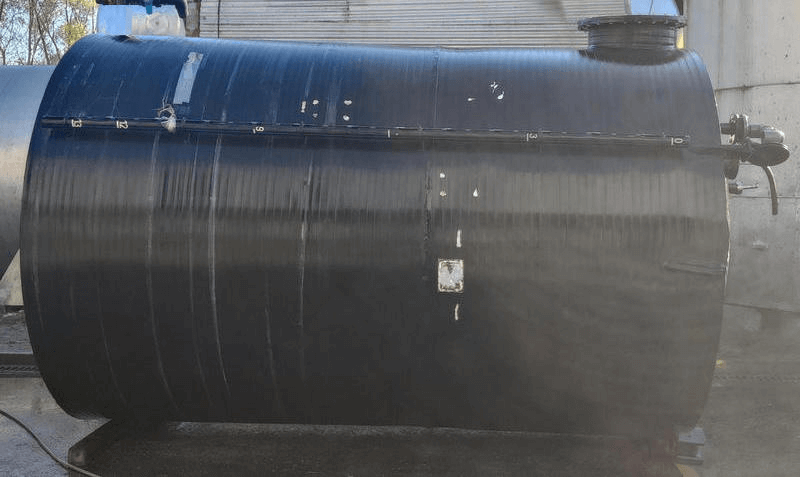

Used storage tank
- Material: HDPE
- Condition: Used
- Volume (in litres): 13000 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.45.EC.05 |
| Material | HDPE |
| Number | 1 |
| Capacity (Liters) | 13000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

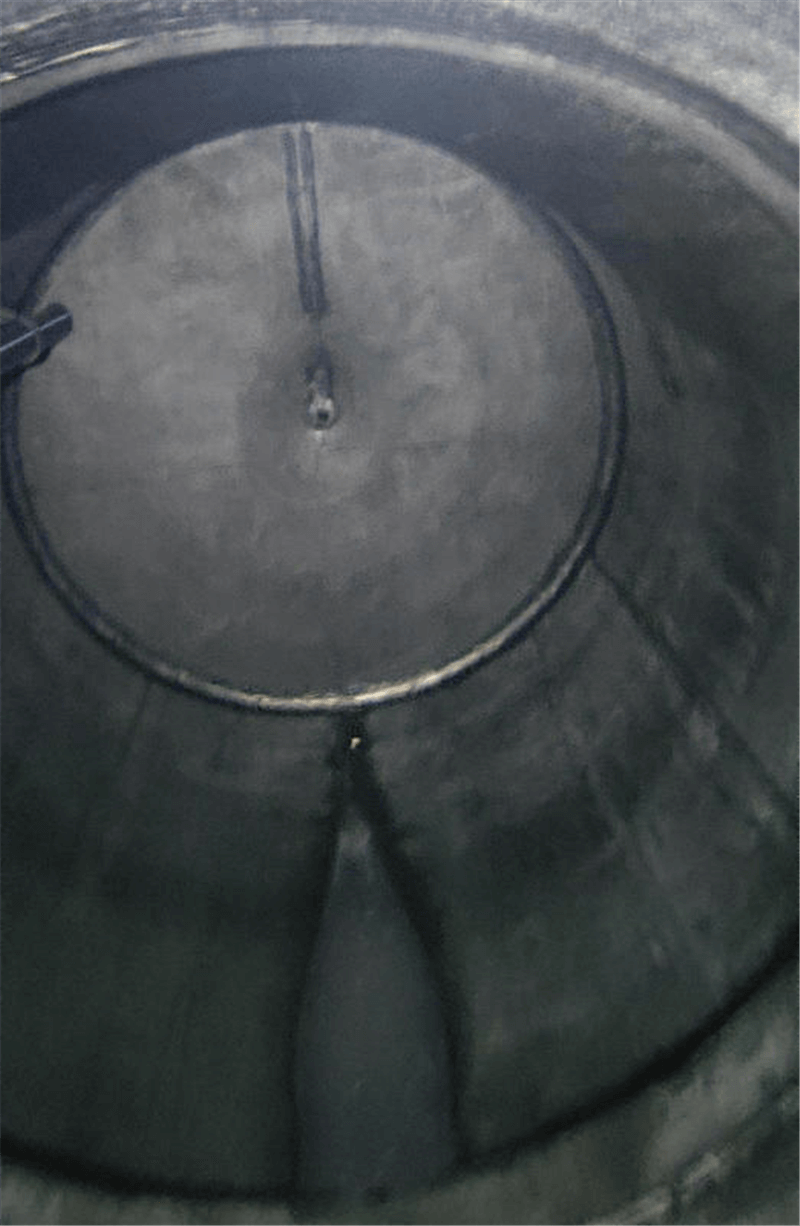

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | dia 500mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 600 |
| Condition | Used |

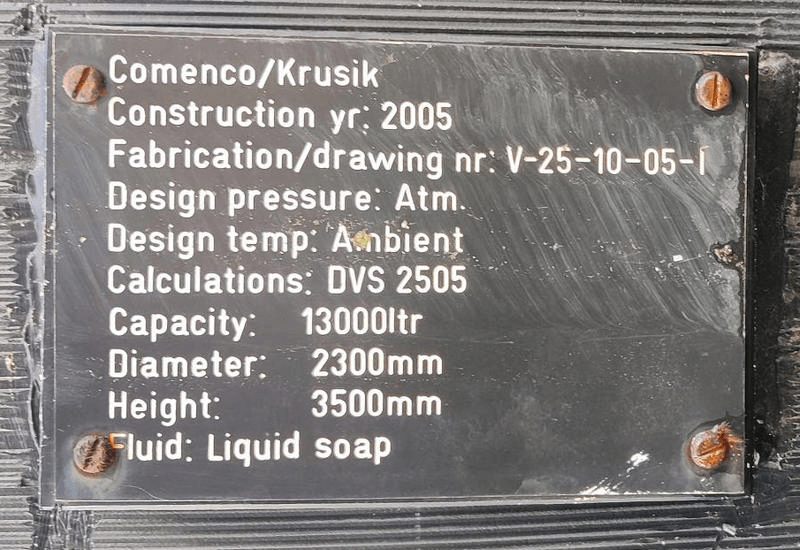

| Type plate manufacturer | Yes |
| Manufacturer | Comenco/Krusik |
| Year Built | 2005 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 14 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 14 |
| Periphery (mm) | 7370 |
| Cylindrical length (mm) | 3050 |
| Height bottom (mm) | 100 |
| Total height (mm) | 3850 |
| Length (mm) | 2645 |
| Diameter tank (mm) | 2315 |
| Width (mm) | 2545 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | working pressure ATM --- level tube with float --- outlet broken off |
