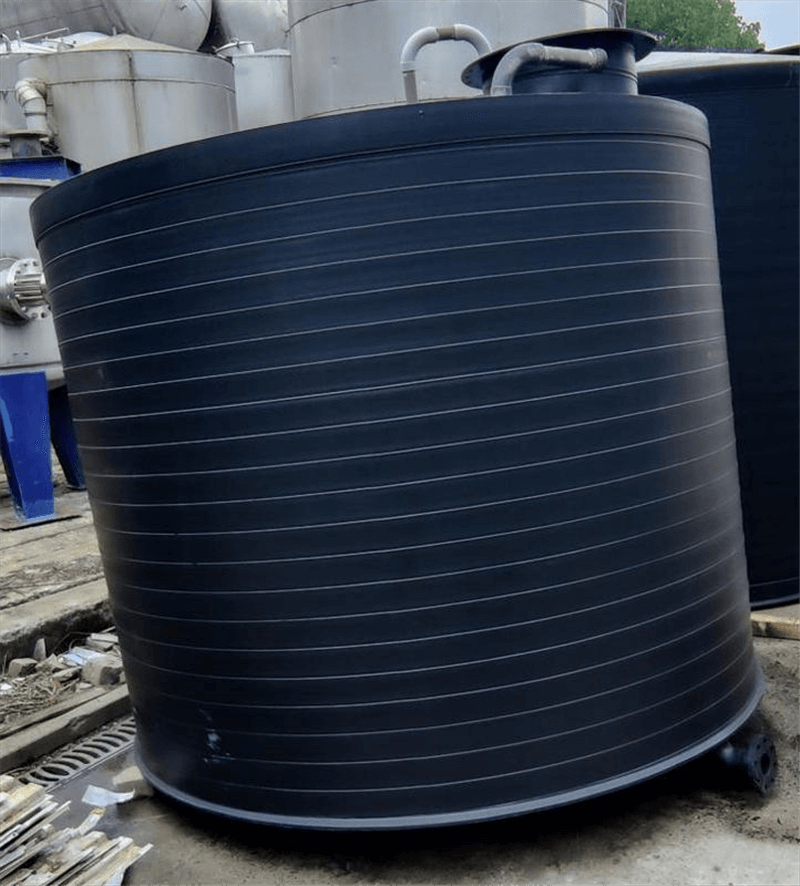

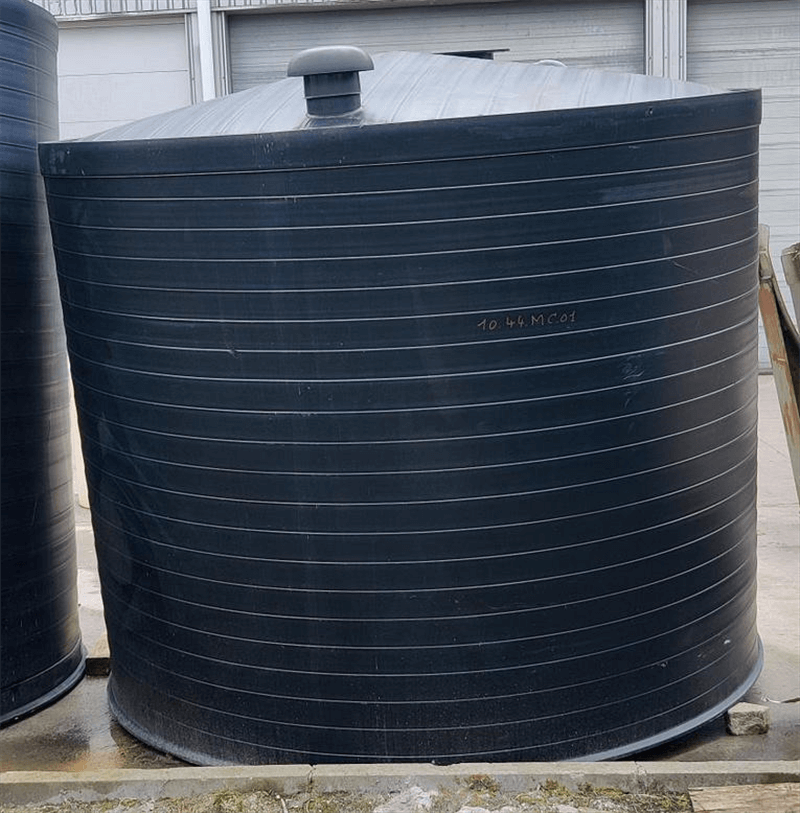

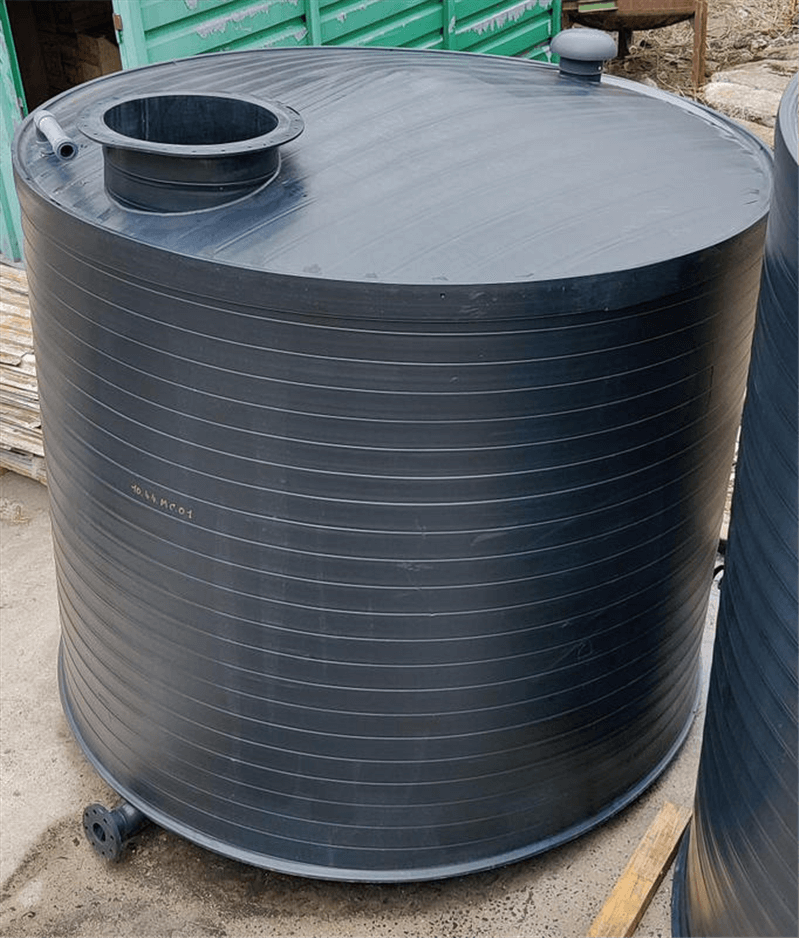

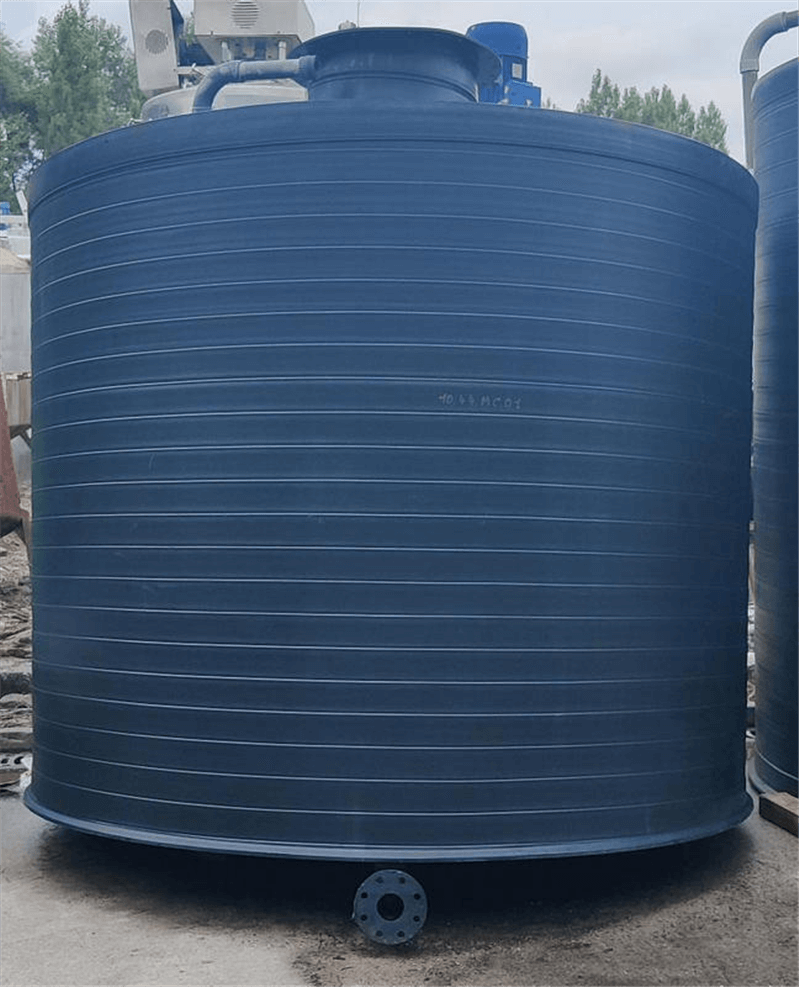

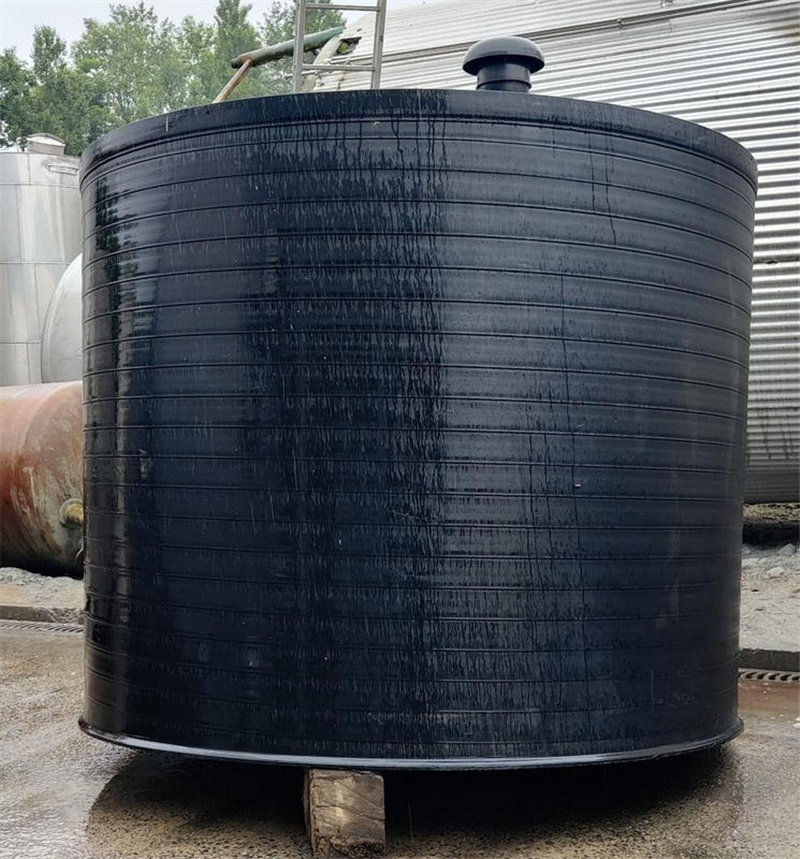

Used storage tank
- Material: Synthetic
- Condition: Used
- Volume (in litres): 10000 L
- In stock: 1
General | |
---|---|
Item number | 10.44.MC.01 |
Material | Synthetic |
Number | 1 |
Capacity (Liters) | 10000 |
Type tank | Storage tank |
Model of the tank | Vertical |
Shape of the tank | Cylindrical |
Bottom | Inclined bottom |
Tank model | Single wall |
Number of manhole | 1 |
Position of manhole (s) | Top |
Dimensions of manholes | dia 495mm |
Tank with total drain? | Yes |

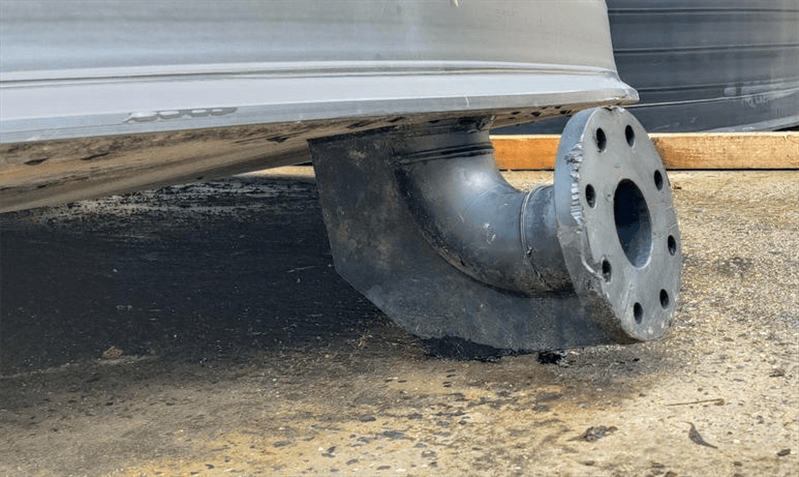

Diameter of outlet (mm) | 75 |
locality | B-7711 Belgium |
Last application | chemical industry |
Provision tank cleaning | None |
Weight (kg) | 500 |
Condition | Used |
Type plate manufacturer | No |
Top side | |
---|---|
Configuration top-side | Closed |
Detail closed top side | Conical bottom |
Thickness closed dome (mm) | 15 |
Dimensions | |
---|---|
Cylinder Thickness (mm) | 15 |
Bottom thickness (mm) | 15 |
Periphery (mm) | 7900 |
Cylindrical length (mm) | 2000 |
Slope bottom (°) | 1 |
Total height (mm) | 2600 |
Length (mm) | 2625 |
Diameter tank (mm) | 2485 |
Width (mm) | 2565 |
Insulation | |
---|---|
Insulation | No |
