Used storage tank
- Material: PVDF
- Condition: Used
- Volume (in litres): 1500 L
- In stock: 5
| General | |
|---|---|
| Item number | 10.42.RE.05 |
| Material | PVDF |
| Number | 5 |
| Capacity (Liters) | 1500 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 500 |
| Tank with total drain? | No |
| Type of outlet (s) | Zuigleiding boven op dak |
| Diameter of outlet (mm) | 637 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 200 |
| Condition | Used |

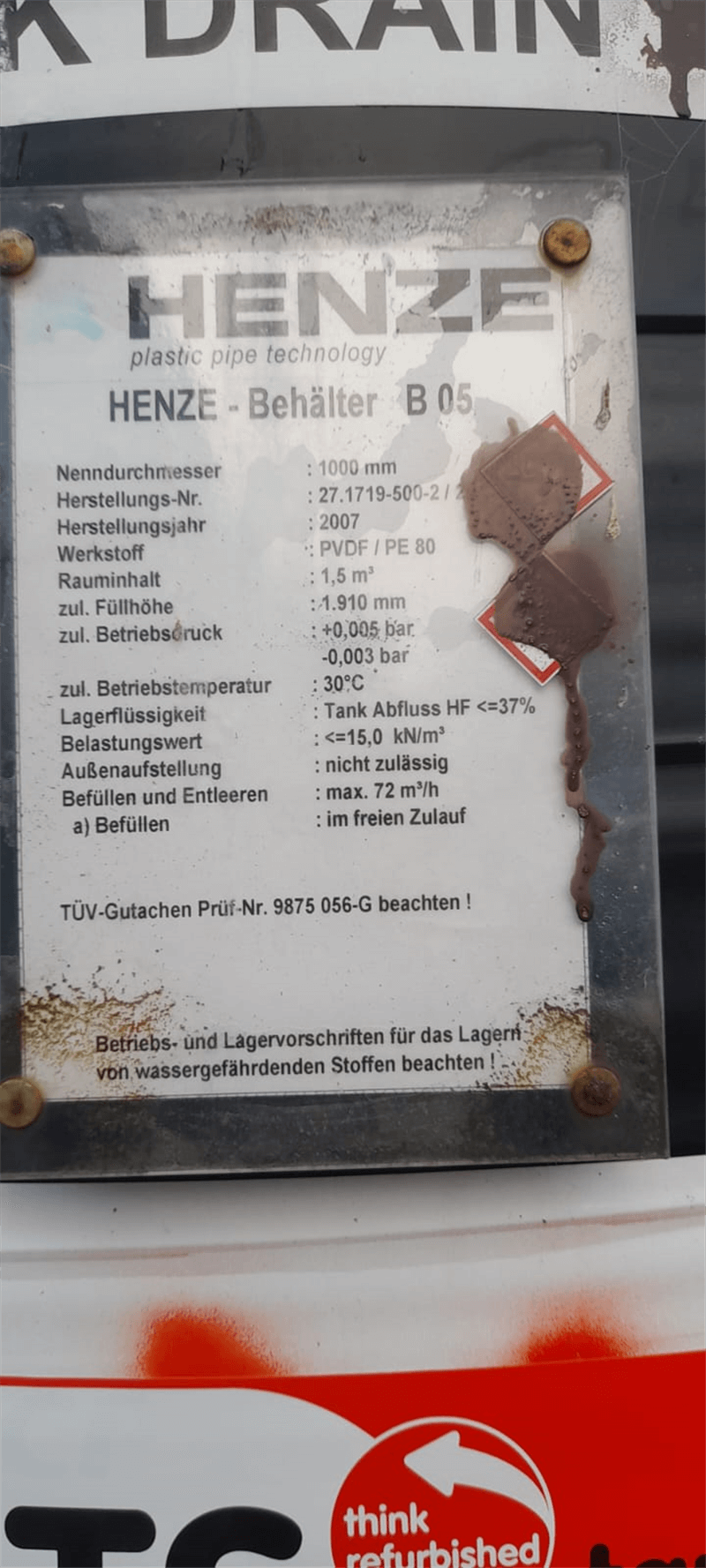

| Type plate manufacturer | Yes |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 10 |
| Bottom thickness (mm) | 10 |
| Periphery (mm) | 3440 |
| Cylindrical length (mm) | 1950 |
| Outer wall thickness (mm) | 10 |
| Outside diameter tank (mm) | 1095 |
| Total height (mm) | 2500 |
| Diameter tank (mm) | 1000 |
| Width (mm) | 1175 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | No leak detection device Outer jacket (leak detection PE80) |
