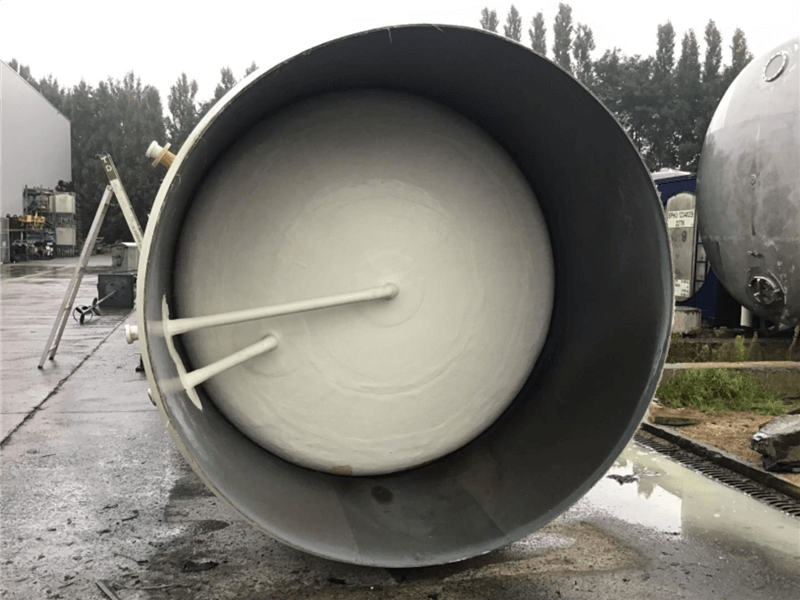

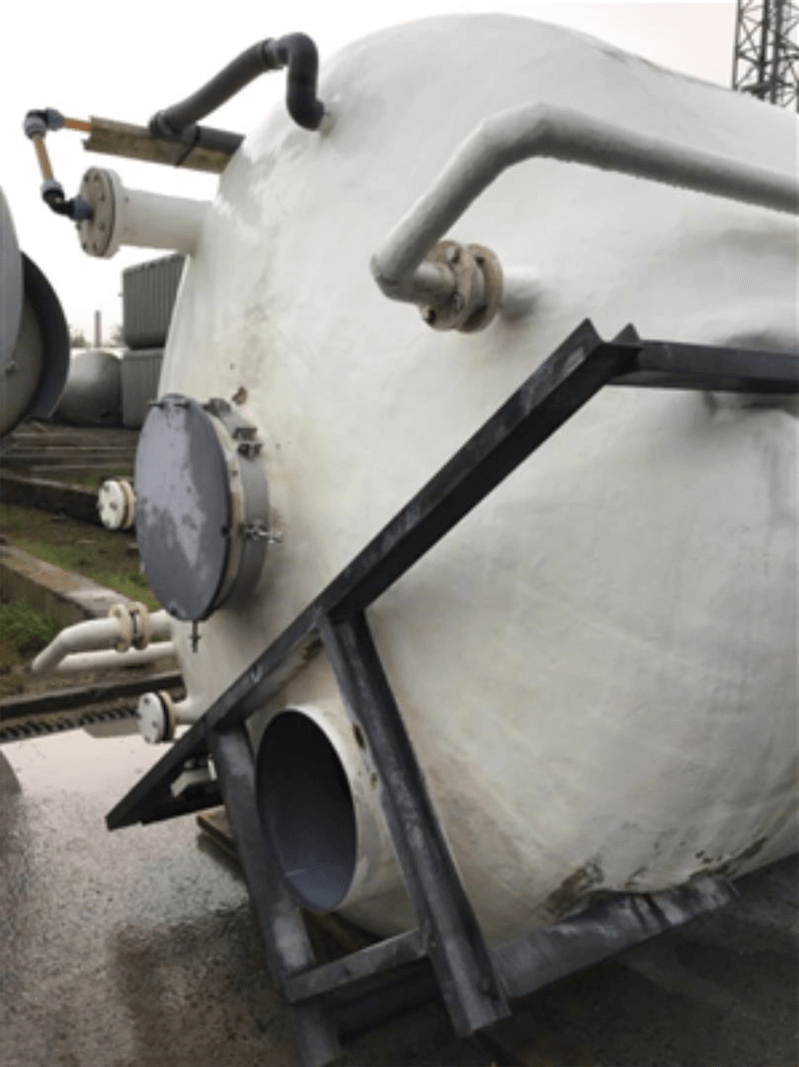

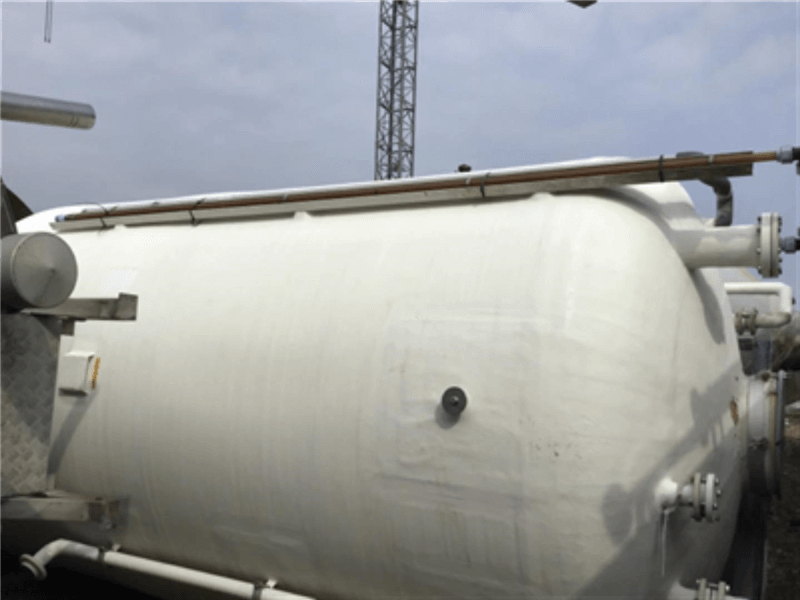

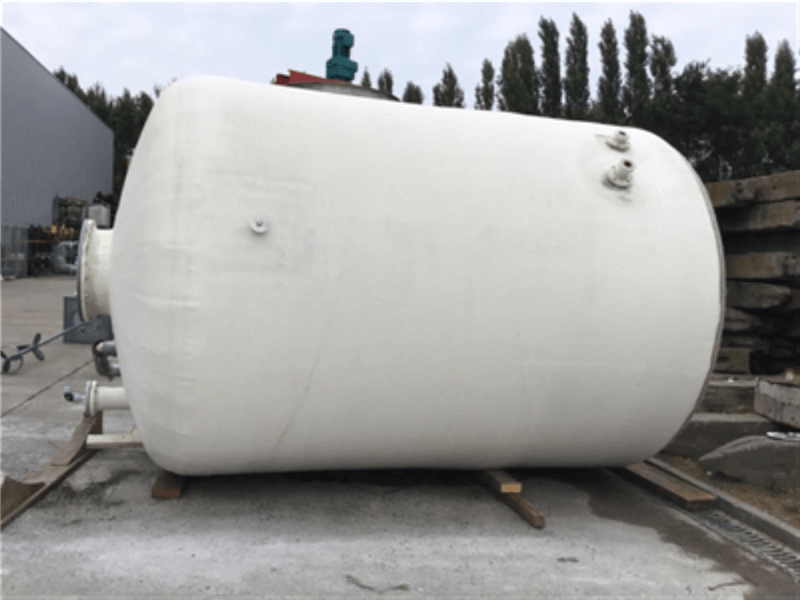

Used storage tank
- Material: Fiberglass
- Condition: Used
- Volume (in litres): 10000 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.41.NL.02 |
| Material | Fiberglass |
| Number | 1 |
| Capacity (Liters) | 10000 |
| Type tank | Storage tank |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Condition | Used |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Periphery (mm) | 8250 |
| Cylindrical length (mm) | 3790 |
| Total height (mm) | 4100 |
| Diameter tank (mm) | 2460 |
| Width (mm) | 2650 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | Inlet and discharge DN50 - level indicator - manhole - with agitator |
