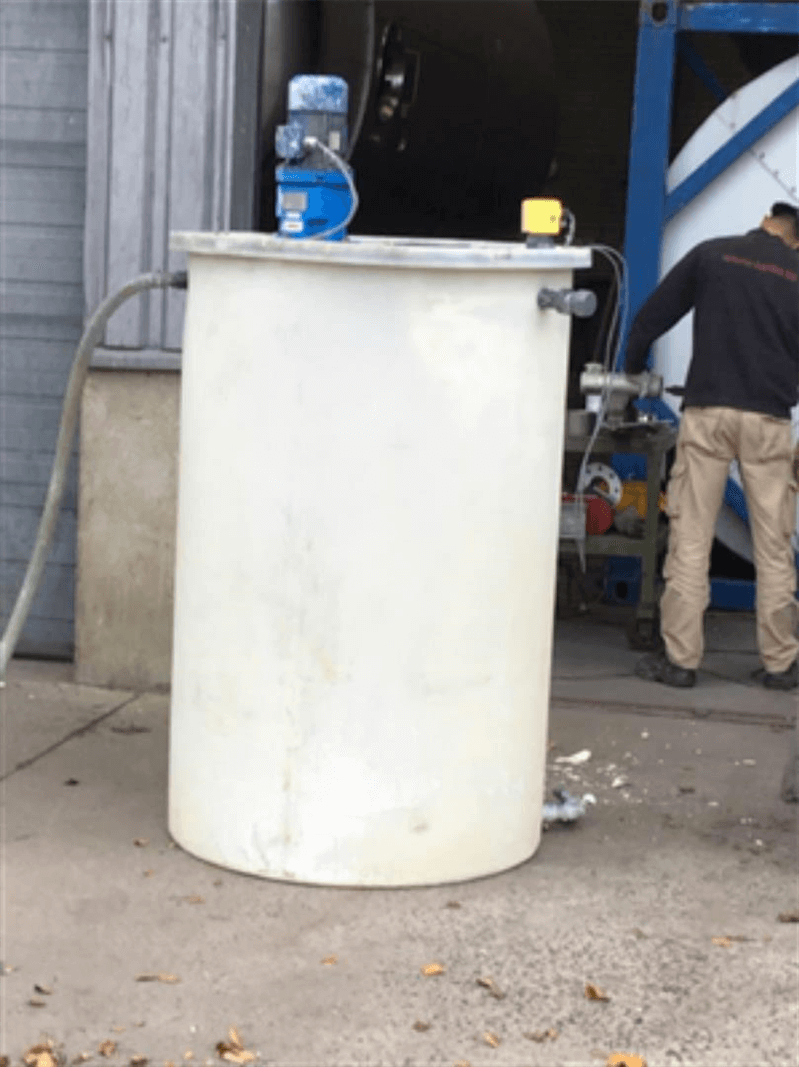

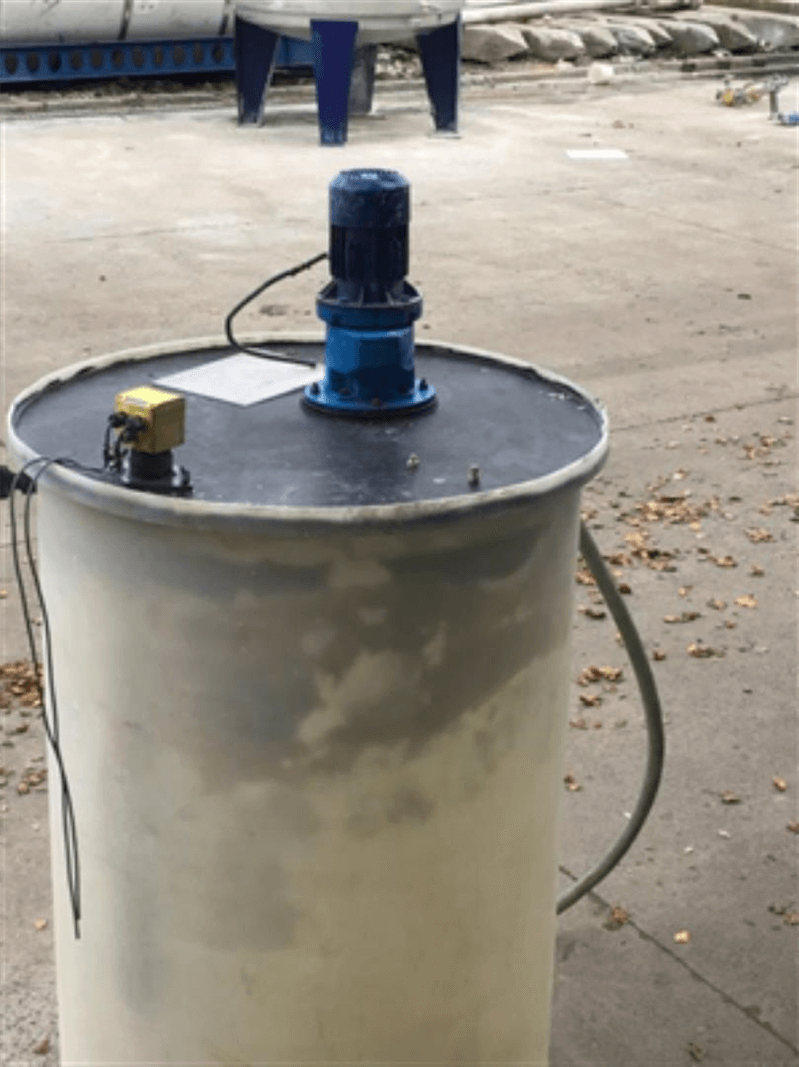

Used plastic tank
- Material: Synthetic
- Condition: Used
- Volume (in litres): 1130 L
- In stock: 1
| General | |
|---|---|
| Item number | 10.41.CO.01 |
| Material | Synthetic |
| Number | 1 |
| Capacity (Liters) | 1130 |
| Type tank | Plastic tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |

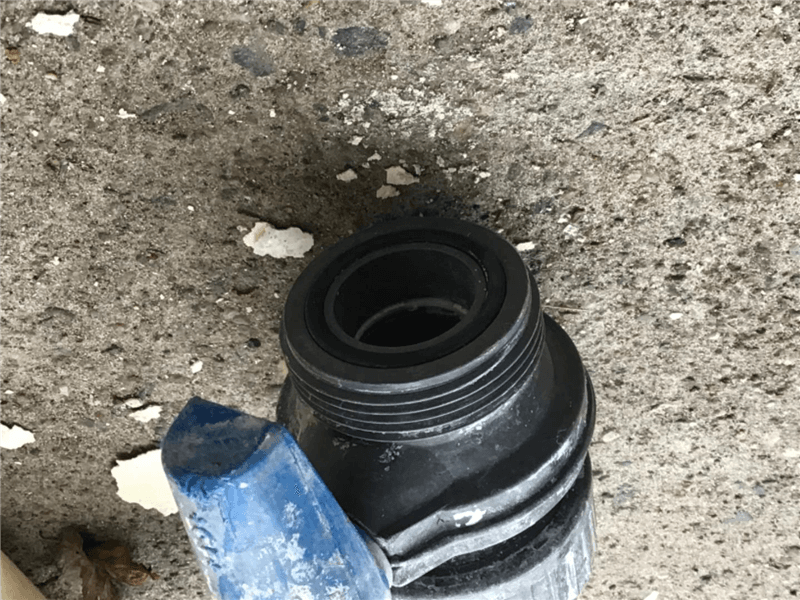

| Type of outlet (s) | 1" |
| Diameter of outlet (mm) | 1 1/2" |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Year Built | 2004 |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Thickness closed dome (mm) | 15 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 15 |
| Bottom thickness (mm) | 15 |
| Periphery (mm) | 3141 |
| Cylindrical length (mm) | 1450 |
| Total height (mm) | 2050 |
| Diameter tank (mm) | 1100 |
| Width (mm) | 1300 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|

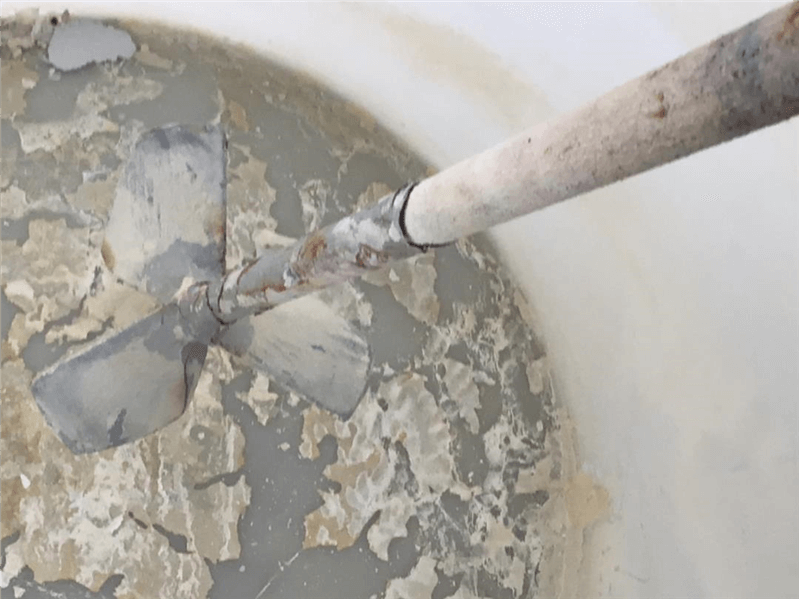

| Number of agitators | 1 |
| Agitator 1: Atex/Ex? | No |
| Remarks | |
|---|---|

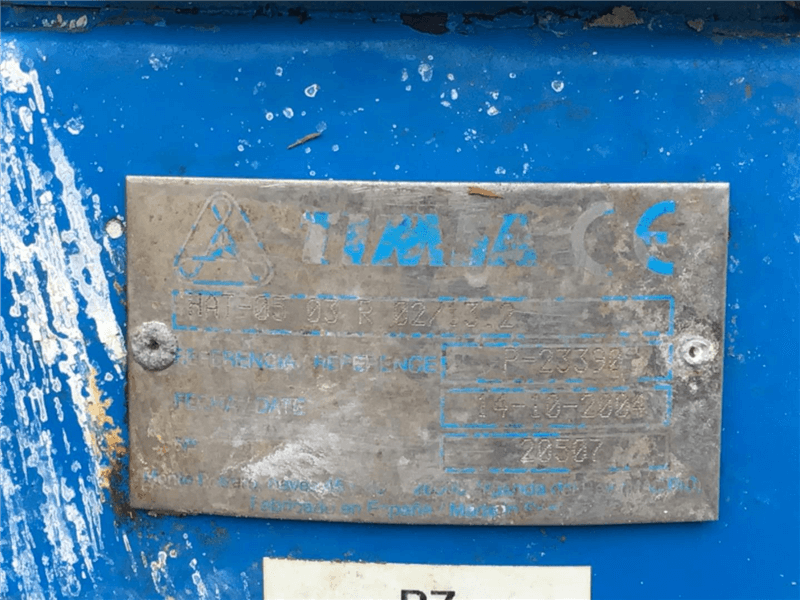

| Description (EN) | motor Timsa 14/10/2004 n° HAT-05 03 R 02/13.2 - inlet 1" - exhaust 1 1/2" ball valve |
