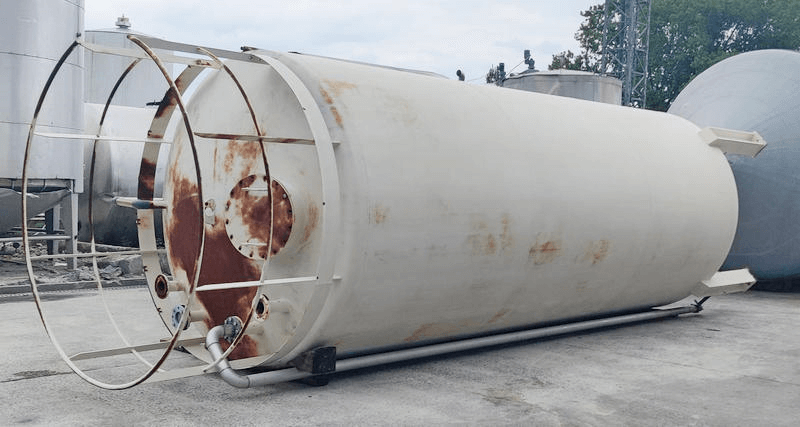

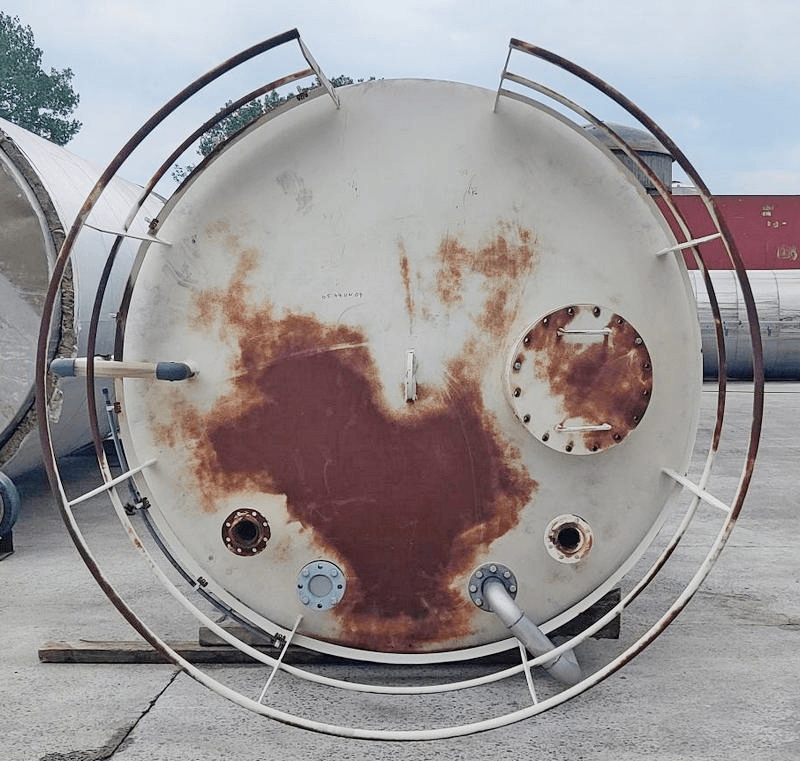

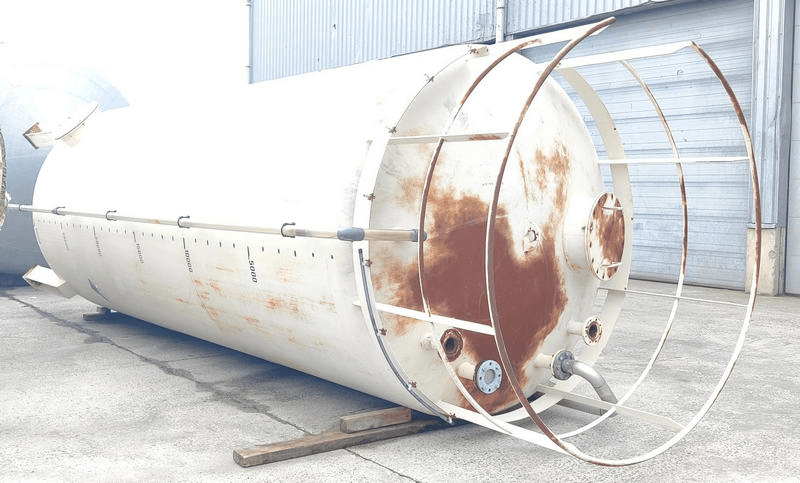

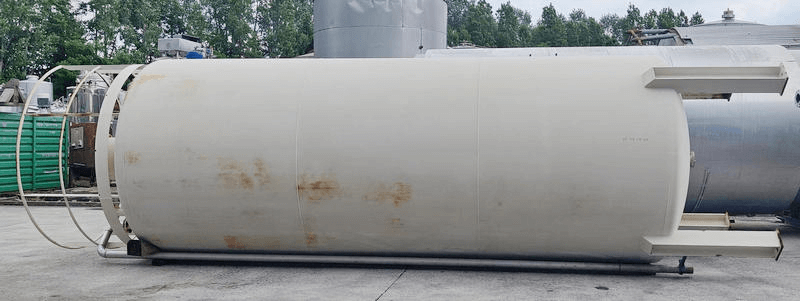

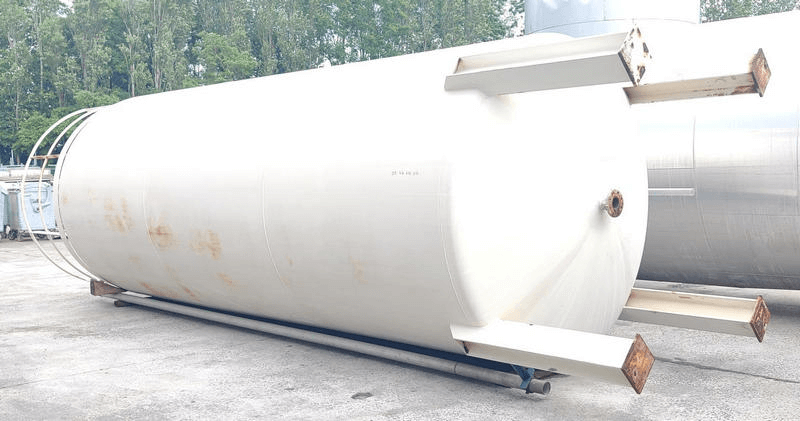

Used storage tank
- Material: Steel
- Condition: Used
- Volume (in litres): 30000 L
- In stock: 1
| General | |
|---|---|
| Item number | 05.44.UN.04 |
| Material | Steel |
| Number | 1 |
| Capacity (Liters) | 30000 |
| Type tank | Storage tank |

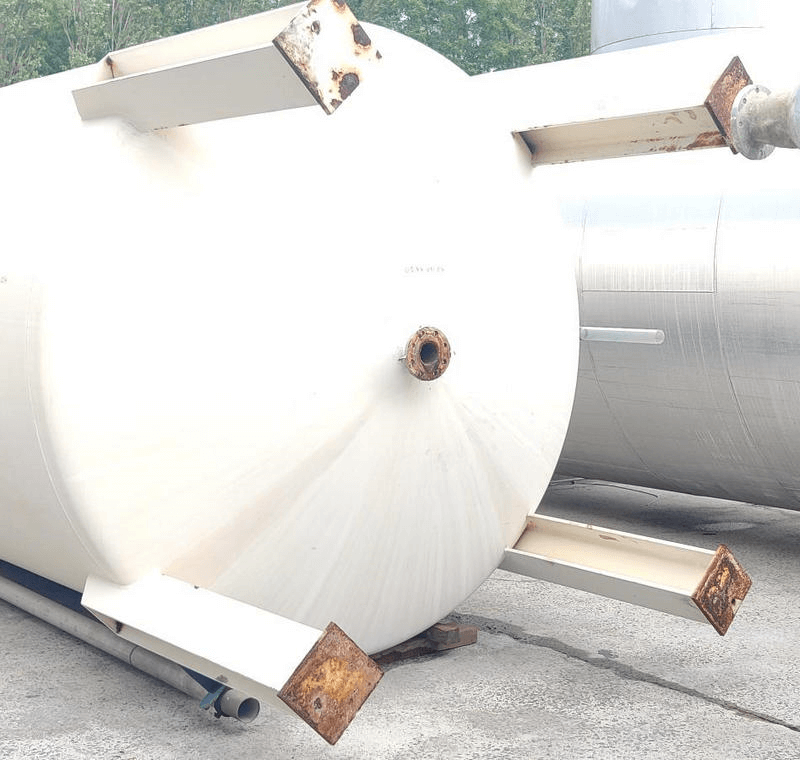

| Fixation | 4 legs |

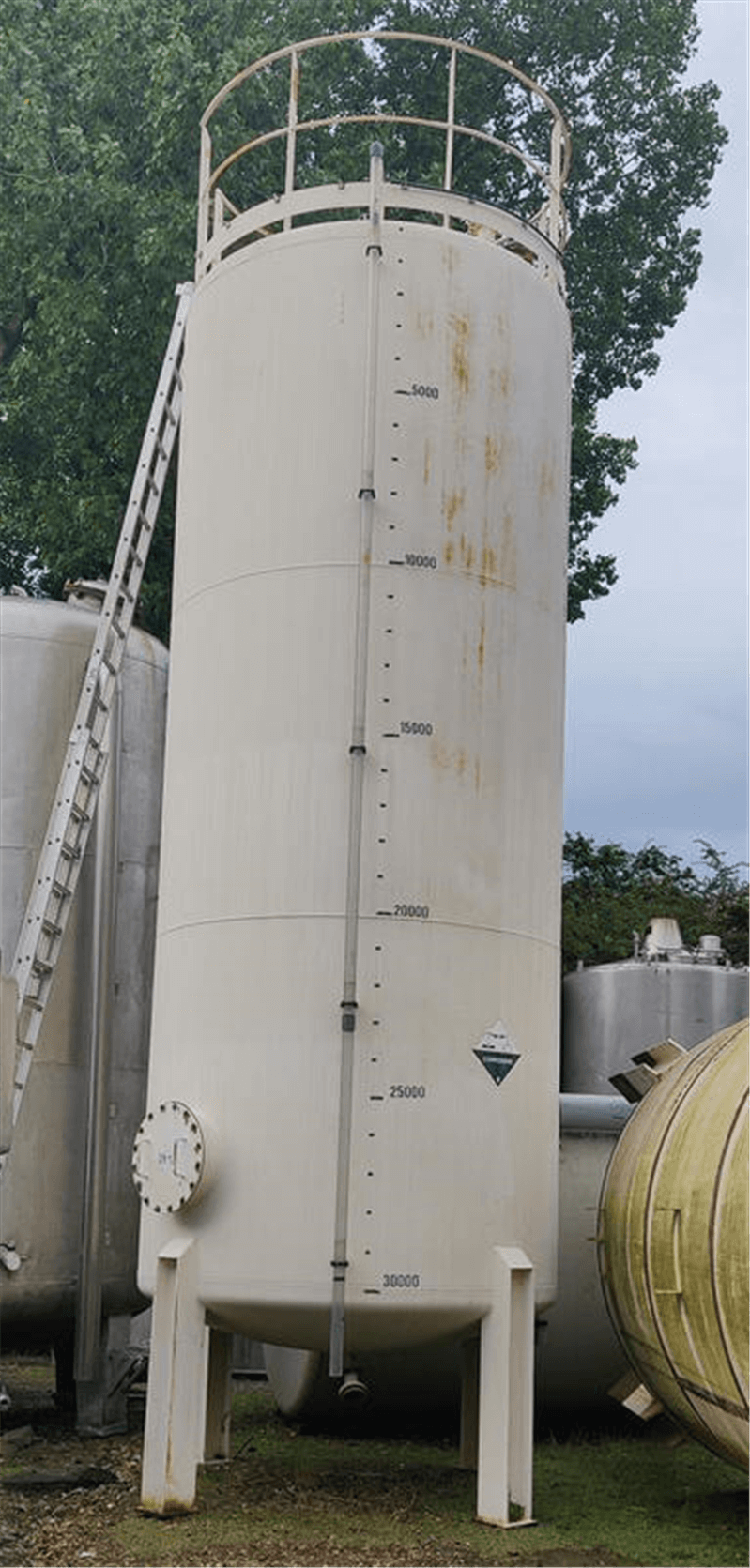

| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 1 |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 500mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | DN80 flens |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 3200 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 6,2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 6 |
| Bottom thickness (mm) | 6,2 |
| Periphery (mm) | 7870 |
| Cylindrical length (mm) | 5950 |
| Height bottom (mm) | 400 |
| Total height (mm) | 8500 |
| Length (mm) | 2705 |
| Diameter tank (mm) | 2495 |
| Width (mm) | 2505 |
| Insulation | |
|---|---|
| Insulation | No |
