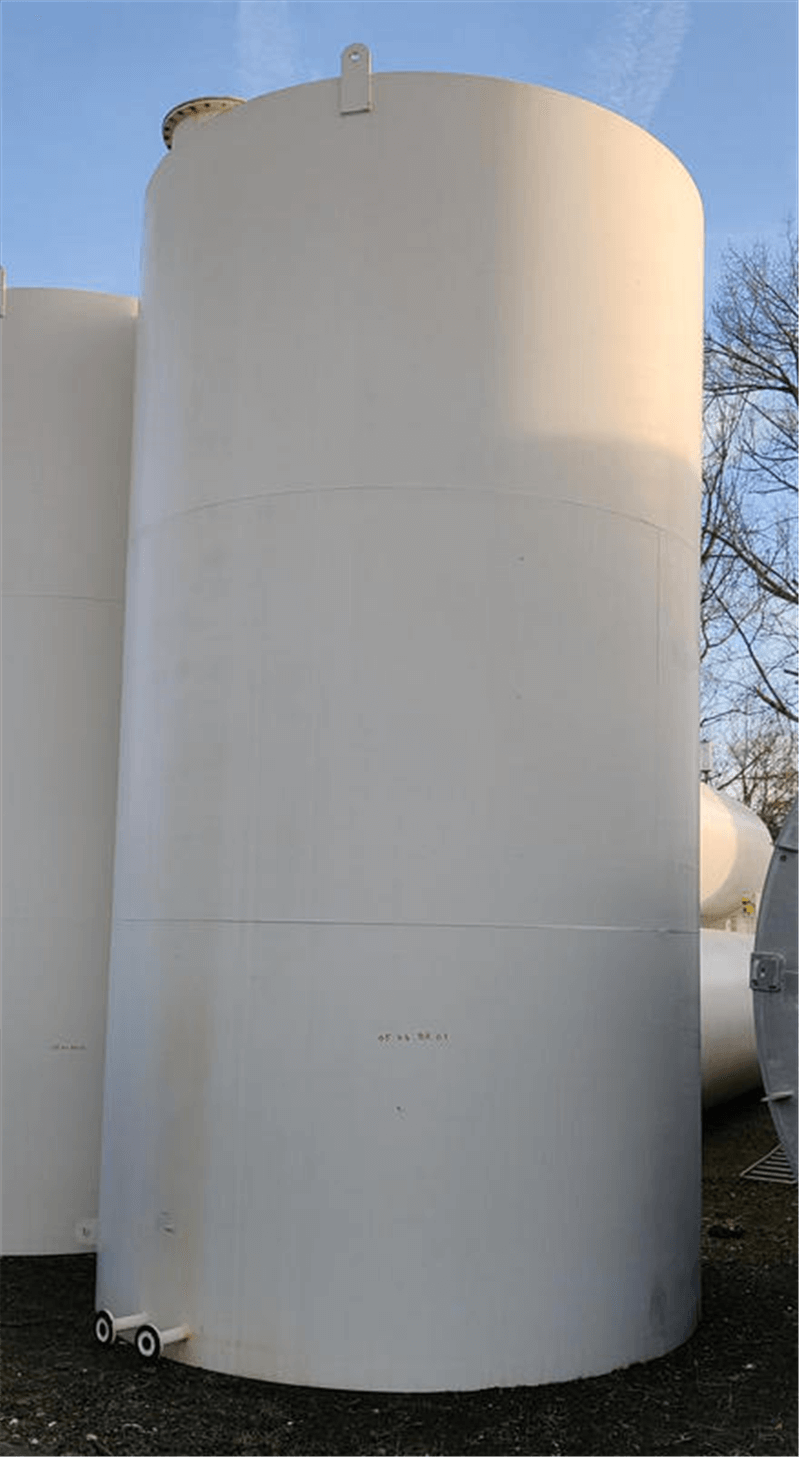

Used storage tank
- Material: Steel
- Condition: Used
- Volume (in litres): 50000 L
- In stock: 1
| General | |
|---|---|
| Item number | 05.44.BR.03 |
| Material | Steel |
| Number | 1 |
| Capacity (Liters) | 50000 |
| Type tank | Storage tank |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

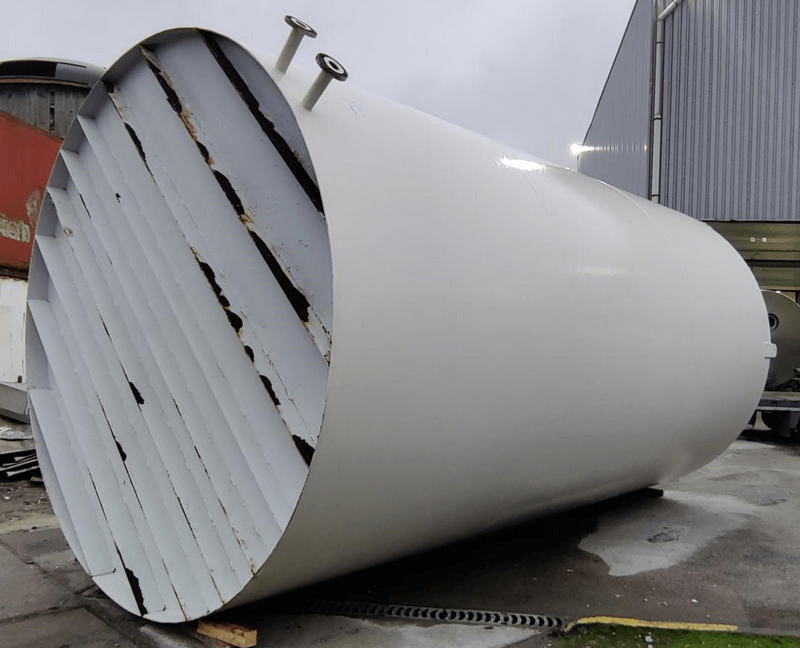

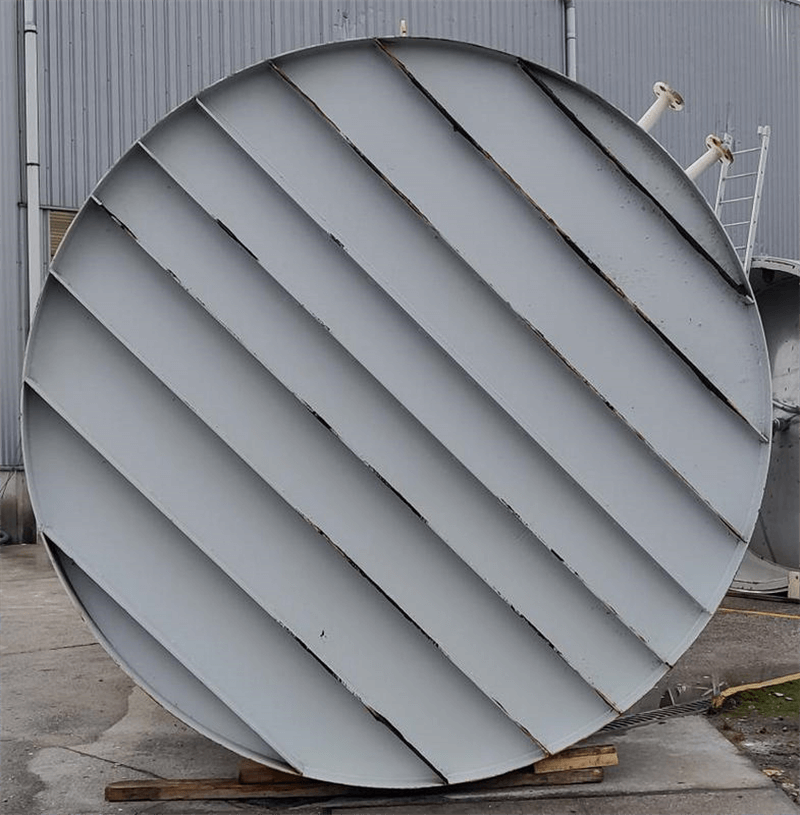

| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number lifting lugs | 5 |

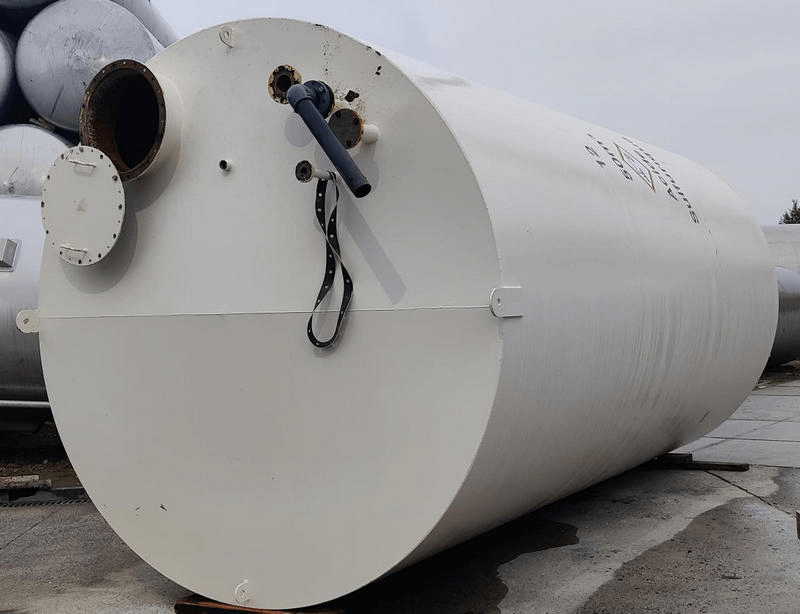

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 585mm |
| Tank with total drain? | Yes |

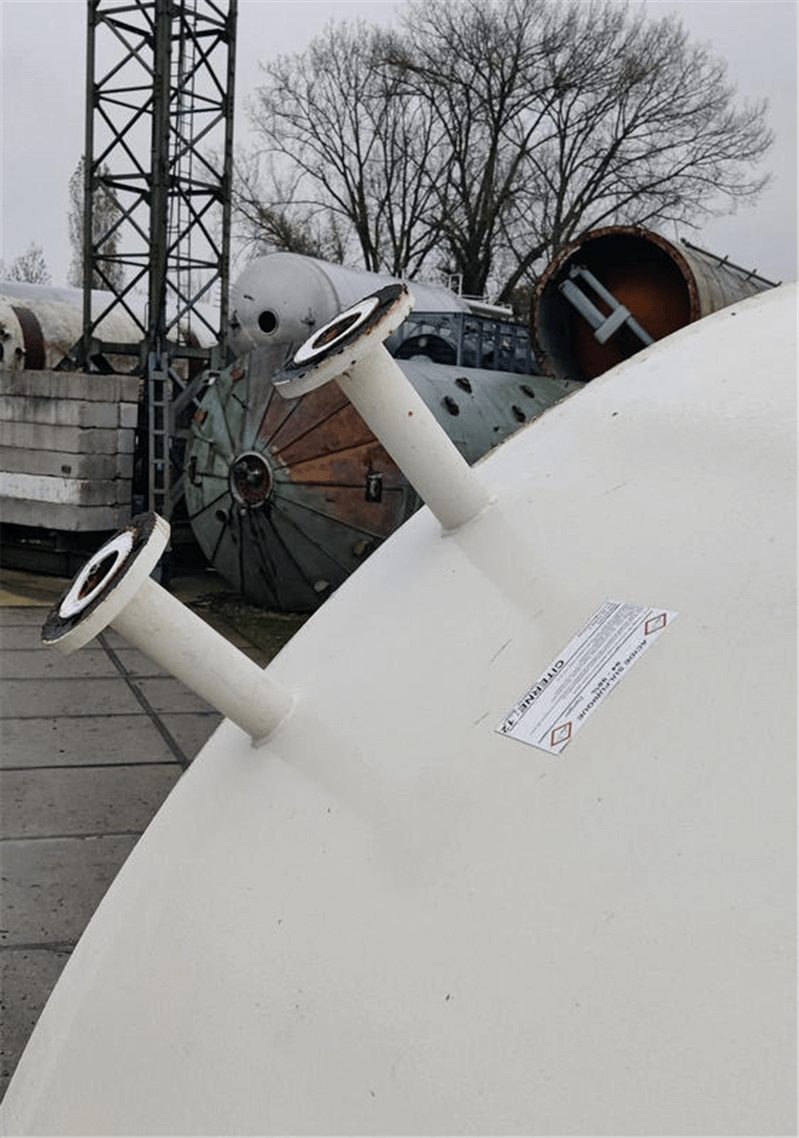

| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 4100 |
| Condition | Used |

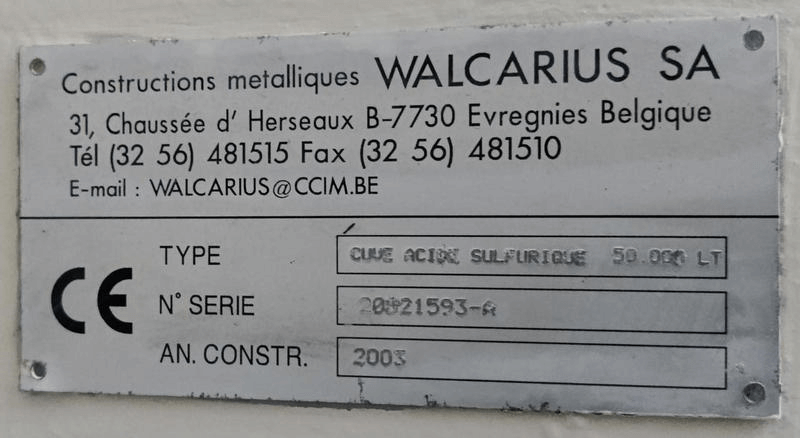

| Type plate manufacturer | Yes |
| Manufacturer | Walcarius |
| Year Built | 2003 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 5,3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5,9 |
| Periphery (mm) | 10390 |
| Cylindrical length (mm) | 6000 |
| Slope bottom (°) | 1 |
| Total height (mm) | 6590 |
| Length (mm) | 3460 |
| Diameter tank (mm) | 3300 |
| Width (mm) | 3350 |
| Insulation | |
|---|---|
| Insulation | No |
