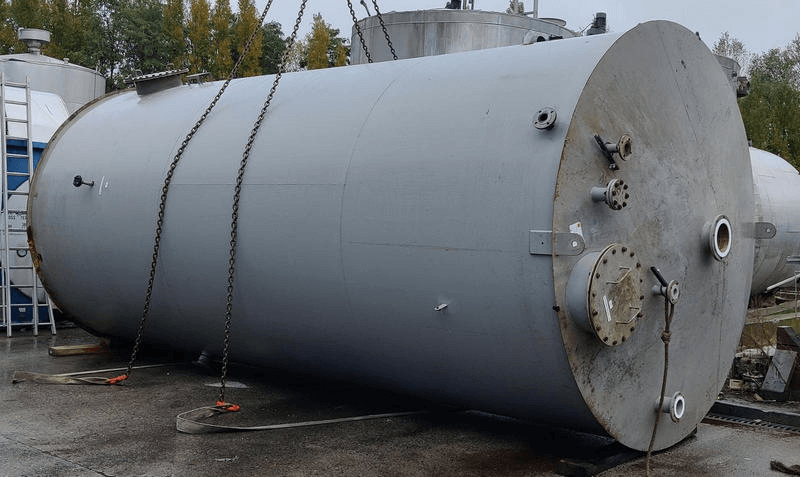

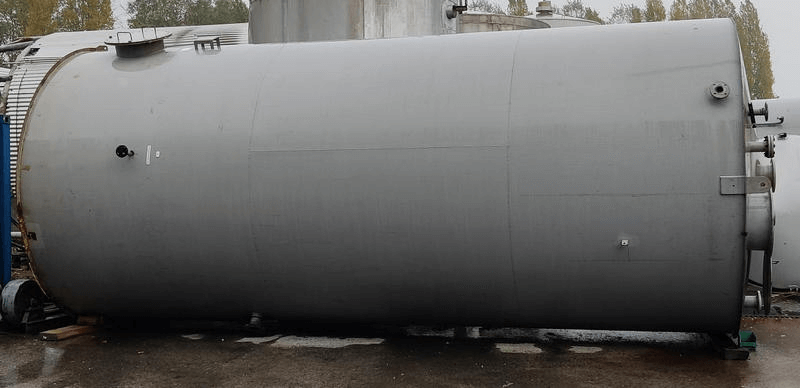

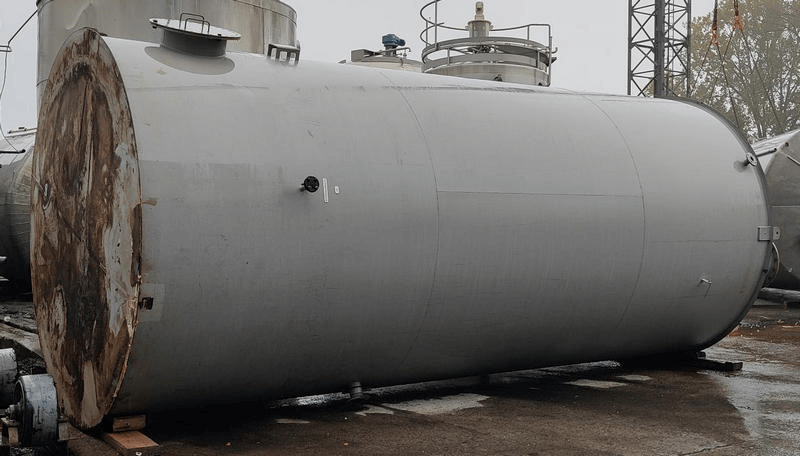

Used storage tank
- Material: Steel
- Condition: Used
- Volume (in litres): 50000 L
- In stock: 1
| General | |
|---|---|
| Item number | 05.43.BR.01 |
| Material | Steel |
| Number | 1 |
| Capacity (Liters) | 50000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

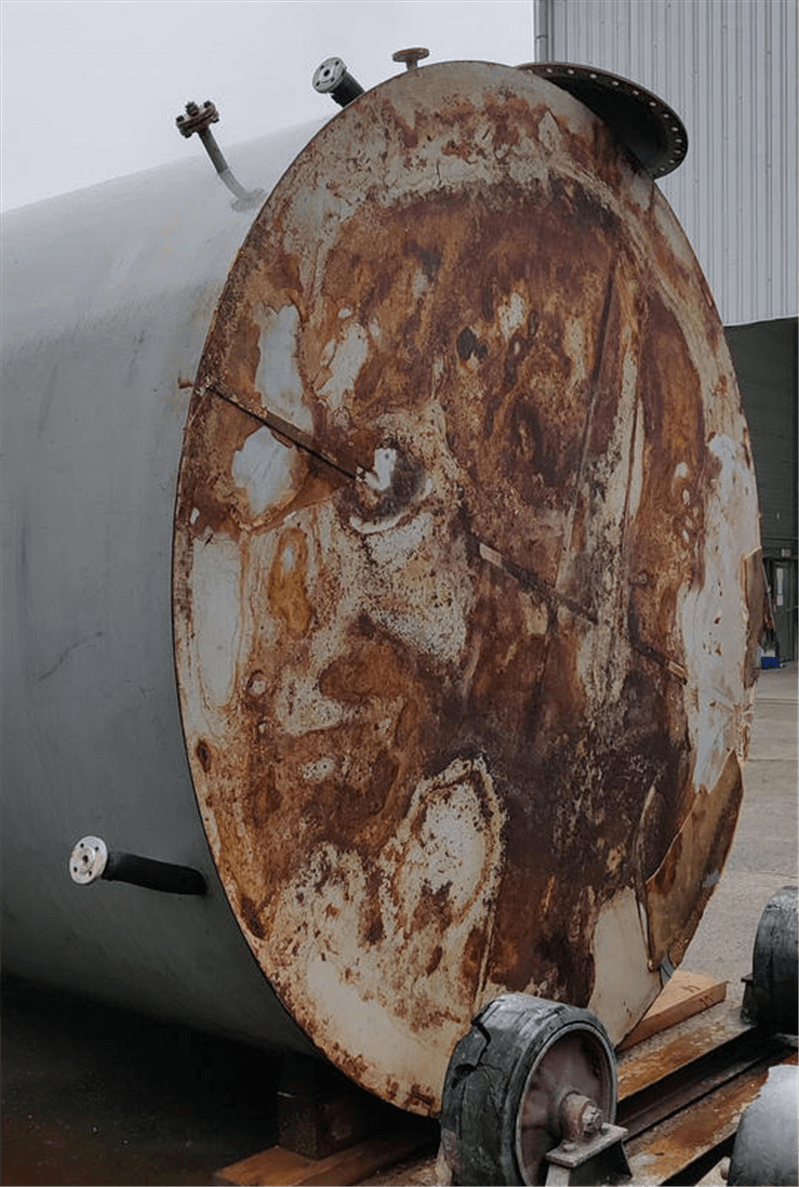

| Bottom | Flat bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

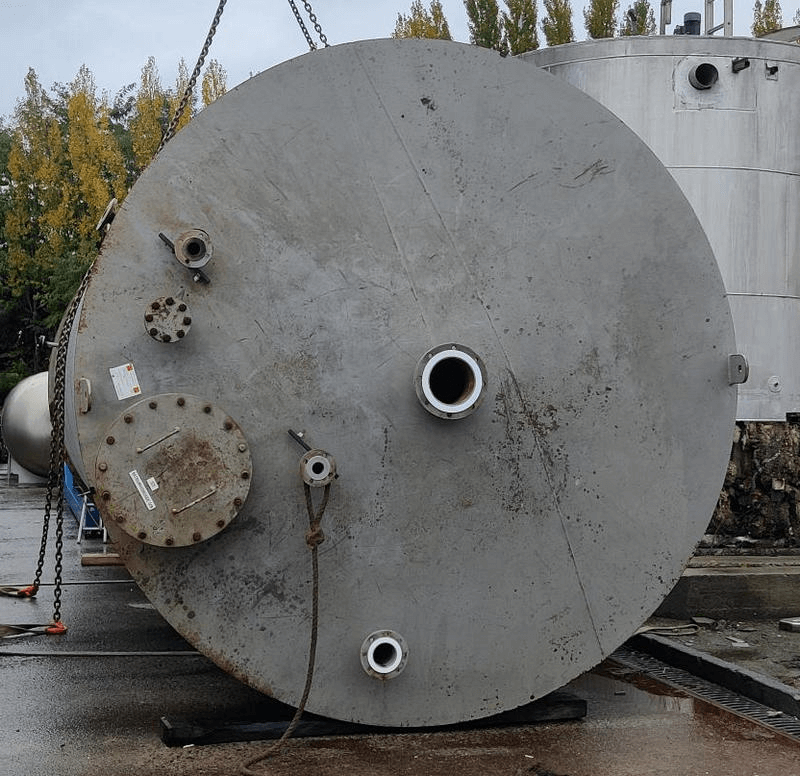

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 500mm (2x) |
| Tank with total drain? | No |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 4000 |
| Condition | Used |

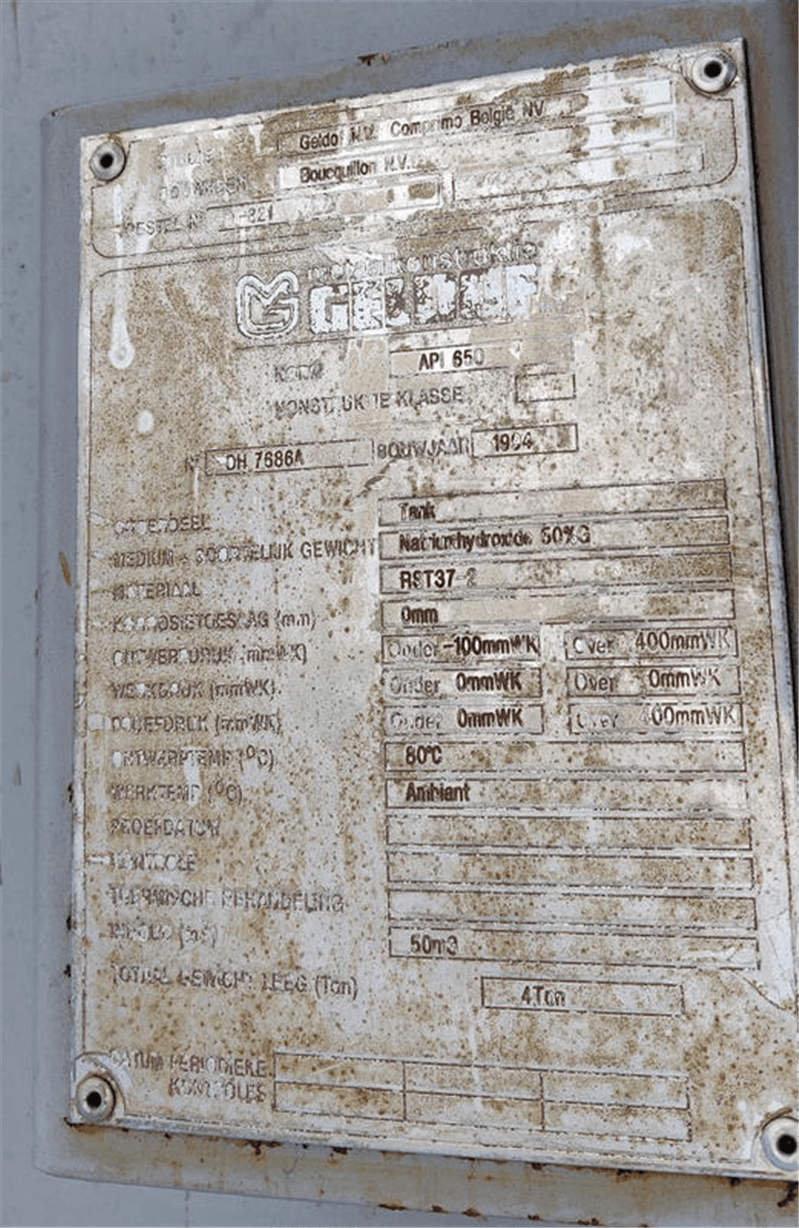

| Type plate manufacturer | Yes |
| Manufacturer | GELDOF |
| Year Built | 1994 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,9 |
| Bottom thickness (mm) | 7 |
| Periphery (mm) | 9780 |
| Cylindrical length (mm) | 7000 |
| Total height (mm) | 7500 |
| Diameter tank (mm) | 3100 |
| Width (mm) | 3250 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |

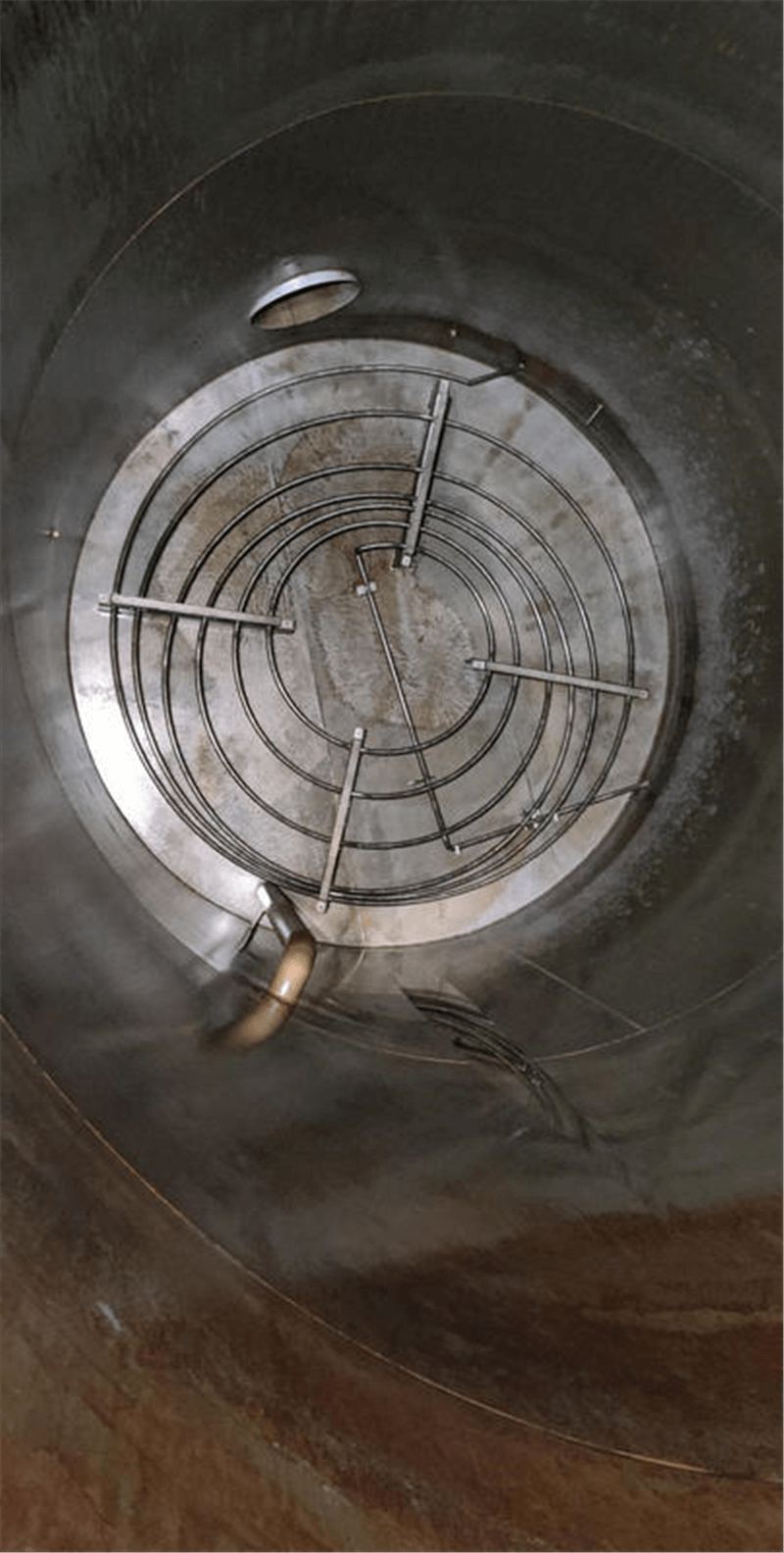

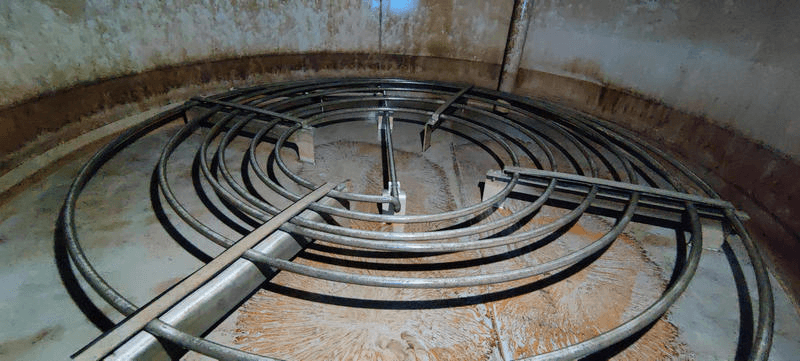

| Heating 1: Type | Heating coil only on the bottom |
| Heating 1: Max. design pressure °C | 80 |
