Used silo
- Material: Aluminium
- Condition: Used
- Volume (in litres): 190000 L
- In stock: 1
| General | |
|---|---|
| Item number | 04.45.KE.12 |
| Material | Aluminium |
| Number | 1 |
| Capacity (Liters) | 190000 |
| Type tank | Silo |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Density (kg/dm³) | 0,6 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Tank with total drain? | Yes |
| locality | On location |
| Weight (kg) | 3900 |
| Condition | Used |

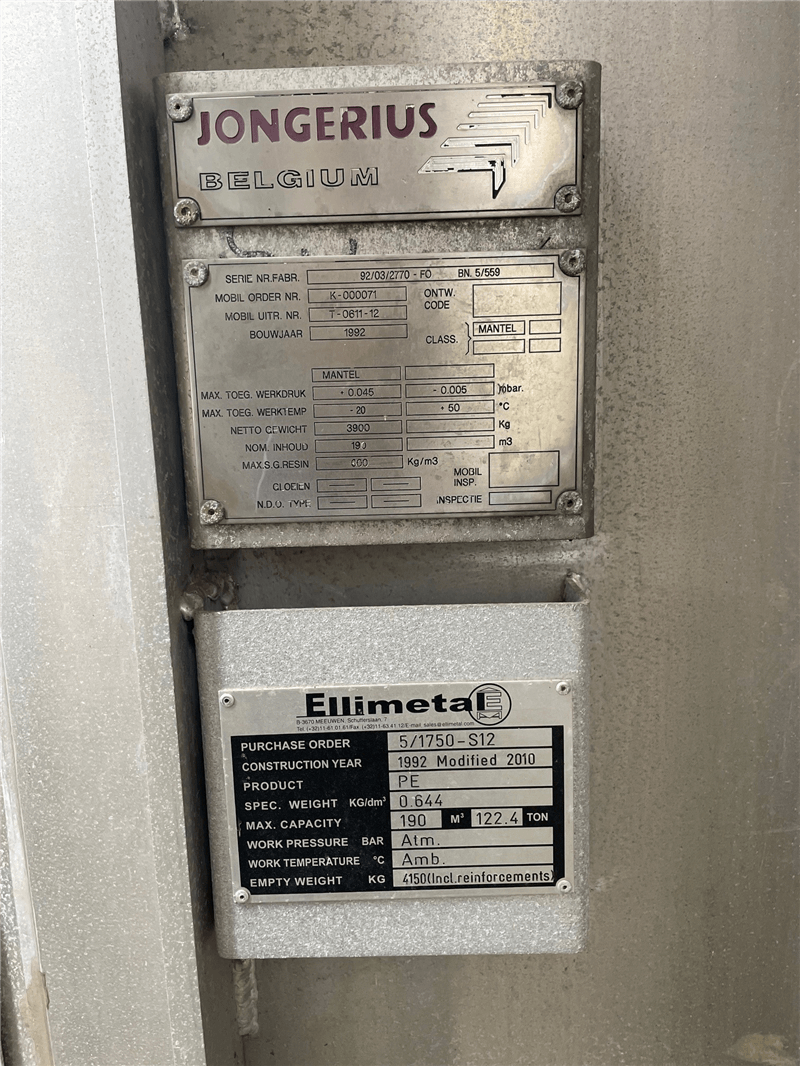

| Type plate manufacturer | Yes |
| Manufacturer | Jongerius Belgium |
| Year Built | 1992 |
| Construction data available | No |
| Appendix 1 | 04454KE01_24_plan123042025103931140538.tif |
| Appendix 2 | 04454KE01_24_plan223042025103937590559.tif |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylindrical length (mm) | 18750 |
| Slope bottom (°) | 69 |
| Height bottom (mm) | 3685 |
| Total height (mm) | 23000 |
| Diameter tank (mm) | 3500 |
| Width (mm) | 3500 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

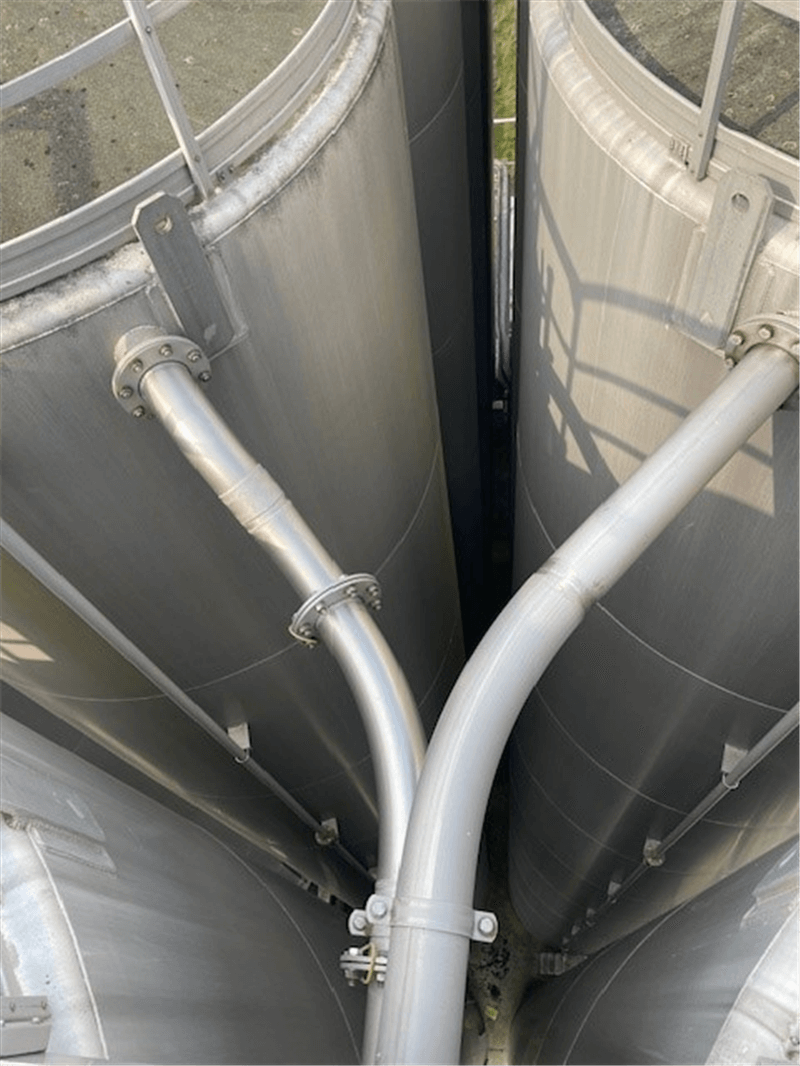

| Description (EN) | With railing - 2 silos with ladder (ladder not included in the price) Max allowed working temperature: -20/+50°C Max allowed working pressure: +0.045 / - 0.005Bar |
