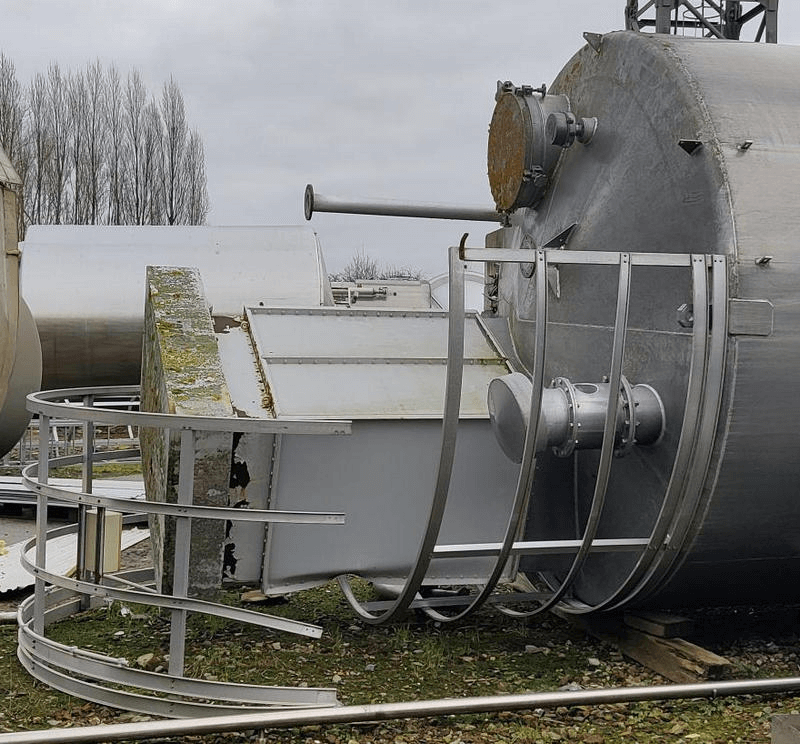

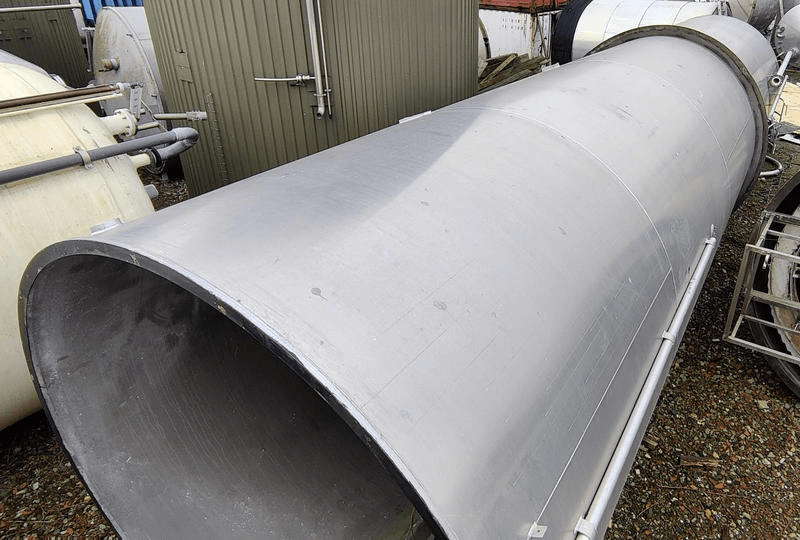

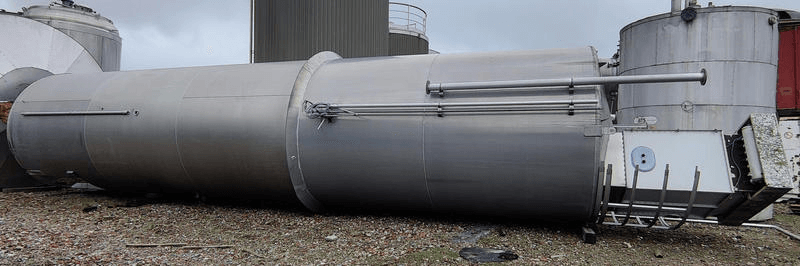

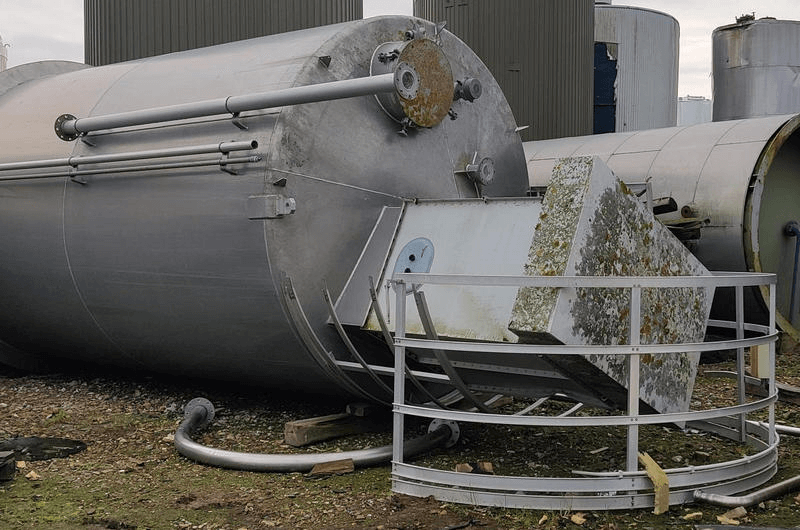

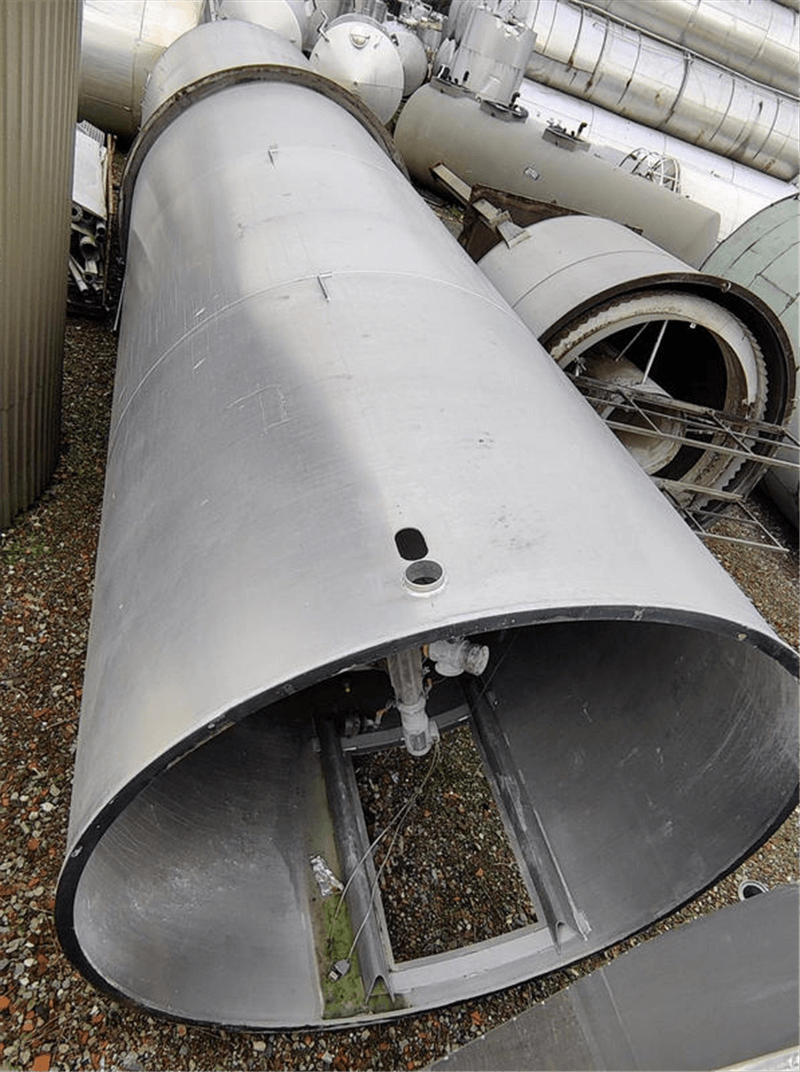

Used silo
- Material: Aluminium
- Condition: Used
- Volume (in litres): 55000 L
- In stock: 1
| General | |
|---|---|
| Item number | 04.44.BA.01 |
| Material | Aluminium |
| Number | 1 |
| Capacity (Liters) | 55000 |
| Type tank | Silo |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Density (kg/dm³) | 1,5 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 570mm |
| Tank with total drain? | Yes |

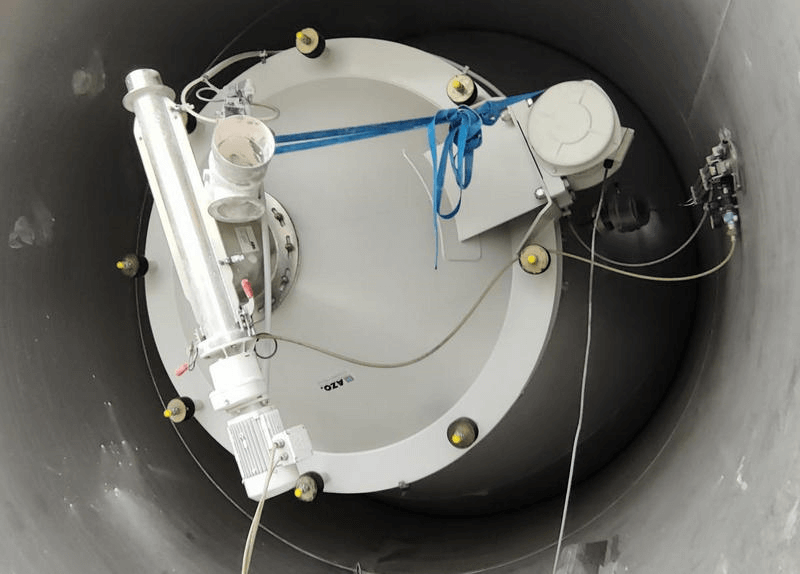

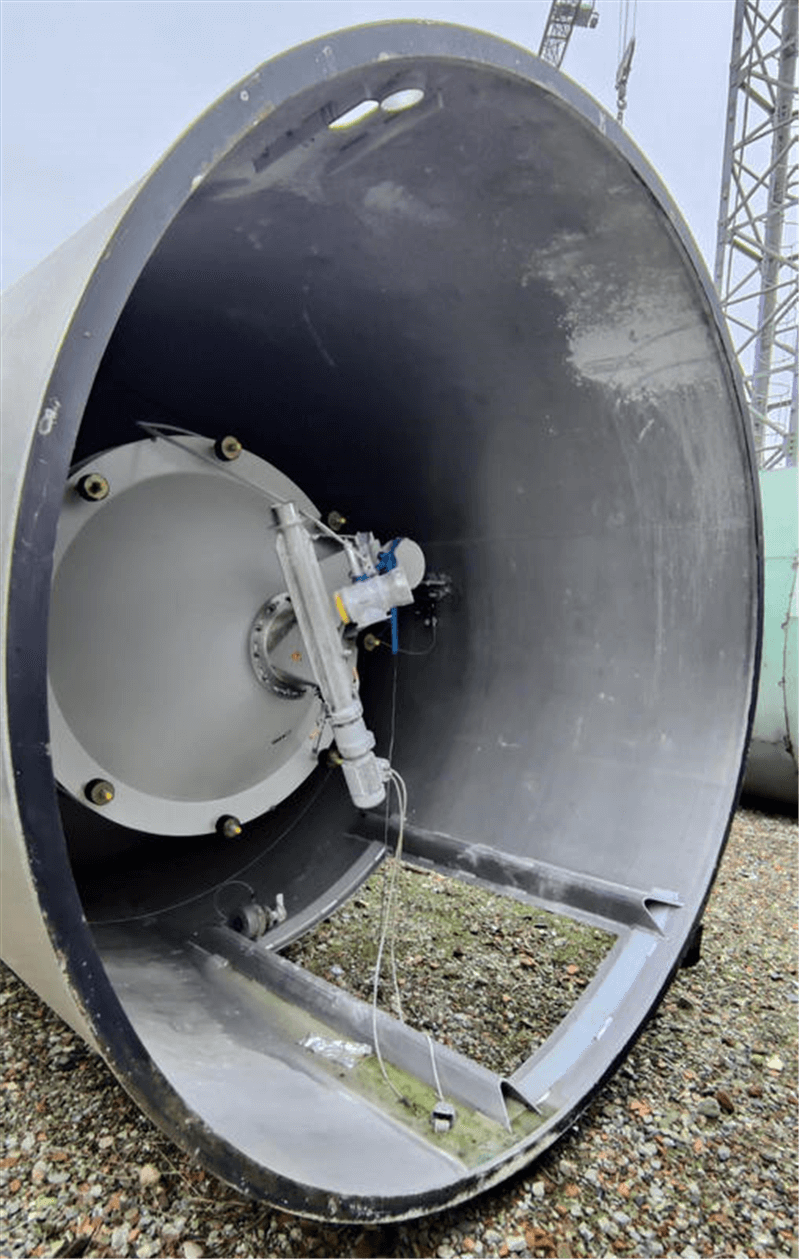

| Type of outlet (s) | transportschroef |
| Diameter of outlet (mm) | 100 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 2800 |
| Condition | Used |

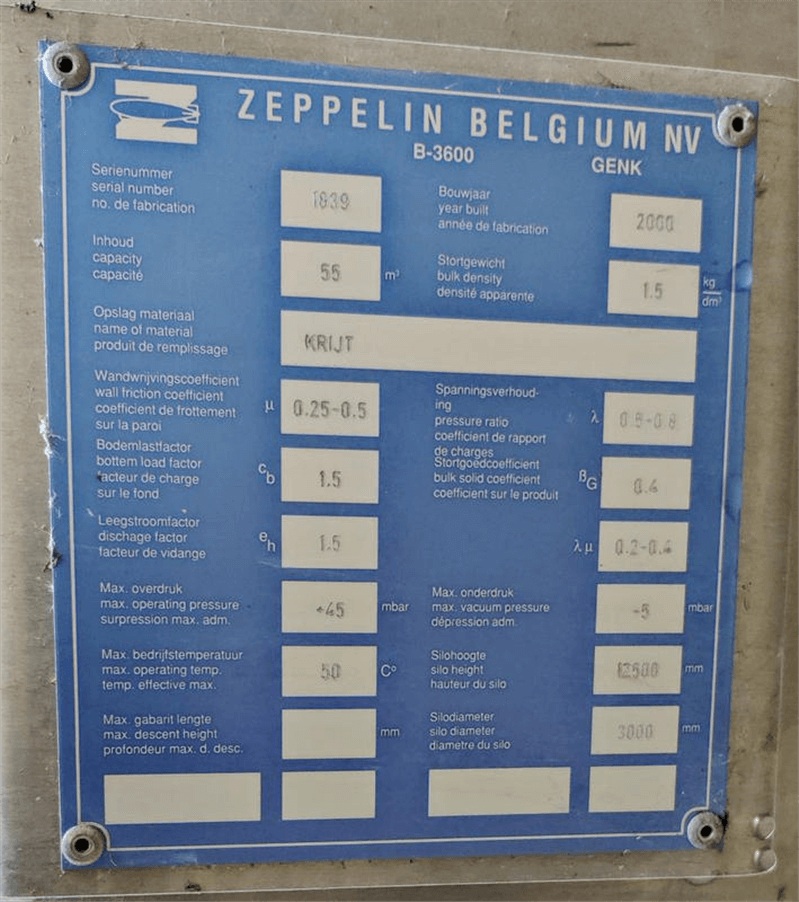

| Type plate manufacturer | Yes |
| Manufacturer | Zeppelin Belgium |
| Year Built | 2000 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,2 |
| Bottom thickness (mm) | 6 |
| Periphery (mm) | 9450 |
| Cylindrical length (mm) | 9150 |
| Height bottom (mm) | 1200 |
| Total height (mm) | 14710 |
| Diameter tank (mm) | 3000 |
| Width (mm) | 3330 |
| Insulation | |
|---|---|
| Insulation | No |
