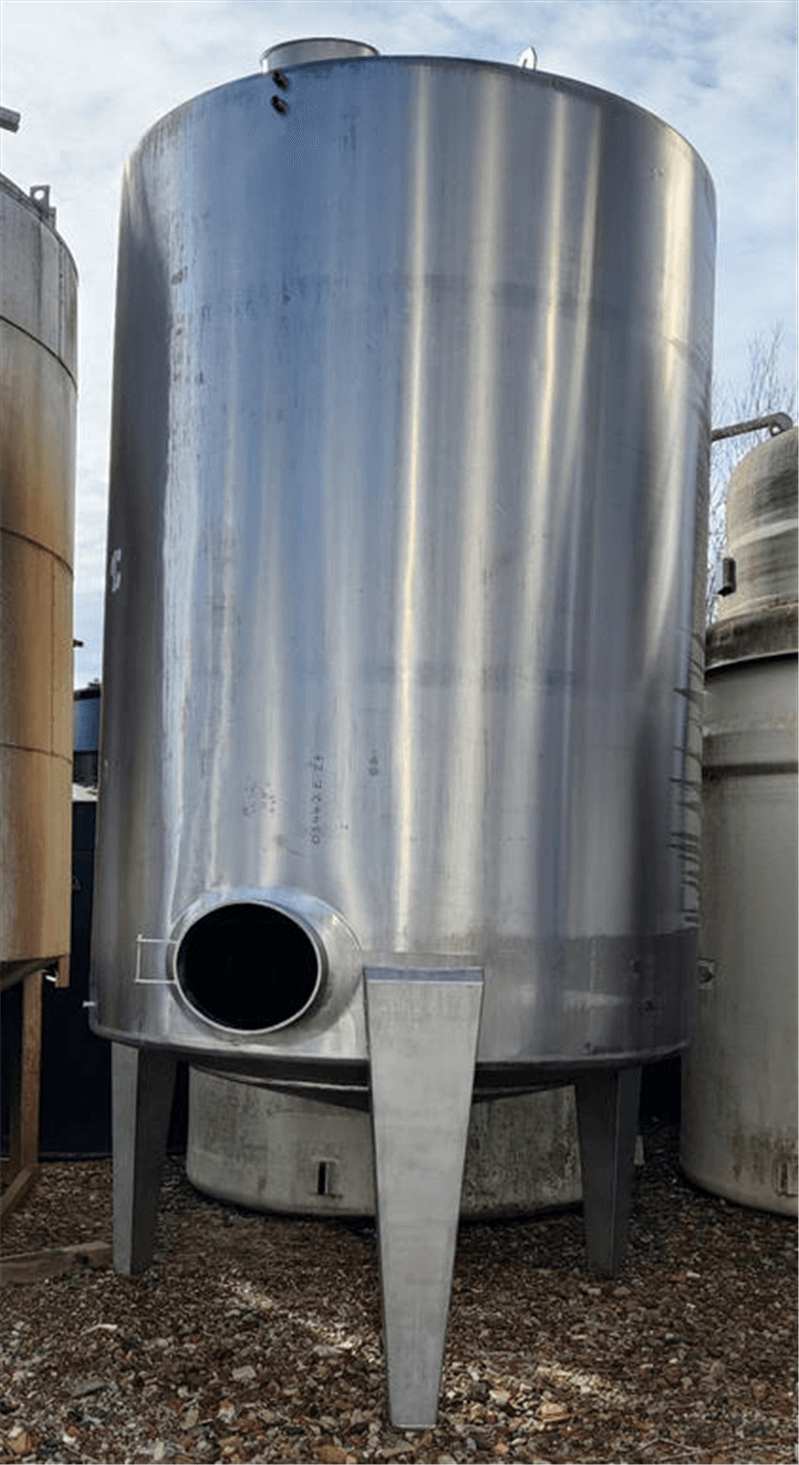

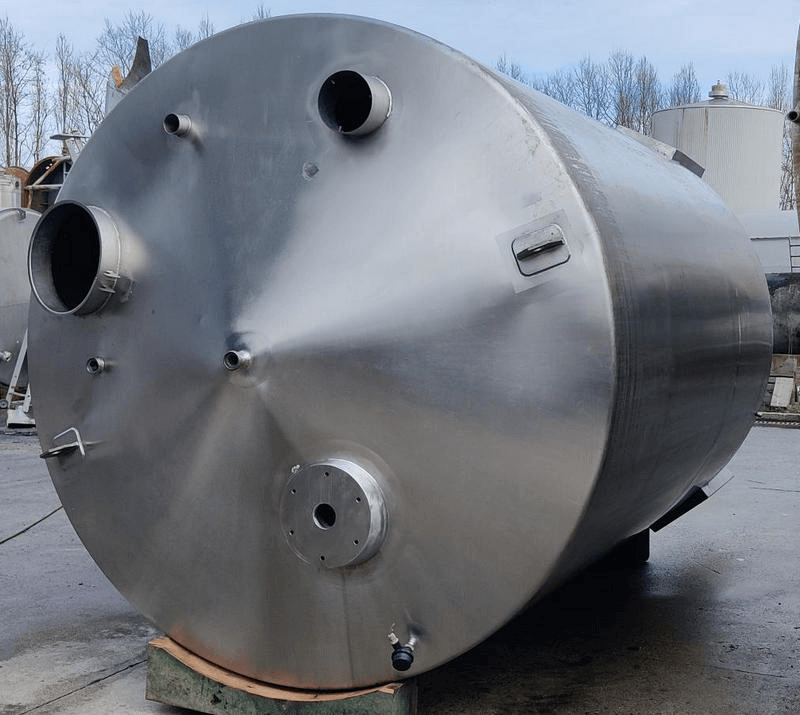

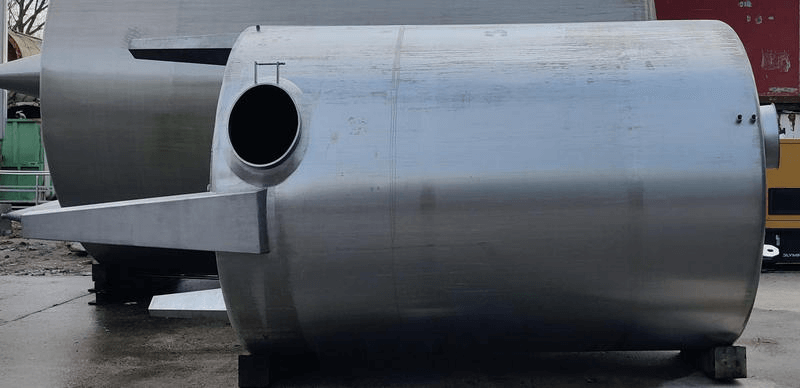

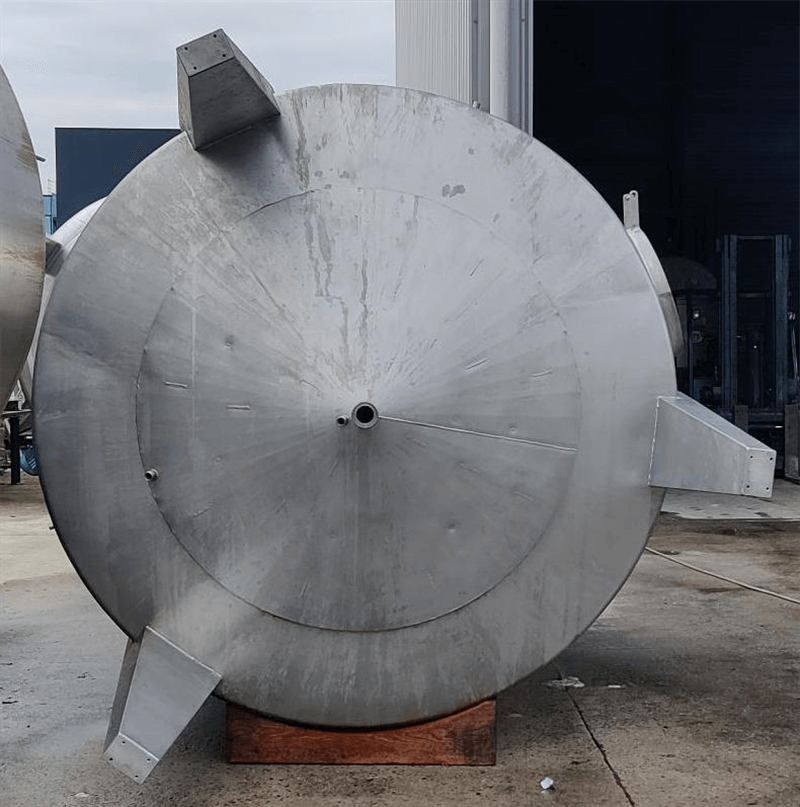

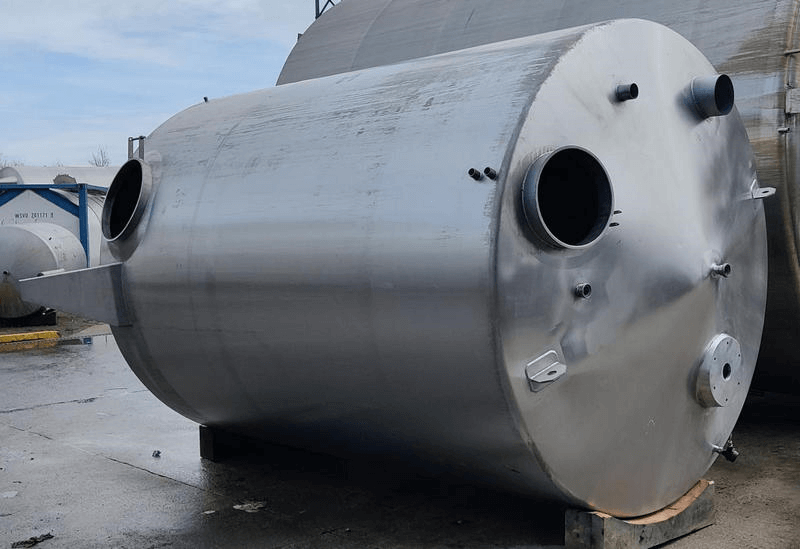

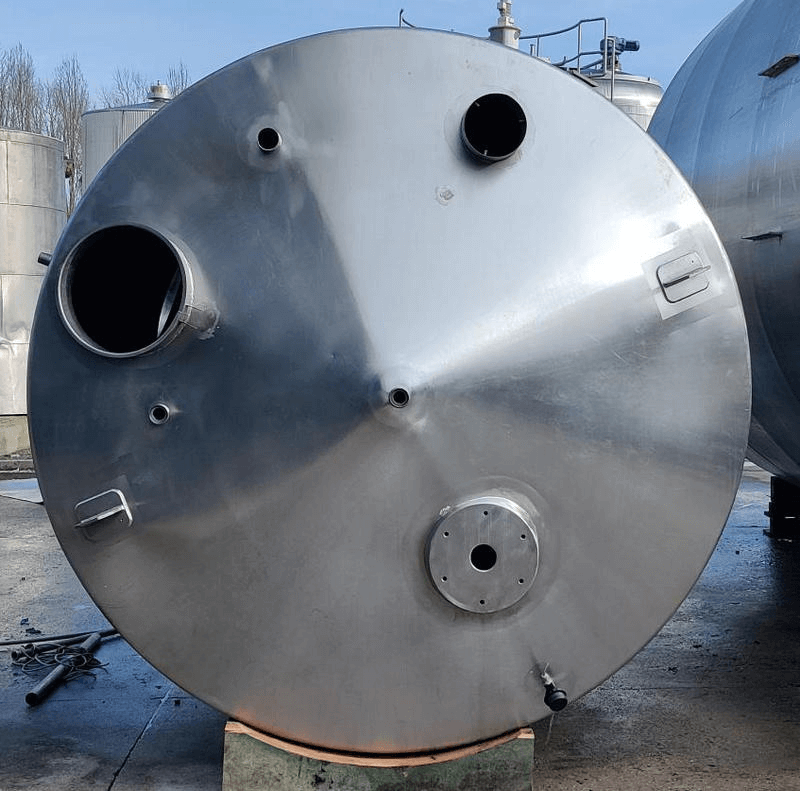

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 15000 L
- In stock: 1
General | |
---|---|
Item number | 03.44.ZE.23 |
Material | Stainless steel 304 |
Finishing weldings inside | Grinded |
Number | 1 |
Capacity (Liters) | 15000 |
Type tank | Storage tank |
Fixation | 3 legs |
Model of the tank | Vertical |
Shape of the tank | Cylindrical |
Bottom | Conical bottom |
Tank model | Jacketed (Heating/Cooling) |
Number lifting lugs | 2 |
Number of manhole | 2 |
Position of manhole (s) | Top and Cylindrical part |
Dimensions of manholes | 400x510mm / dia 390mm |
Tank with total drain? | Yes |
Type of outlet (s) | voedingskoppeling |
Diameter of outlet (mm) | 60 |
locality | B-7711 Belgium |
Last application | Food |
Provision tank cleaning | Rotating spray head |
Weight (kg) | 1000 |
Condition | Used |
Type plate manufacturer | No |
Top side | |
---|---|
Configuration top-side | Closed |
Detail closed top side | Conical bottom |
Thickness closed dome (mm) | 2,5 |
Dimensions | |
---|---|
Cylinder Thickness (mm) | 2,6 |
Bottom thickness (mm) | 3 |
Periphery (mm) | 7500 |
Cylindrical length (mm) | 3200 |
Height bottom (mm) | 400 |
Outside diameter tank (mm) | 2390 |
Total height (mm) | 4800 |
Length (mm) | 2470 |
Diameter tank (mm) | 2385 |
Width (mm) | 2390 |
Insulation | |
---|---|
Insulation | No |
Heating | |
---|---|
Number of heating type | 1 |
Heating 1: Type | jacket au bain-marie |
