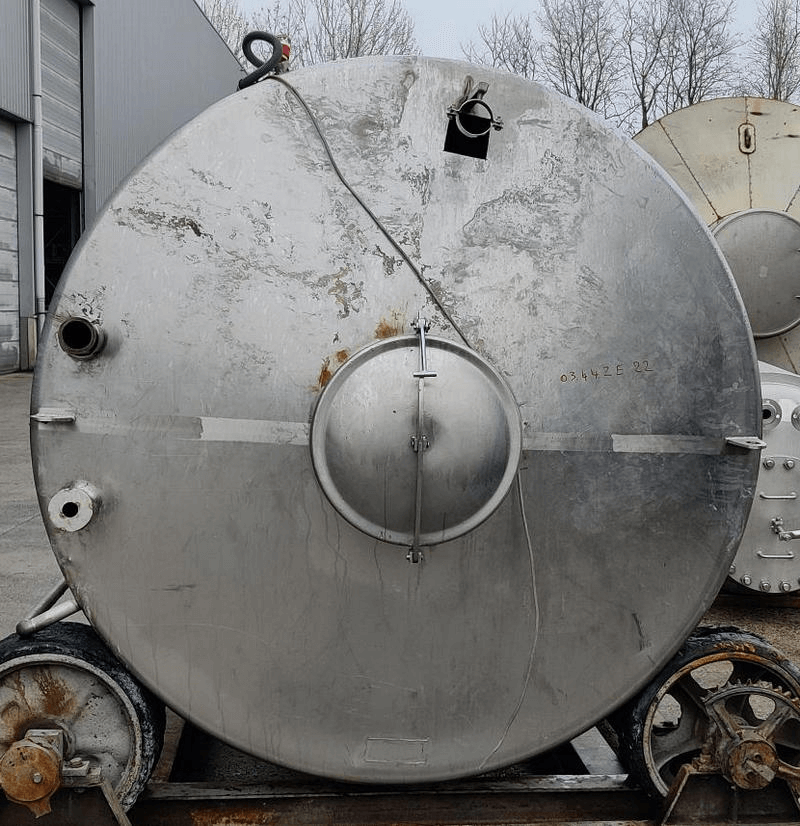

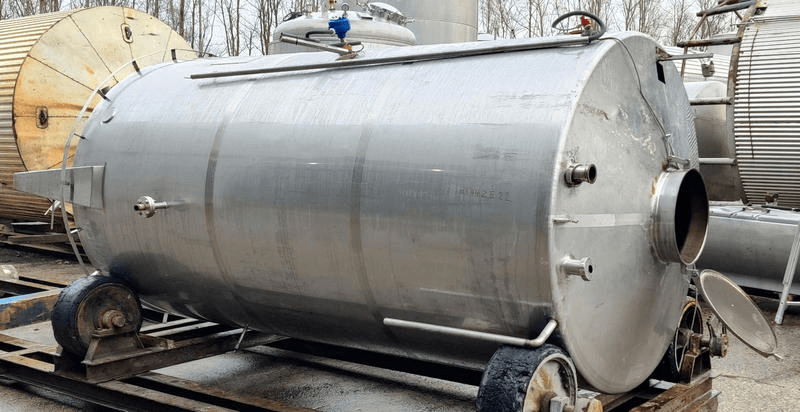

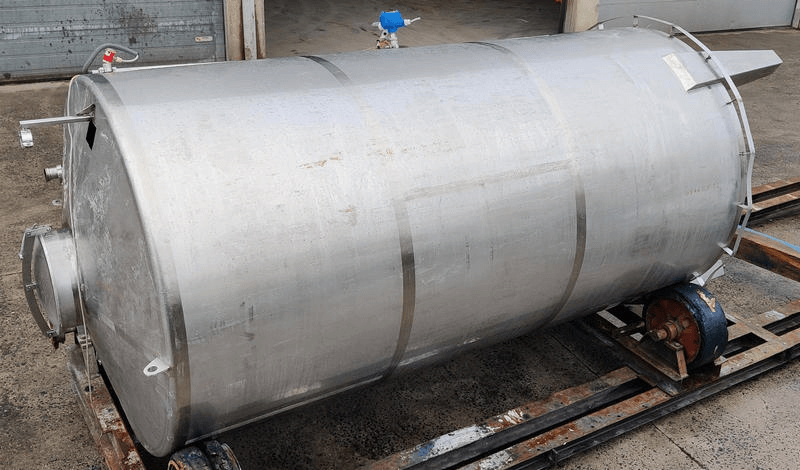

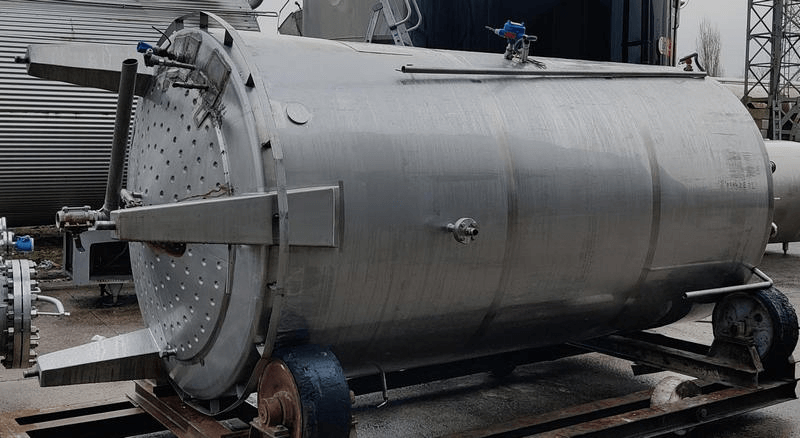

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 8000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.ZE.22 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 8000 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 425mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | 2" BSP (F) |
| Diameter of outlet (mm) | manuele bolklep |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 800 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Bottom thickness (mm) | 2,2 |
| Periphery (mm) | 5480 |
| Cylindrical length (mm) | 3250 |
| Height bottom (mm) | 250 |
| Outside diameter tank (mm) | 1745 |
| Total height (mm) | 4300 |
| Length (mm) | 2015 |
| Diameter tank (mm) | 1740 |
| Width (mm) | 1895 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |

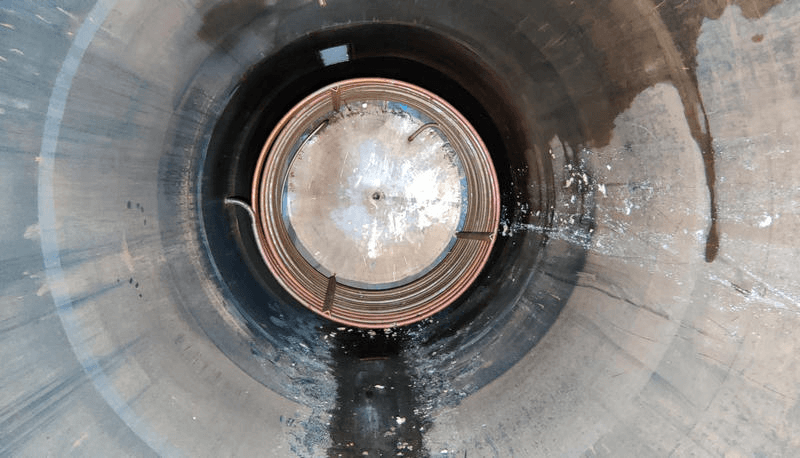

| Heating 1: Type | Heating coil on part of the cylinder |
| Remarks | |
|---|---|

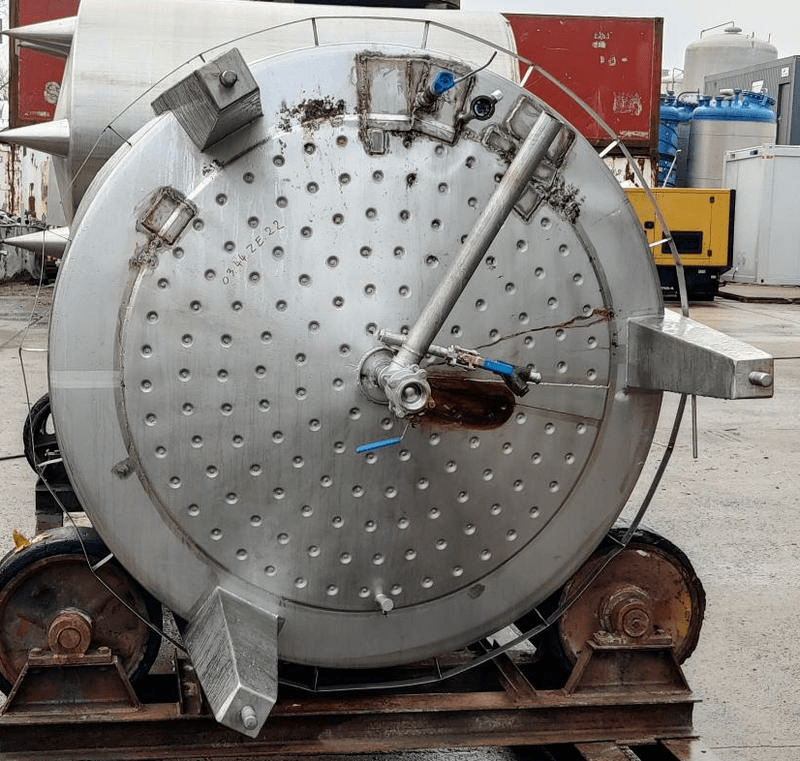

| Description (EN) | Heatable with serpentin on part of the cylinder. Dimple plate no longer usable. Inside of tank to be restored. |
