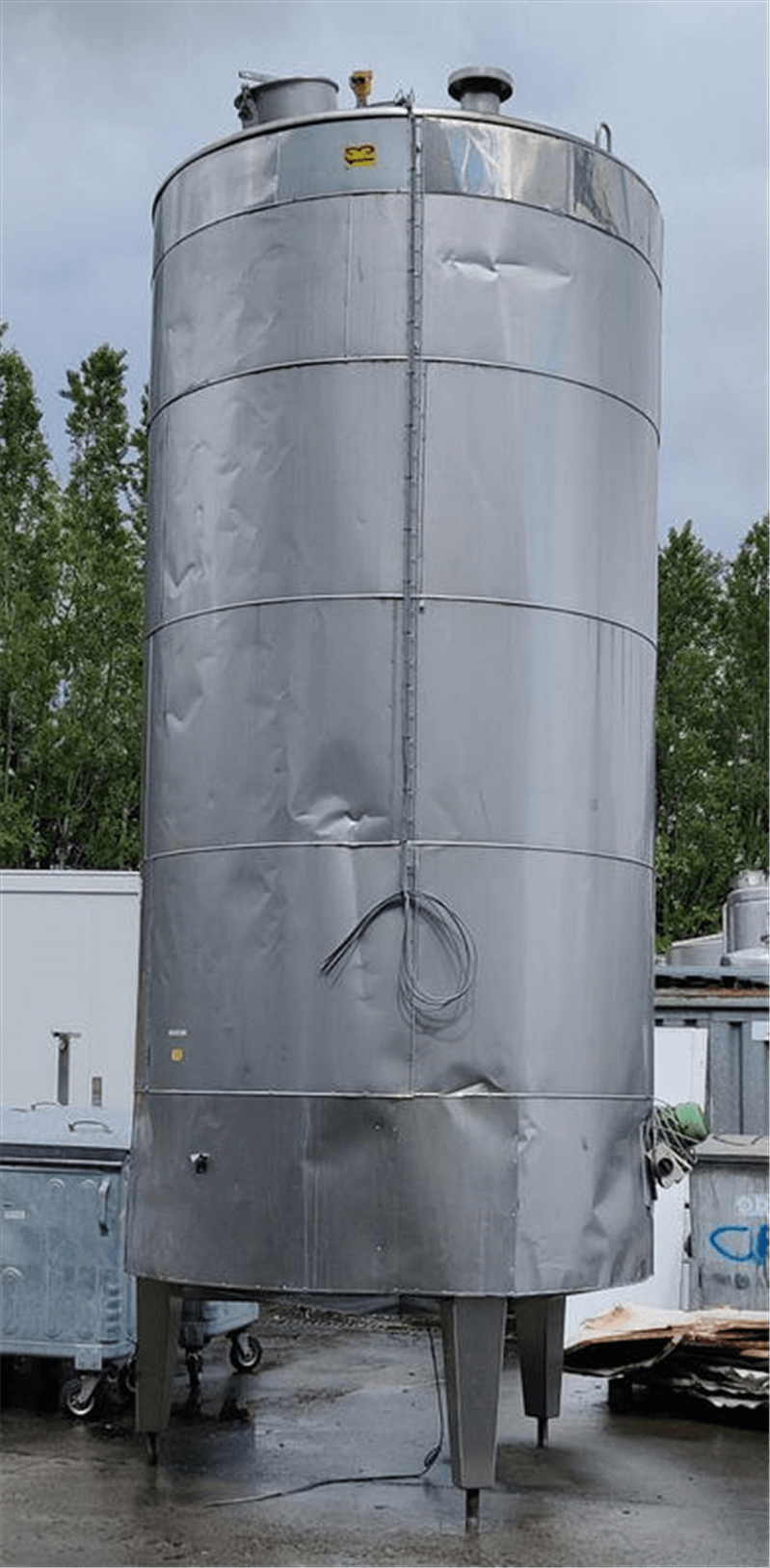

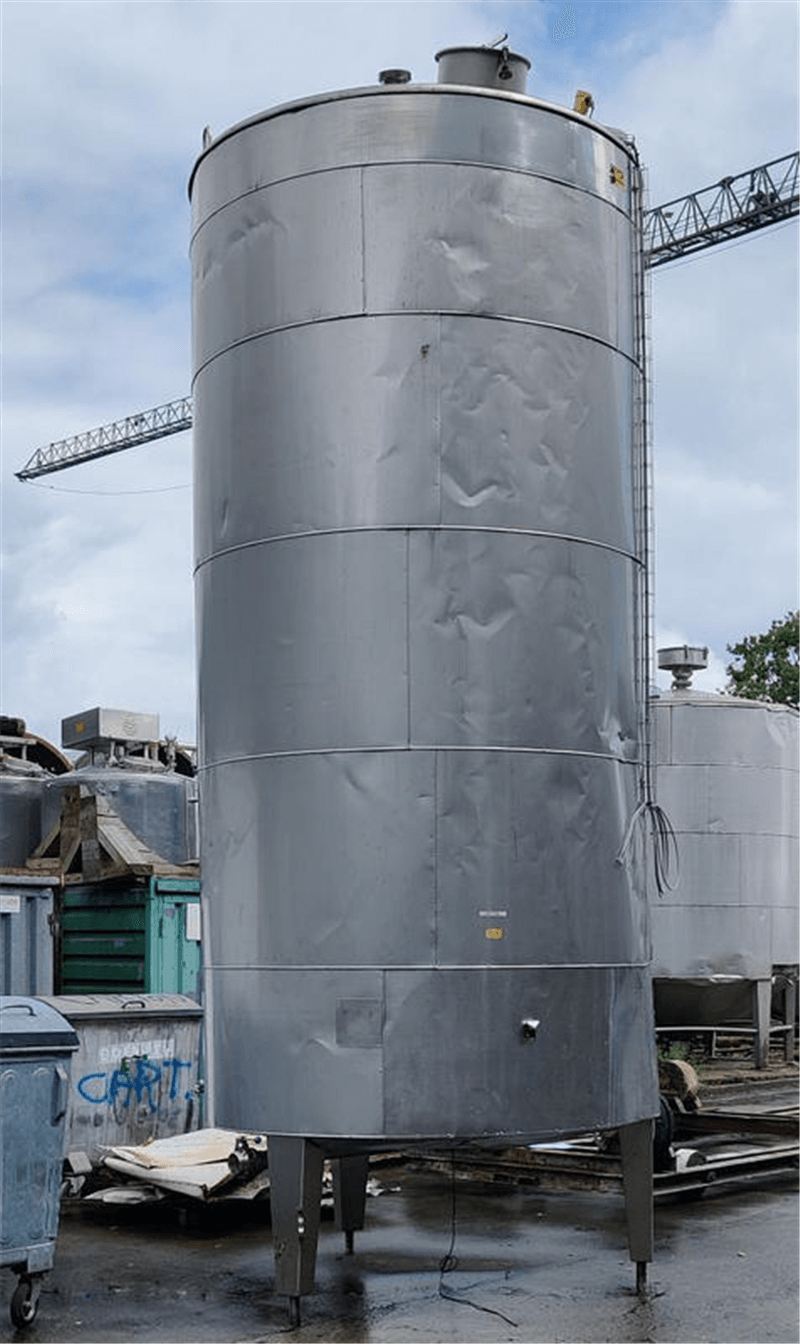

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 15000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.XY.08 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 15000 |
| Type tank | Mixing vessel |

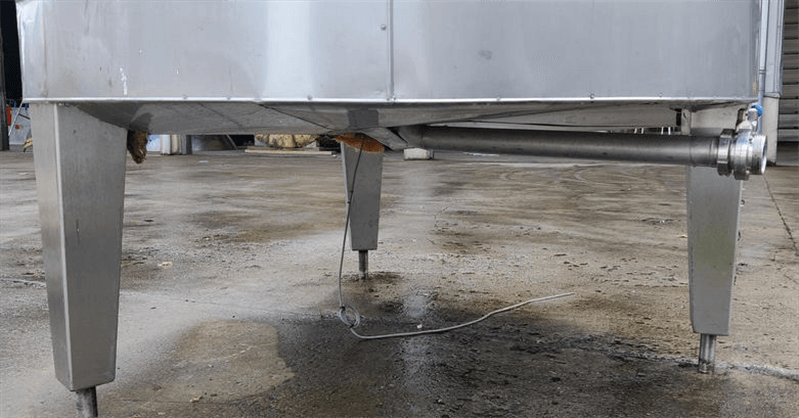

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

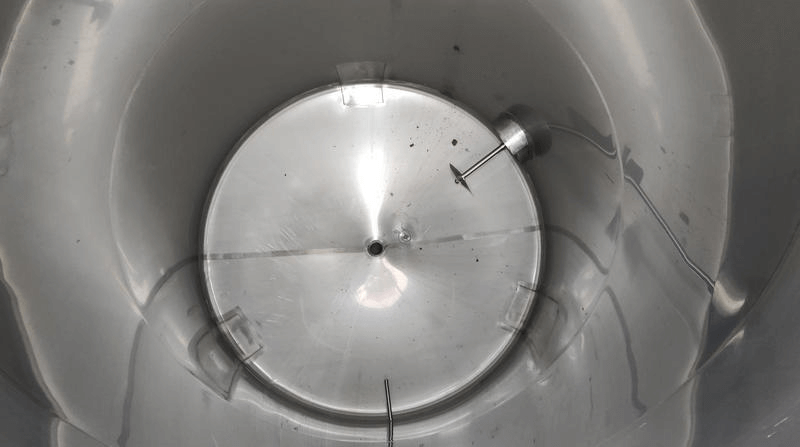

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 400mm |
| Tank with total drain? | Yes |

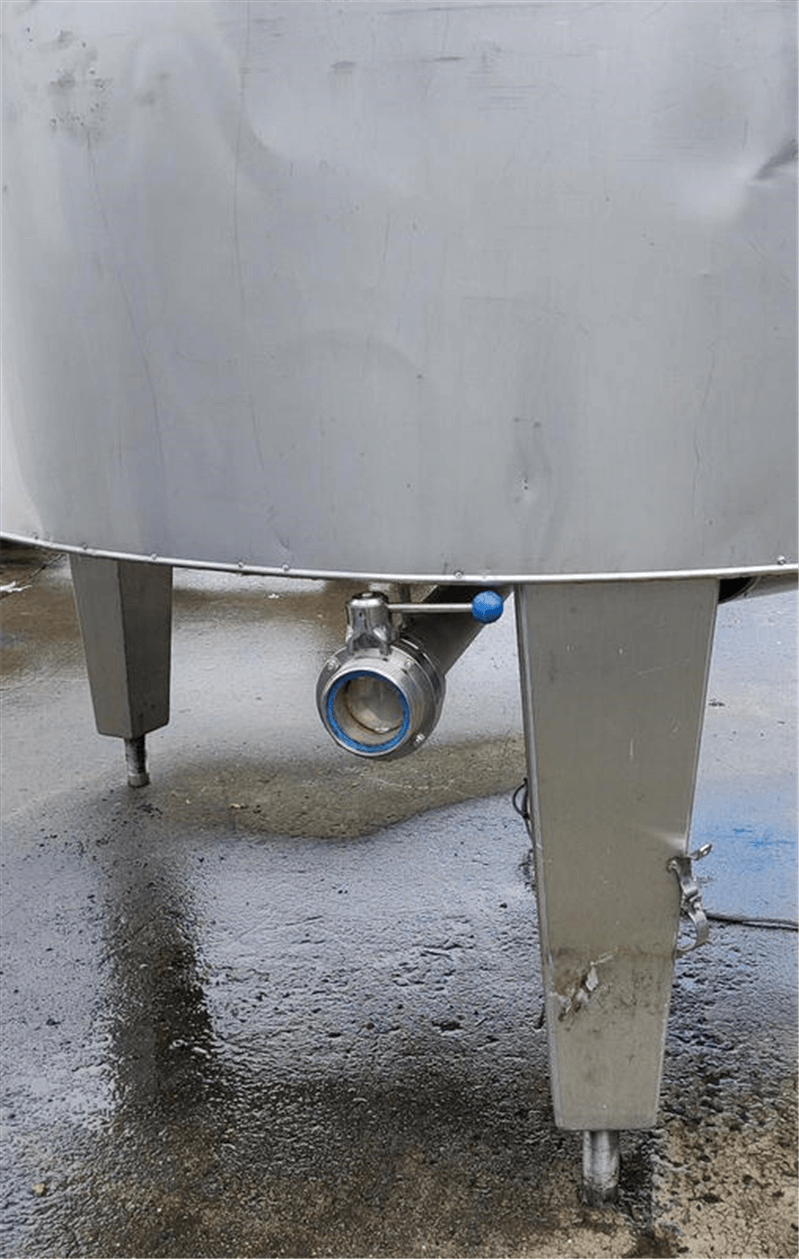

| Type of outlet (s) | voedingskoppeling |
| Diameter of outlet (mm) | 80 (manuele vlinderklep) |
| locality | B-7711 Belgium |

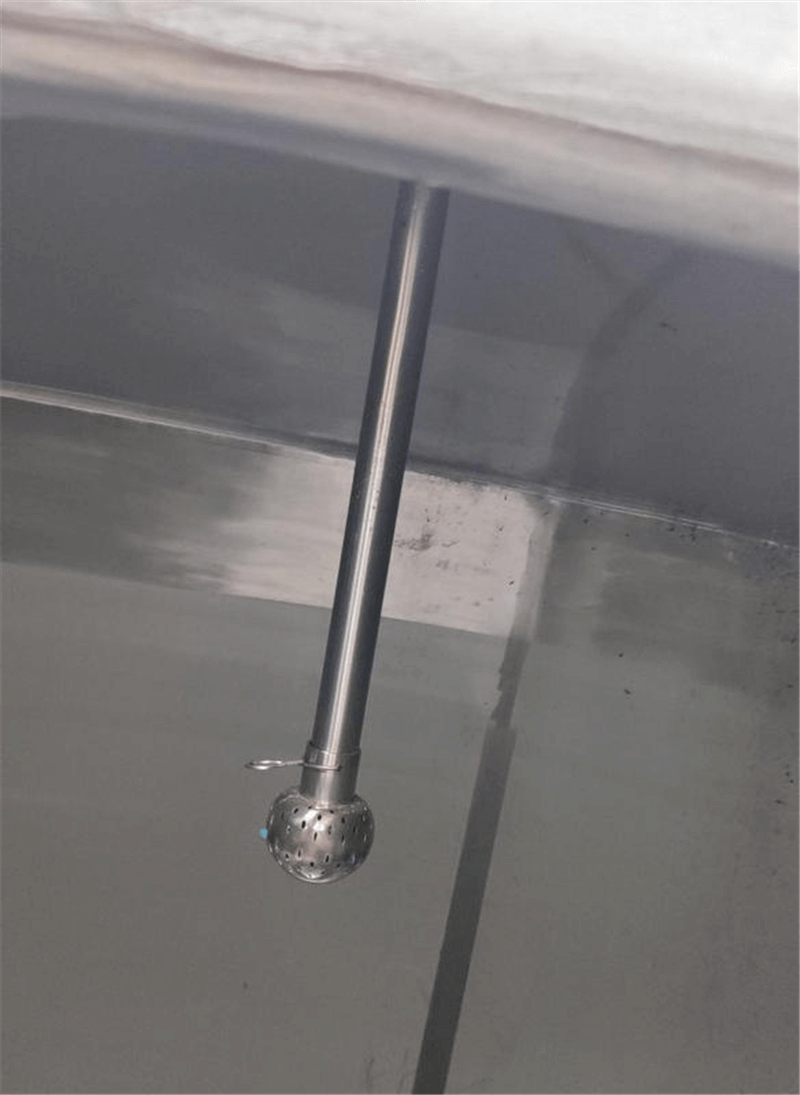

| Provision tank cleaning | CIP ball |
| Weight (kg) | 1800 |
| Condition | Used |
| Type plate manufacturer | No |

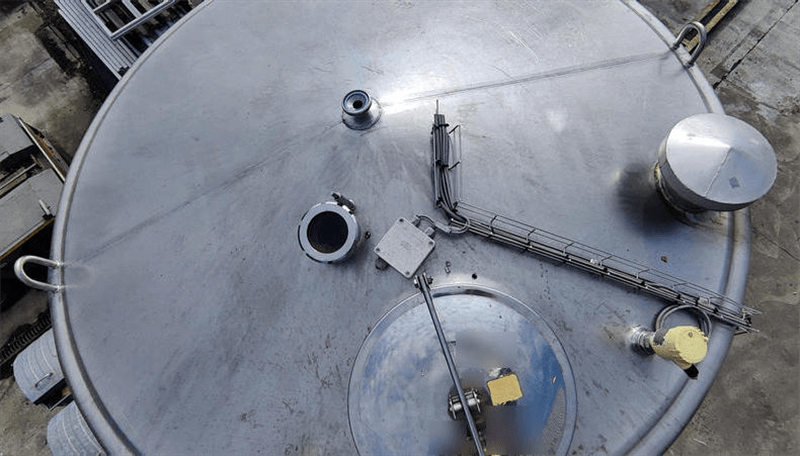

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,4 |
| Bottom thickness (mm) | 2,5 |
| Periphery (mm) | 6970 |
| Cylindrical length (mm) | 4200 |
| Height bottom (mm) | 300 |
| Outside diameter tank (mm) | 2220 |
| Total height (mm) | 5810 |
| Length (mm) | 2470 |
| Diameter tank (mm) | 2115 |
| Width (mm) | 2220 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | Rivited sheet cladding |
| Agitators | |
|---|---|
| Number of agitators | 1 |

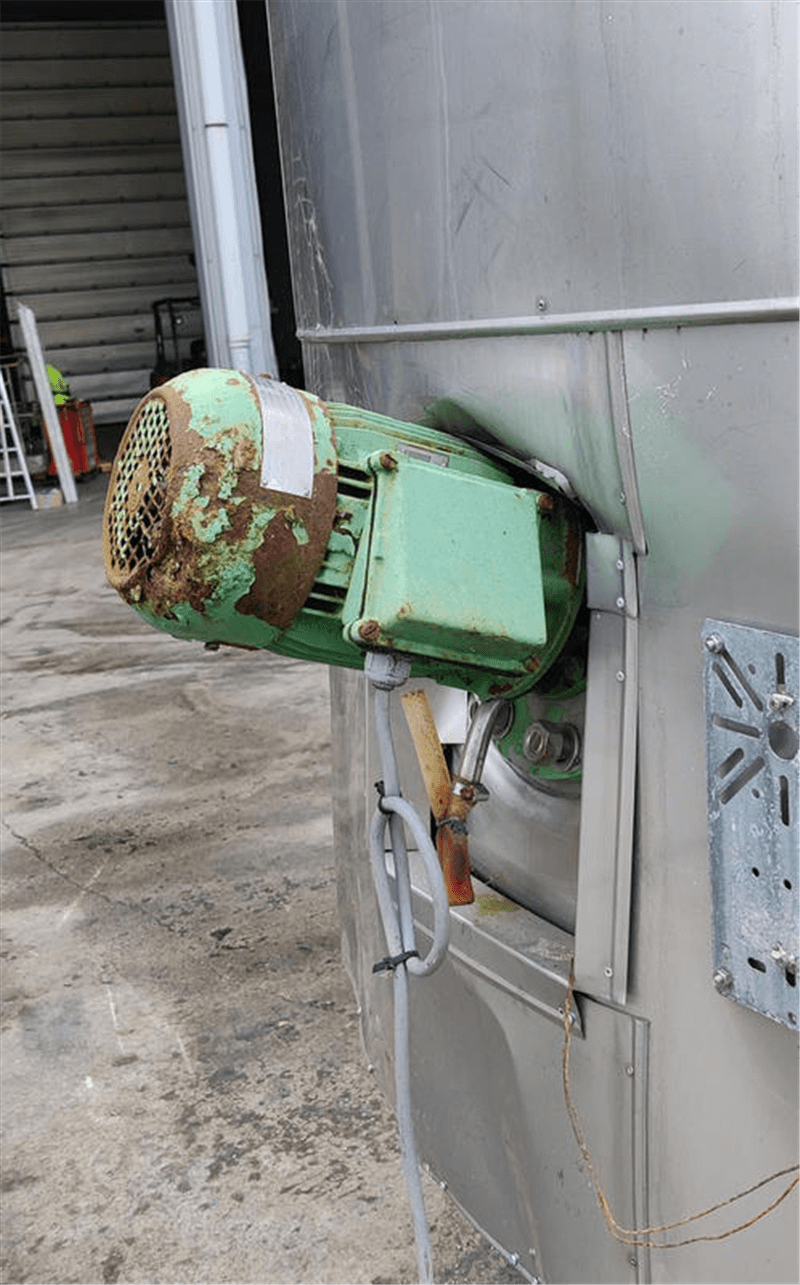

| Agitator 1: Type | Fast rotating mixer |

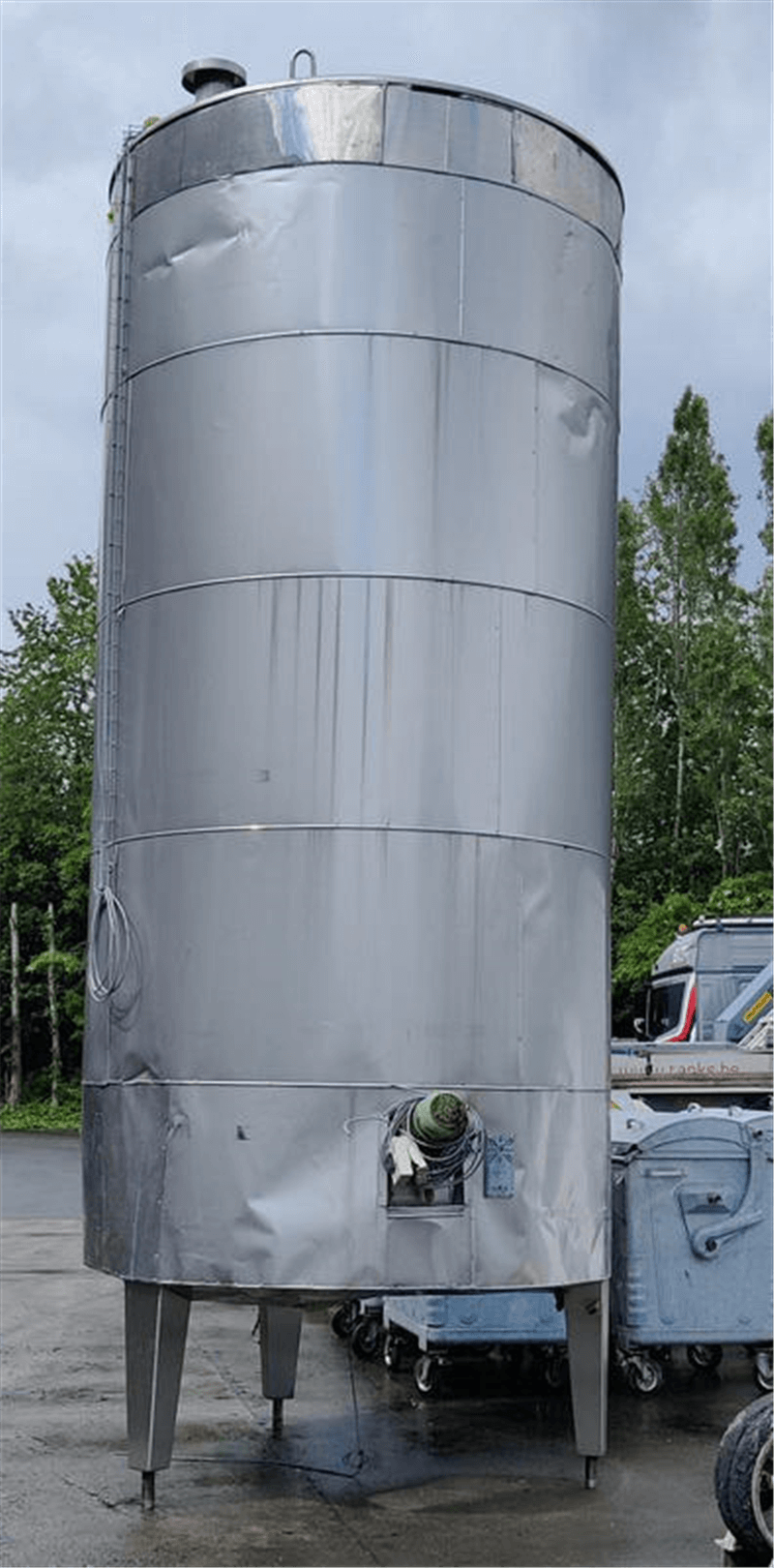

| Agitator 1: Position | Side -entry |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 700 |

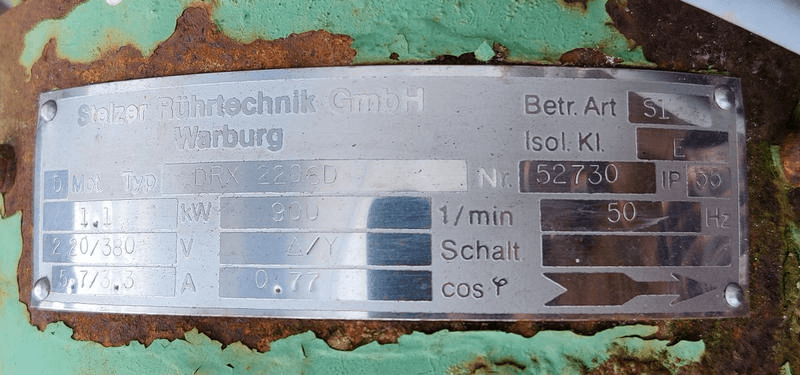

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 230V/380V |
| Agitator 1: Power (kw) | 1,1 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 900 |
