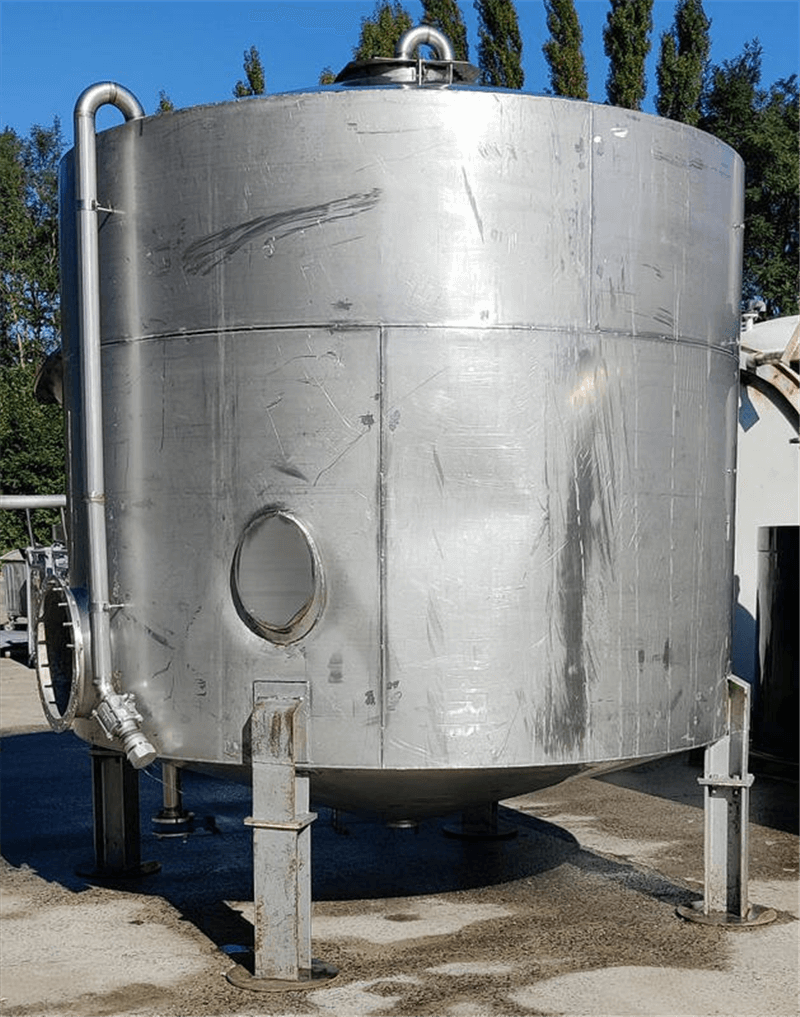

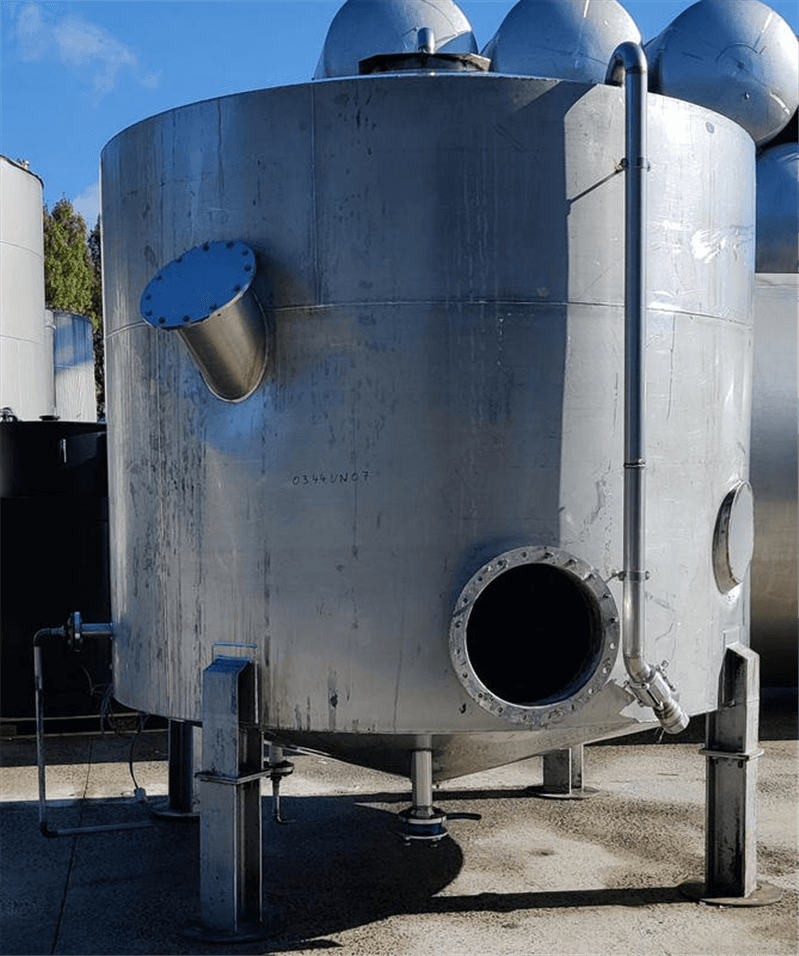

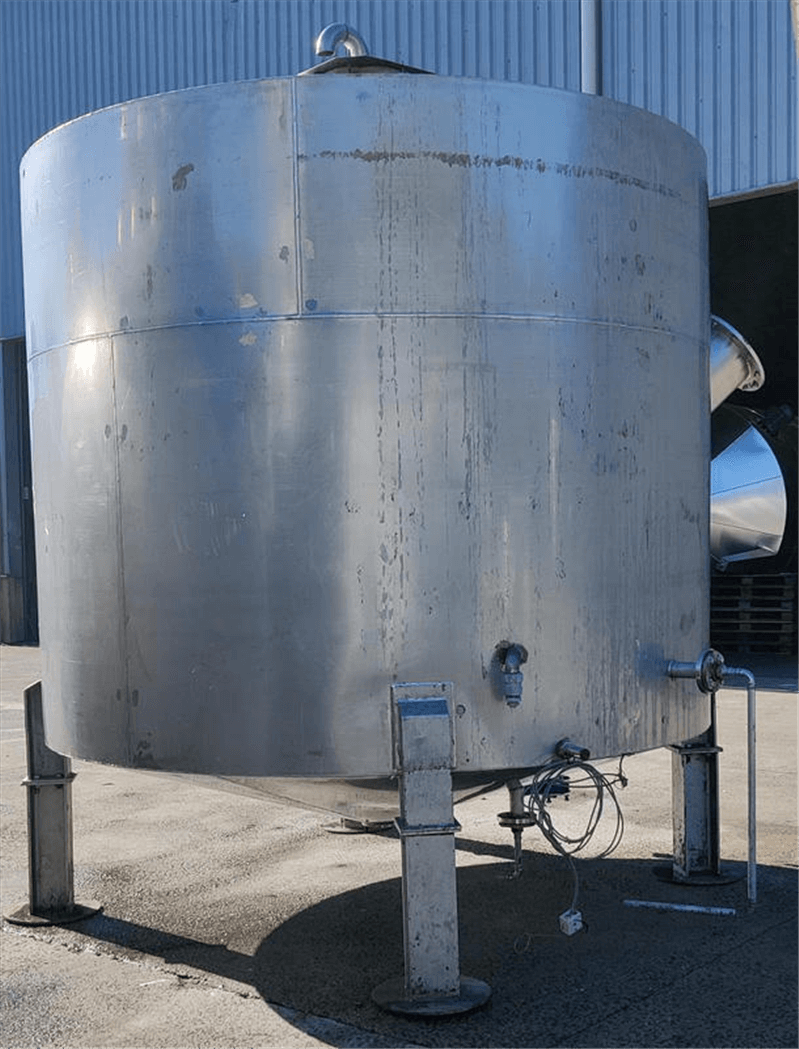

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 15500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.UN.07 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 15500 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

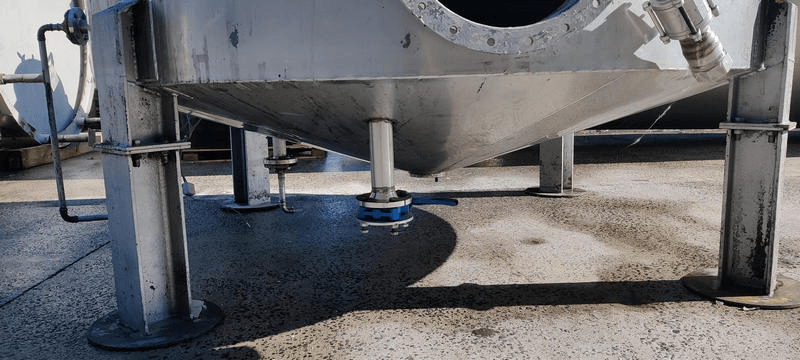

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | dia 500mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 60 |
| locality | B-7711 Belgium |
| Last application | Oil / grease |
| Provision tank cleaning | None |
| Weight (kg) | 1550 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|

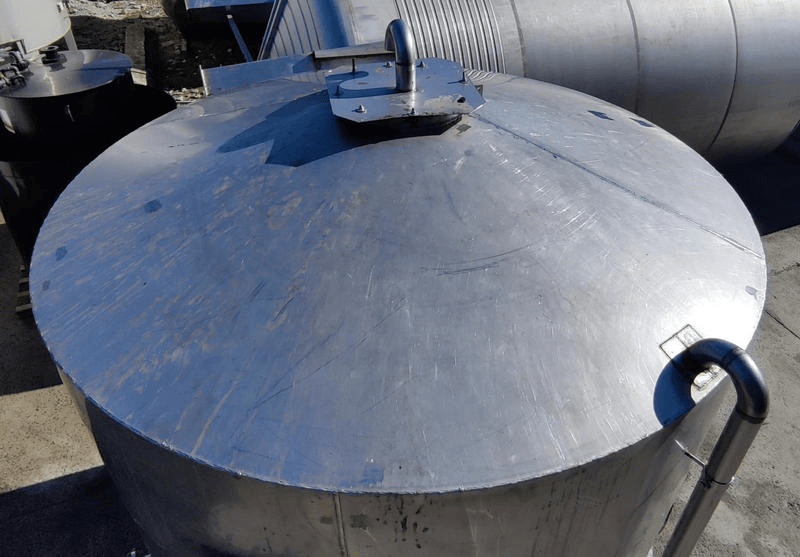

| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 3,8 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,9 |
| Bottom thickness (mm) | 4,3 |
| Periphery (mm) | 8840 |
| Cylindrical length (mm) | 2250 |
| Height bottom (mm) | 400 |
| Total height (mm) | 3550 |
| Length (mm) | 3390 |
| Diameter tank (mm) | 2805 |
| Width (mm) | 2945 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |

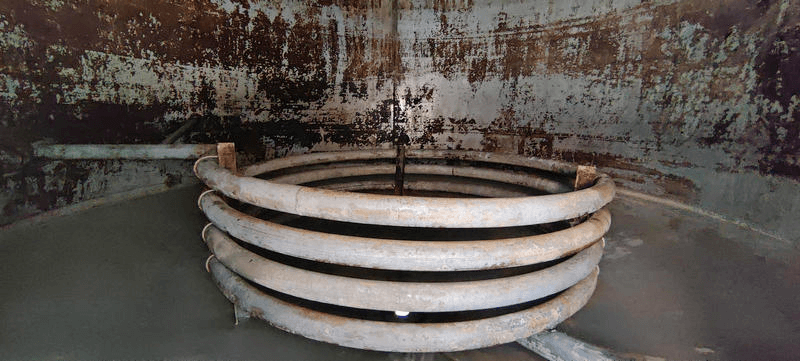

| Heating 1: Type | Heating coil on bottom and cylinder |
