Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 15500 L
- In stock: 1
General | |
---|---|
Item number | 03.44.UN.06 |
Material | Stainless steel 316 |
Finishing weldings inside | Raw brushed |
Number | 1 |
Capacity (Liters) | 15500 |
Type tank | Storage tank |
Fixation | 4 legs |
Model of the tank | Vertical |
Shape of the tank | Cylindrical |

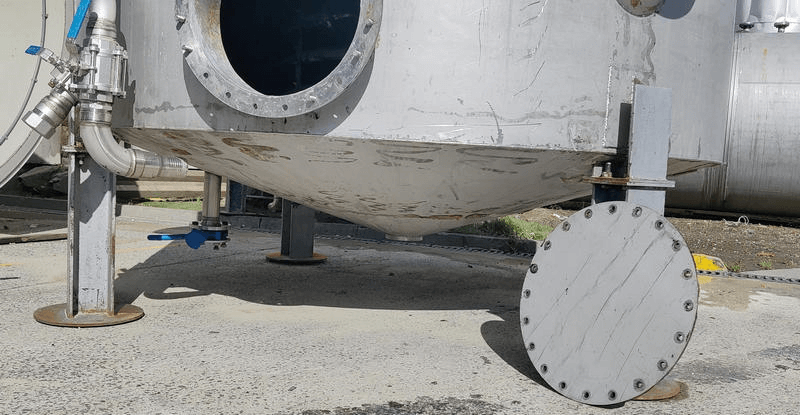

Bottom | Conical bottom |
Tank model | Single wall |

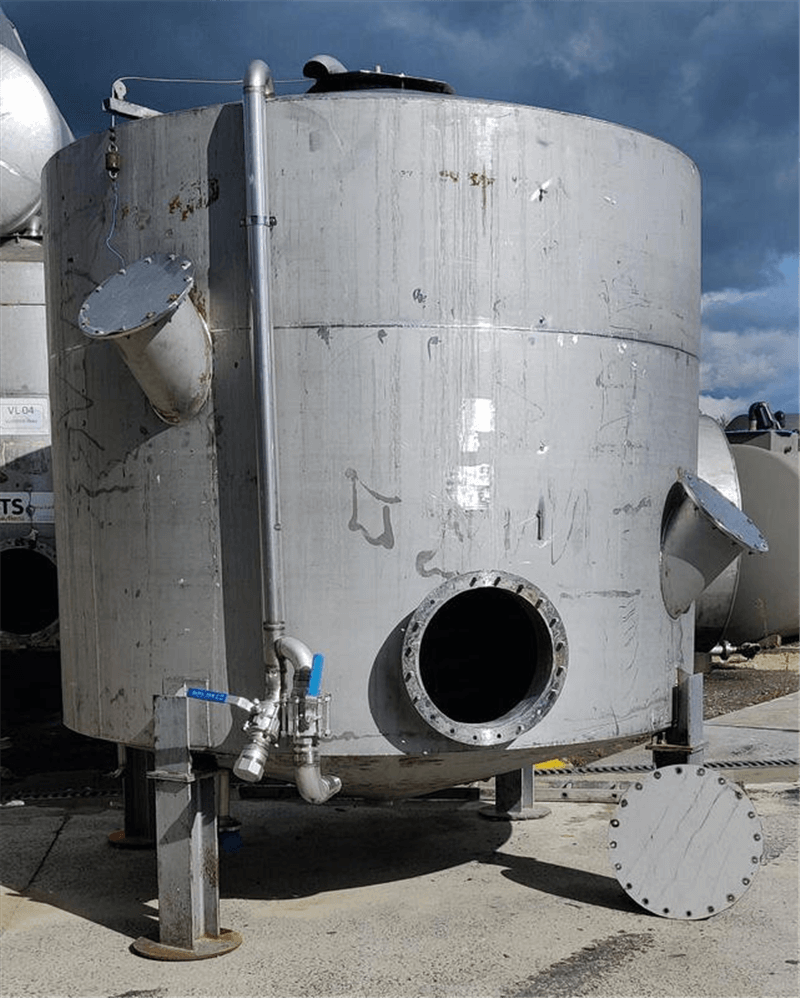

Number of manhole | 1 |
Position of manhole (s) | cylindrical part |
Dimensions of manholes | dia 500mm |
Tank with total drain? | Yes |
Diameter of outlet (mm) | 60 |
locality | B-7711 Belgium |
Last application | Oil / grease |
Provision tank cleaning | None |
Weight (kg) | 1550 |
Condition | Used |
Type plate manufacturer | No |
Top side | |
---|---|

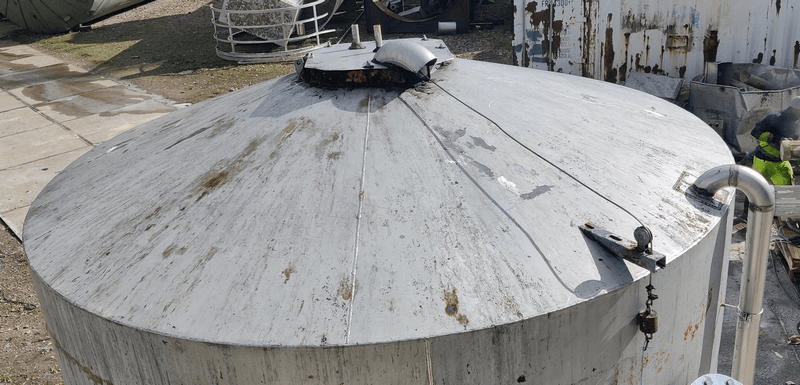

Configuration top-side | Closed |
Detail closed top side | Conical bottom |
Thickness closed dome (mm) | 3,8 |
Dimensions | |
---|---|
Cylinder Thickness (mm) | 3,9 |
Bottom thickness (mm) | 4,3 |
Periphery (mm) | 8840 |
Cylindrical length (mm) | 2250 |
Height bottom (mm) | 400 |
Total height (mm) | 3550 |
Length (mm) | 3390 |
Diameter tank (mm) | 2805 |
Width (mm) | 2815 |
Insulation | |
---|---|
Insulation | No |
Heating | |
---|---|
Number of heating type | 1 |

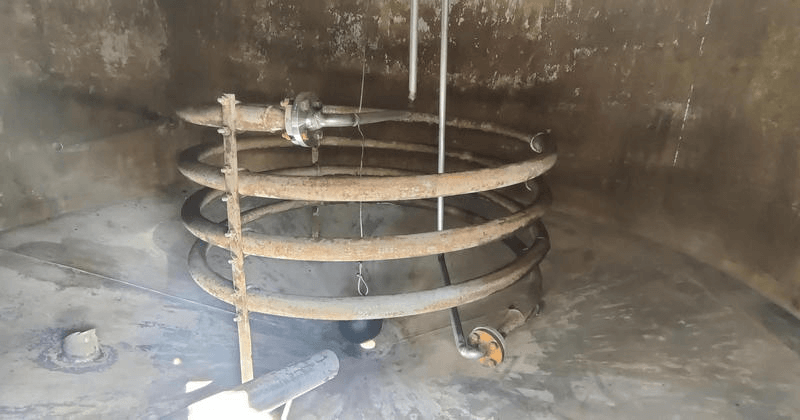

Heating 1: Type | Heating coil on bottom and cylinder |
