Used storage tank

  • Material: Stainless steel 316
  • Condition: Used
  • Volume (in litres): 20500 L
  • In stock: 1
General
Item number 03.44.UN.01
Material Stainless steel 316
Finishing weldings inside Raw brushed
Number 1
Capacity (Liters) 20500
Type tank Storage tank
Fixation 8 legs
Model of the tank Vertical
Shape of the tank Cylindrical
Bottom Inclined bottom
Tank model Single wall
Number lifting lugs 2
Number of manhole 2
Position of manhole (s) Top and Cylindrical part
Dimensions of manholes 340x440mm / 540x340mm
Tank with total drain? Yes
Type of outlet (s) DN65 (+manuele bolkraan)
locality B-7711 Belgium
Last application Oil / grease
Provision tank cleaning None
Weight (kg) 1200
Condition Used
Type plate manufacturer No
03.44.UN.01 - Used storage tank
03.44.UN.01 - Used storage tank
03.44.UN.01 - Used storage tank
03.44.UN.01 - Used storage tank
03.44.UN.01 - Used storage tank
03.44.UN.01 - Used storage tank
03.44.UN.01 - Used storage tank
03.44.UN.01 - Used storage tank
03.44.UN.01 - Used storage tank
03.44.UN.01 - Used storage tank
03.44.UN.01 - Used storage tank
03.44.UN.01 - Used storage tank

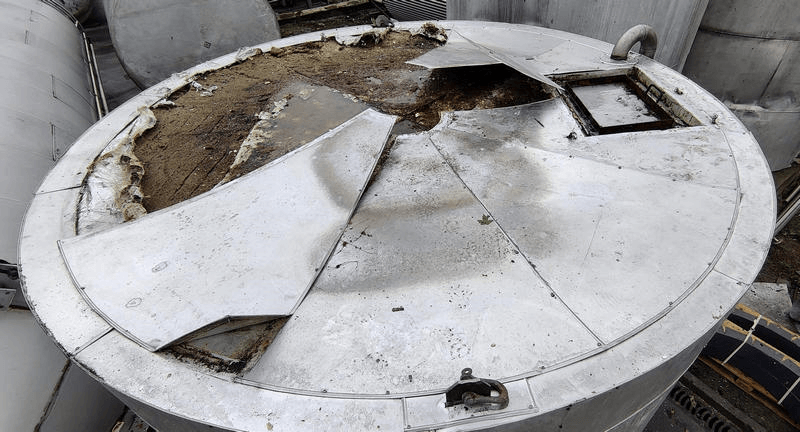

Top side
Configuration top-side Closed
Detail closed top side Flat bottom
Dimensions
Cylinder Thickness (mm) 2
Bottom thickness (mm) 2,5
Periphery (mm) 9680
Cylindrical length (mm) 3020
Slope bottom (°) 2
Total height (mm) 3450
Length (mm) 3530
Diameter tank (mm) 2970
Width (mm) 3150
Insulation
Insulation Yes
Performance insulation cylinder and top isolated
Type of insulation Insulating wool
Thickness (mm) 55
Finishing insulation Rivited sheet cladding
Insulation material Aluminium
Heating
Number of heating type 1

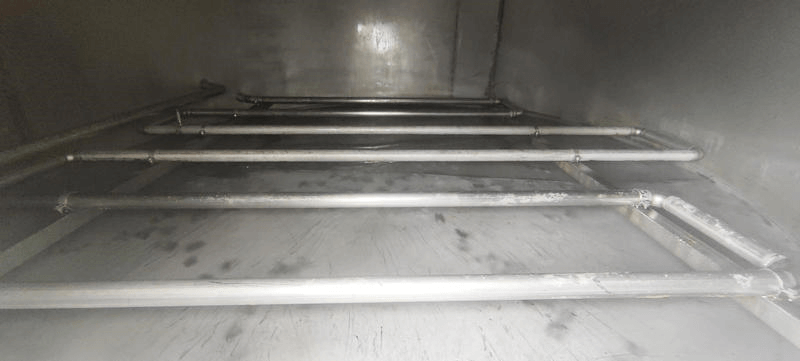

Heating 1: Type Heating coil only on the bottom
