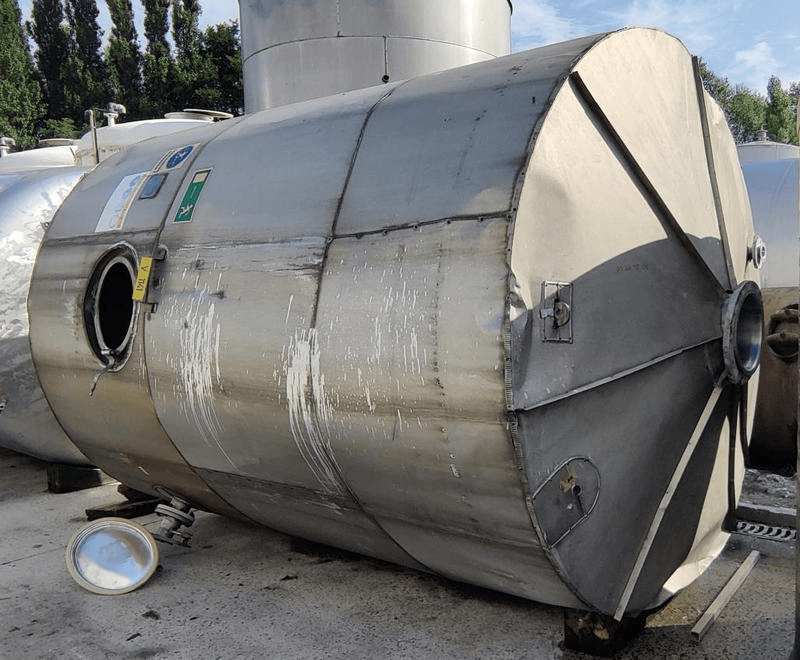

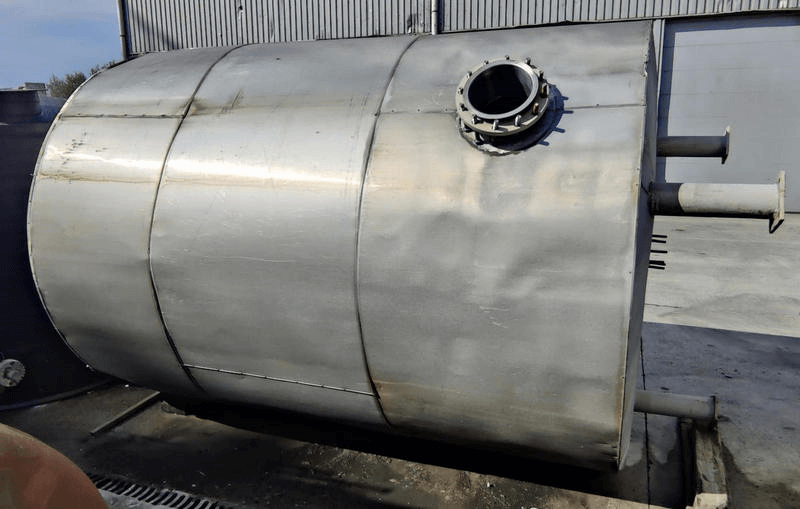

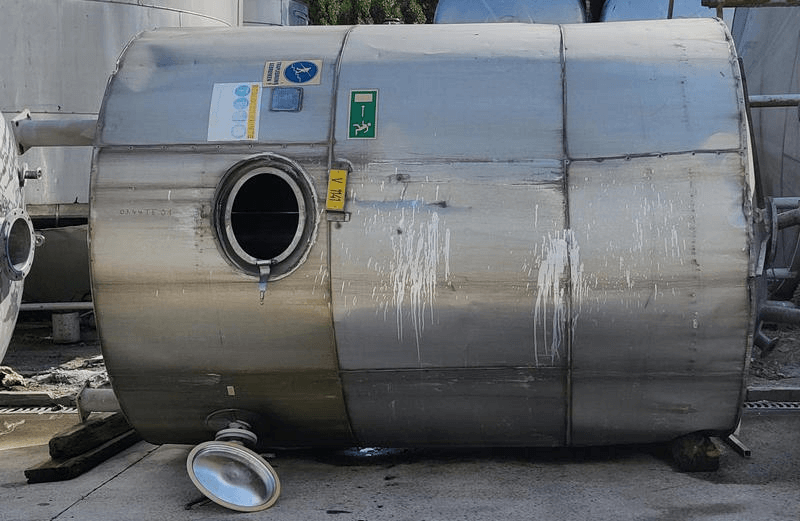

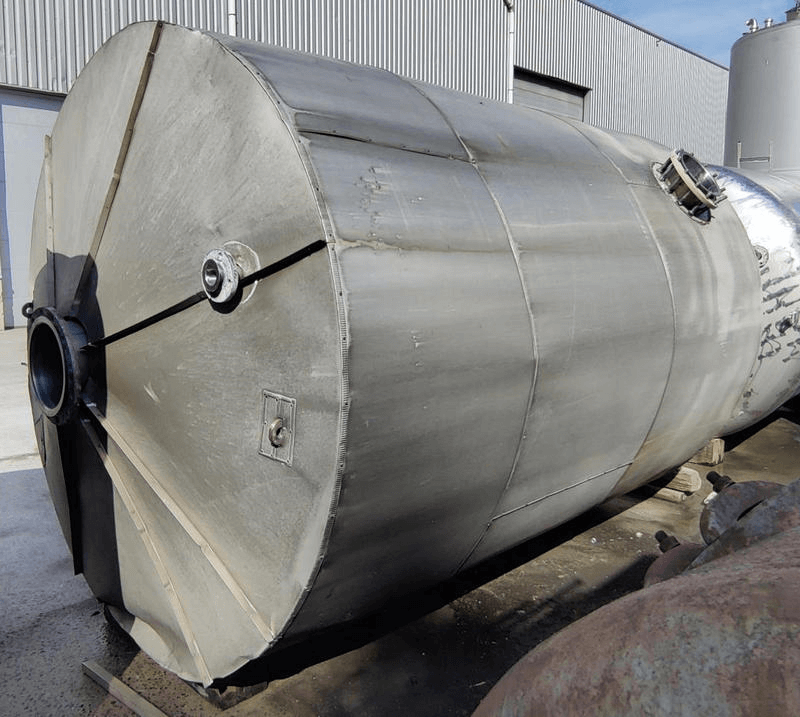

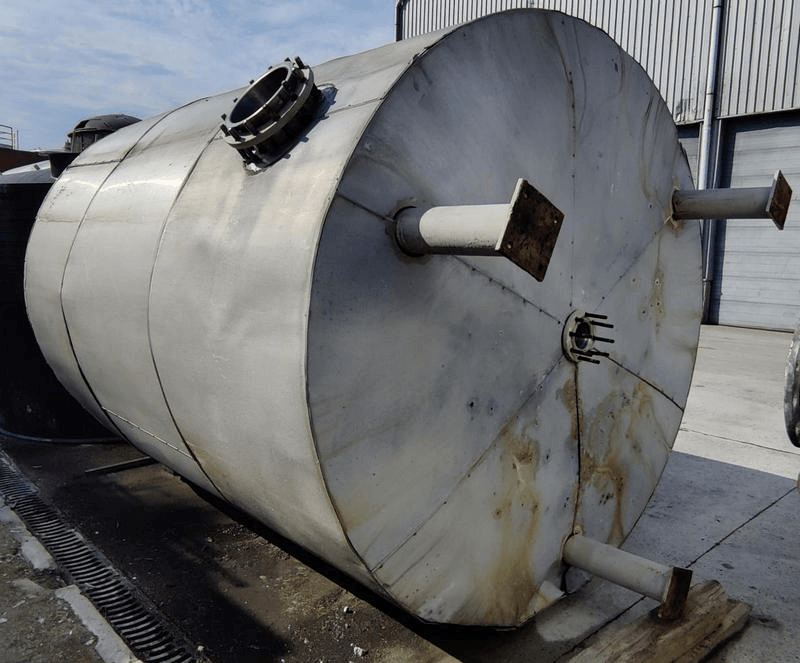

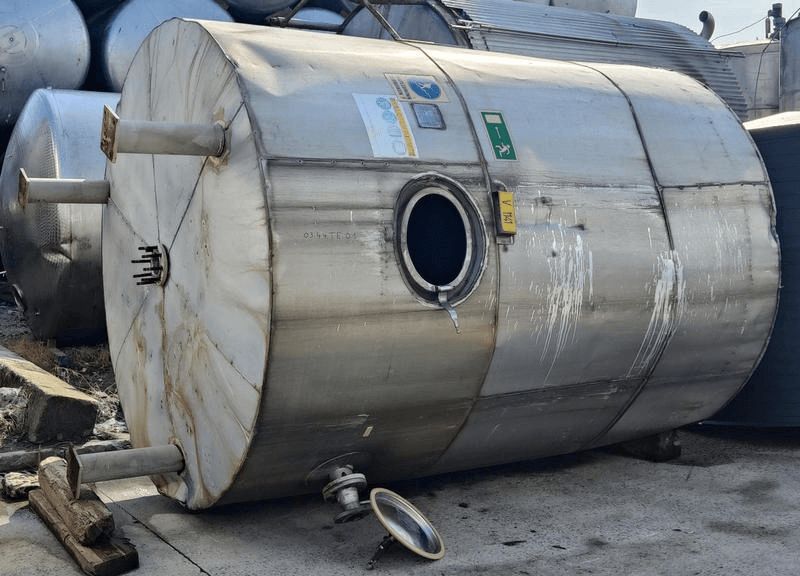

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 14000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.TE.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 14000 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 340x440mm |

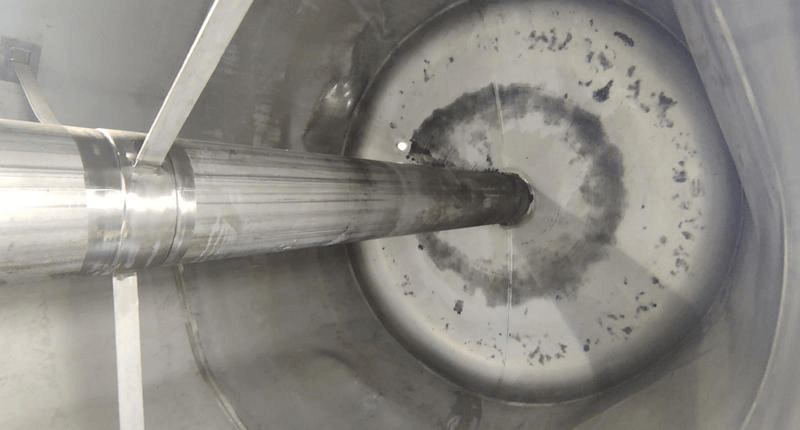

| Tank with total drain? | Yes |
| Type of outlet (s) | DN100 flens |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 1500 |
| Condition | Used |

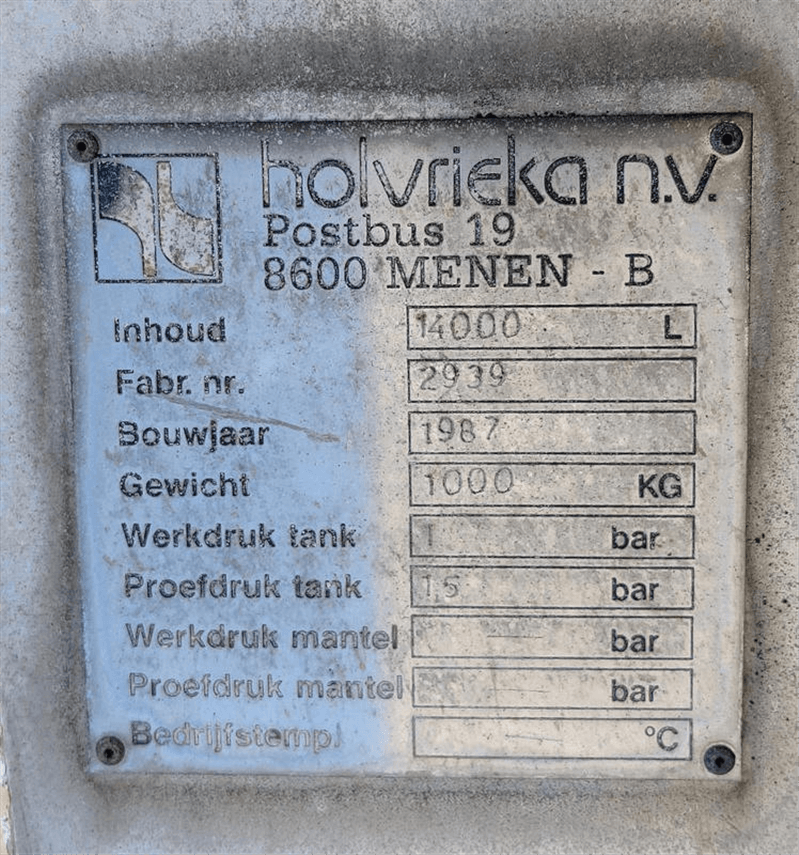

| Type plate manufacturer | Yes |
| Manufacturer | Holvrieka |
| Year Built | 1987 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3,9 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Bottom thickness (mm) | 3,9 |
| Periphery (mm) | 7980 |
| Cylindrical length (mm) | 2500 |
| Height bottom (mm) | 400 |
| Outside diameter tank (mm) | 2540 |
| Total height (mm) | 4200 |
| Length (mm) | 3000 |
| Diameter tank (mm) | 2410 |
| Width (mm) | 2550 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Thickness (mm) | 60 |
| Finishing insulation | Rivited sheet cladding |
