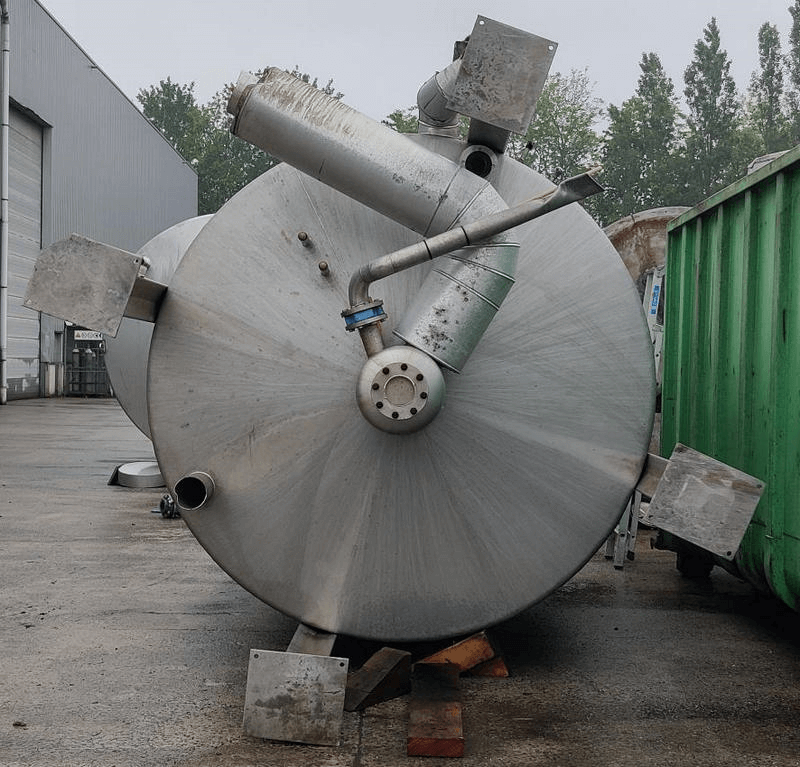

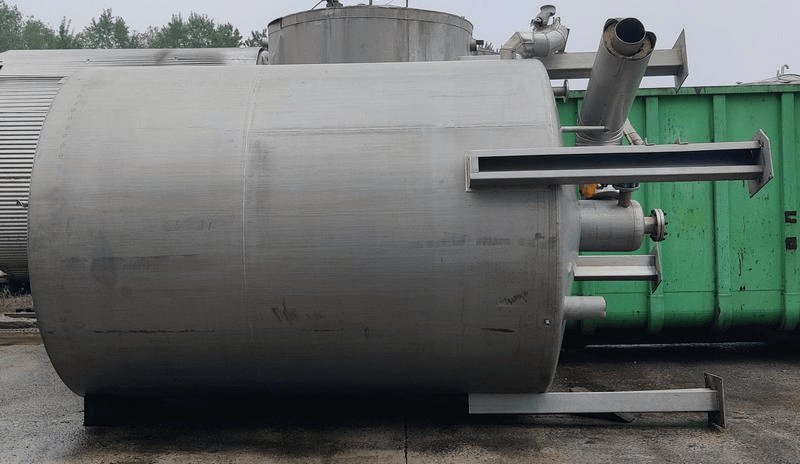

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 17000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.TA.01 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 17000 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |
| Tank with total drain? | Yes |

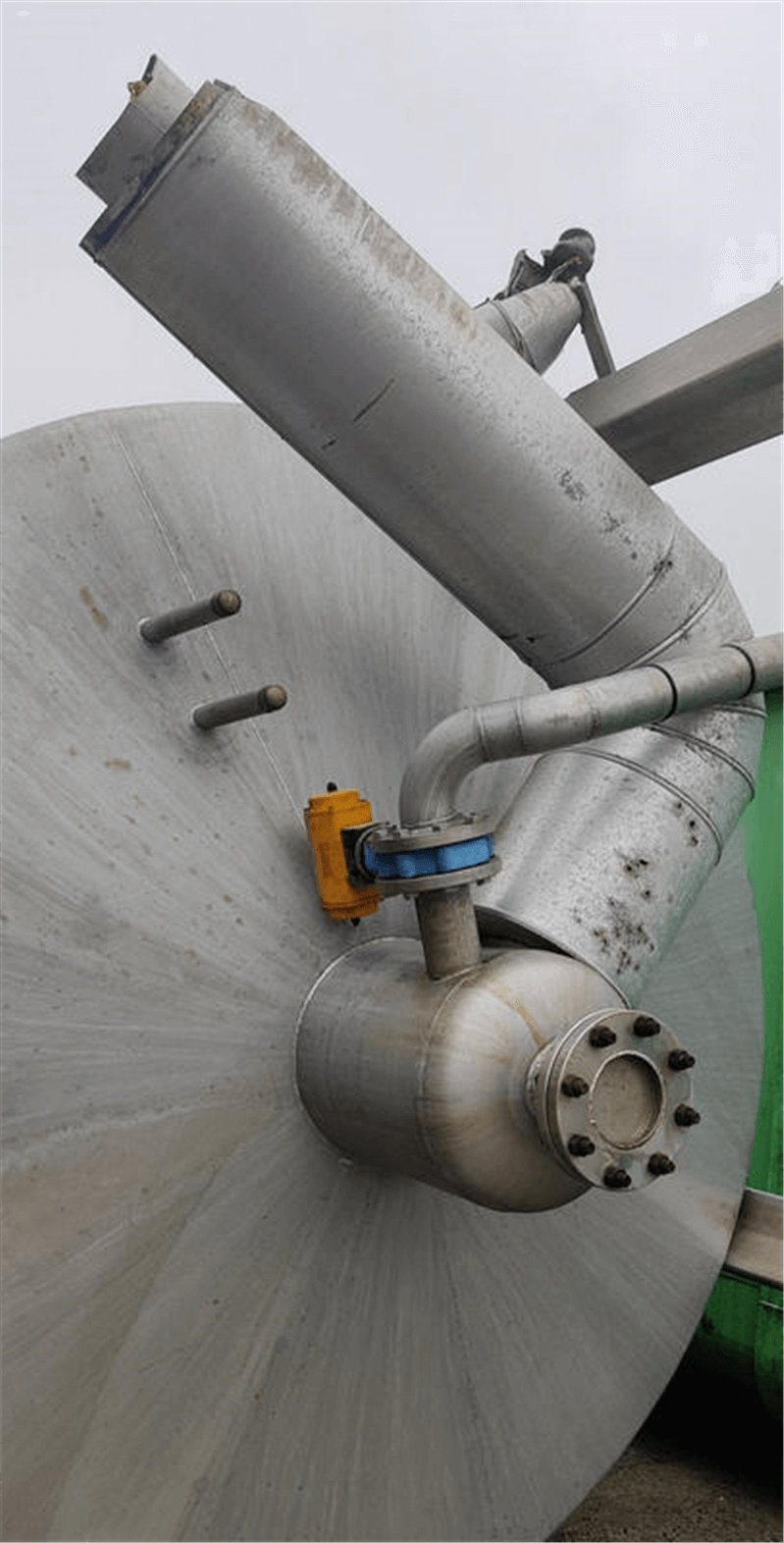

| Type of outlet (s) | Pneumatische vlinderklep |
| Diameter of outlet (mm) | 80 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 1600 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,9 |
| Bottom thickness (mm) | 3 |
| Periphery (mm) | 8000 |
| Cylindrical length (mm) | 3400 |
| Height bottom (mm) | 300 |
| Outside diameter tank (mm) | 2548 |
| Total height (mm) | 4750 |
| Length (mm) | 3300 |
| Diameter tank (mm) | 2540 |
| Width (mm) | 2650 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |

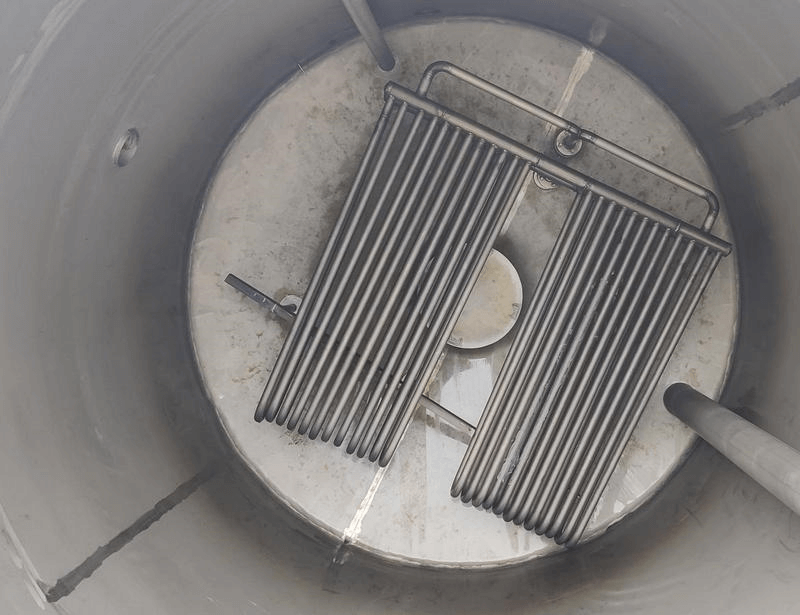

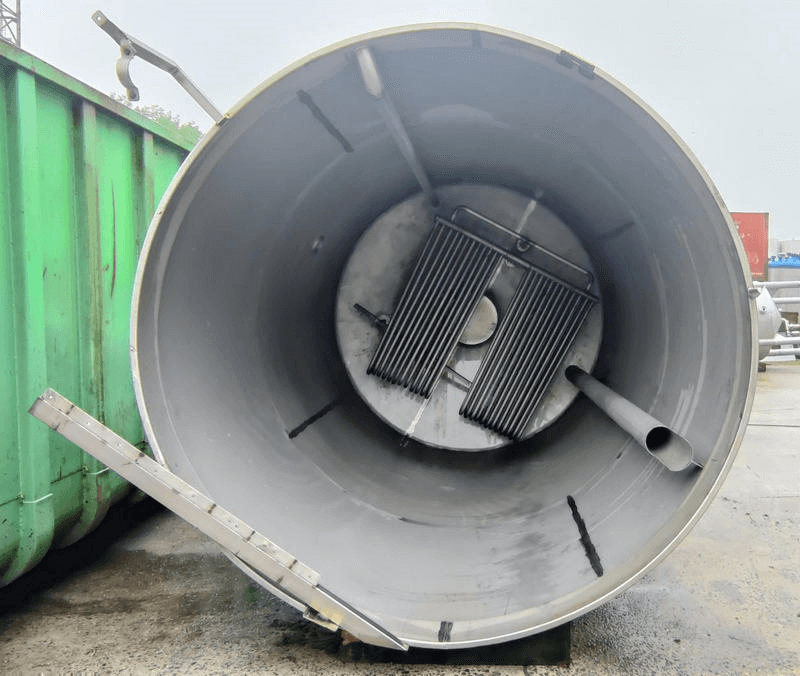

| Heating 1: Type | Heating coil only on the bottom |
