Used mixing vessel

  • Material: Stainless steel 304
  • Condition: Used
  • Volume (in litres): 4000 L
  • In stock: 1
General
Item number 03.44.SO.17
Material Stainless steel 304
Finishing weldings inside Grinded
Number 1
Capacity (Liters) 4000
Type tank Mixing vessel
Fixation 3 legs
Model of the tank Vertical
Shape of the tank Cylindrical
Bottom Conical bottom
Tank model Jacketed (Heating/Cooling)
Number of manhole 1
Position of manhole (s) Top
Dimensions of manholes dia 450mm
Tank with total drain? Yes
Type of outlet (s) man. vlinderklep
Diameter of outlet (mm) 50
locality On location
Last application Food
Provision tank cleaning Spray tube (top)
Weight (kg) 600
Condition Used
Type plate manufacturer No
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
03.44.SO.17 - Used mixing vessel
Top side
Configuration top-side Closed
Detail closed top side Conical bottom
Thickness closed dome (mm) 1,9
Dimensions
Cylinder Thickness (mm) 2,8
Periphery (mm) 5520
Cylindrical length (mm) 2000
Height bottom (mm) 300
Outside diameter tank (mm) 1760
Total height (mm) 3450
Length (mm) 2060
Diameter tank (mm) 1595
Width (mm) 1760
Insulation
Insulation Yes
Performance insulation cylinder and bottom isolated
Type of insulation Insulating wool
Thickness (mm) 80
Finishing insulation fully welded cladding
Heating
Number of heating type 1
Heating 1: Type jacket au bain-marie

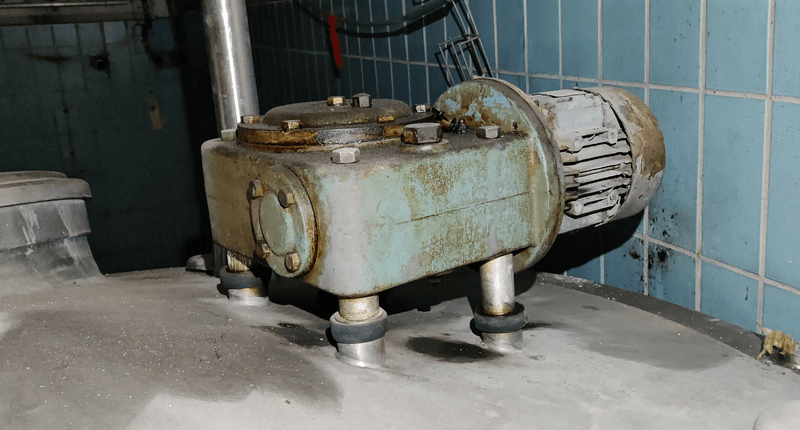

Agitators
Number of agitators 1
Agitator 1: Position decentrally on the top
Agitator 1: Number of baffles 1
Agitator 1: stirring element type Propeller
Agitator 1: Length (mm) 2100
Agitator 1: Engine Type electric motor
Agitator 1: Voltage (V) 230/380
Agitator 1: Power (kw) 0,75
Agitator 1: Drive Type Reductor
