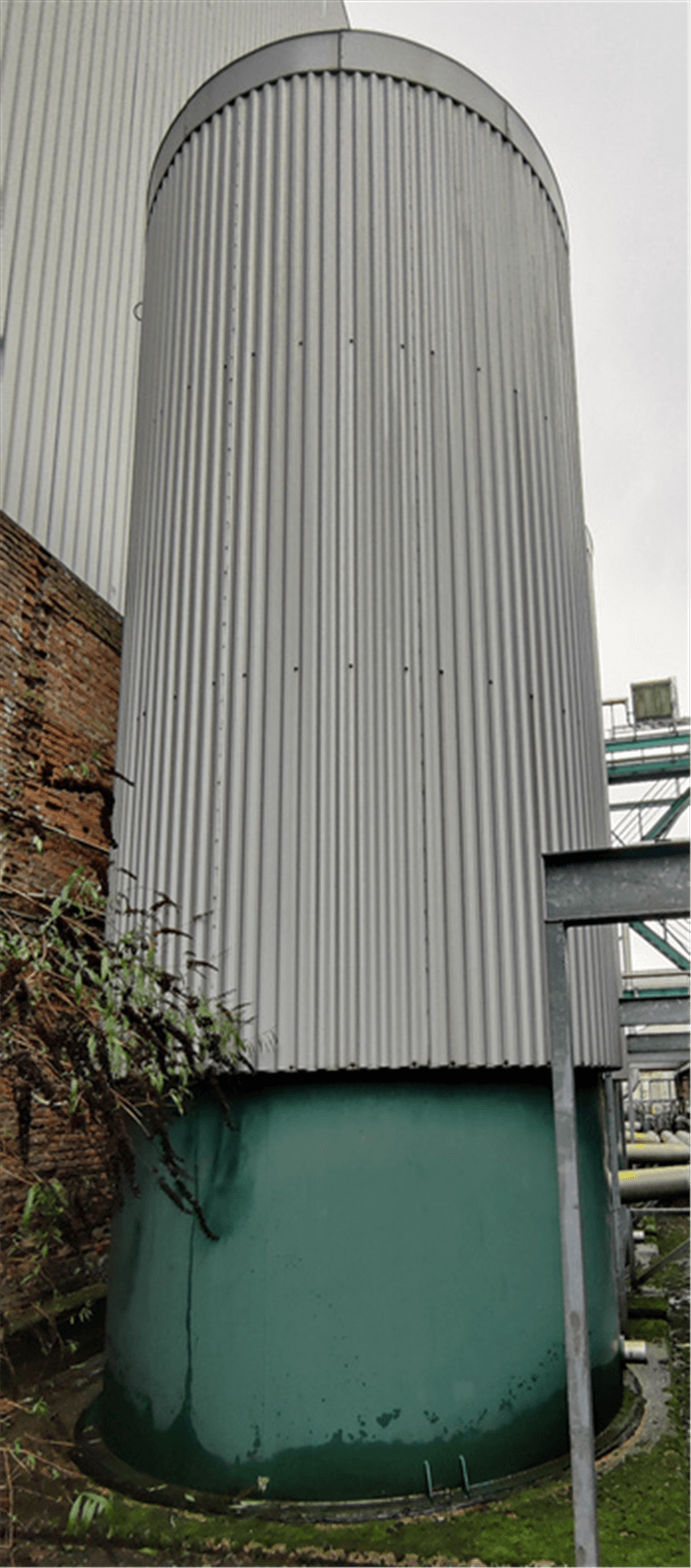

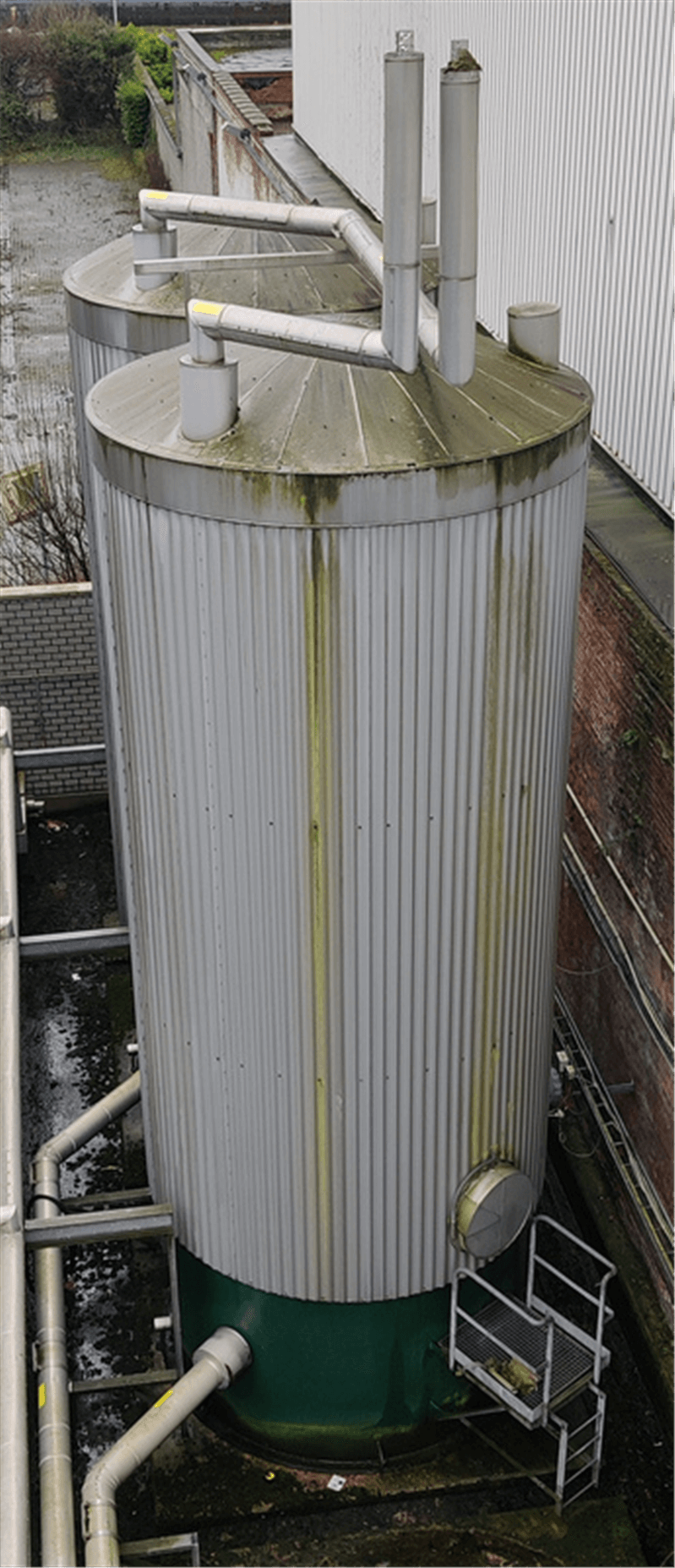

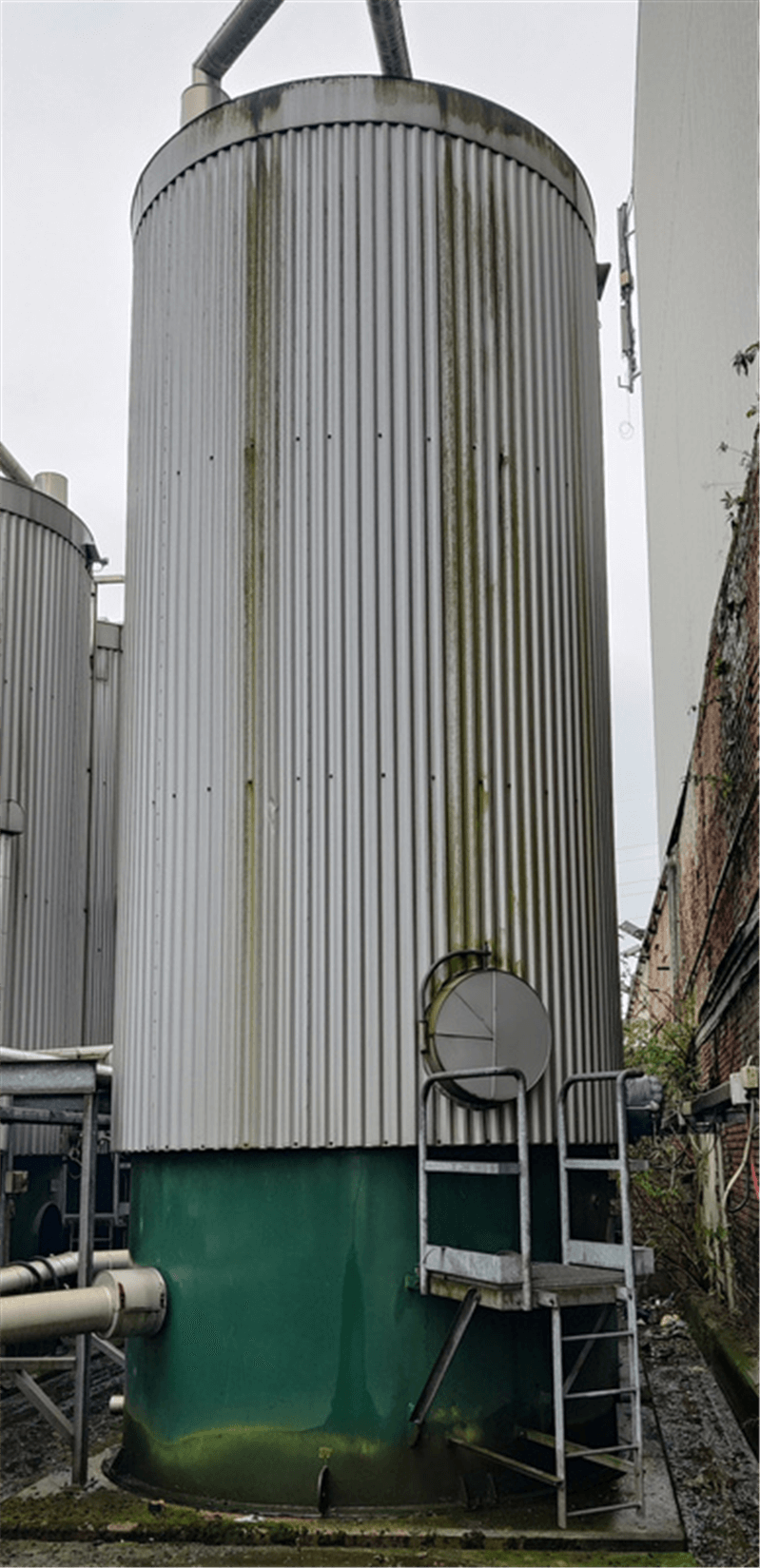

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 40000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.SO.11 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 40000 |
| Type tank | Storage tank |

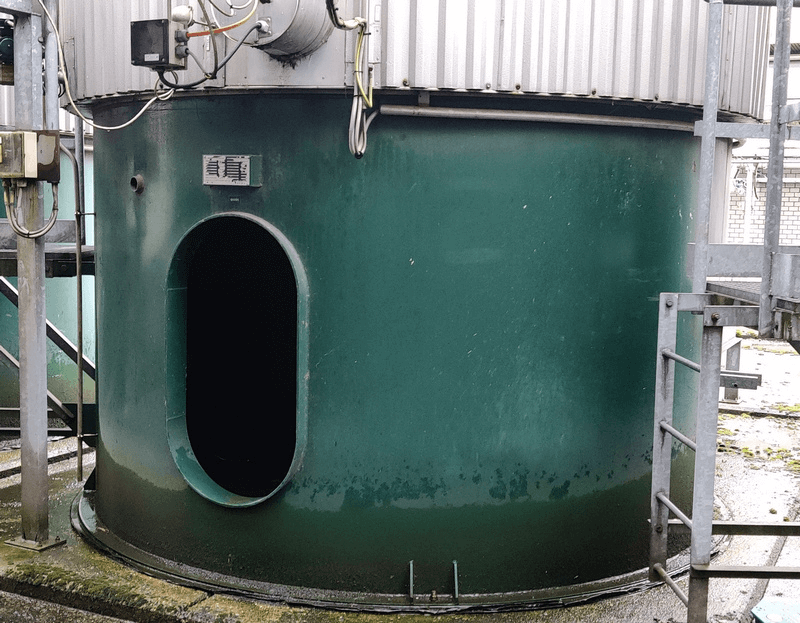

| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |

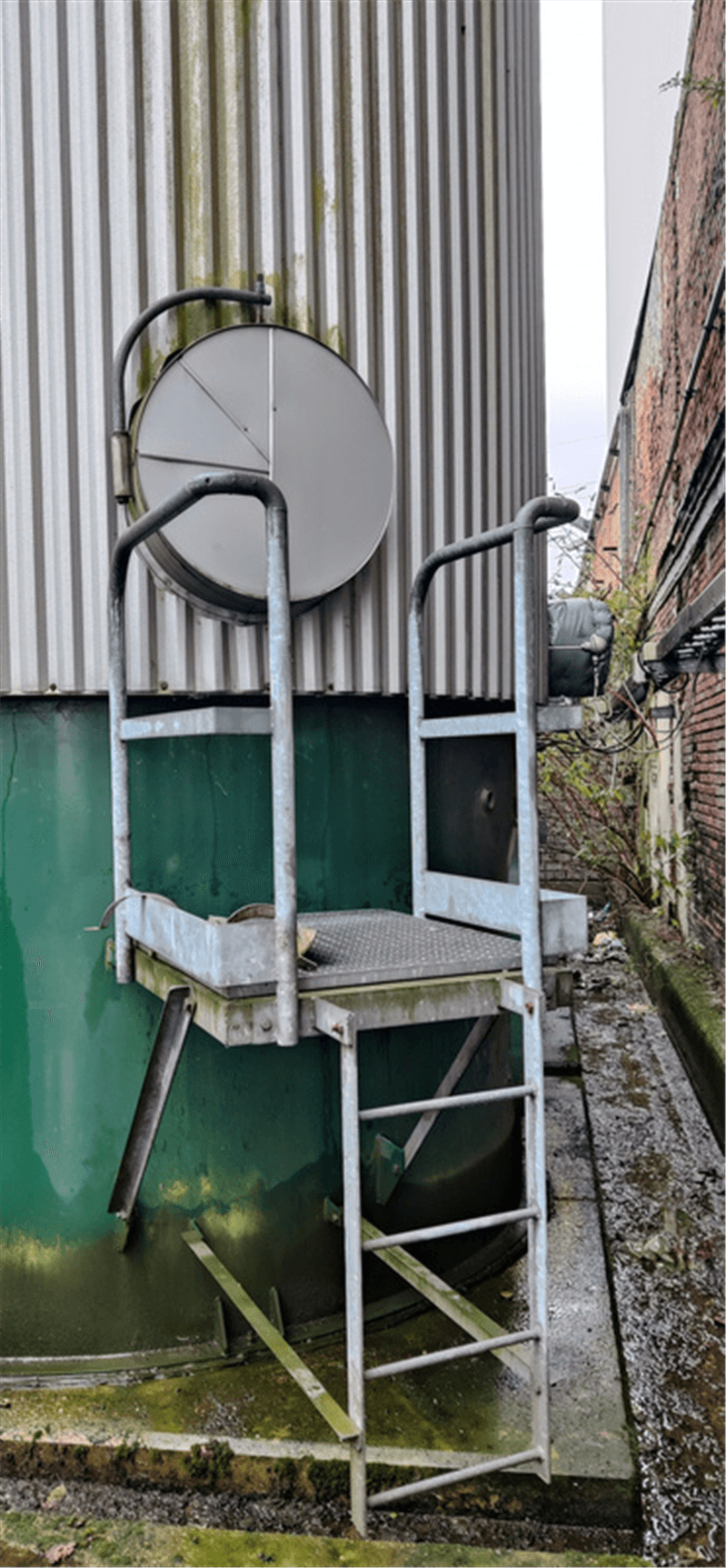

| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | dia 600mm |

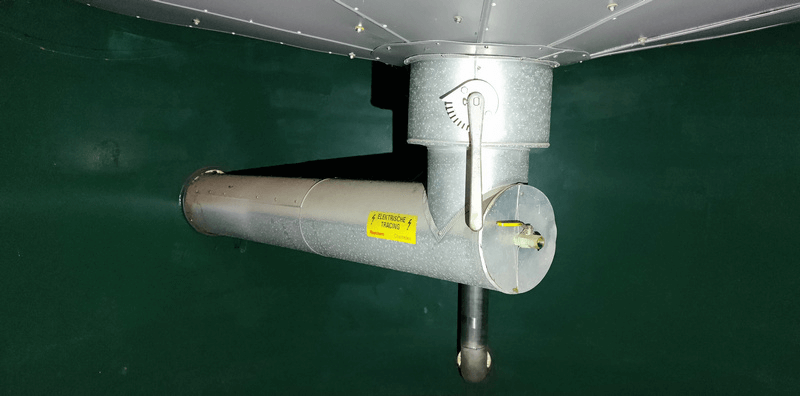

| Tank with total drain? | Yes |
| locality | On location |
| Last application | Food |
| Weight (kg) | 6000 |
| Condition | Used |

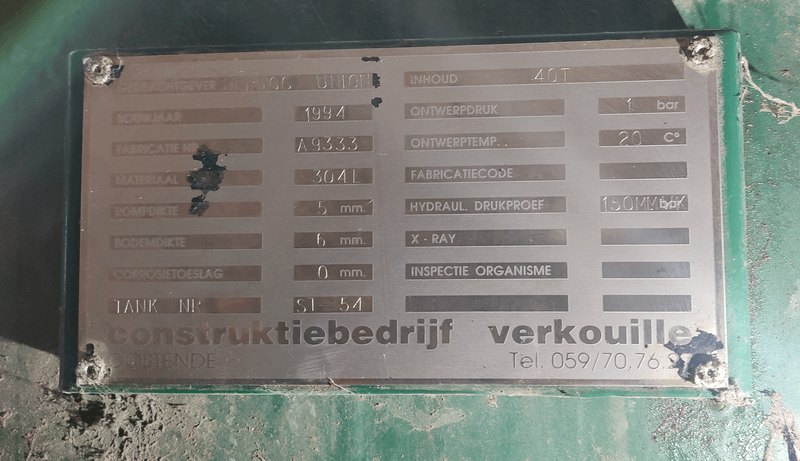

| Type plate manufacturer | Yes |

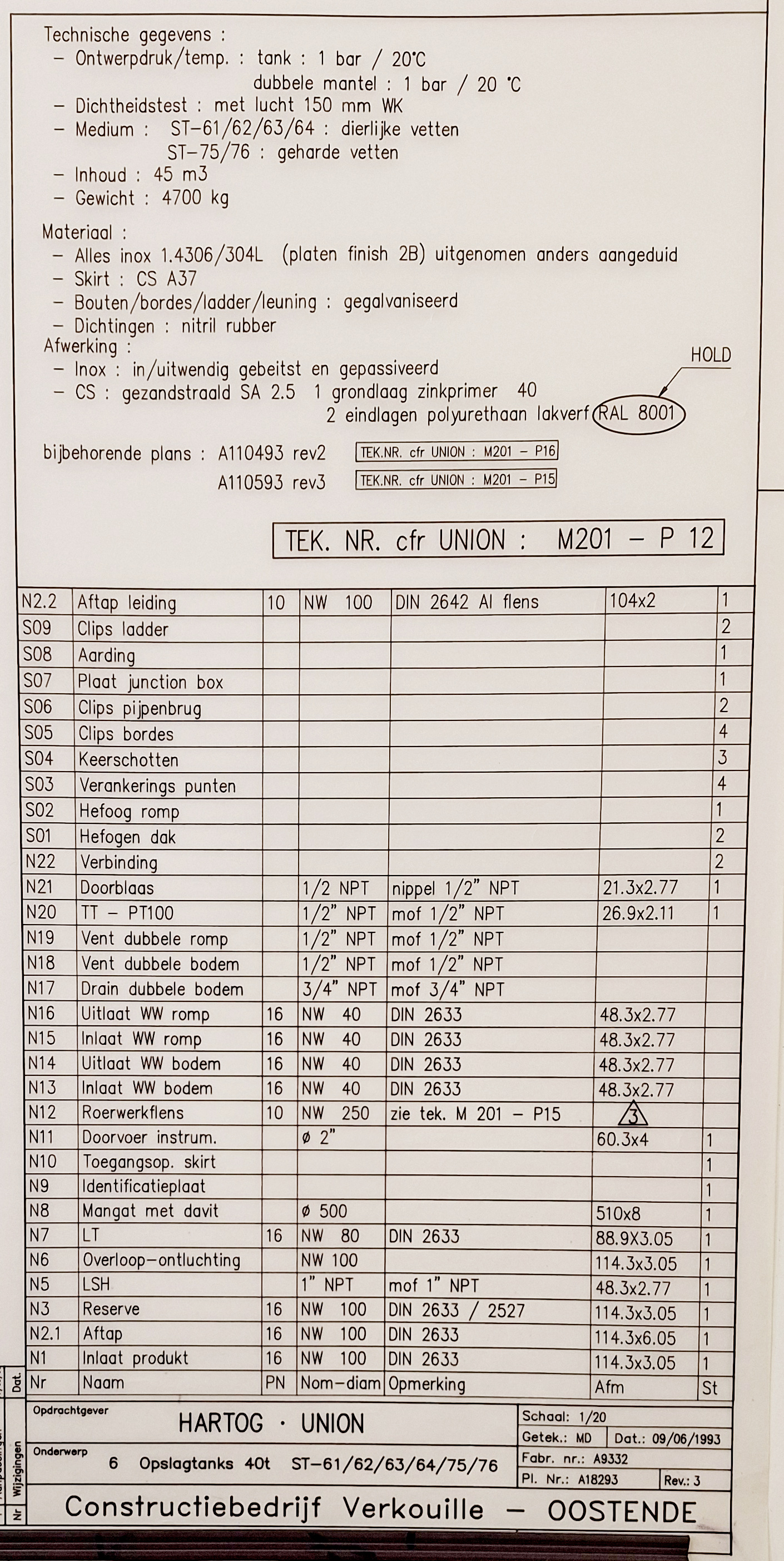

| Manufacturer | Verkouille |
| Year Built | 1994 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 6 |
| Periphery (mm) | 10240 |
| Cylindrical length (mm) | 7400 |
| Height bottom (mm) | 500 |
| Outside diameter tank (mm) | 3260 |
| Length (mm) | 3560 |
| Diameter tank (mm) | 2990 |
| Width (mm) | 3260 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Thickness (mm) | 130 |
| Finishing insulation | Profile Cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 2 |
| Heating 1: Type | Heating coil on part of the cylinder |
| Heating 2: Type | electrical tracing |
