Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 12000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.SO.04 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 12000 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 4 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 500mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | man. vlinderklep |
| Diameter of outlet (mm) | DN65 |
| locality | B-7711 Belgium |
| Last application | cosmetics |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 700 |
| Condition | Used |

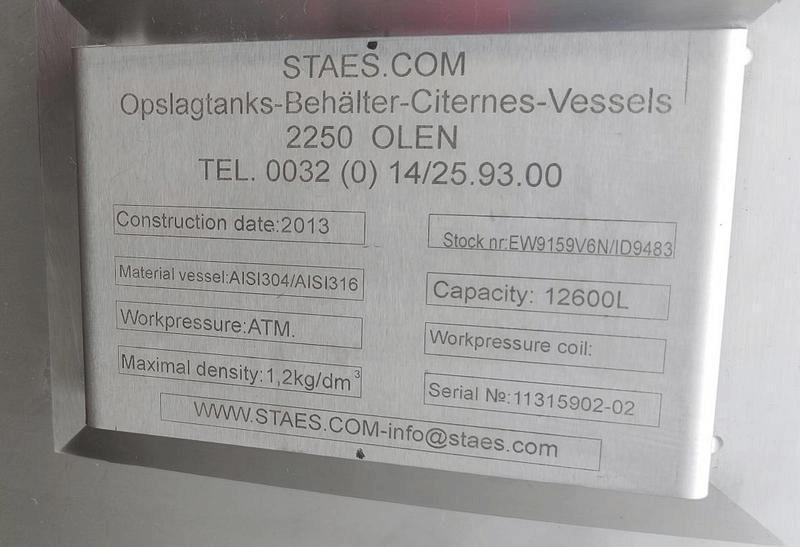

| Type plate manufacturer | Yes |
| Year Built | 2013 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Bottom thickness (mm) | 2 |
| Periphery (mm) | 6760 |
| Cylindrical length (mm) | 3200 |
| Height bottom (mm) | 300 |
| Total height (mm) | 4500 |
| Length (mm) | 2310 |
| Diameter tank (mm) | 2145 |
| Width (mm) | 2150 |
| Insulation | |
|---|---|
| Insulation | No |
