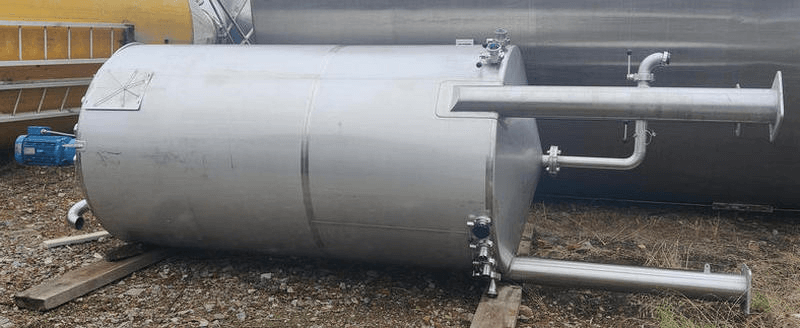

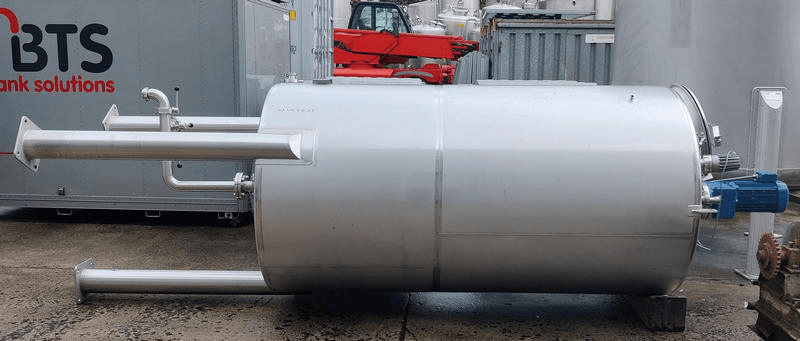

Used mixing vessel

  • Material: Stainless steel 316
  • Condition: Used
  • Volume (in litres): 4000 L
  • In stock: 1
General
Item number 03.44.SO.03
Material Stainless steel 316
Finishing weldings inside Raw brushed
Number 1
Capacity (Liters) 4000
Type tank Mixing vessel

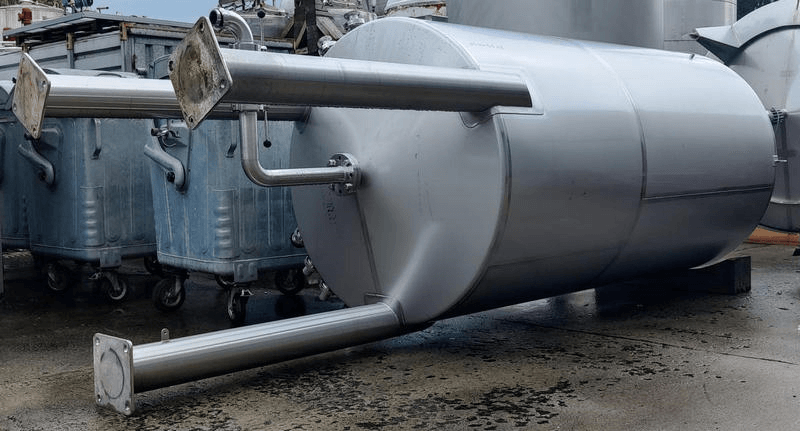

Fixation 3 legs
Model of the tank Vertical
Shape of the tank Cylindrical

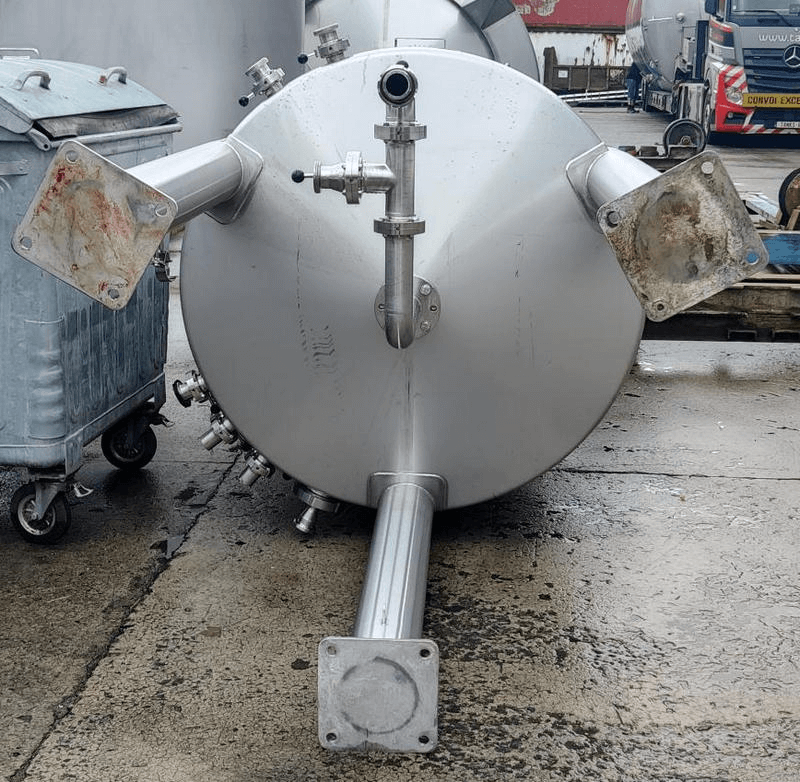

Bottom Conical bottom
Tank model Single wall
Number lifting lugs 2

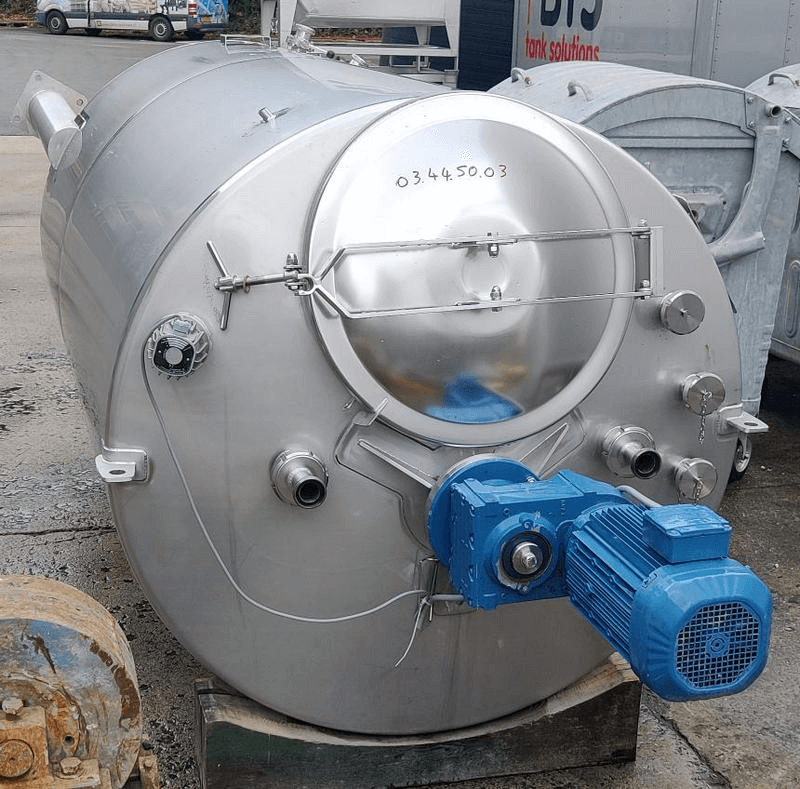

Number of manhole 1
Position of manhole (s) Top
Dimensions of manholes dia 610mm
Tank with total drain? Yes

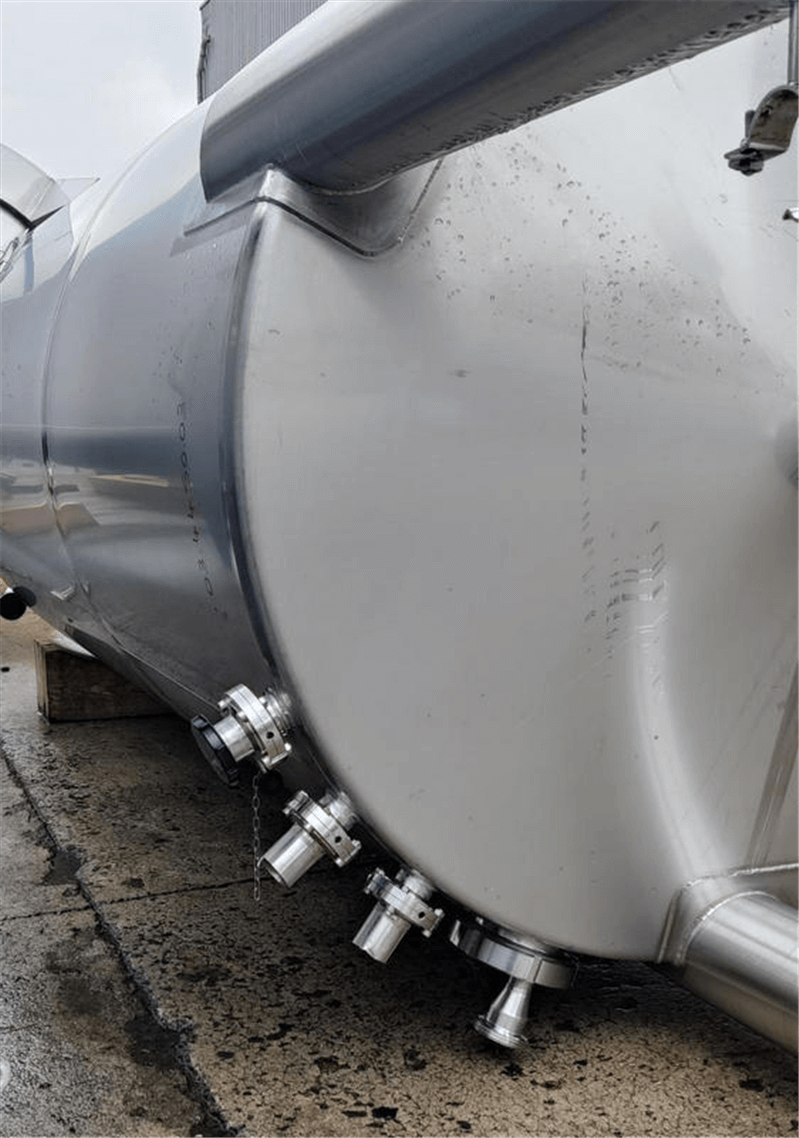

Type of outlet (s) DN65
Diameter of outlet (mm) man. vlinderklep
locality B-7711 Belgium
Last application cosmetics
Provision tank cleaning CIP ball
Weight (kg) 650
Condition Used

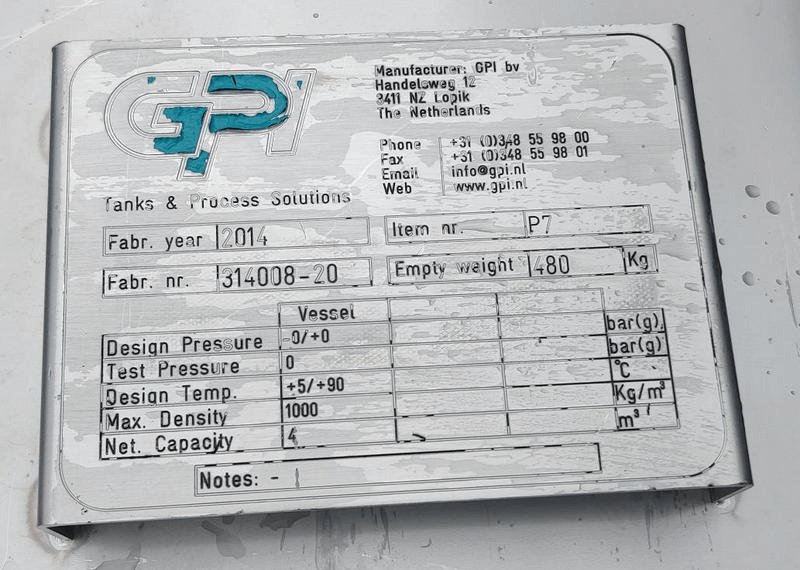

Type plate manufacturer Yes
Manufacturer GPI
Year Built 2014
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
03.44.SO.03 - Used mixing vessel
Top side
Configuration top-side Closed
Detail closed top side Conical bottom
Thickness closed dome (mm) 4
Dimensions
Cylinder Thickness (mm) 3
Bottom thickness (mm) 3,1
Periphery (mm) 4410
Cylindrical length (mm) 2550
Height bottom (mm) 200
Total height (mm) 4850
Length (mm) 1600
Diameter tank (mm) 1400
Width (mm) 1500
Insulation
Insulation No

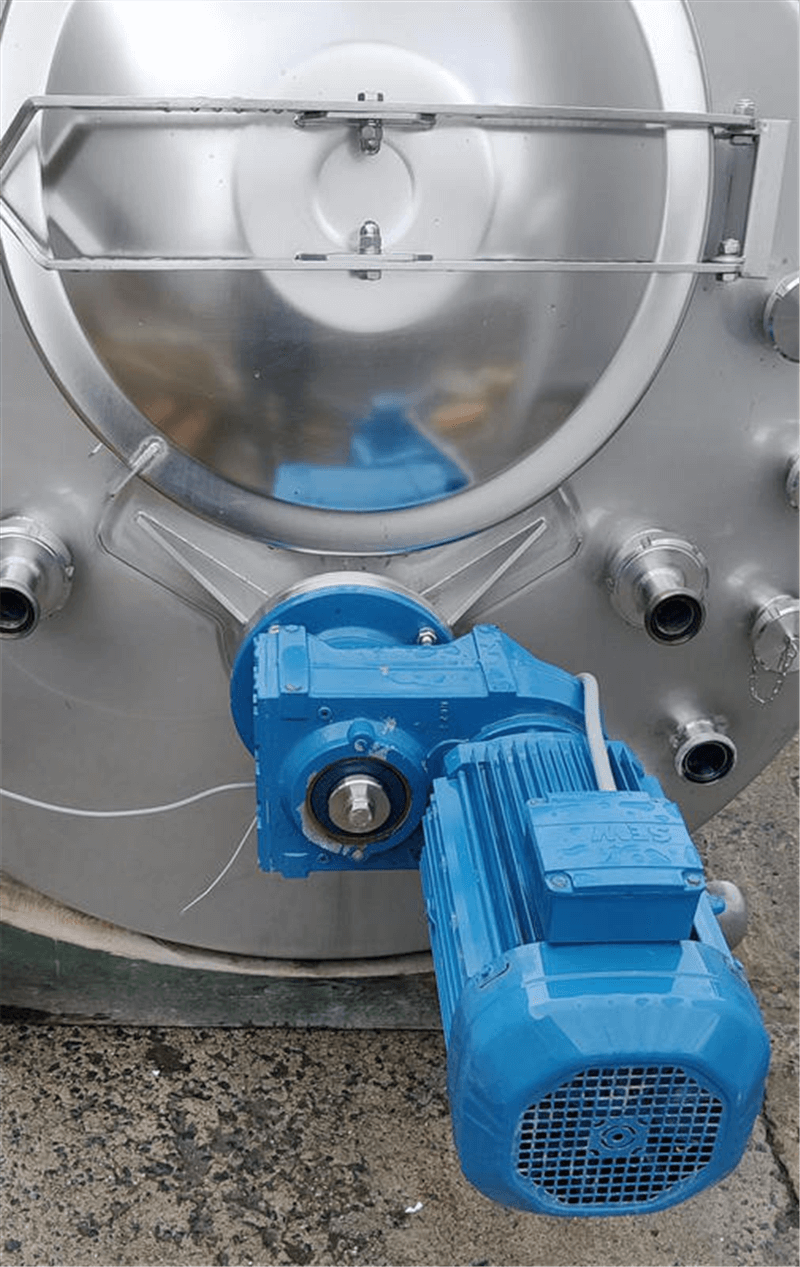

Agitators
Number of agitators 1
Agitator 1: Type Fast rotating mixer
Agitator 1: Position decentrally on the top

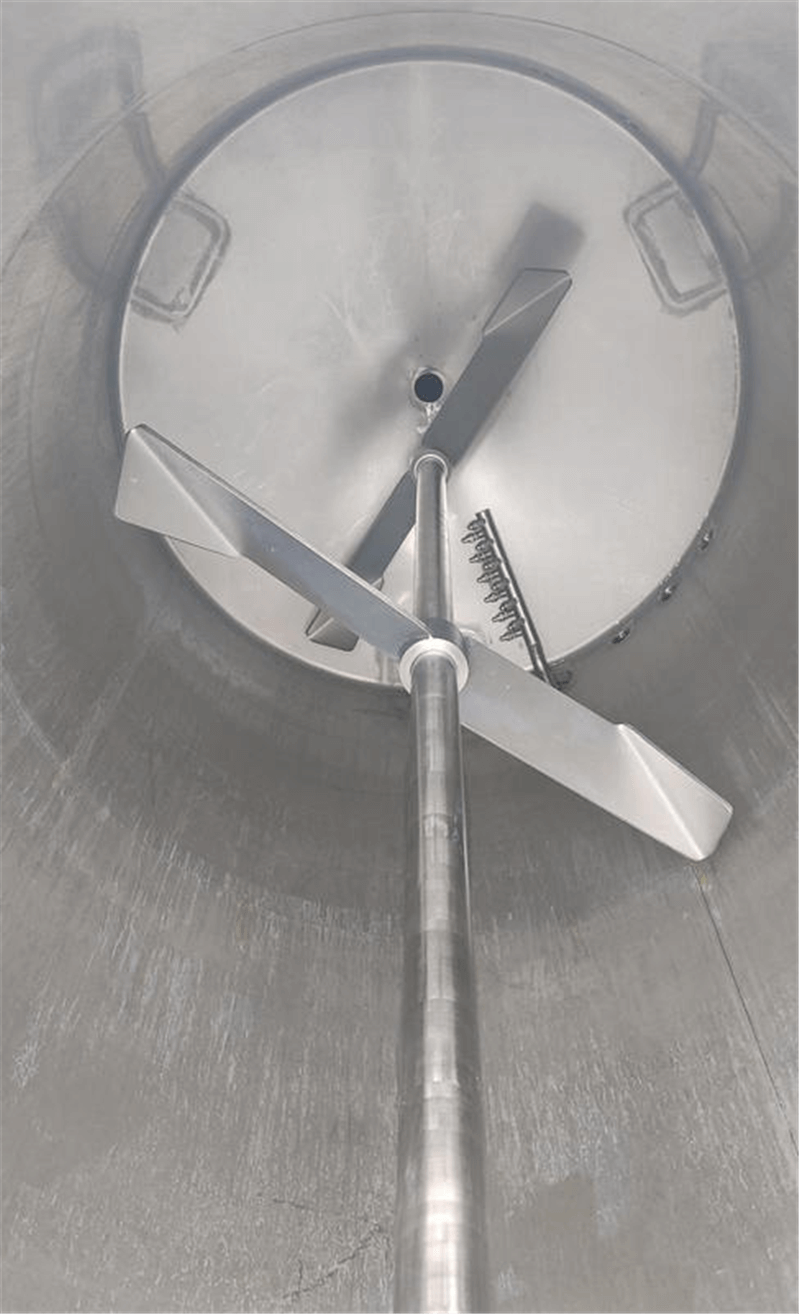

Agitator 1: stirring element type Propeller
Agitator 1: Length (mm) 2600

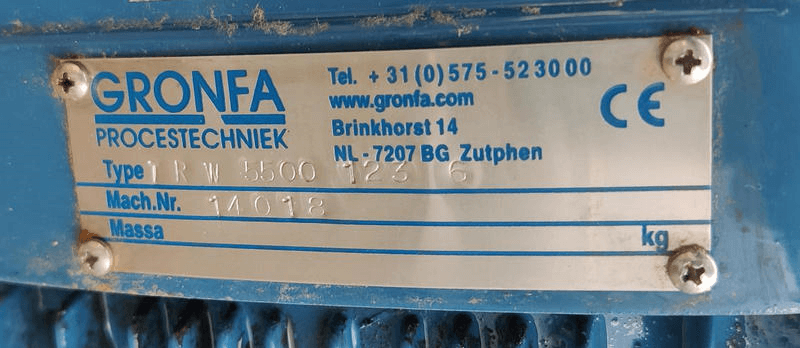

Agitator 1: Engine Type electric motor
Agitator 1: Voltage (V) 380
Agitator 1: Power (kw) 5,5
Agitator 1: Drive Type Reductor
Agitator 1: Speed (r / min) 460
