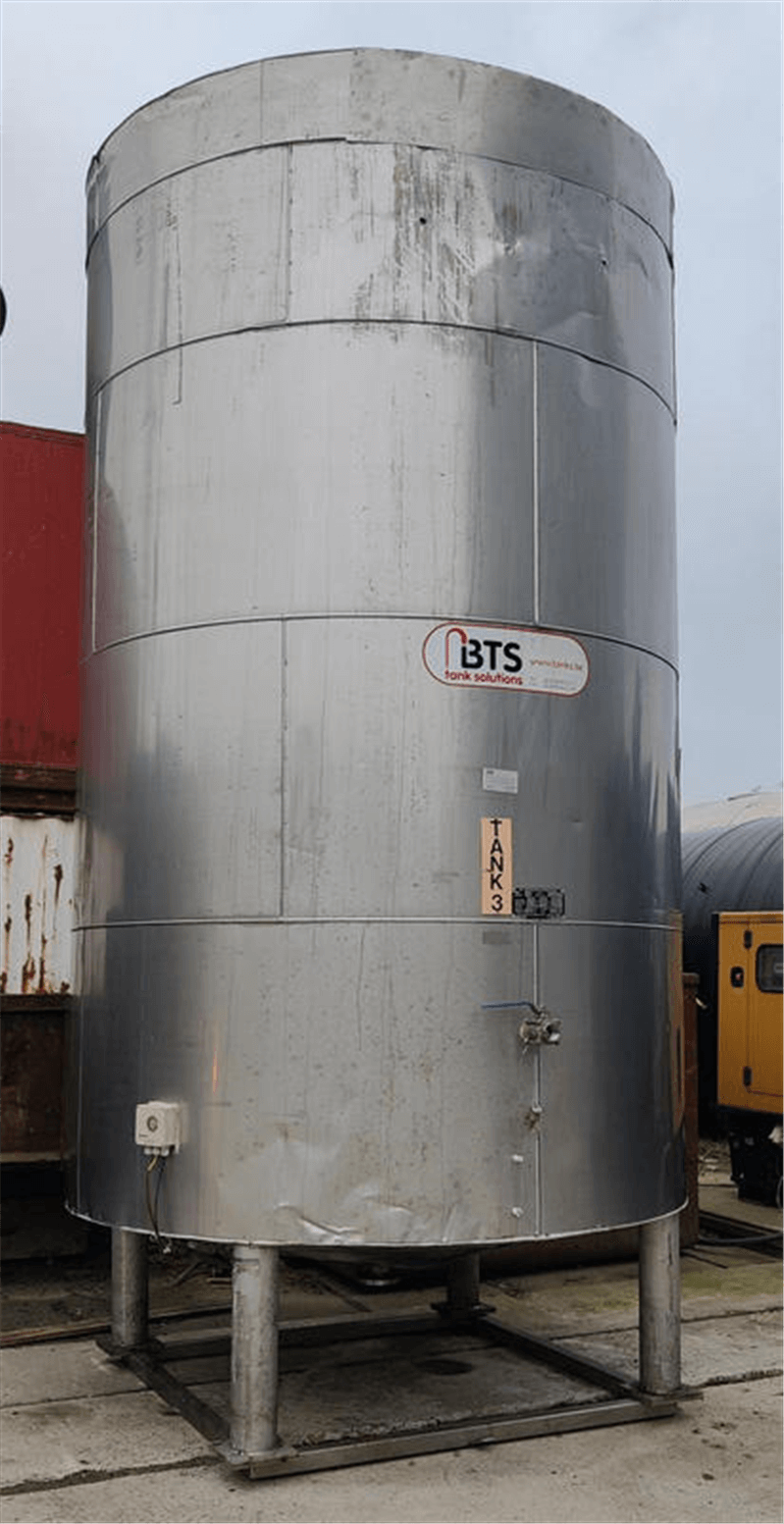

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 12000 L
- In stock: 1
General | |
---|---|
Item number | 03.44.PC.01 |
Material | Stainless steel 304 |
Finishing weldings inside | Grinded |
Number | 1 |
Capacity (Liters) | 12000 |
Type tank | Storage tank |

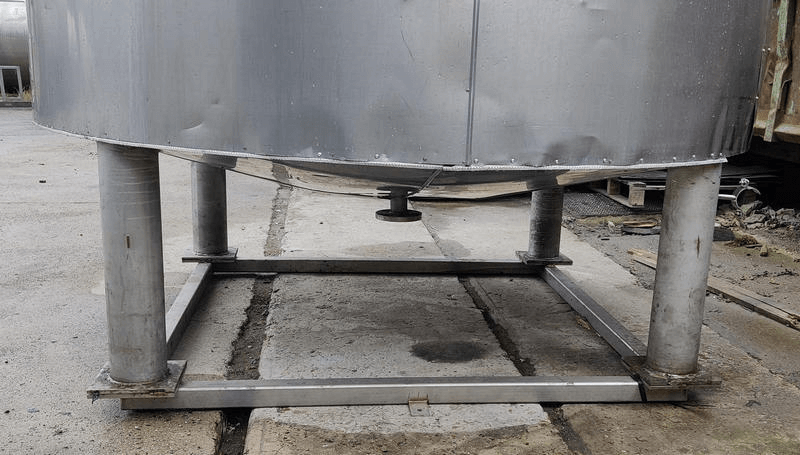

Fixation | 4 legs |
Model of the tank | Vertical |
Shape of the tank | Cylindrical |
Bottom | Conical bottom |
Tank model | Single wall |
Number lifting lugs | 2 |
Number of manhole | 1 |

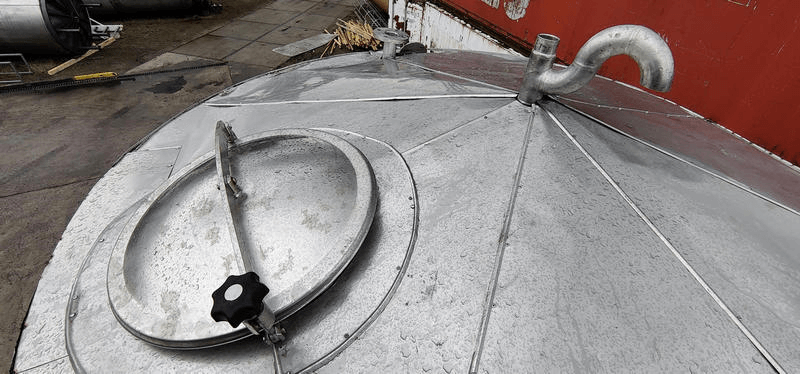

Position of manhole (s) | Top |
Dimensions of manholes | dia 500mm |
Tank with total drain? | Yes |
Type of outlet (s) | DN50 flens |
locality | B-7711 Belgium |
Last application | Oil / grease |
Provision tank cleaning | None |
Weight (kg) | 1800 |
Condition | Used |

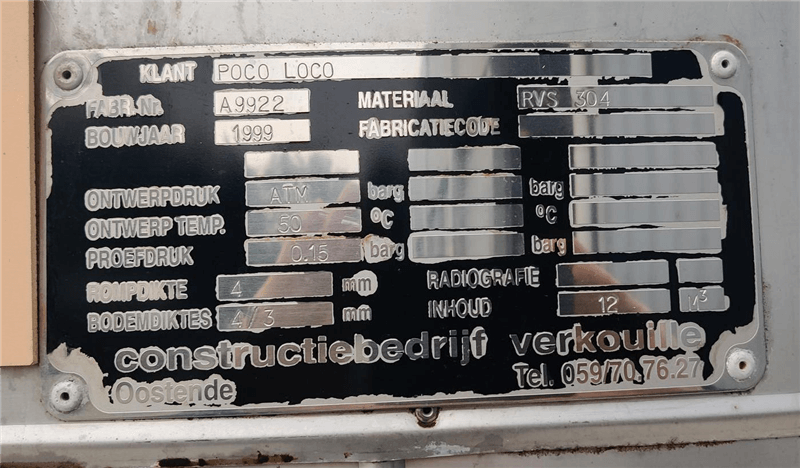

Type plate manufacturer | Yes |
Manufacturer | Verkouille |
Year Built | 1999 |
Top side | |
---|---|
Configuration top-side | Closed |
Detail closed top side | Conical bottom |
Thickness closed dome (mm) | 3 |
Dimensions | |
---|---|
Cylinder Thickness (mm) | 4 |
Bottom thickness (mm) | 3,8 |
Periphery (mm) | 7130 |
Cylindrical length (mm) | 3500 |
Height bottom (mm) | 370 |
Outside diameter tank (mm) | 2270 |
Total height (mm) | 4900 |
Length (mm) | 2470 |
Diameter tank (mm) | 2100 |
Width (mm) | 2270 |
Insulation | |
---|---|
Insulation | Yes |
Performance insulation | Fully insulated |
Type of insulation | Insulating wool |
Thickness (mm) | 80 |
Finishing insulation | Rivited sheet cladding |
