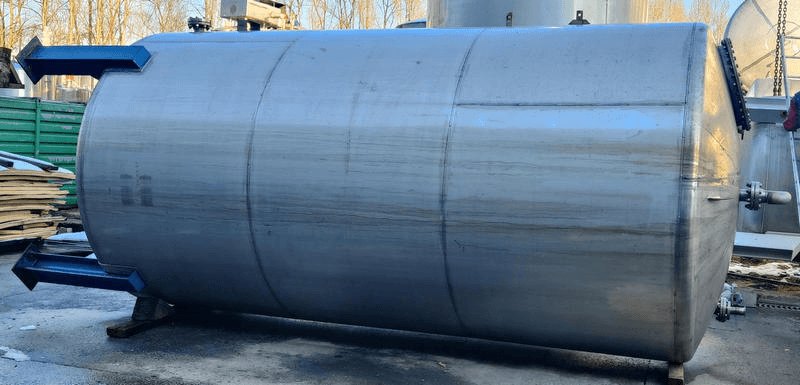

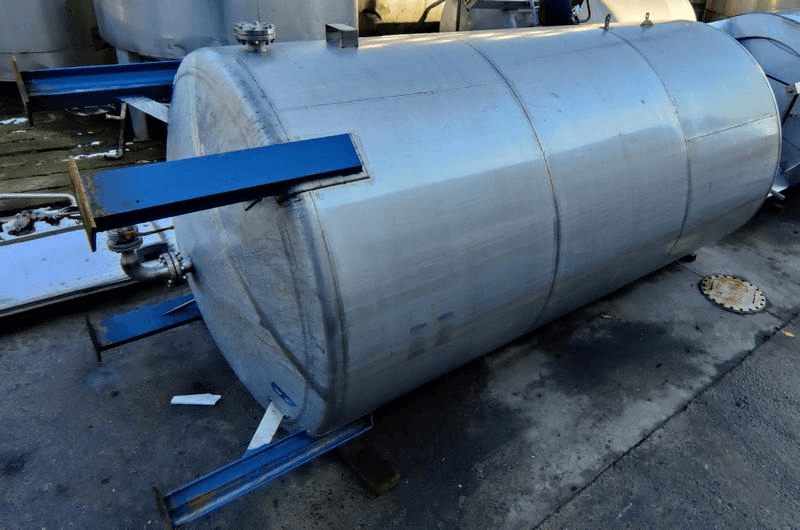

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 23000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.NL.19 |
| Material | Stainless steel 304 |

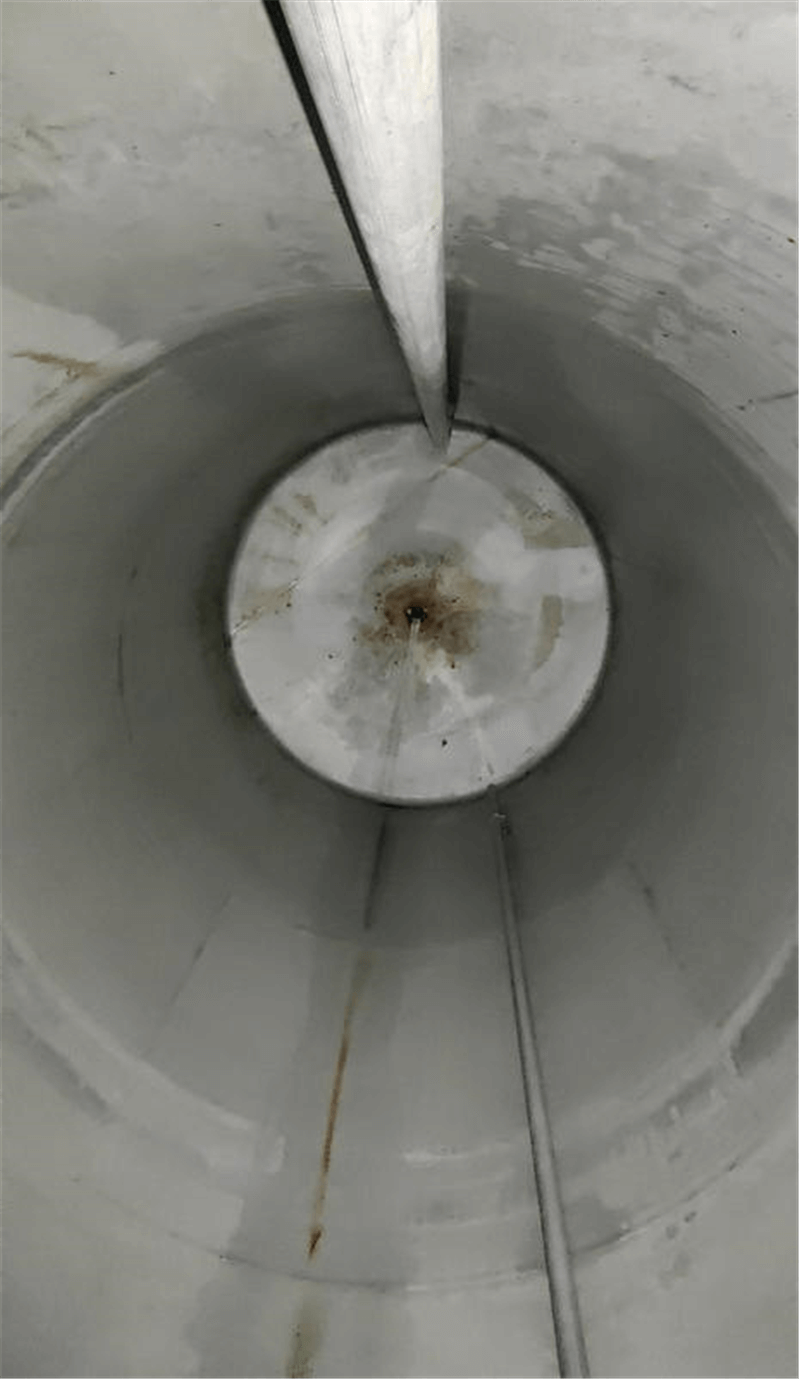

| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 23000 |
| Type tank | Storage tank |

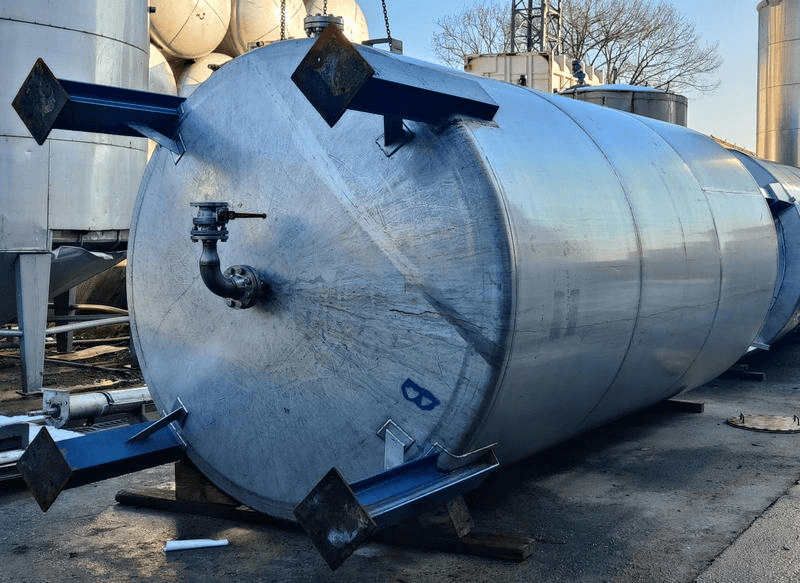

| Fixation | 4 legs |

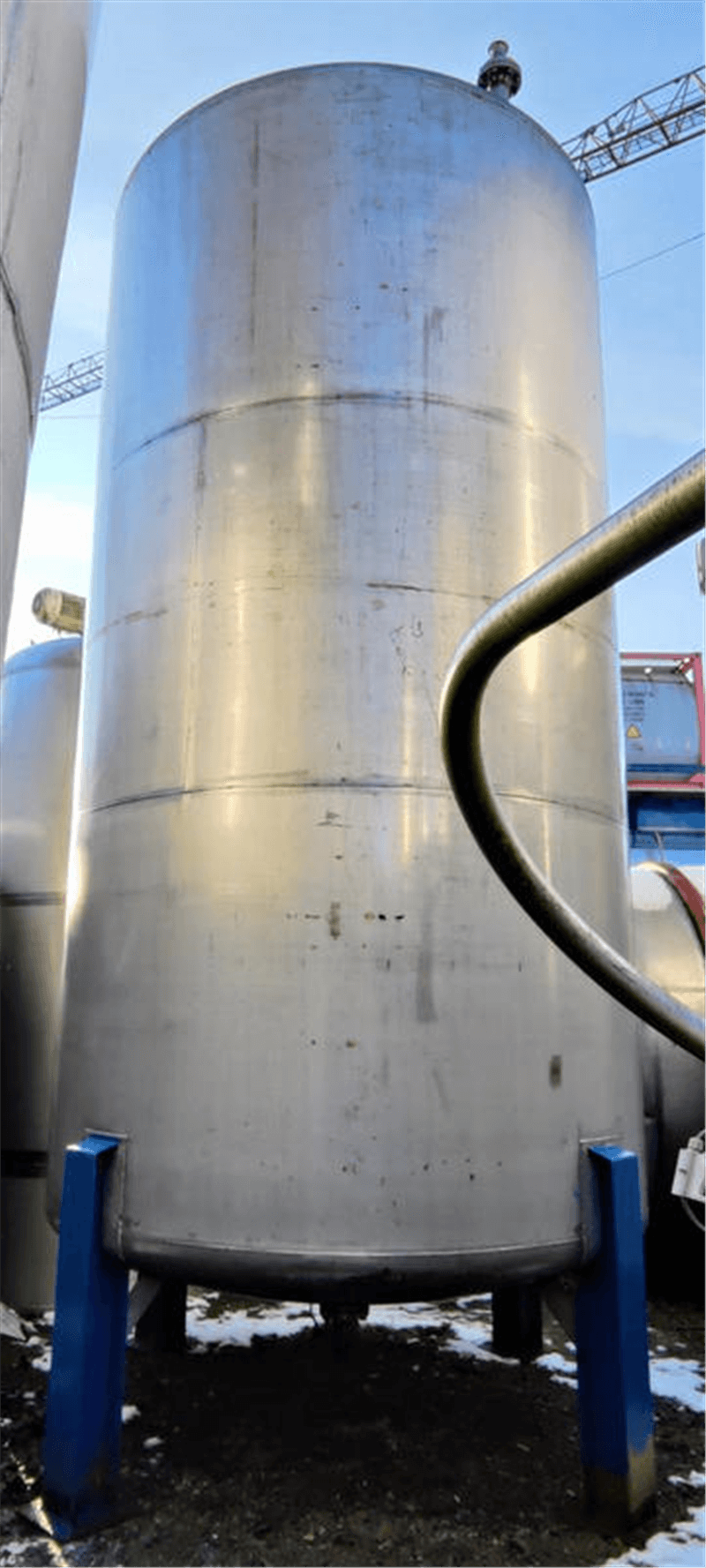

| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

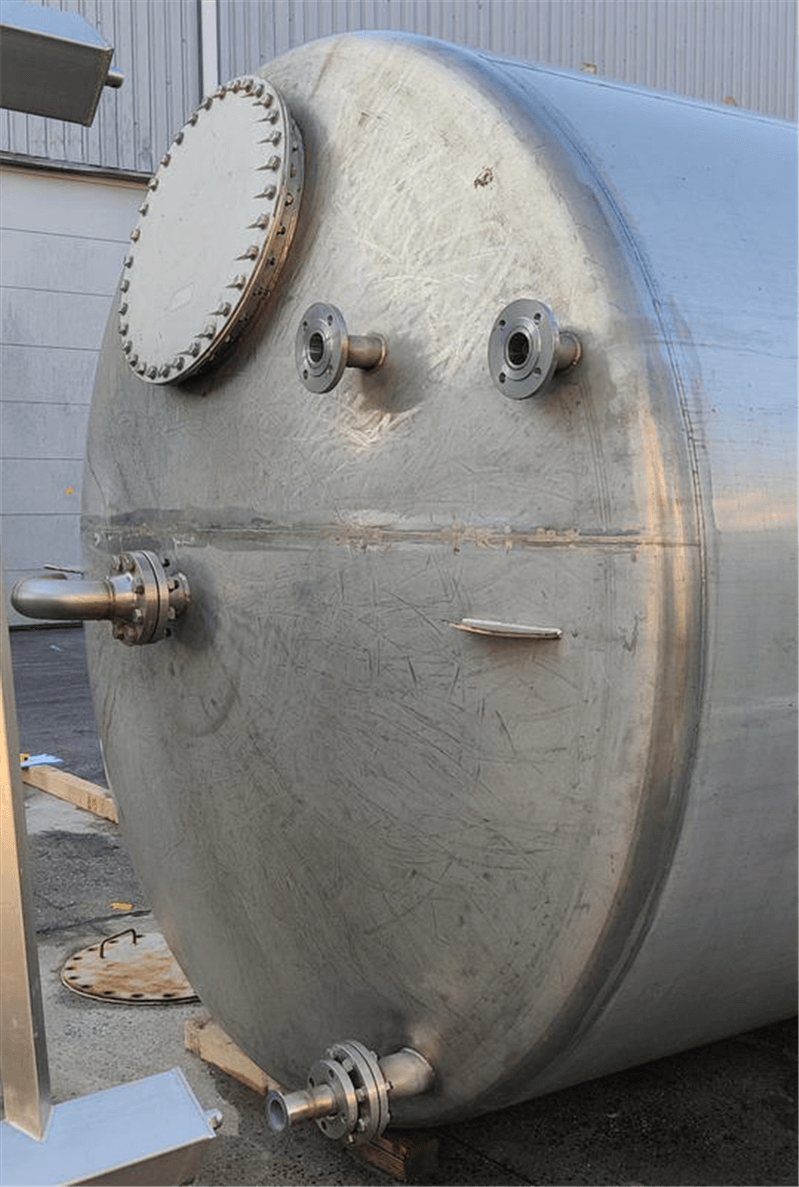

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 580mm |

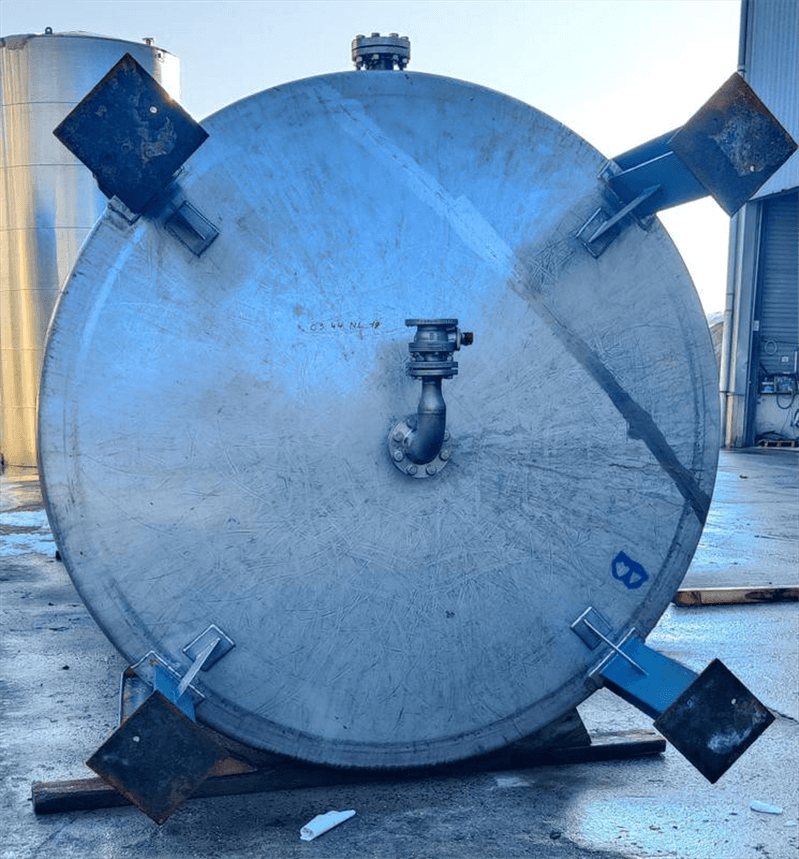

| Tank with total drain? | Yes |

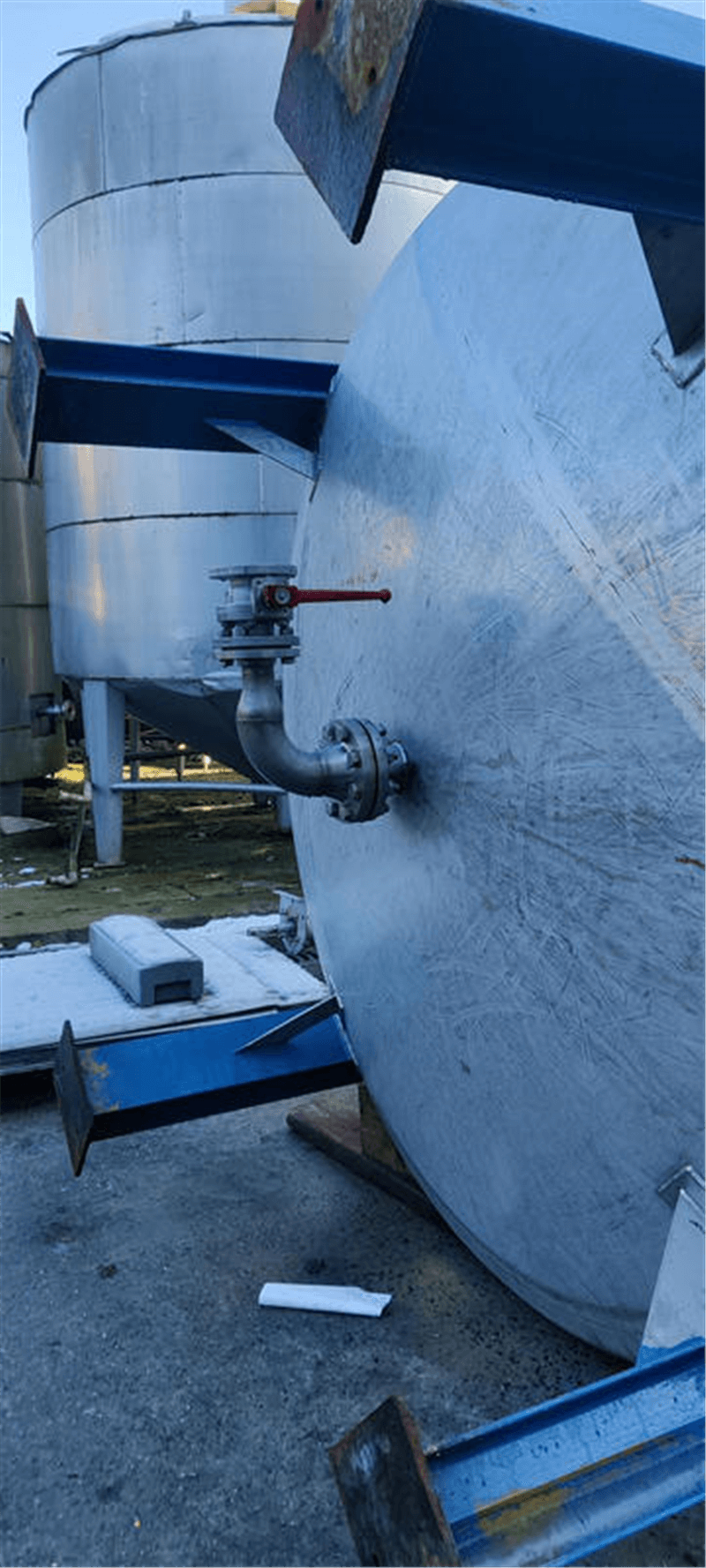

| Type of outlet (s) | man. bolklep |
| Diameter of outlet (mm) | DN50 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 2500 |
| Condition | Used |

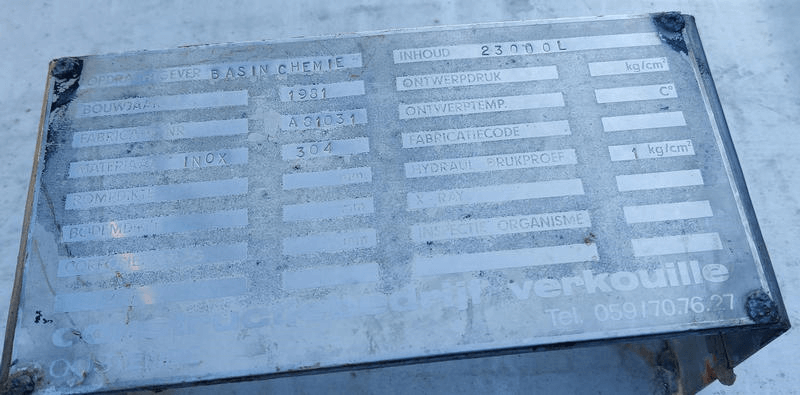

| Manufacturer | Verkouille |
| Year Built | 1981 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 4,8 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,9 |
| Bottom thickness (mm) | 5,7 |
| Periphery (mm) | 7850 |
| Cylindrical length (mm) | 4500 |
| Height bottom (mm) | 350 |
| Total height (mm) | 6100 |
| Length (mm) | 2650 |
| Diameter tank (mm) | 2490 |
| Width (mm) | 2500 |
| Insulation | |
|---|---|
| Insulation | No |
