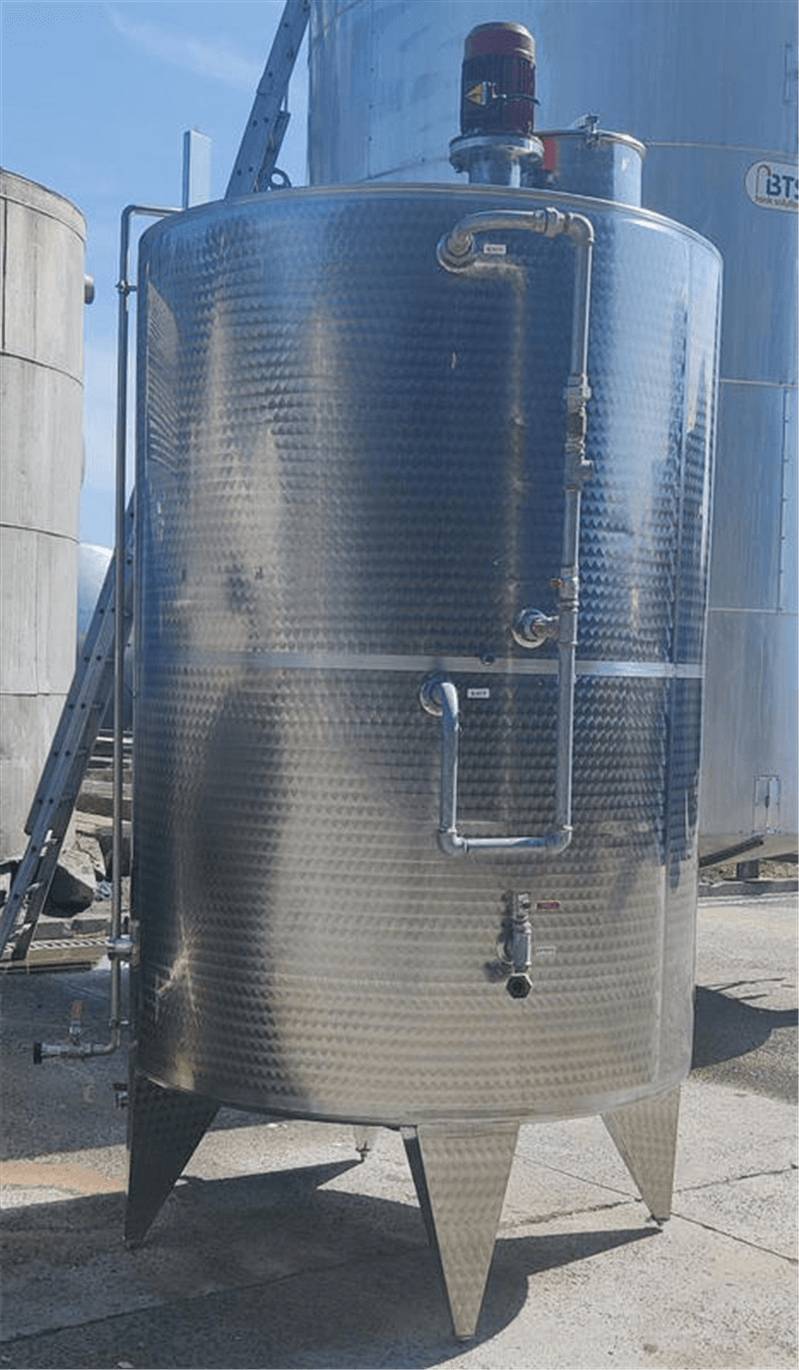

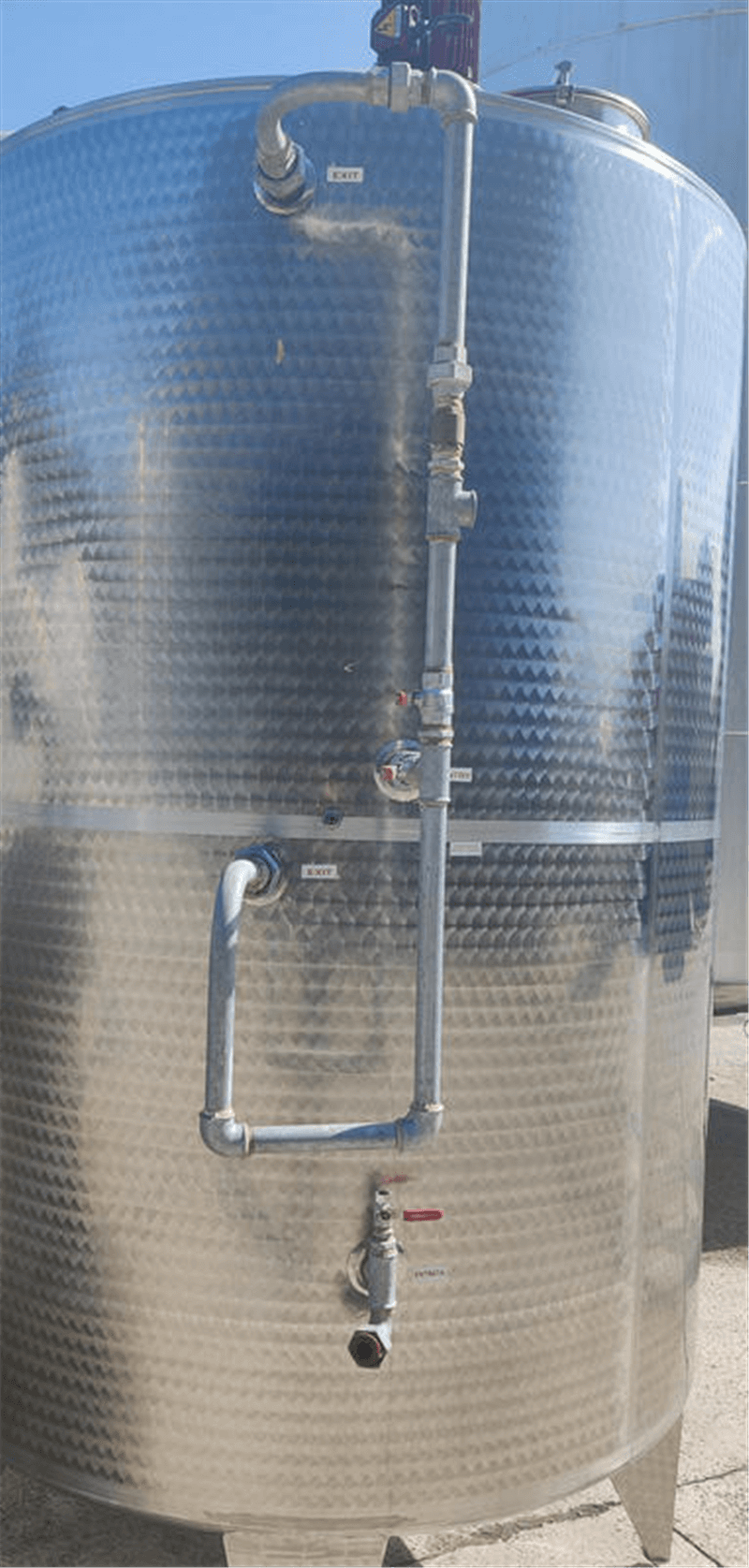

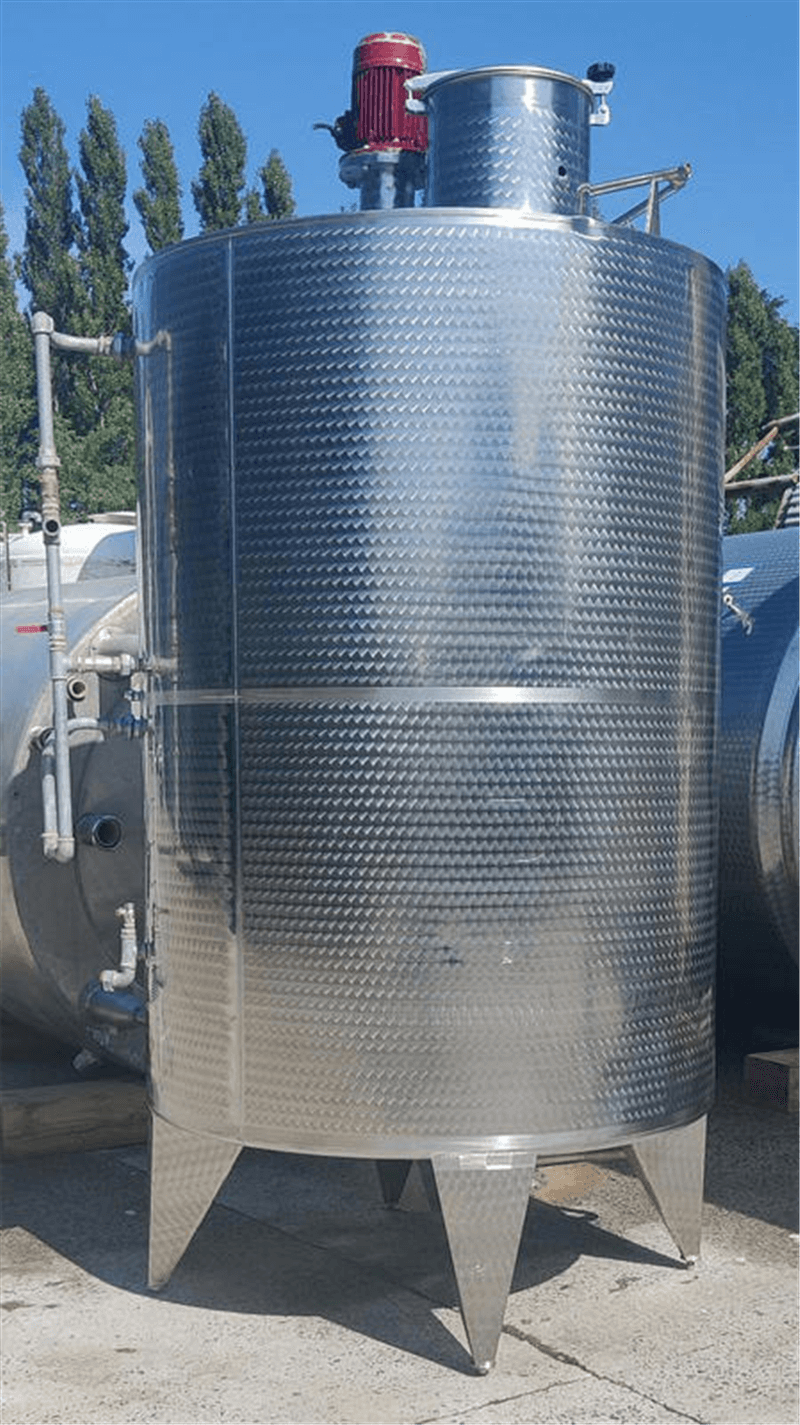

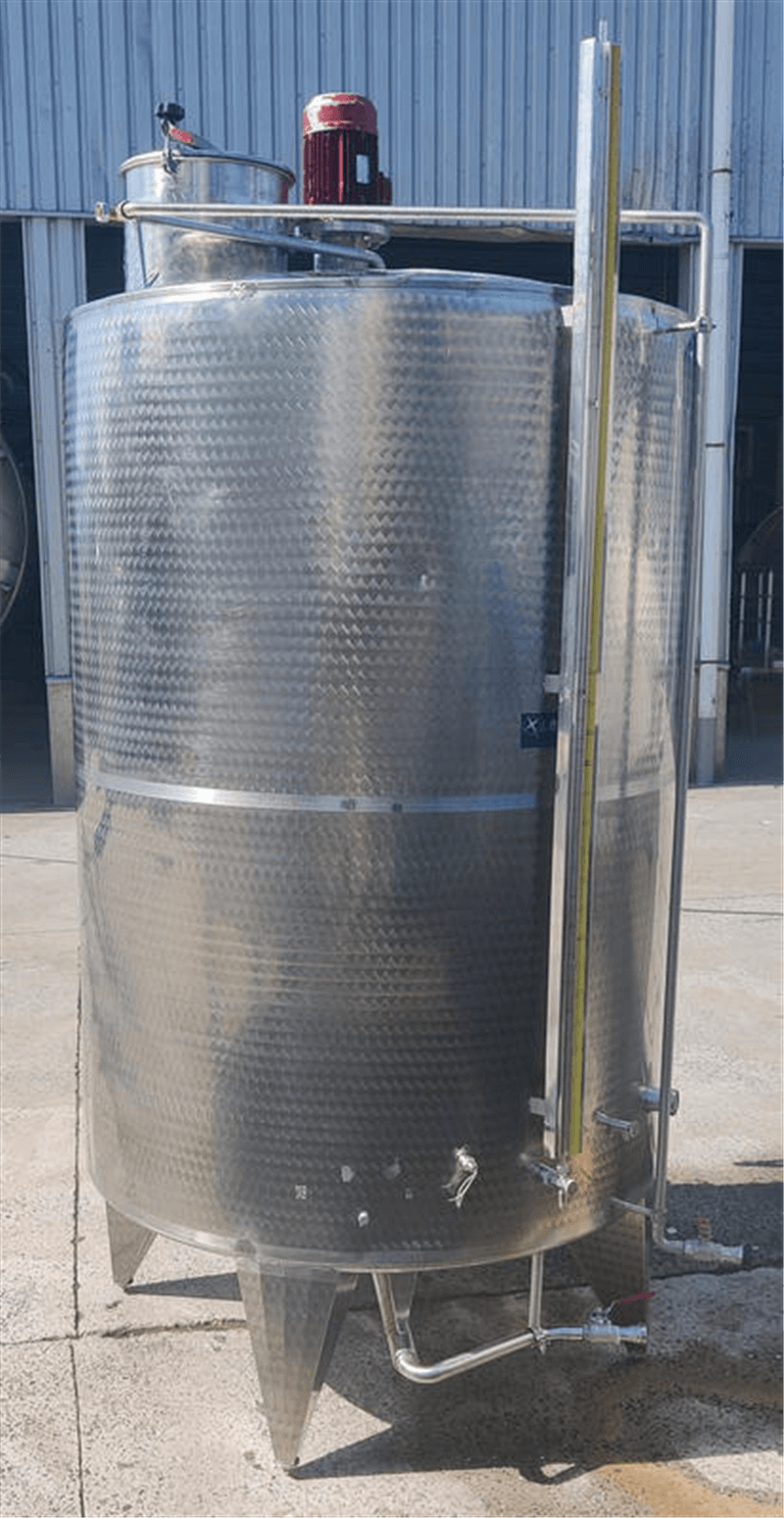

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 3200 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.FR.04 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 3200 |
| Type tank | Mixing vessel |

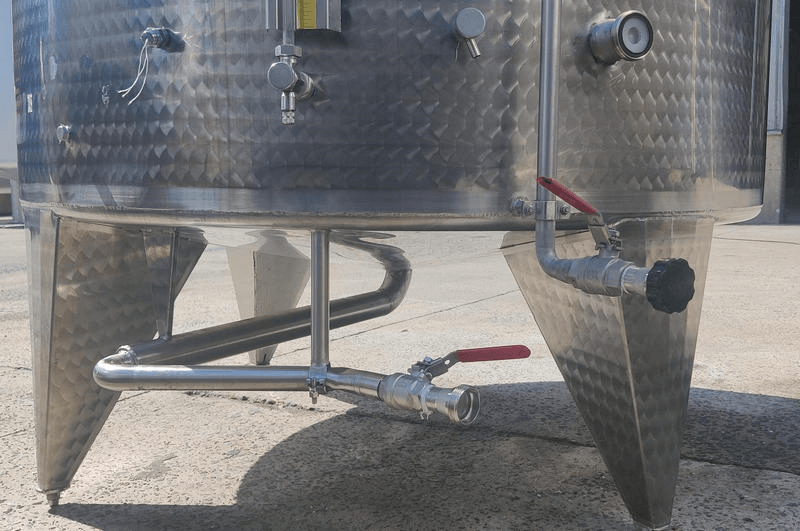

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

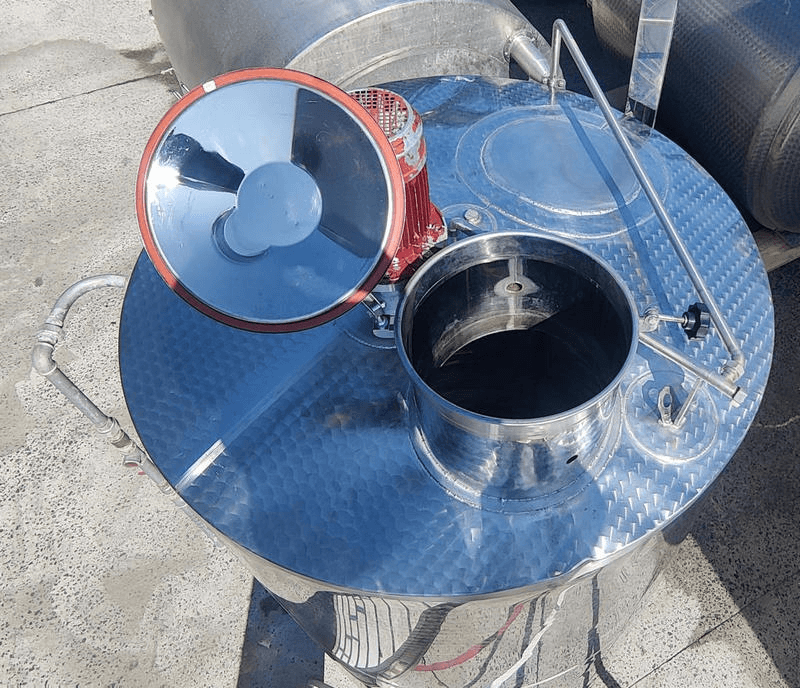

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 400mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 30 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 650 |
| Condition | Used |
| Type plate manufacturer | No |
| Manufacturer | LAINOX |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 1,9 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,1 |
| Bottom thickness (mm) | 1,9 |
| Periphery (mm) | 4400 |
| Cylindrical length (mm) | 2000 |
| Height bottom (mm) | 100 |
| Total height (mm) | 3200 |
| Length (mm) | 1650 |
| Diameter tank (mm) | 1395 |
| Width (mm) | 1400 |
| Insulation | |
|---|---|
| Insulation | No |

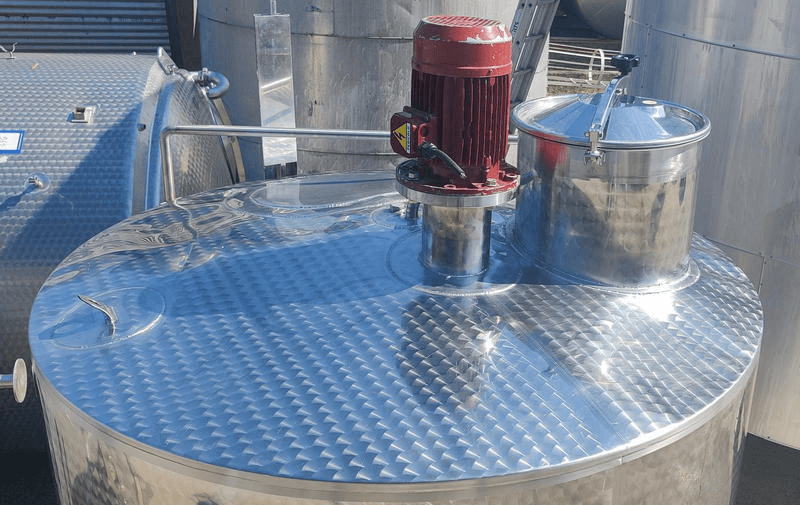

| Agitators | |
|---|---|
| Number of agitators | 1 |

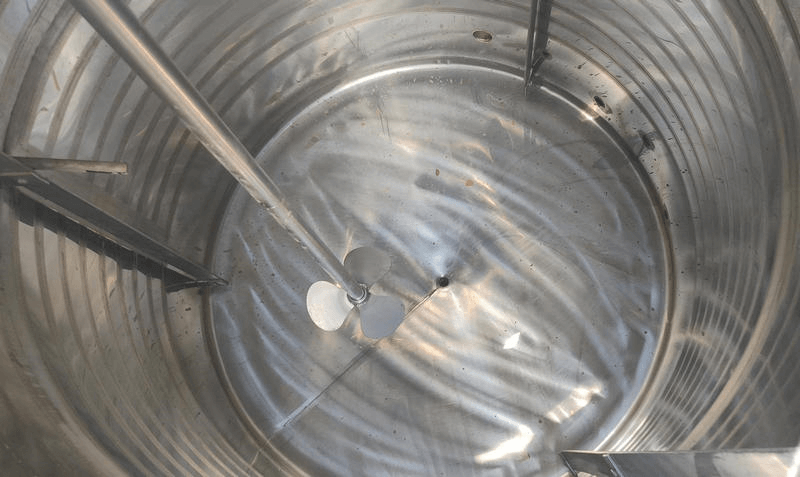

| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Number of baffles | 3 |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1700 |

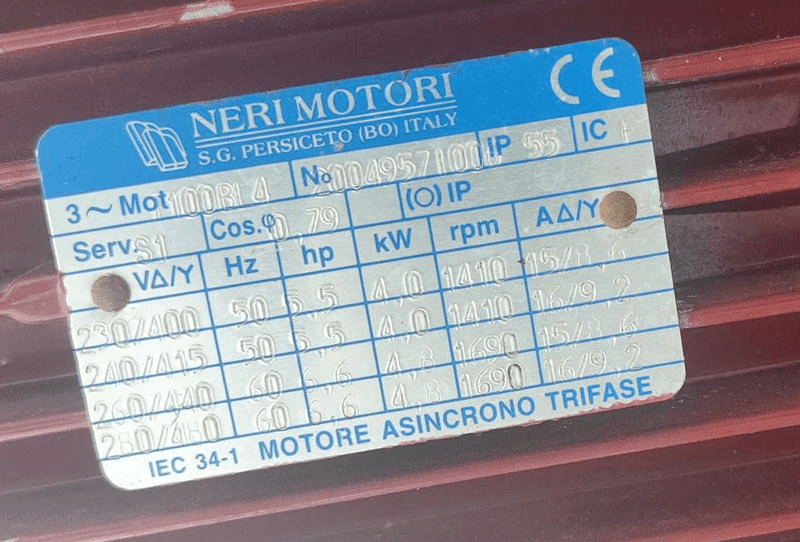

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 230/400 |
| Agitator 1: Power (kw) | 4 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 1410 |
