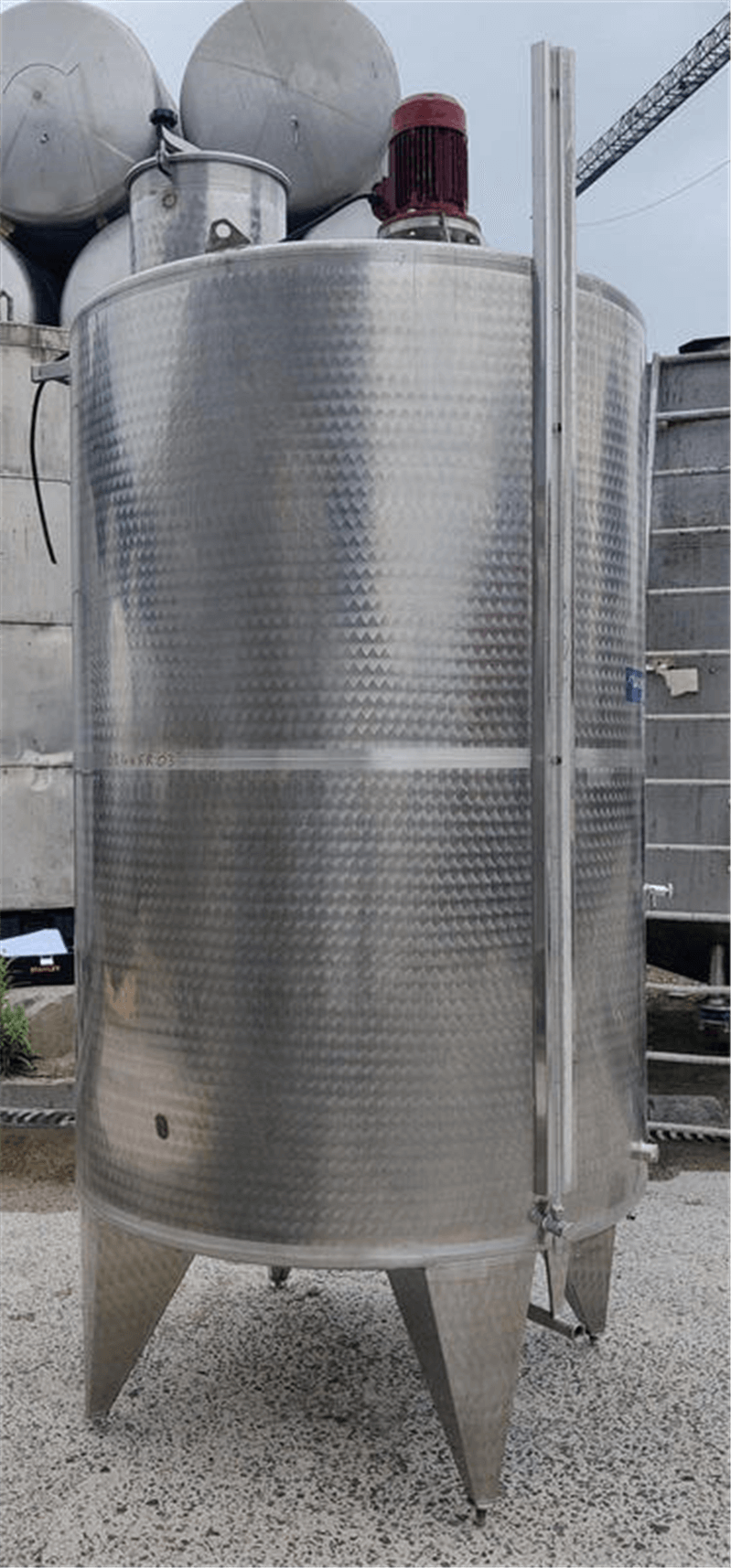

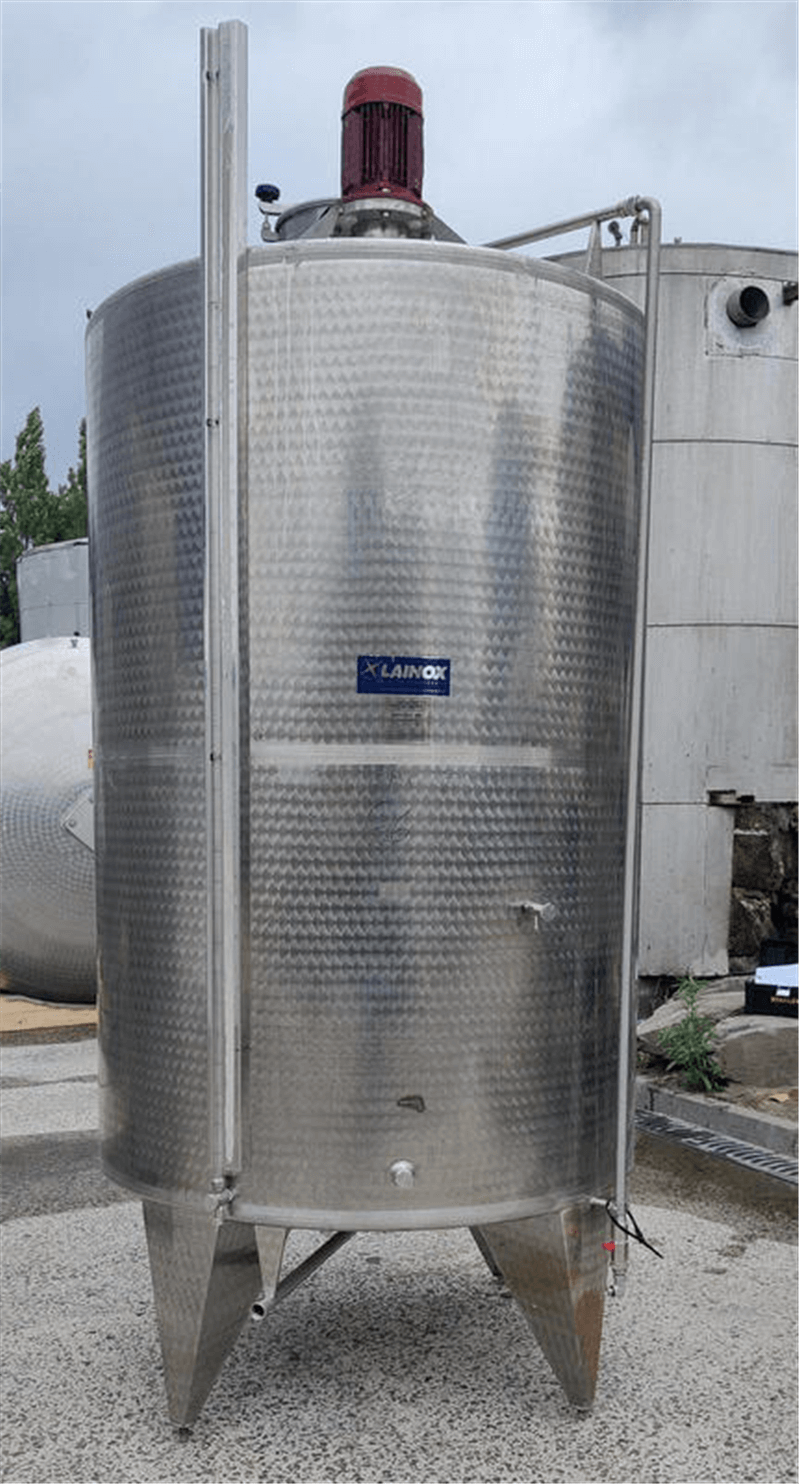

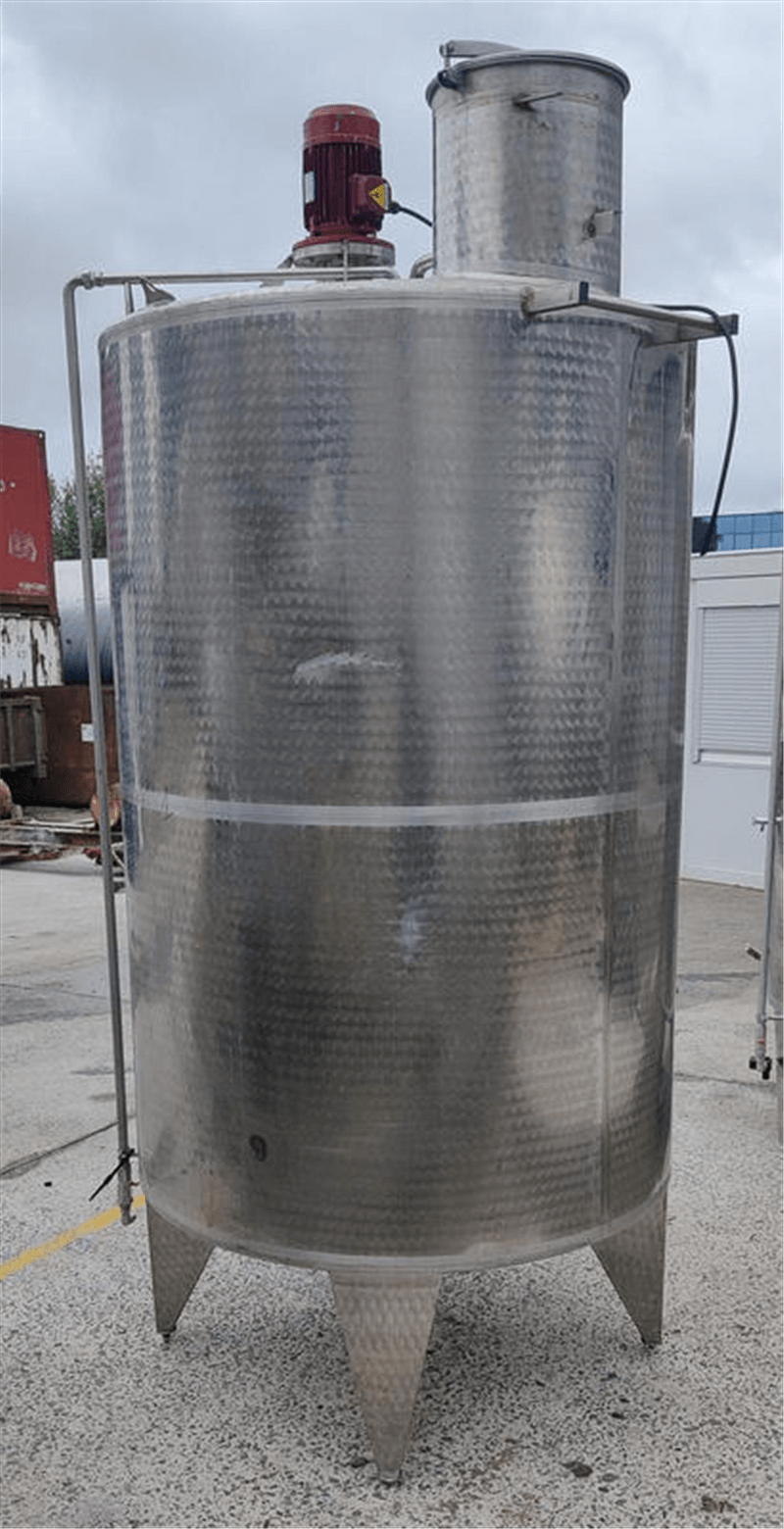

Used mixing vessel

  • Material: Stainless steel 304
  • Condition: Used
  • Volume (in litres): 3200 L
  • In stock: 1
General
Item number 03.44.FR.03
Material Stainless steel 304
Finishing weldings inside Grinded
Number 1
Capacity (Liters) 3200
Type tank Mixing vessel

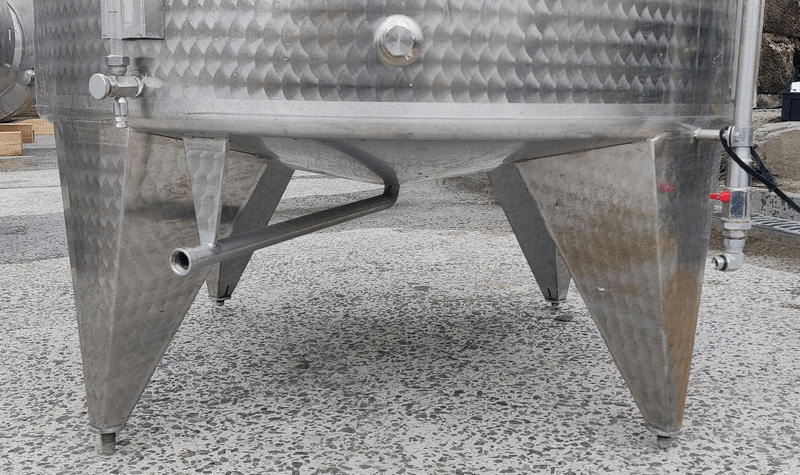

Fixation 4 legs
Model of the tank Vertical
Shape of the tank Cylindrical
Bottom Conical bottom
Tank model Single wall
Number lifting lugs 2
Number of manhole 1
Position of manhole (s) Top
Dimensions of manholes dia 400mm
Tank with total drain? Yes
Diameter of outlet (mm) 30
locality B-7711 Belgium
Last application Food
Provision tank cleaning CIP ball
Weight (kg) 650
Condition Used
Type plate manufacturer No
Manufacturer LAINOX
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
03.44.FR.03 - Used mixing vessel
Top side
Configuration top-side Closed
Detail closed top side Conical bottom
Thickness closed dome (mm) 1,9
Dimensions
Cylinder Thickness (mm) 2,1
Bottom thickness (mm) 1,9
Periphery (mm) 4400
Cylindrical length (mm) 2000
Height bottom (mm) 100
Total height (mm) 3200
Length (mm) 1650
Diameter tank (mm) 1395
Width (mm) 1400
Insulation
Insulation No

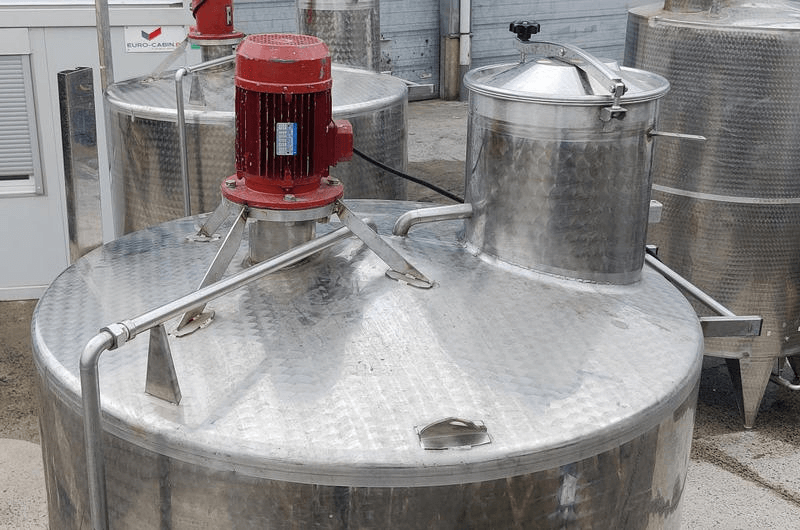

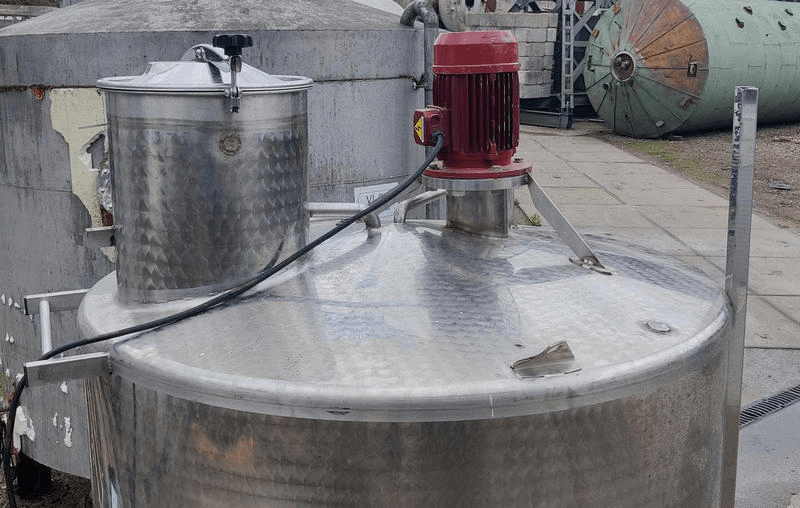

Agitators
Number of agitators 1
Agitator 1: Type Fast rotating mixer
Agitator 1: Position decentrally on the top

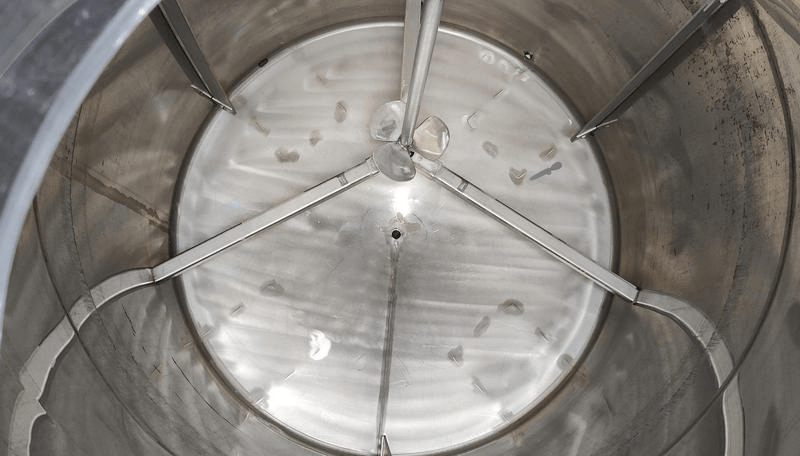

Agitator 1: Number of baffles 3
Agitator 1: stirring element type Propeller
Agitator 1: Length (mm) 1700

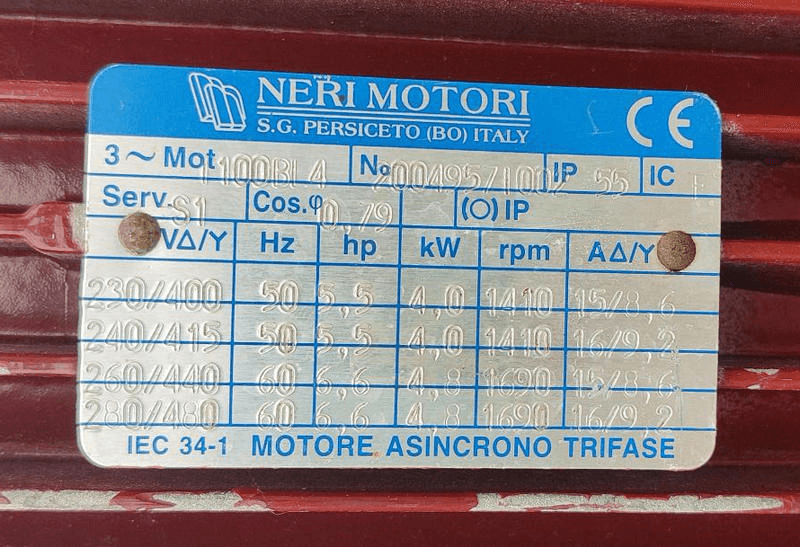

Agitator 1: Engine Type electric motor
Agitator 1: Voltage (V) 230/400
Agitator 1: Power (kw) 4
Agitator 1: Drive Type Direct
Agitator 1: Speed (r / min) 1410
