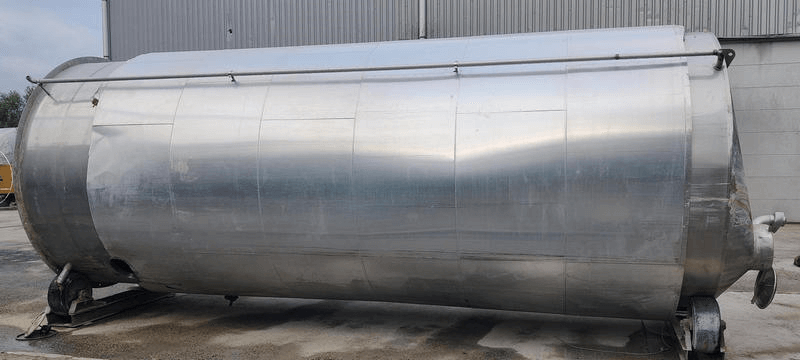

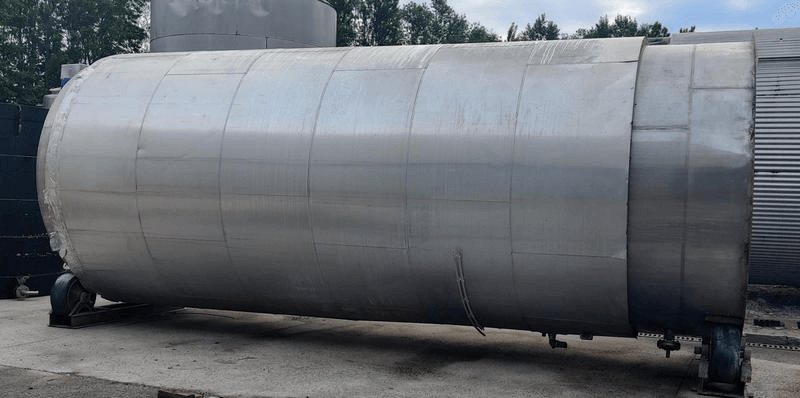

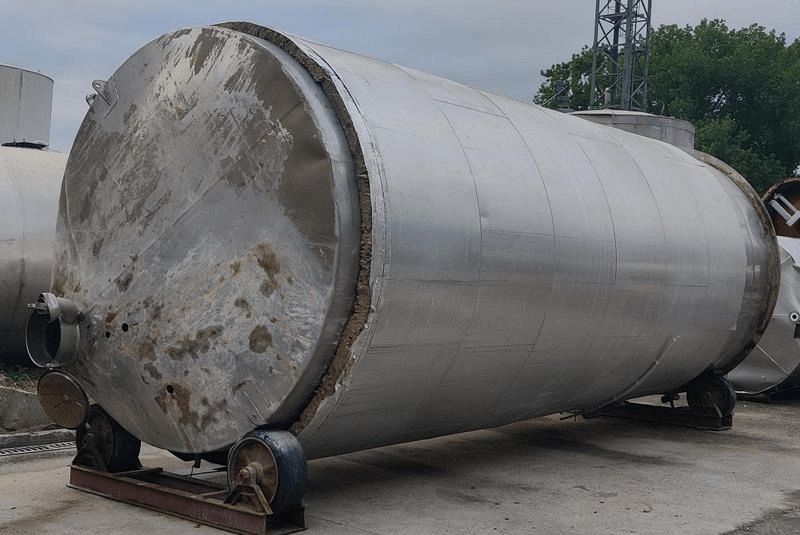

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 41000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.CO.03 |
| Material | Stainless steel 316 |
| Number | 1 |
| Capacity (Liters) | 41000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

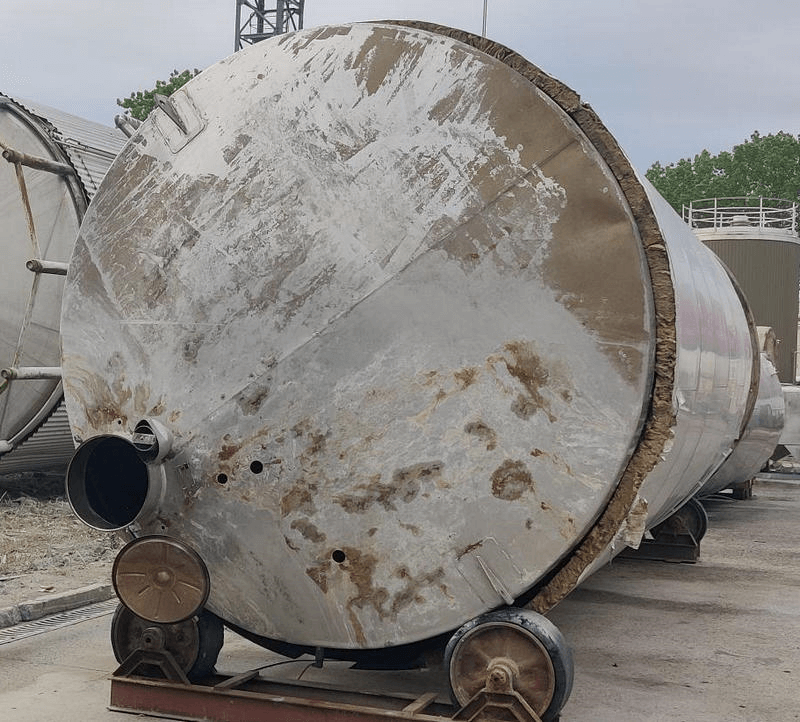

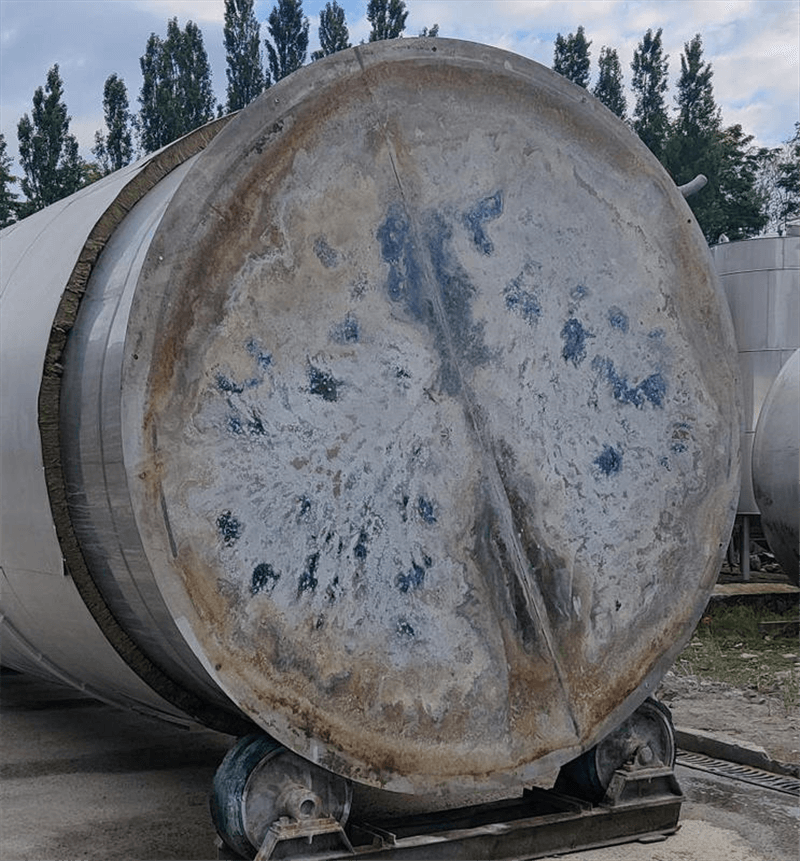

| Bottom | Flat bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

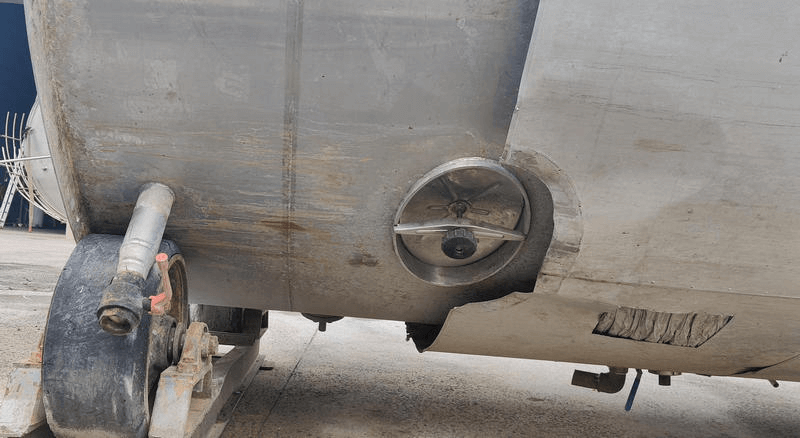

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 395mm / 425x305mm |
| Tank with total drain? | No |
| locality | B-7711 Belgium |
| Last application | Agriculture |
| Provision tank cleaning | None |
| Weight (kg) | 2100 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Bottom thickness (mm) | 4 |
| Periphery (mm) | 9080 |
| Cylindrical length (mm) | 7000 |
| Outside diameter tank (mm) | 2890 |
| Total height (mm) | 7600 |
| Length (mm) | 3125 |
| Diameter tank (mm) | 2726 |
| Width (mm) | 2950 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Only cylindrical portion isolated |

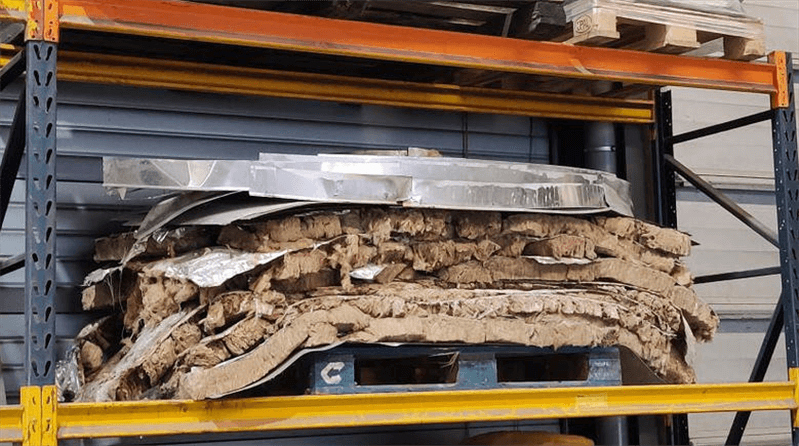

| Type of insulation | Insulating wool |
| Thickness (mm) | 80 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
