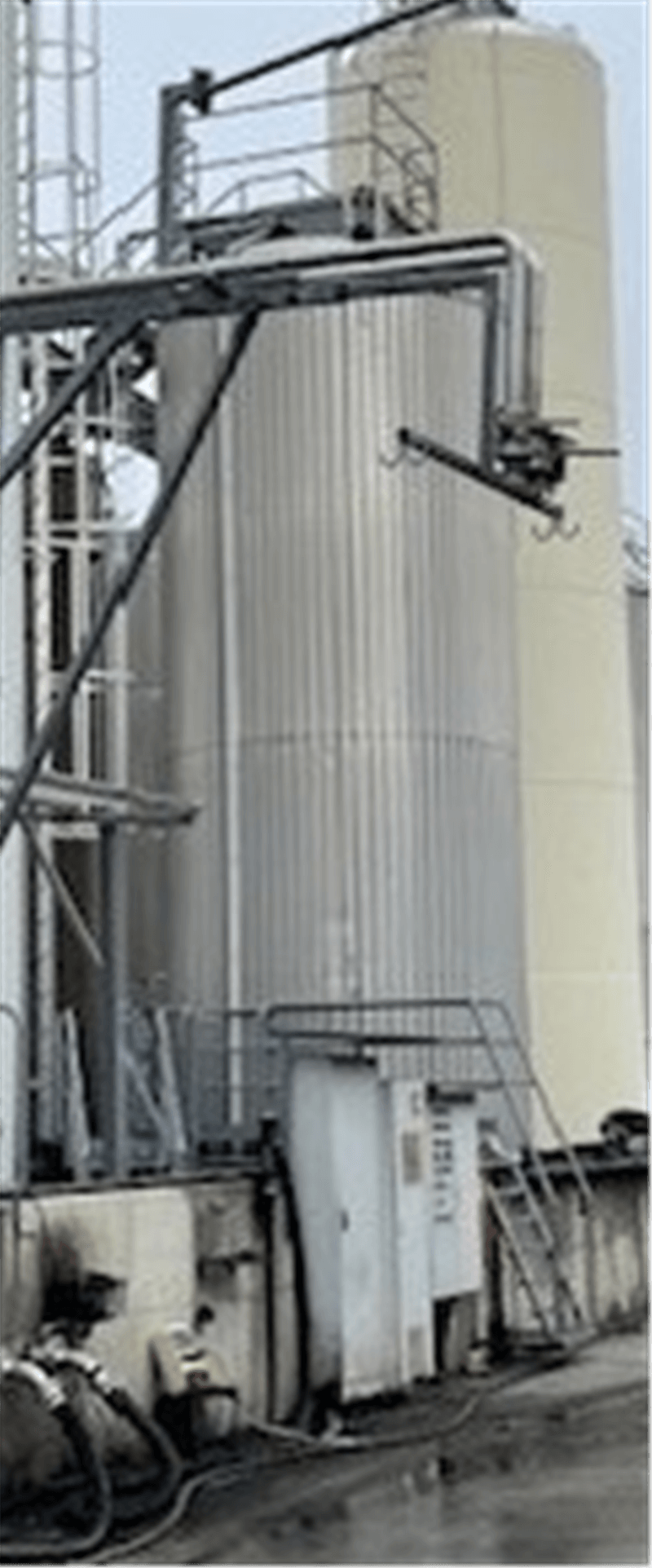

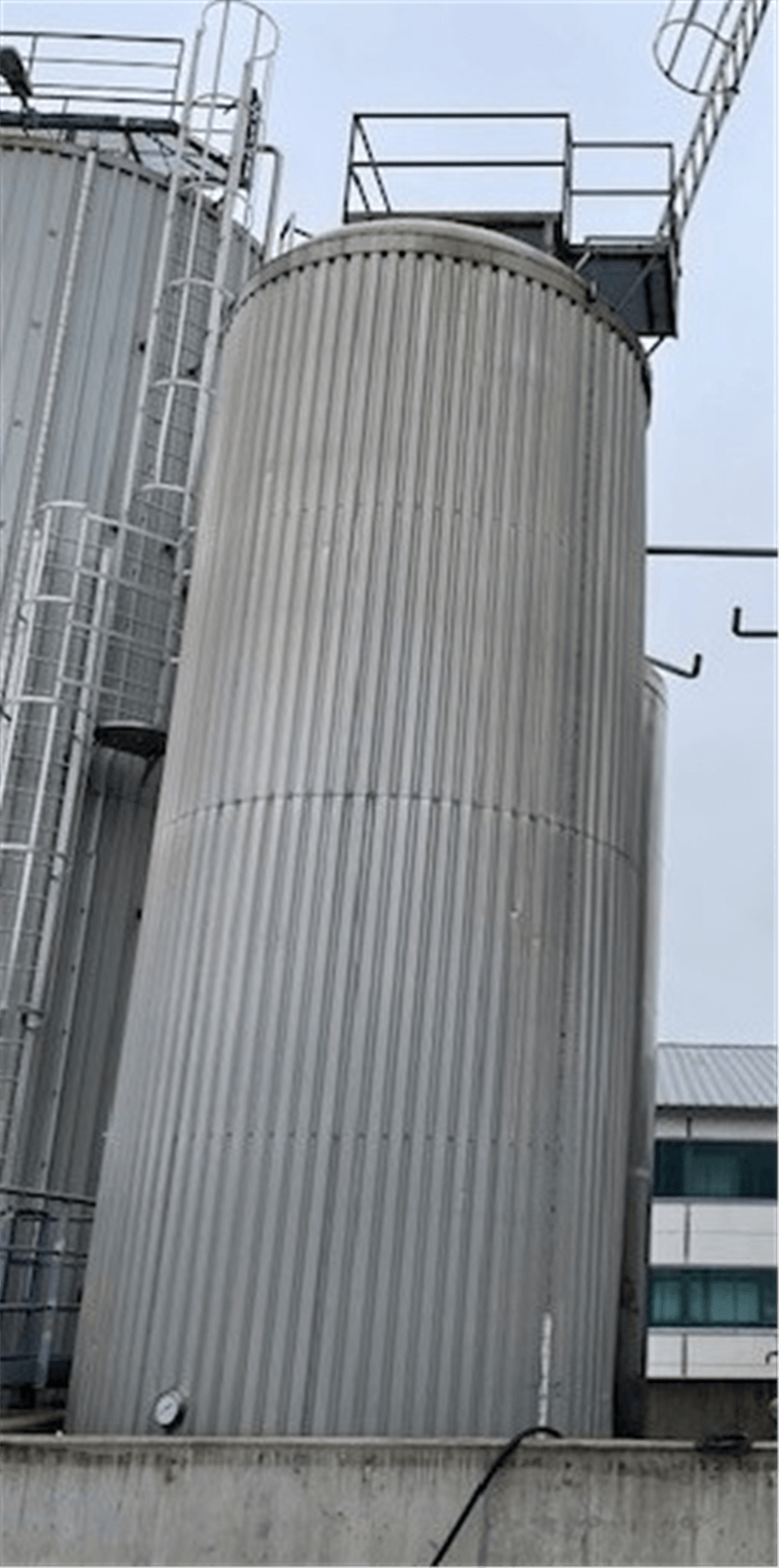

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 60000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.WE.08 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 60000 |
| Type tank | Storage tank |

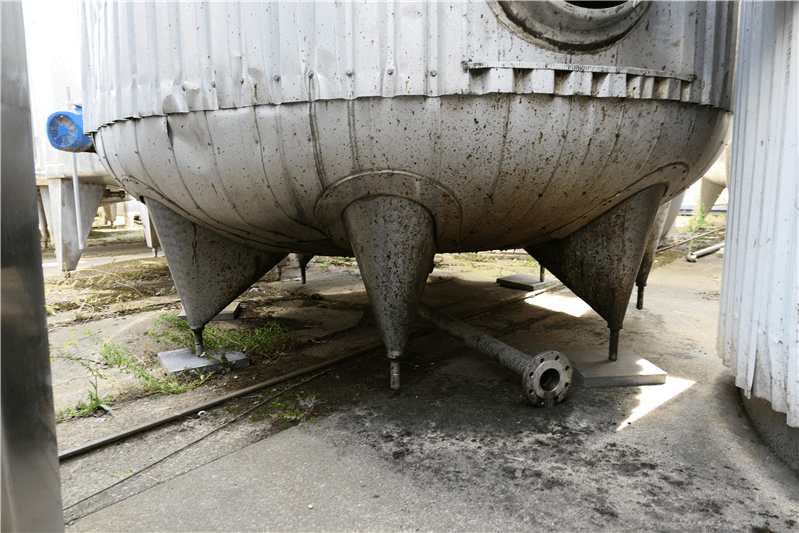

| Fixation | 5 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |

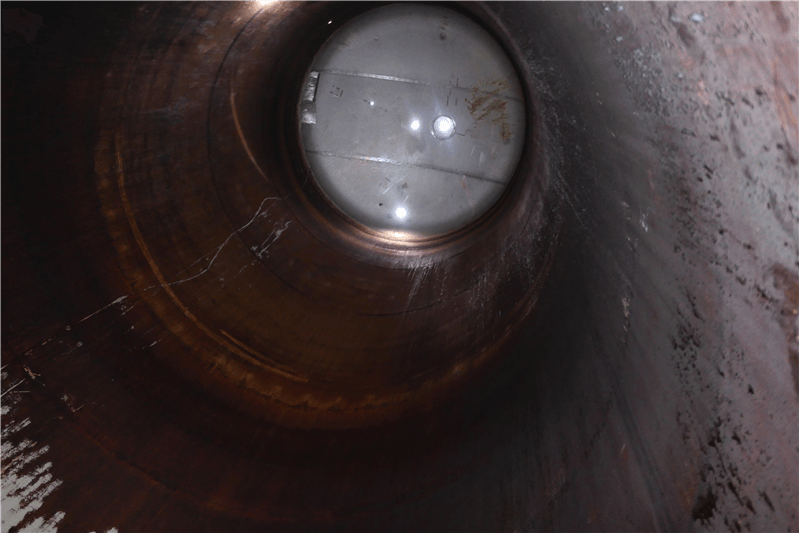

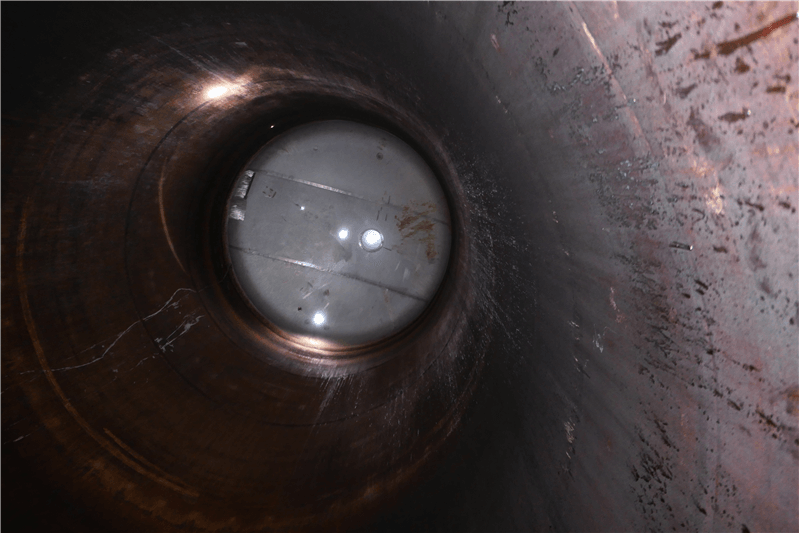

| Number of manhole | 1 |
| Position of manhole (s) | Top |

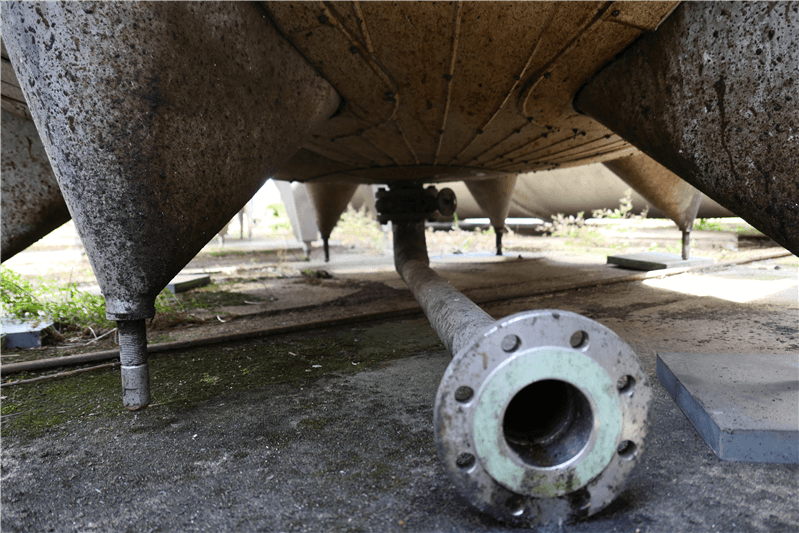

| Type of outlet (s) | DN80 |
| locality | On location |
| Last application | Oil / grease |
| Condition | Used |
| Top side | |
|---|---|

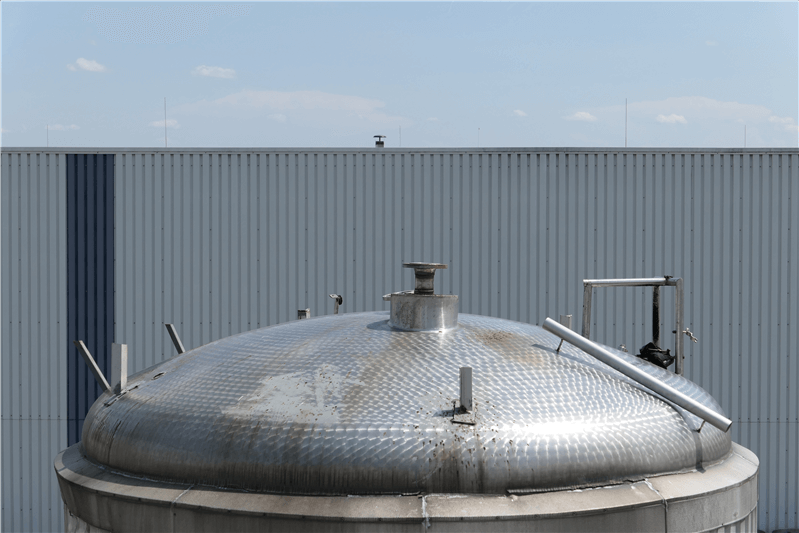

| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 4 |
| Total height (mm) | 10000 |
| Diameter tank (mm) | 3100 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | PUR Foam |
| Thickness (mm) | 60 |
| Finishing insulation | Profile Cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |

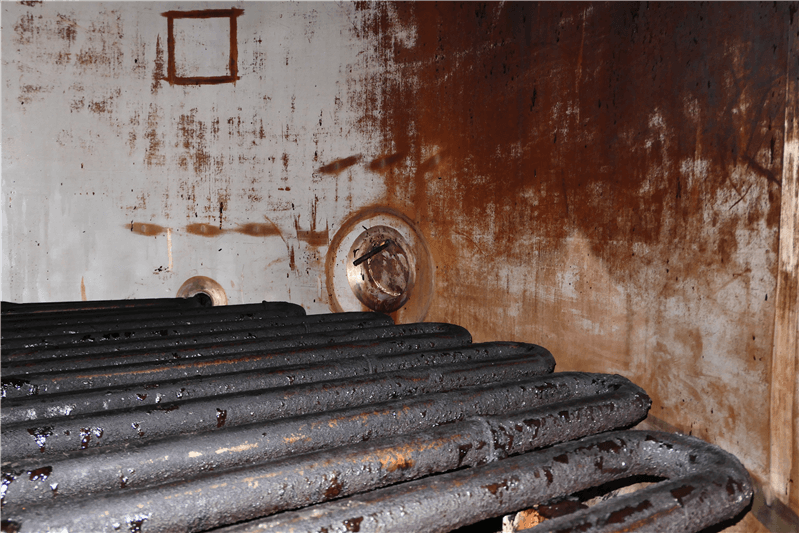

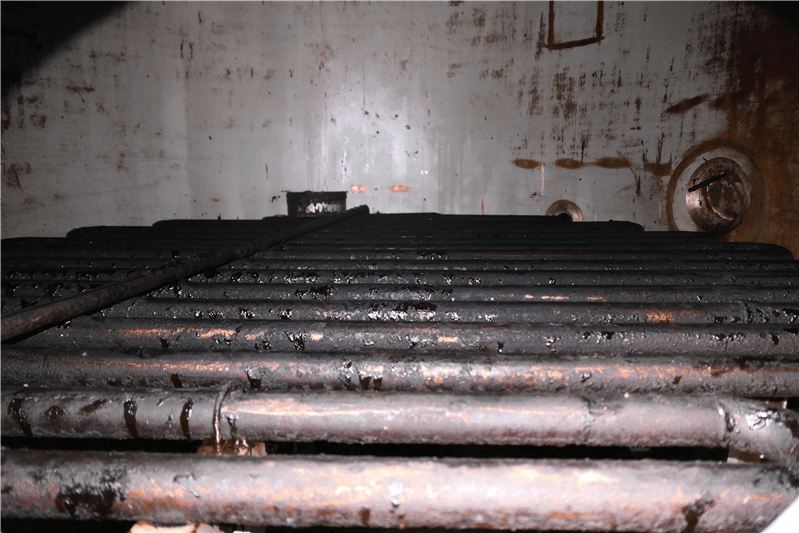

| Heating 1: Type | Heating coil only on the bottom |
