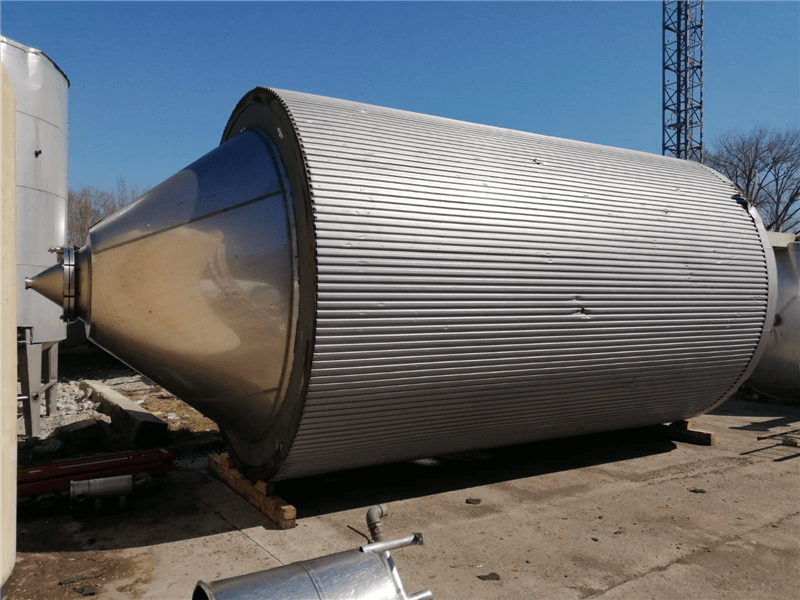

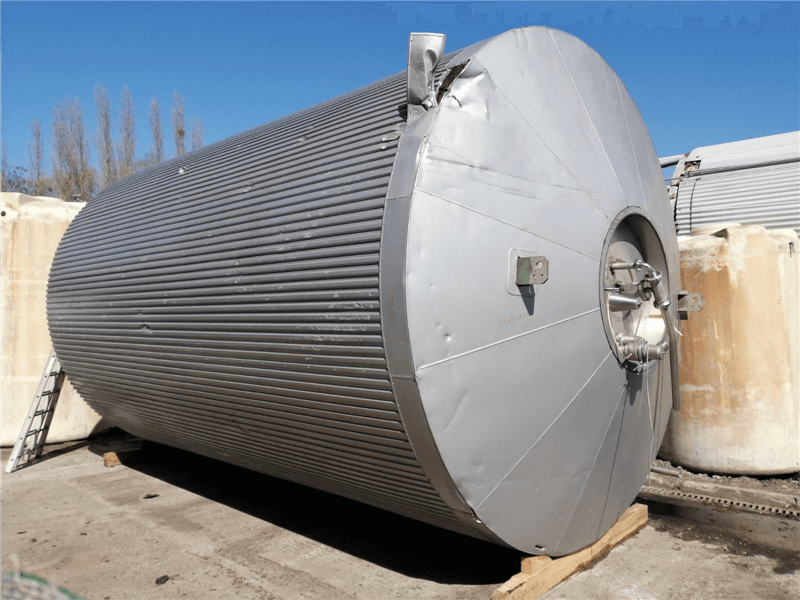

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 54000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.VA.01 |
| Material | Stainless steel 304 |

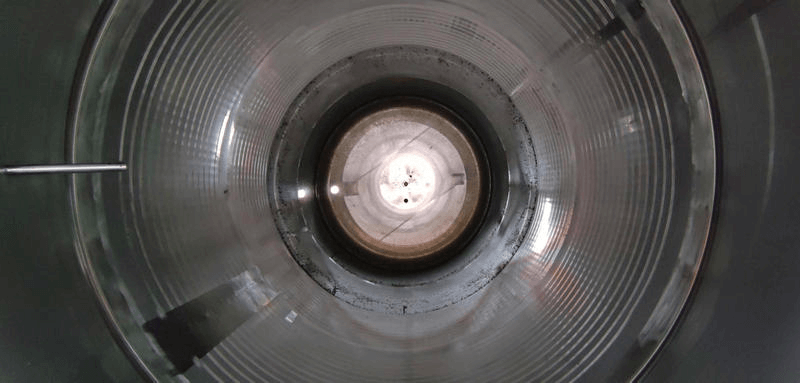

| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 54000 |
| Type tank | Storage tank |
| Fixation | - |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

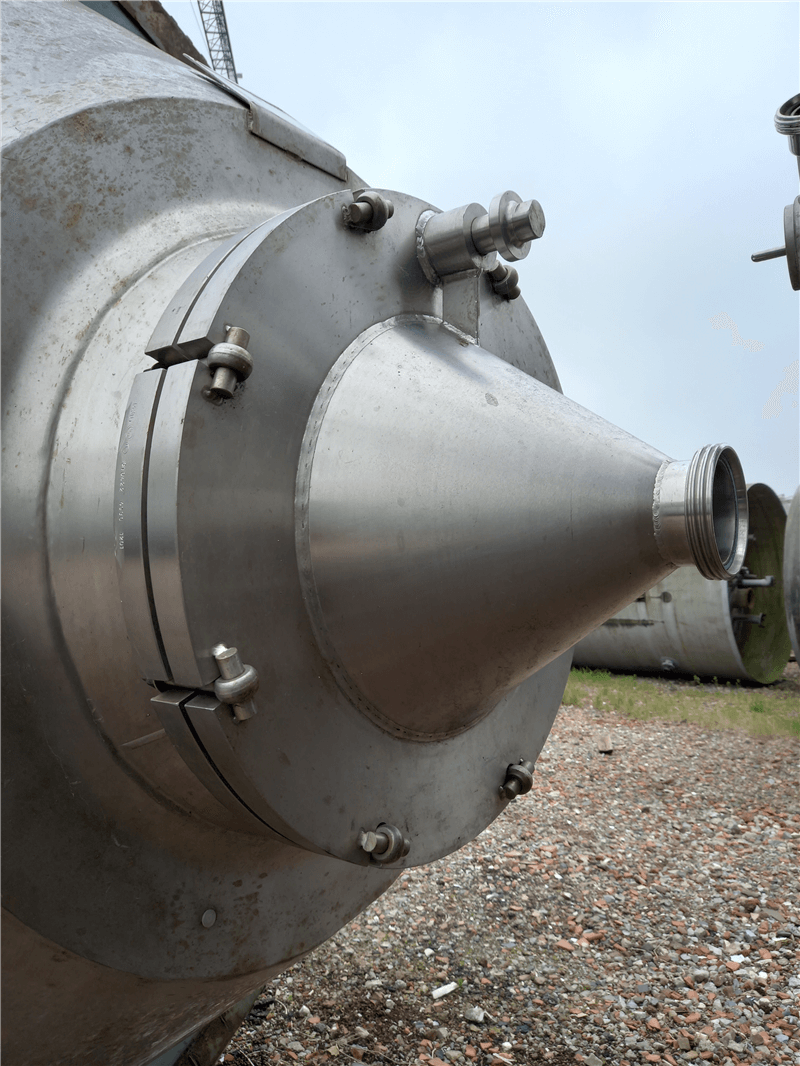

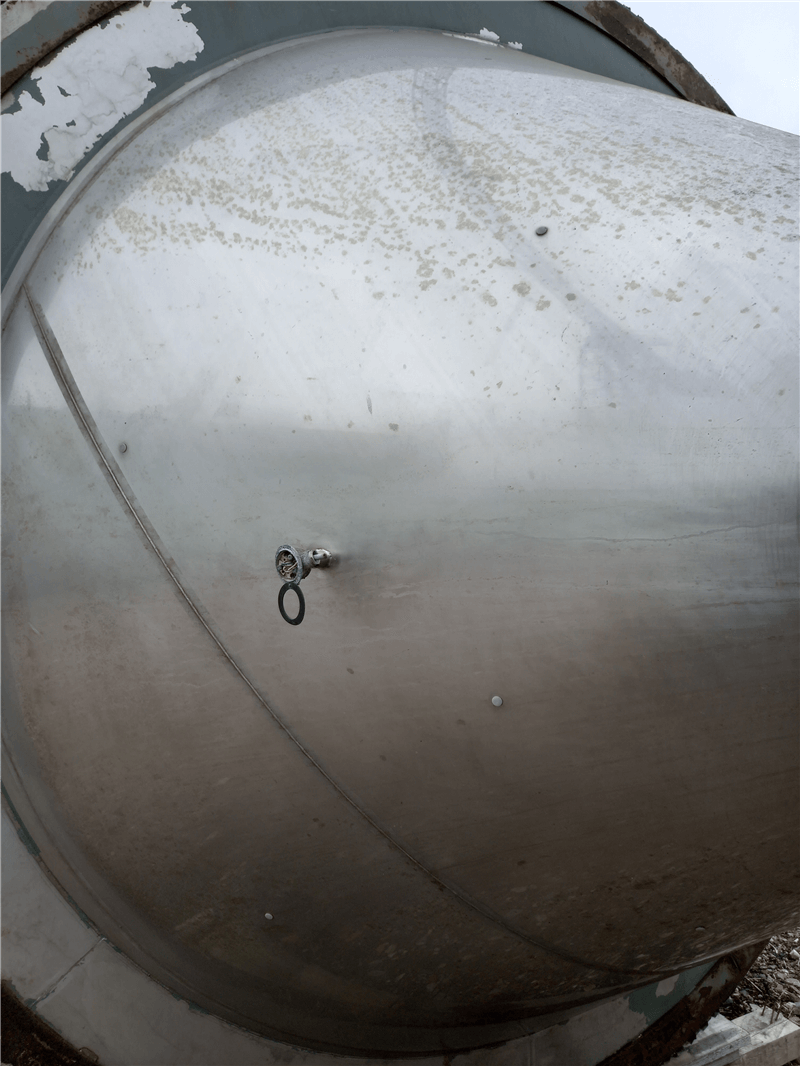

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |
| Density (kg/dm³) | 1 |

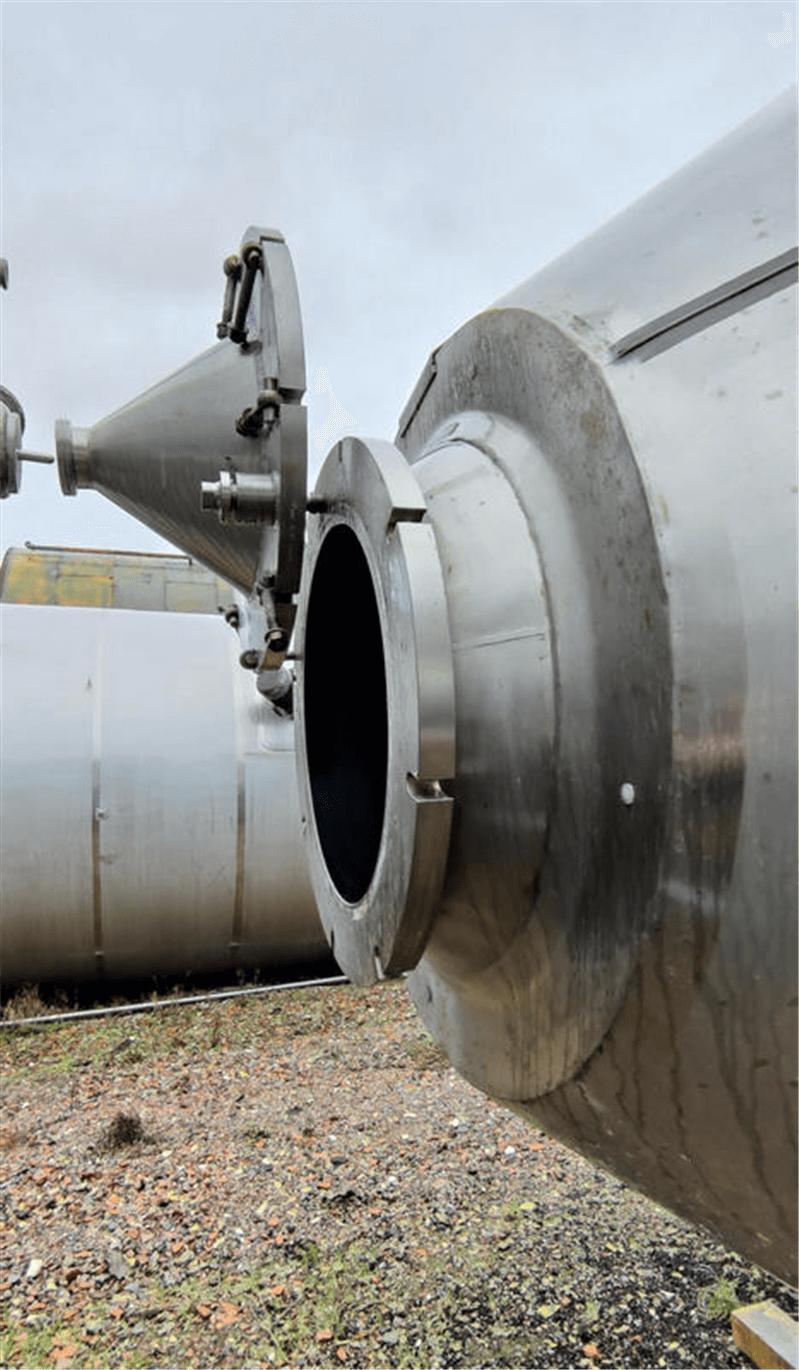

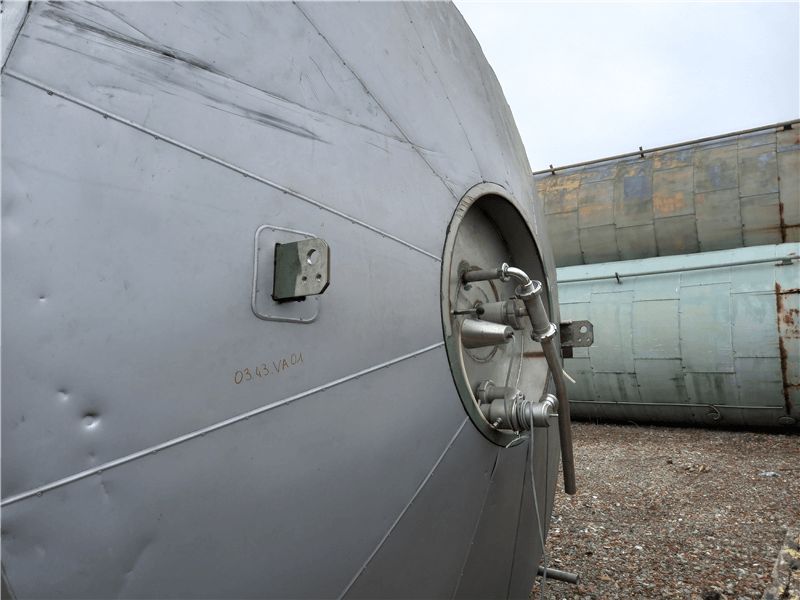

| Number of manhole | 1 |
| Position of manhole (s) | Bottom |
| Dimensions of manholes | NW80 |
| Tank with total drain? | Yes |
| Type of outlet (s) | NW80 |
| locality | B-7711 Belgium |
| Last application | Food |

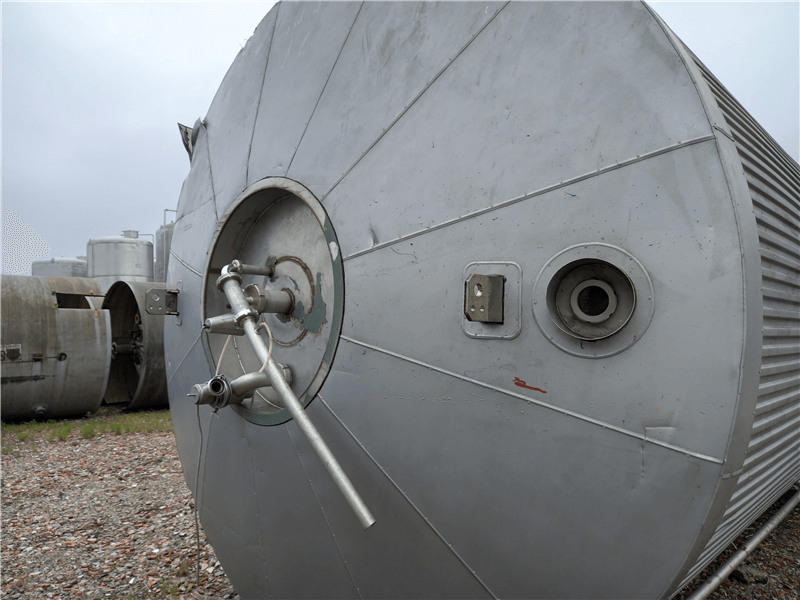

| Provision tank cleaning | CIP ball |
| Weight (kg) | 3200 |
| Condition | Used |
| Manufacturer | Holvrieka |
| Year Built | 1991 |
| Construction data available | Yes |
| Working temperature (° C) | 20 |
| Top side | |
|---|---|
| Configuration top-side | Closed |

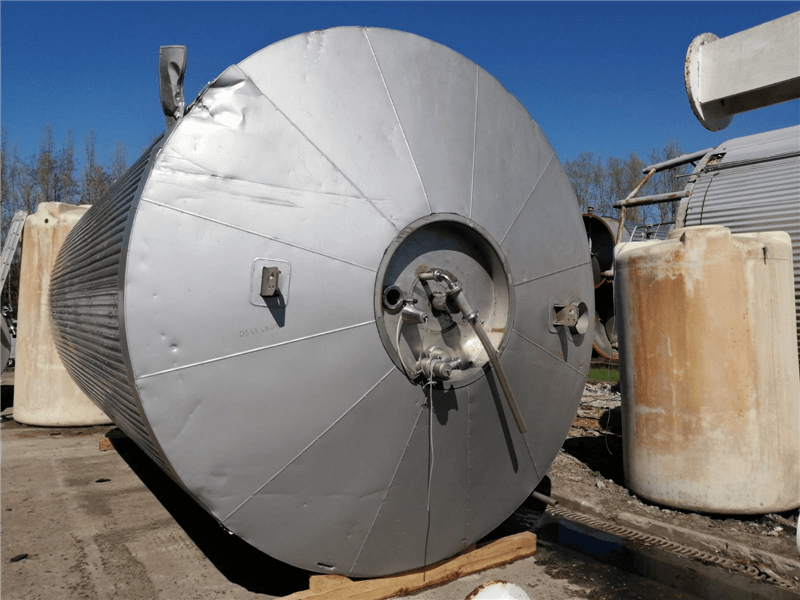

| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 4 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 4 |
| Cylindrical length (mm) | 4750 |
| Slope bottom (°) | 55 |
| Height bottom (mm) | 2340 |
| Outside diameter tank (mm) | 3600 |
| Total height (mm) | 7750 |
| Diameter tank (mm) | 3400 |
| Width (mm) | 3600 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | PUR Foam |
| Thickness (mm) | 100 |

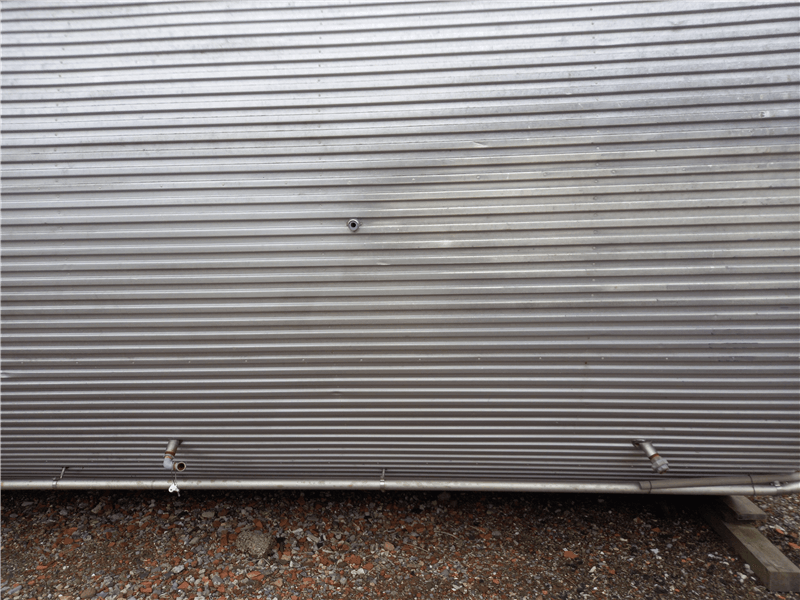

| Finishing insulation | Profile Cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Halfpipe |
| Remarks | |
|---|---|
| Description (EN) | Beertank - Working pressure tank: 1.2 Bar - Working pressure jacket: 3 Bar - T° 20°C - Cooling surface 22m² |
