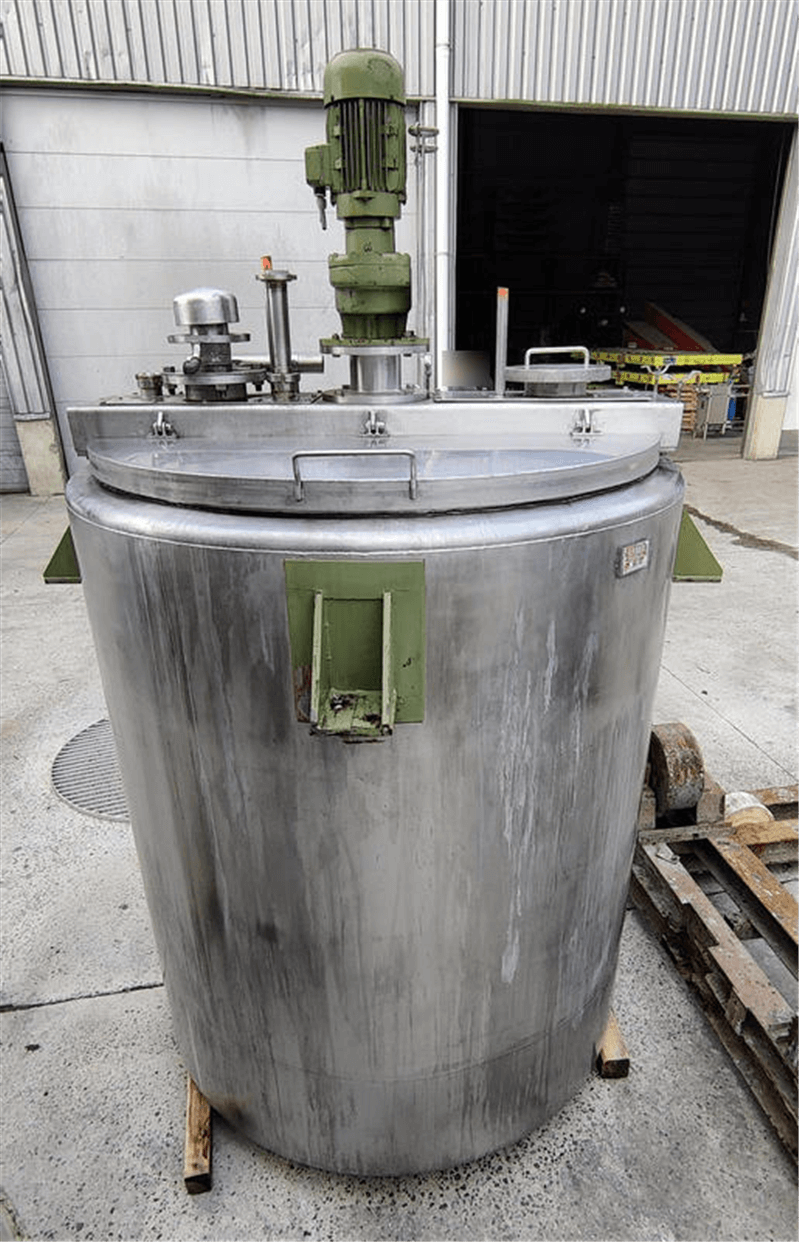

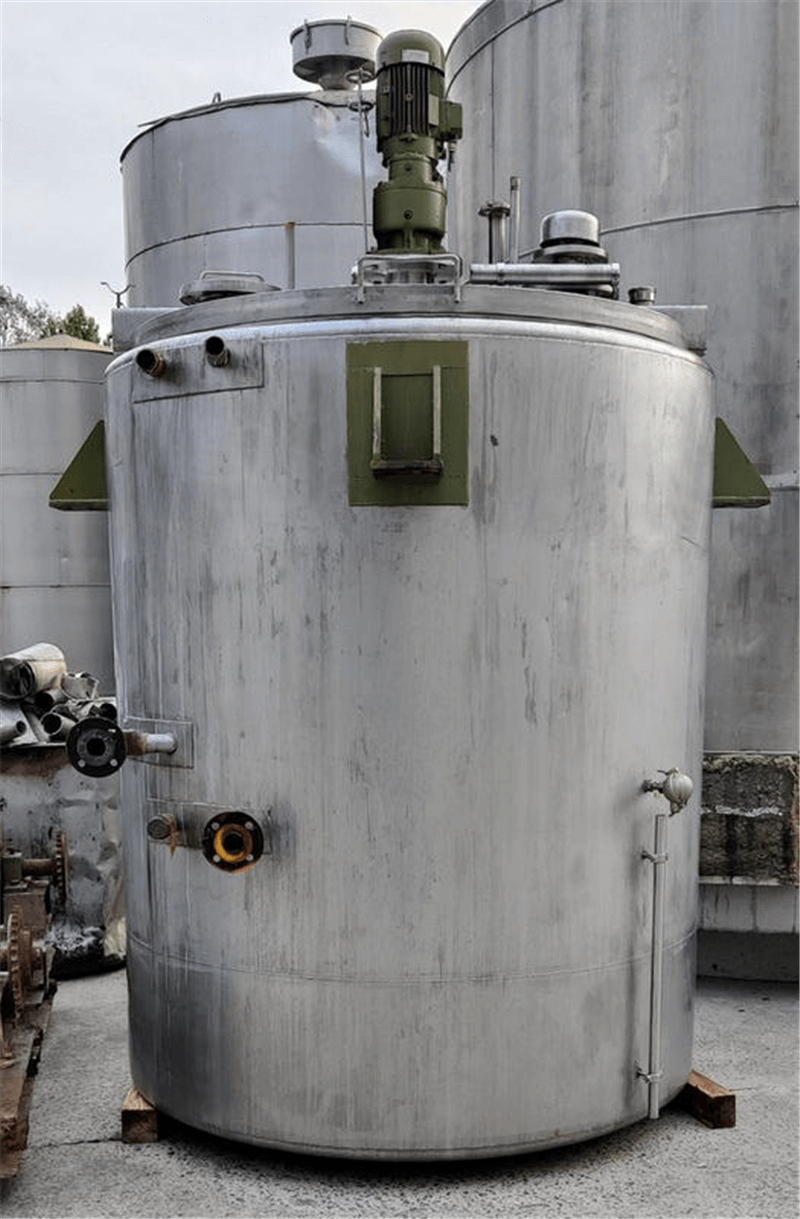

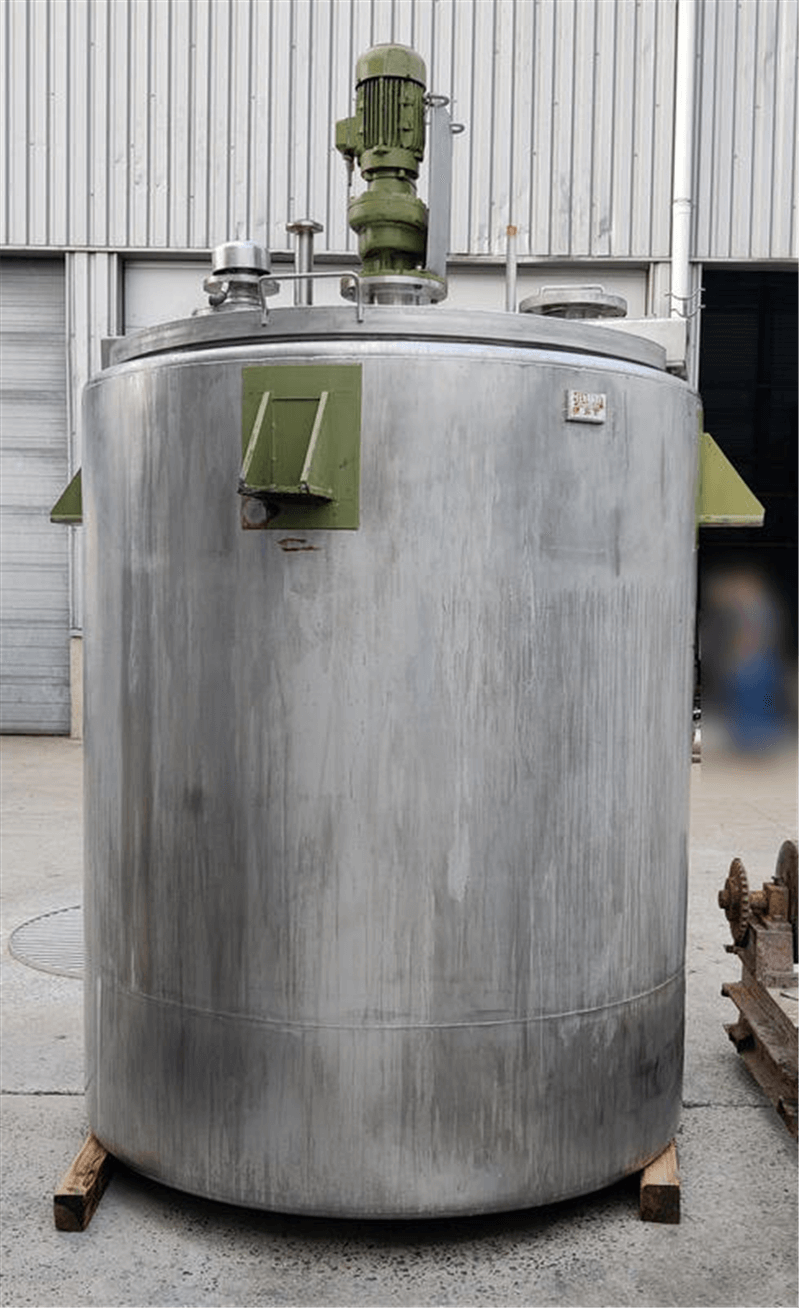

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 3300 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.PU.01 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 3300 |
| Type tank | Mixing vessel |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

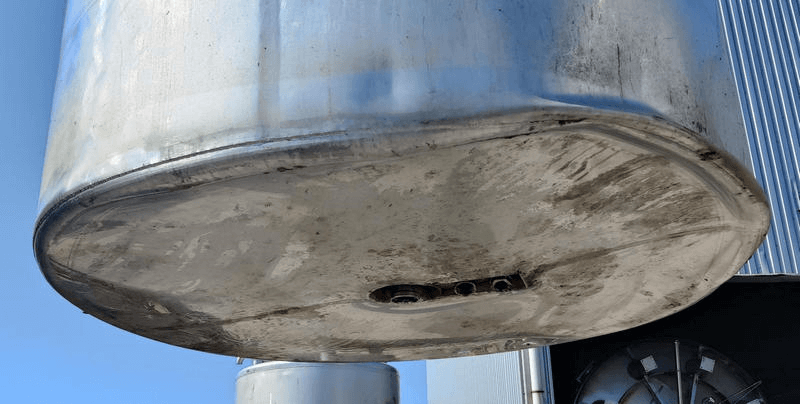

| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number of manhole | 2 |
| Position of manhole (s) | Top |

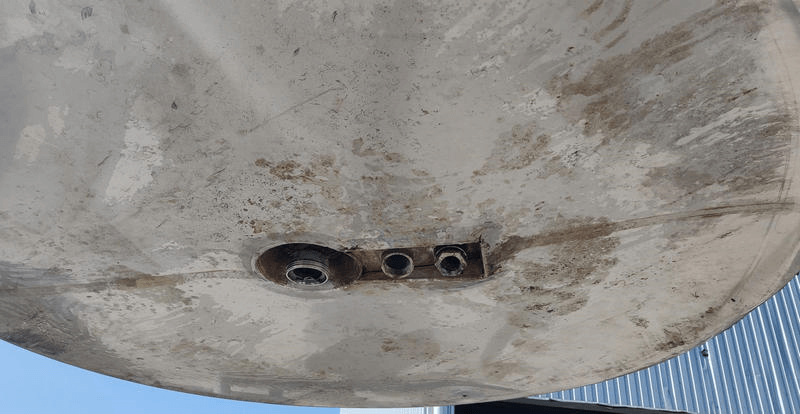

| Tank with total drain? | Yes |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 1500 |
| Condition | Used |

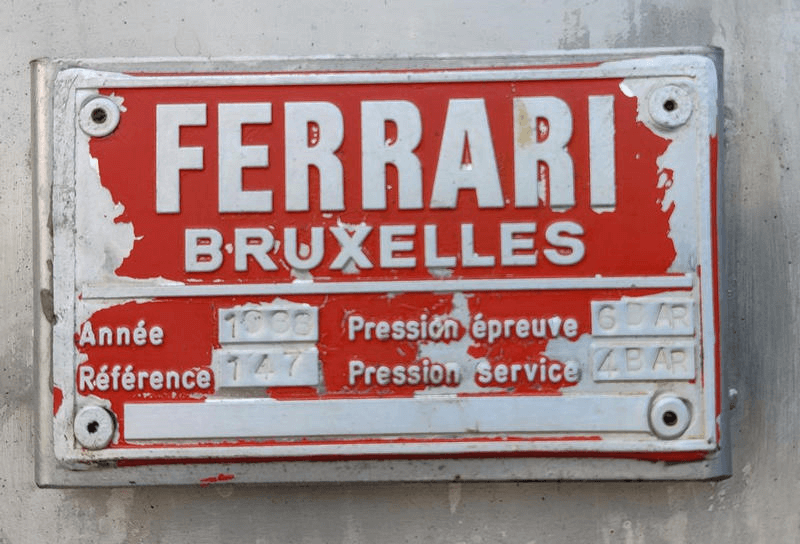

| Type plate manufacturer | Yes |
| Manufacturer | Ferrari |
| Year Built | 1988 |

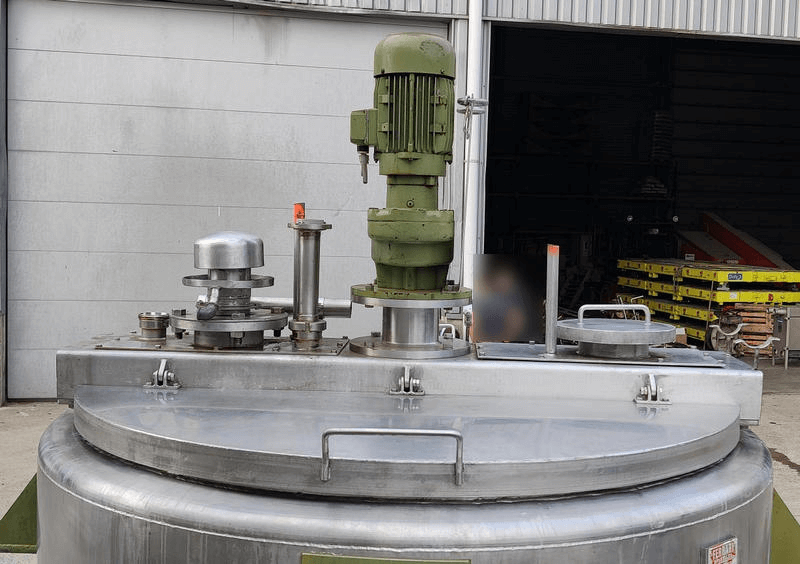

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 1,7 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 6,3 |
| Periphery (mm) | 5380 |
| Cylindrical length (mm) | 1750 |
| Height bottom (mm) | 250 |
| Outside diameter tank (mm) | 1720 |
| Total height (mm) | 2950 |
| Length (mm) | 2040 |
| Diameter tank (mm) | 1500 |
| Width (mm) | 1860 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Thickness (mm) | 100 |
| Finishing insulation | fully welded cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |

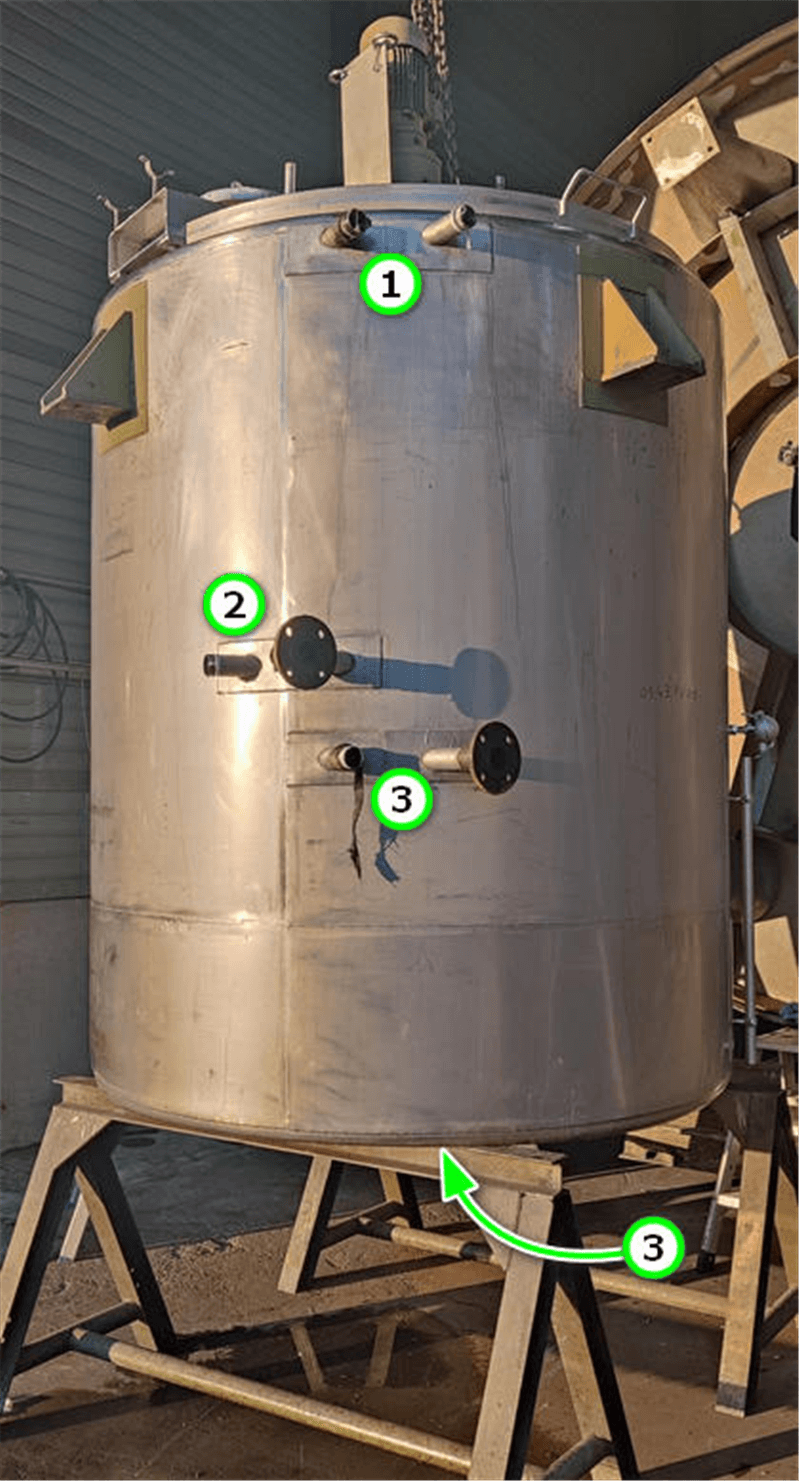

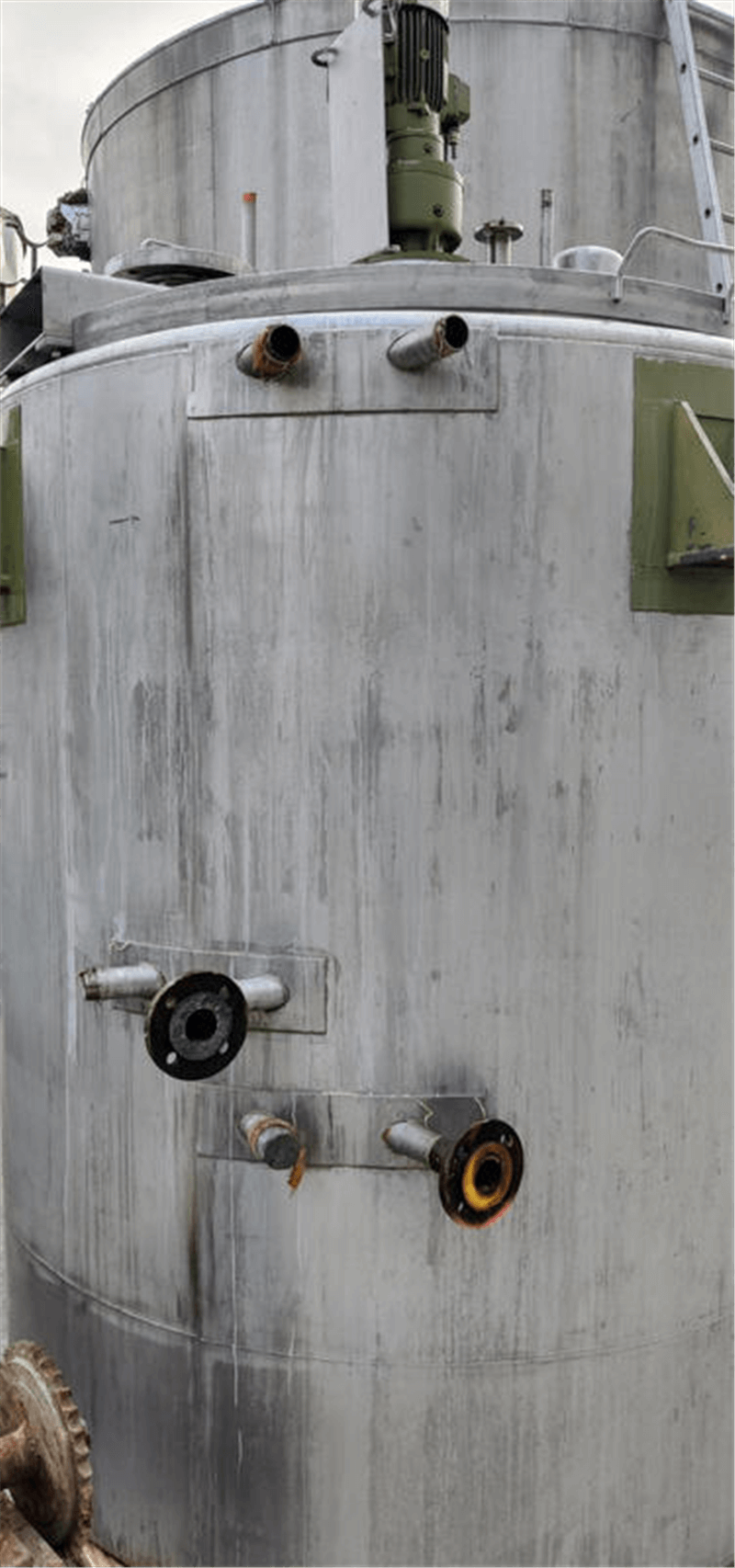

| Heating 1: Type | Heating coil on bottom and cylinder |

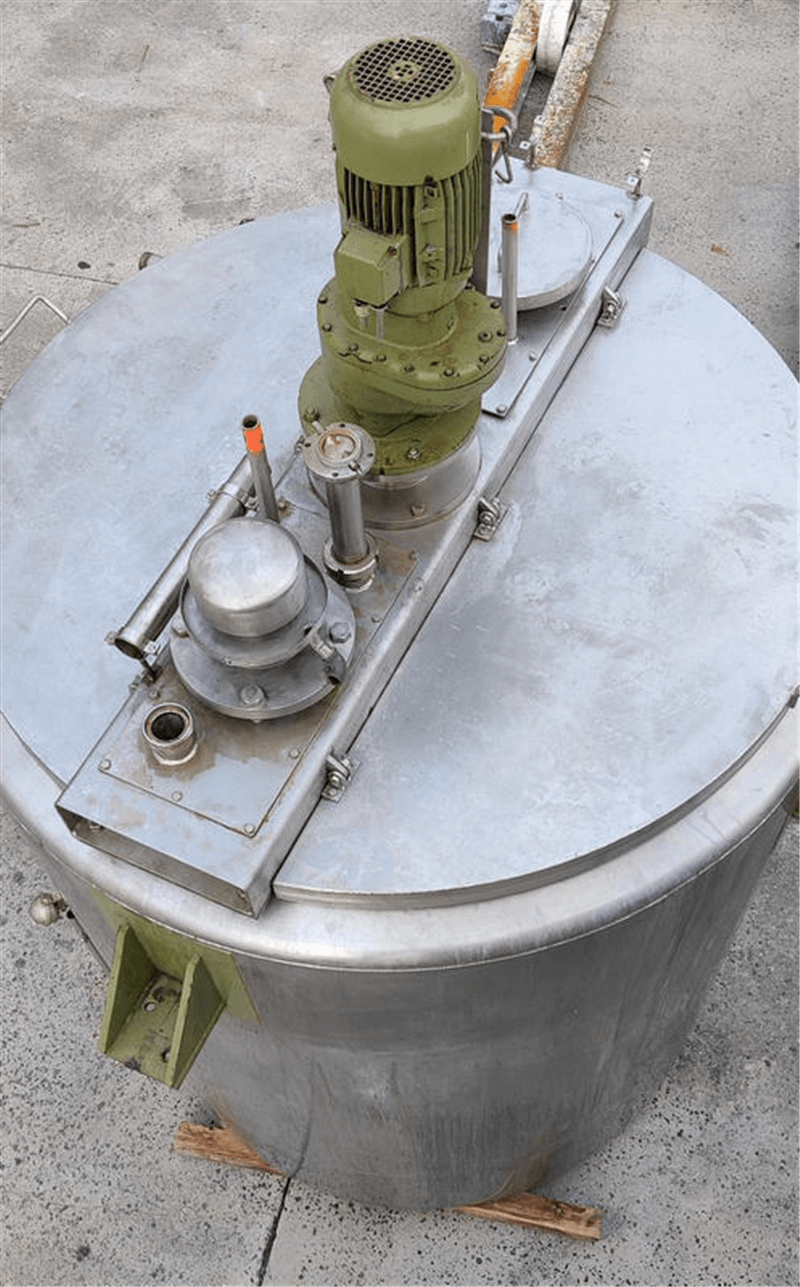

| Agitators | |
|---|---|
| Number of agitators | 1 |

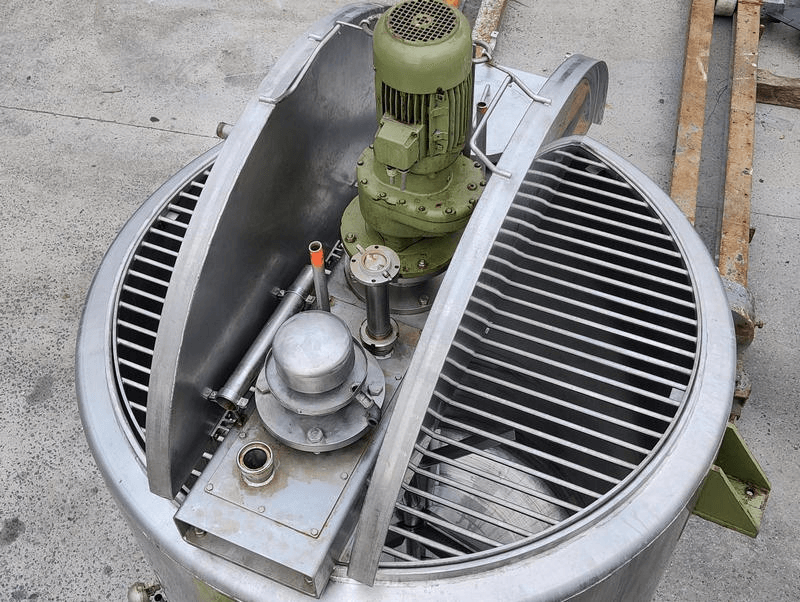

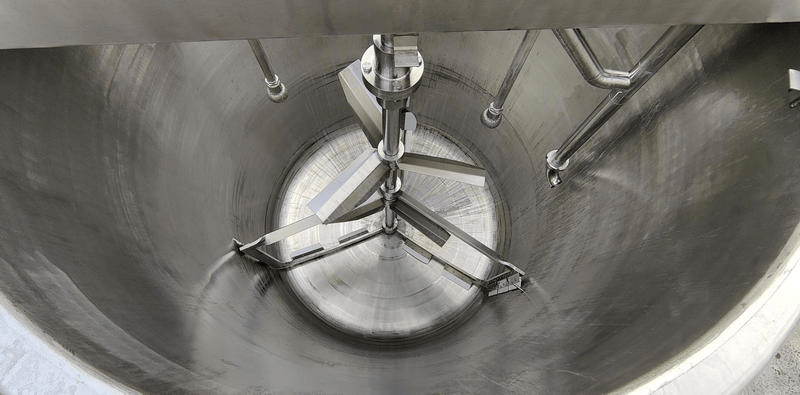

| Agitator 1: Type | anchor with scrapers |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: stirring element type | Anchor |
| Agitator 1: Length (mm) | 1900 |

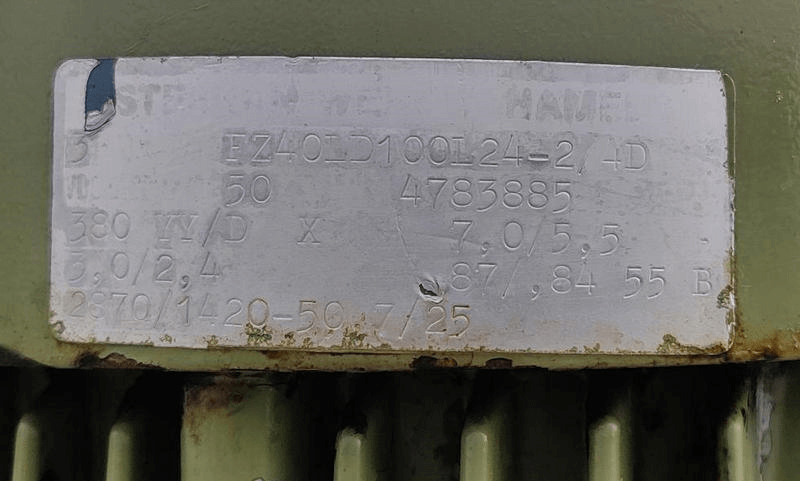

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380 YY/D |
| Agitator 1: Power (kw) | 7 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 50.7 / 25 |
