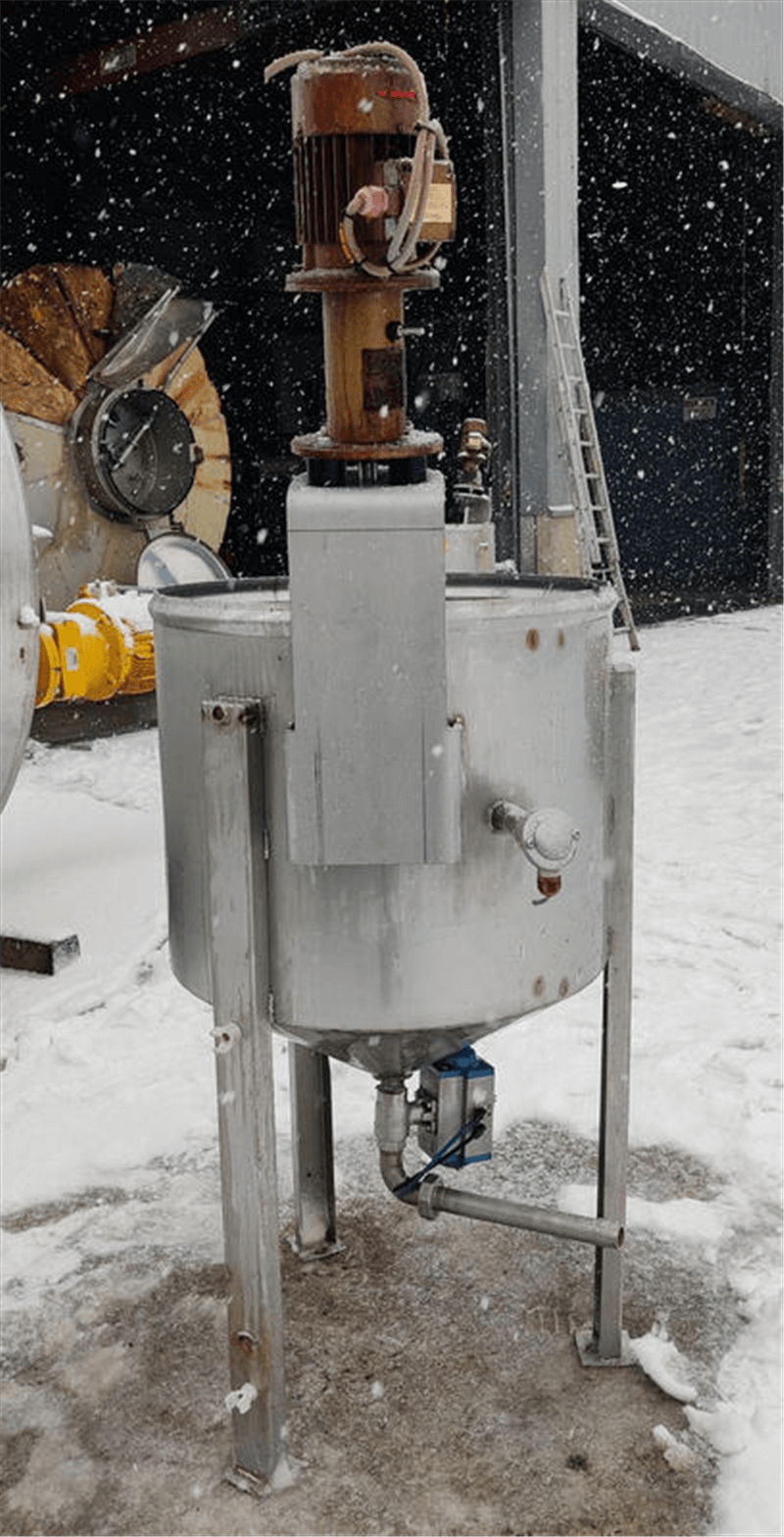

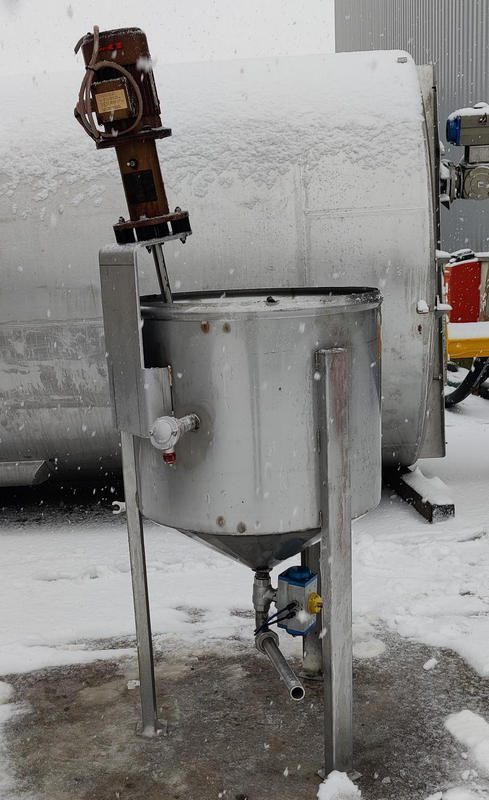

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 150 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.ID.16 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 150 |
| Type tank | Mixing vessel |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 35 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 50 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Periphery (mm) | 1900 |
| Cylindrical length (mm) | 490 |
| Height bottom (mm) | 170 |
| Total height (mm) | 1670 |
| Length (mm) | 700 |
| Diameter tank (mm) | 600 |
| Width (mm) | 620 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |

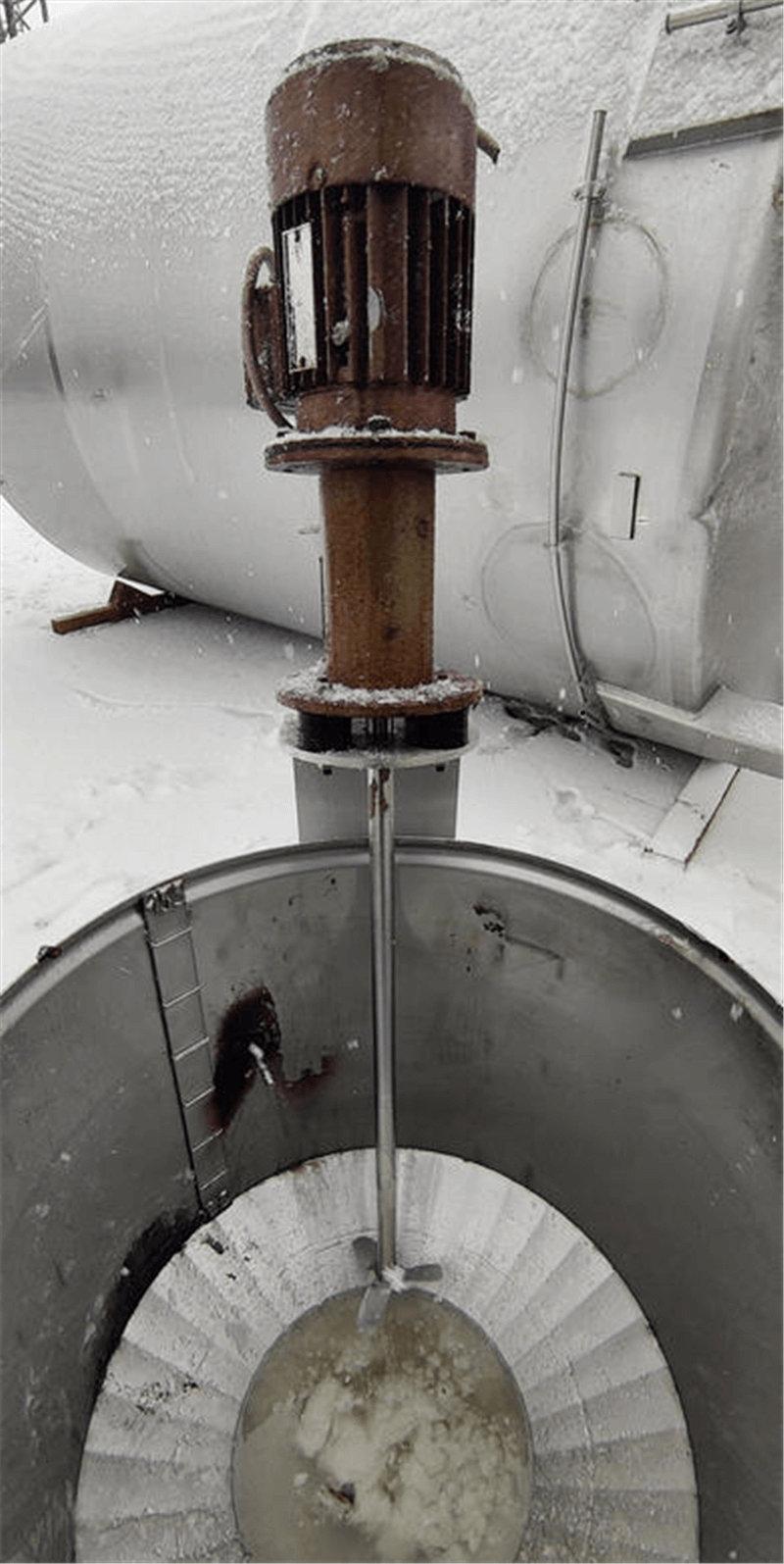

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 700 |

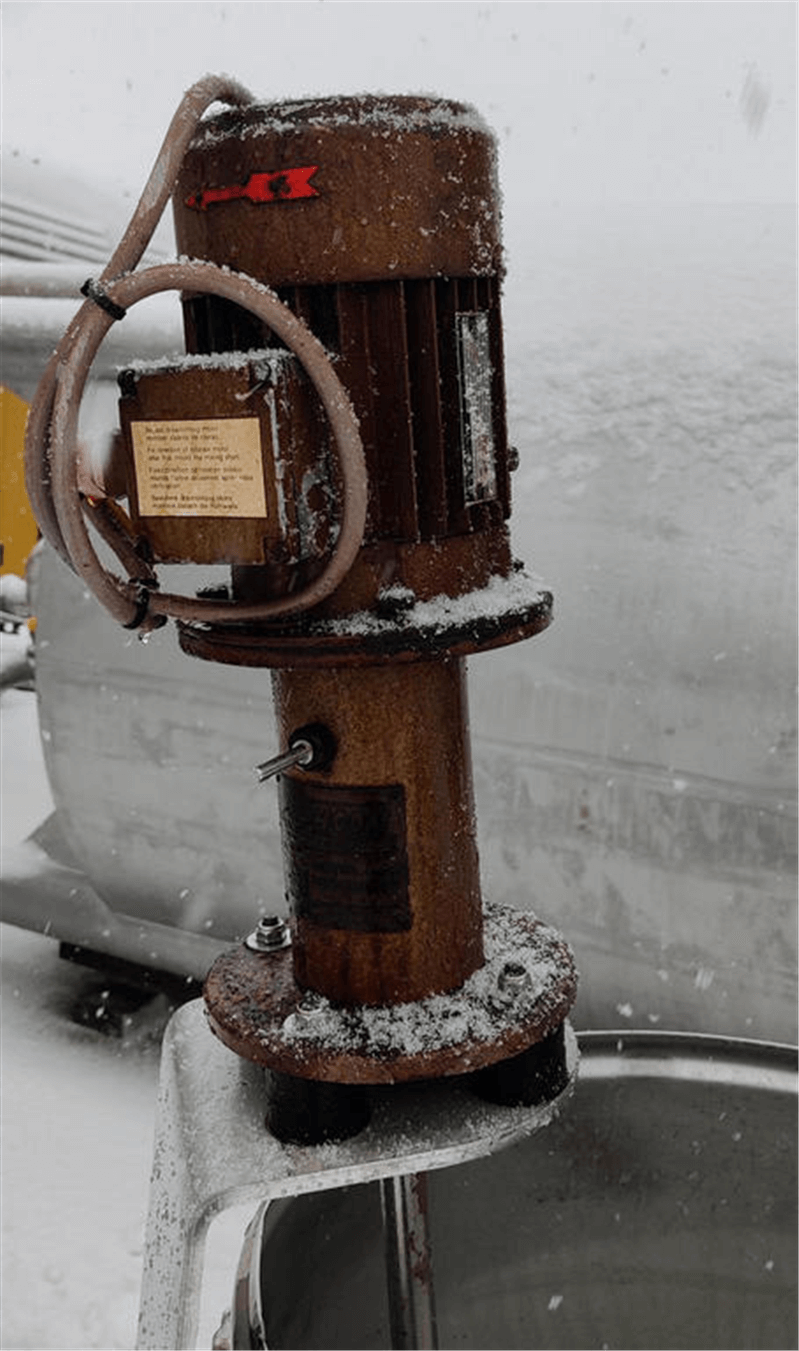

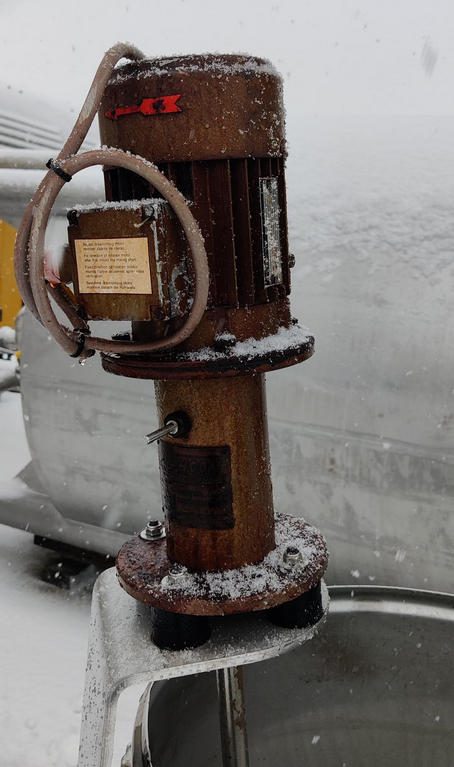

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 0,37 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 1370 |
