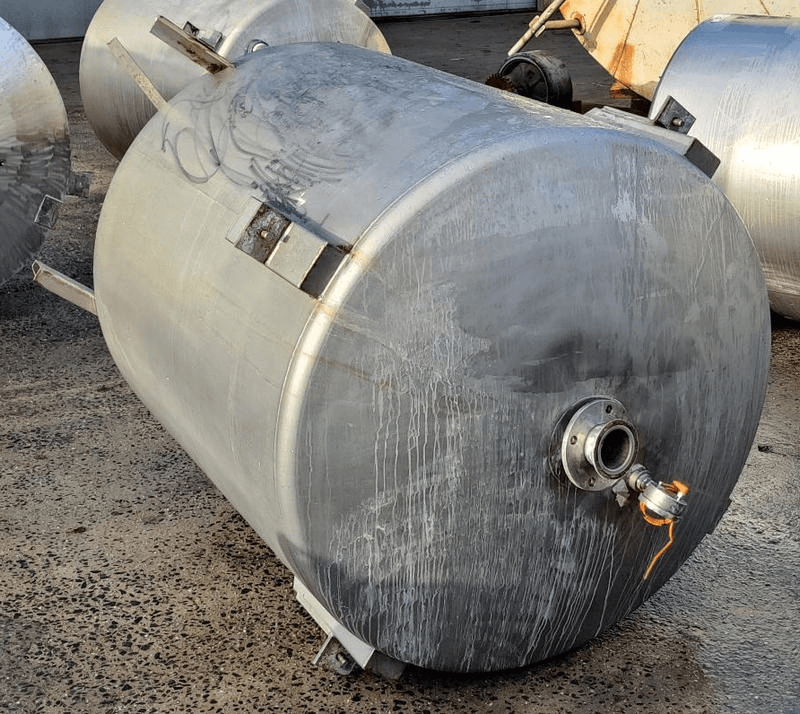

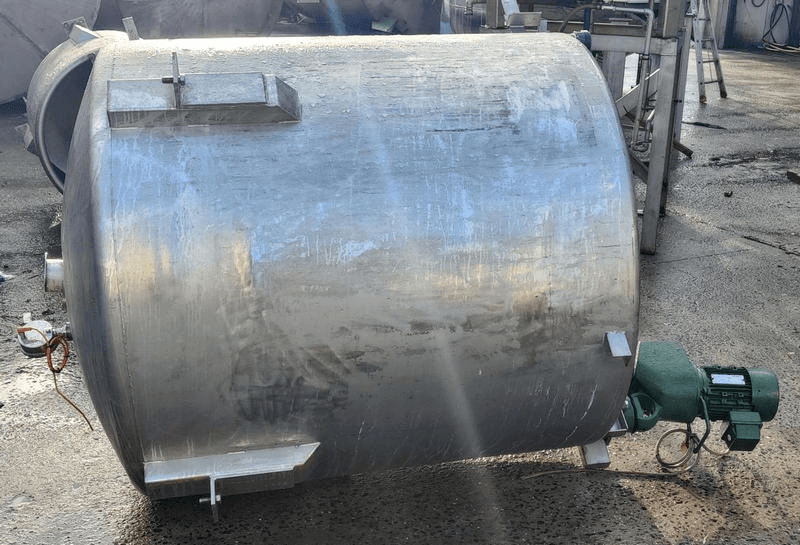

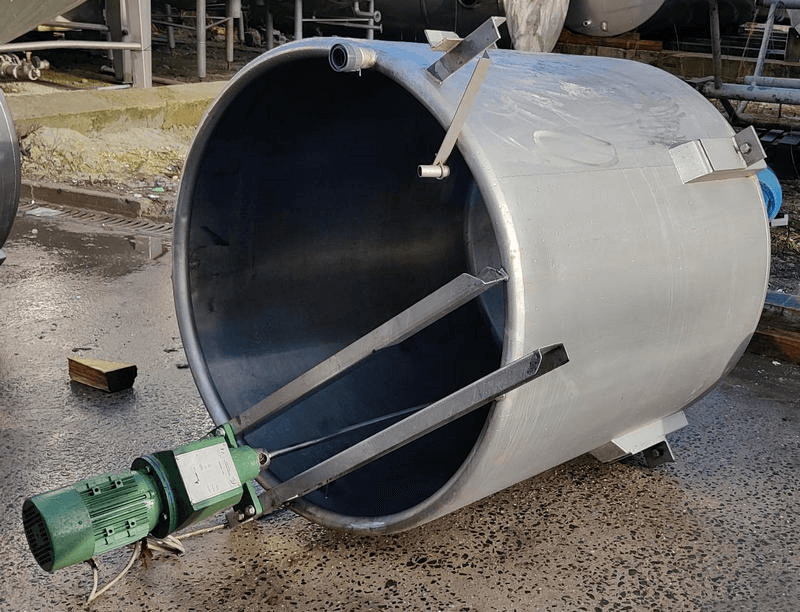

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 1500 L
- In stock: 2
| General | |
|---|---|
| Item number | 03.43.ID.05 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 2 |
| Capacity (Liters) | 1500 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 80 |
| locality | B-7711 Belgium |
| Last application | Paint industry |
| Provision tank cleaning | None |
| Weight (kg) | 350 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,2 |
| Bottom thickness (mm) | 2,2 |
| Periphery (mm) | 3920 |
| Cylindrical length (mm) | 1200 |
| Height bottom (mm) | 150 |
| Total height (mm) | 2300 |
| Diameter tank (mm) | 1240 |
| Width (mm) | 1250 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |

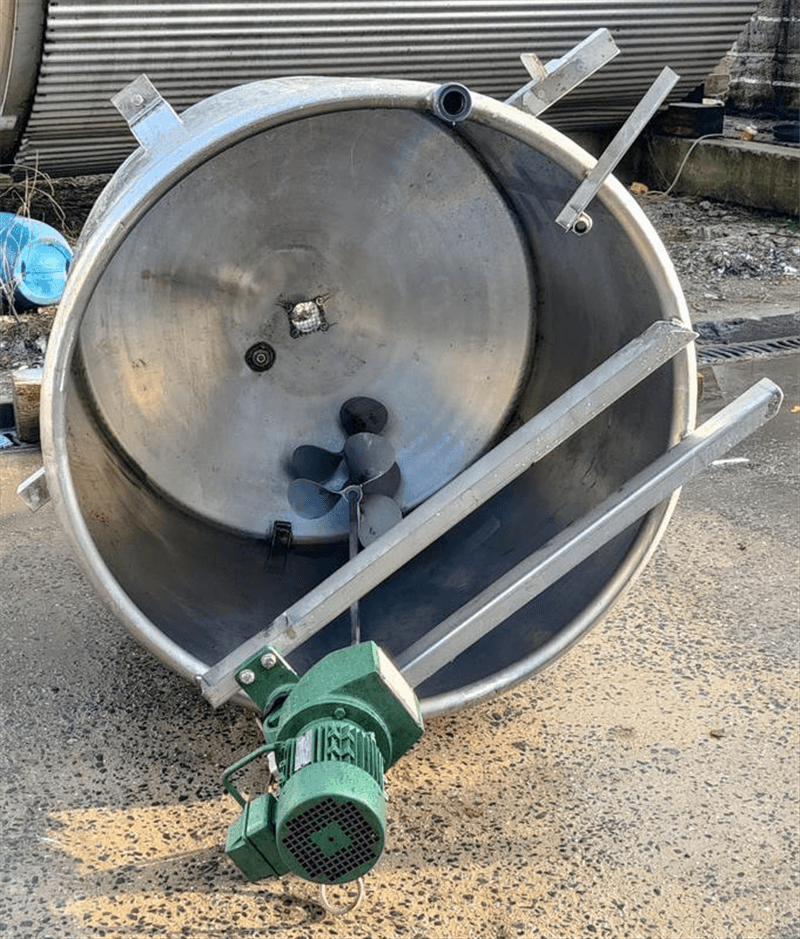

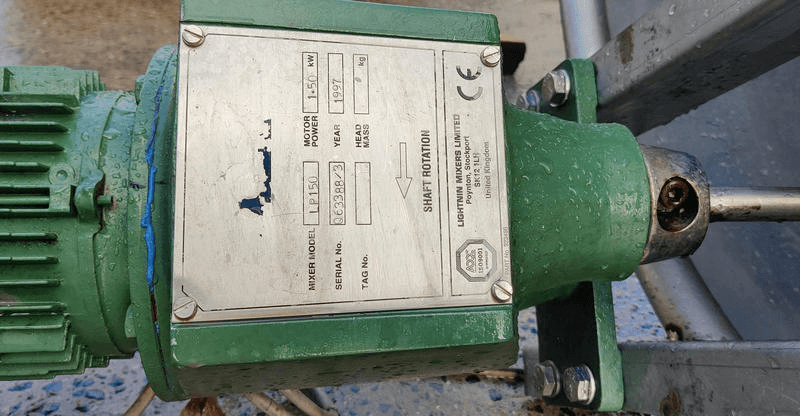

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |

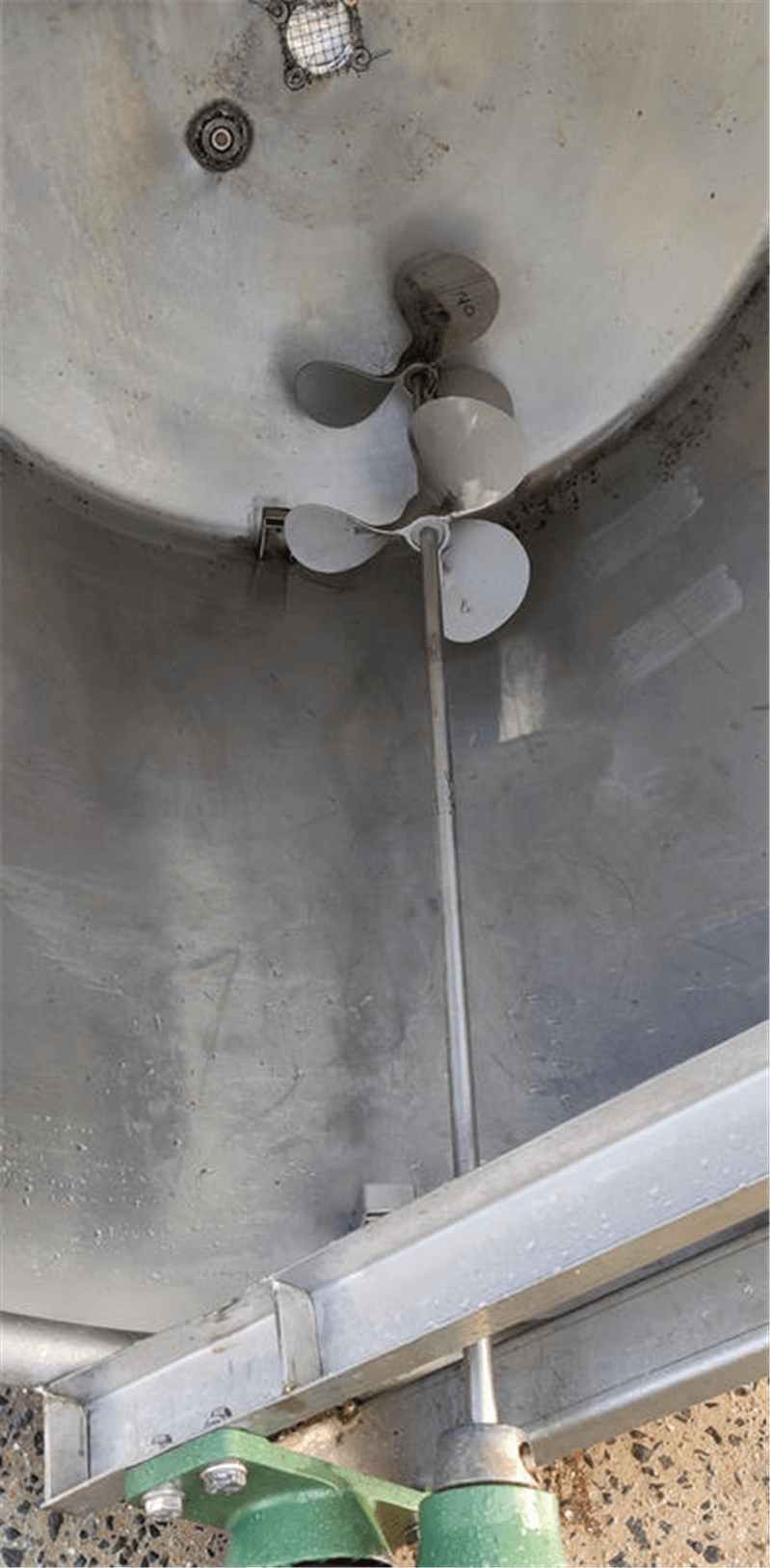

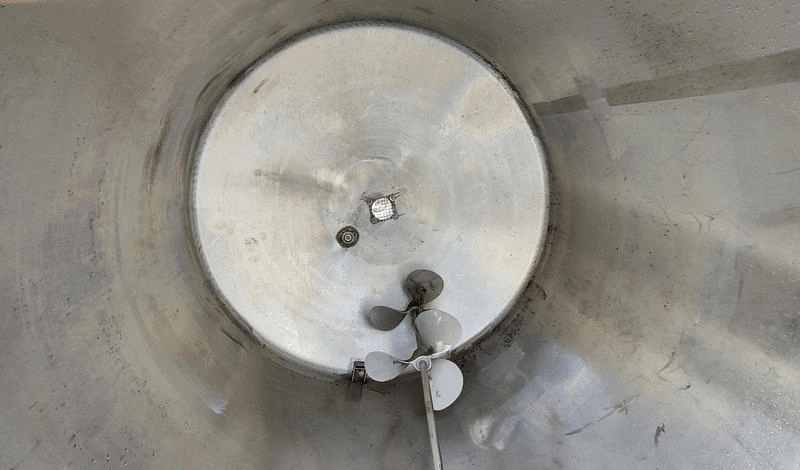

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1400 |

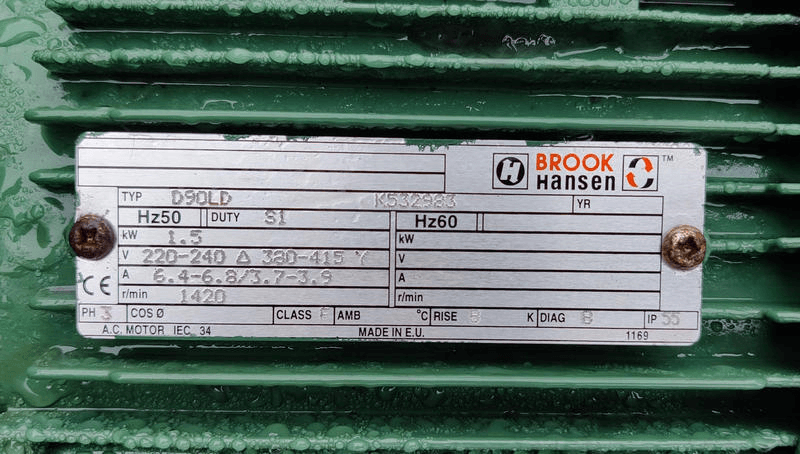

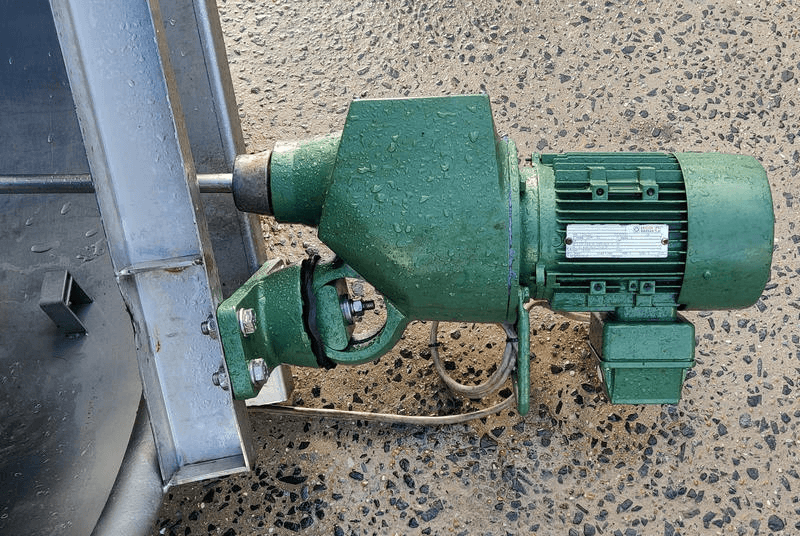

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 1,5 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | onbekend |
