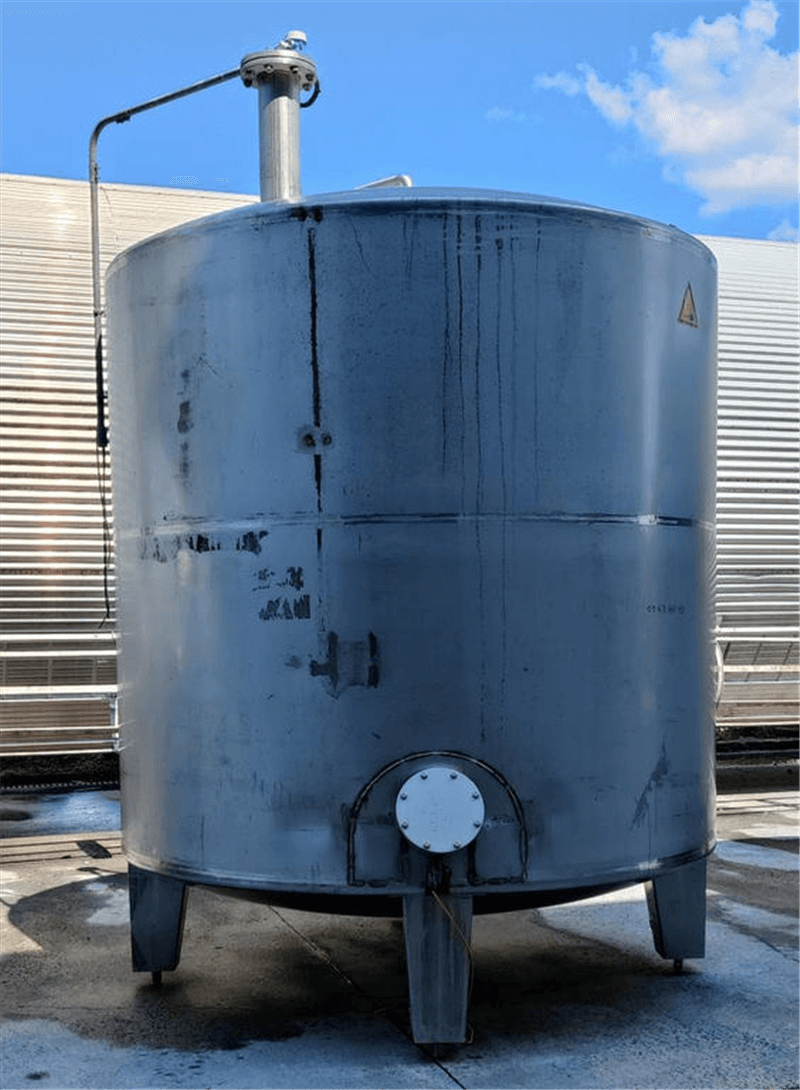

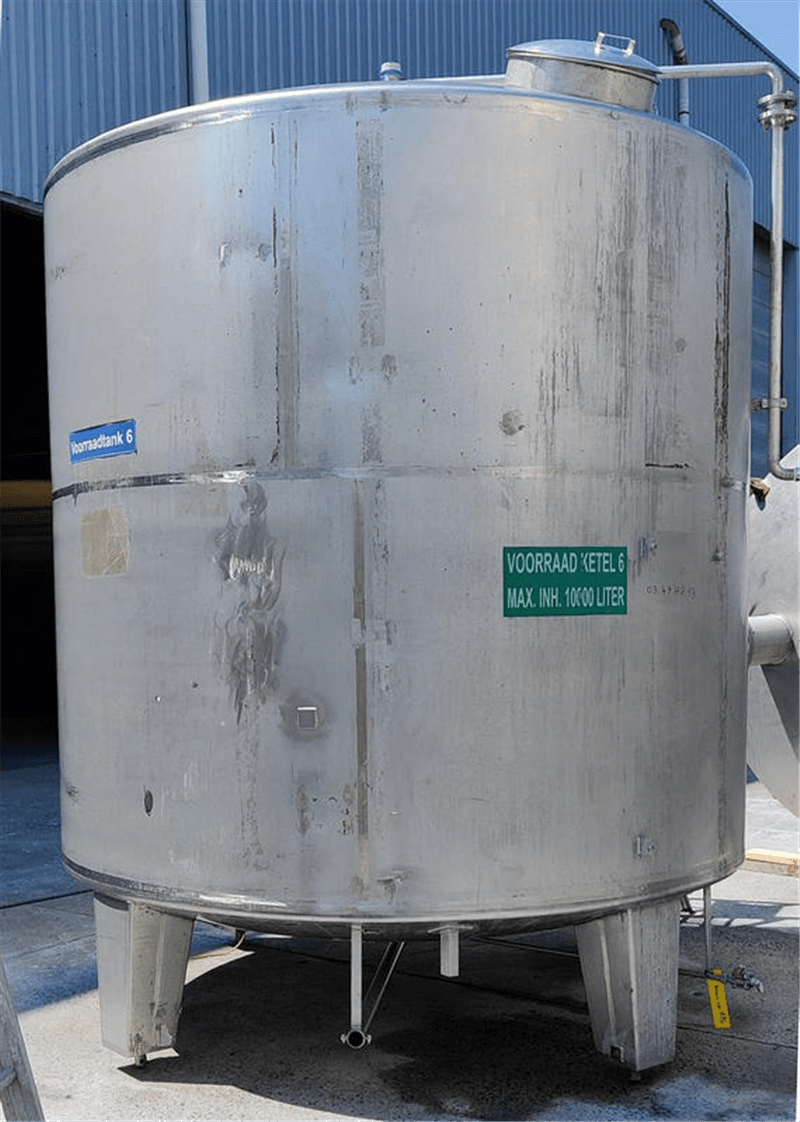

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 12600 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.HG.13 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 12600 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

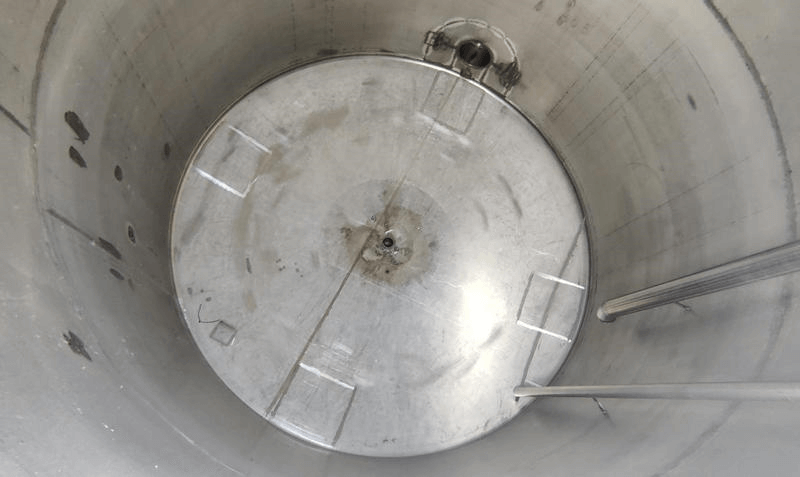

| Bottom | Dished bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 450 |

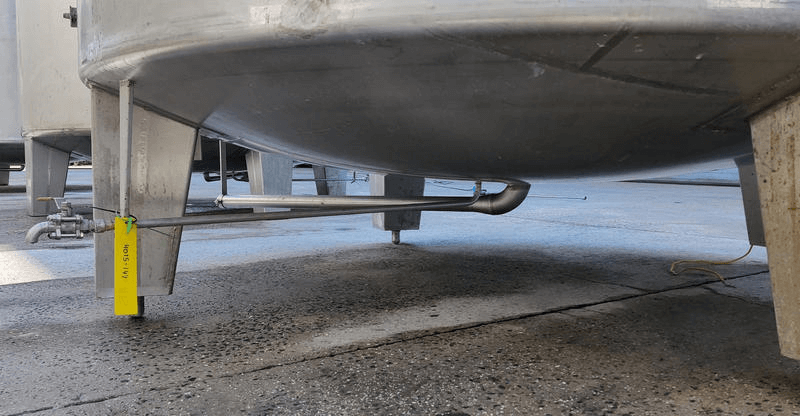

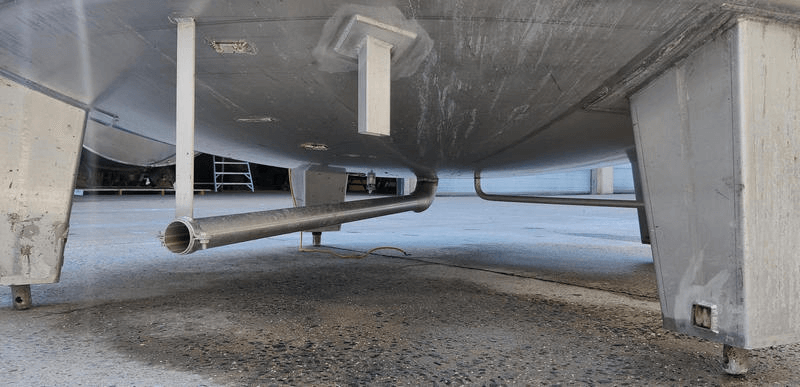

| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 40 |
| locality | B-7711 Belgium |
| Last application | chemical industry |

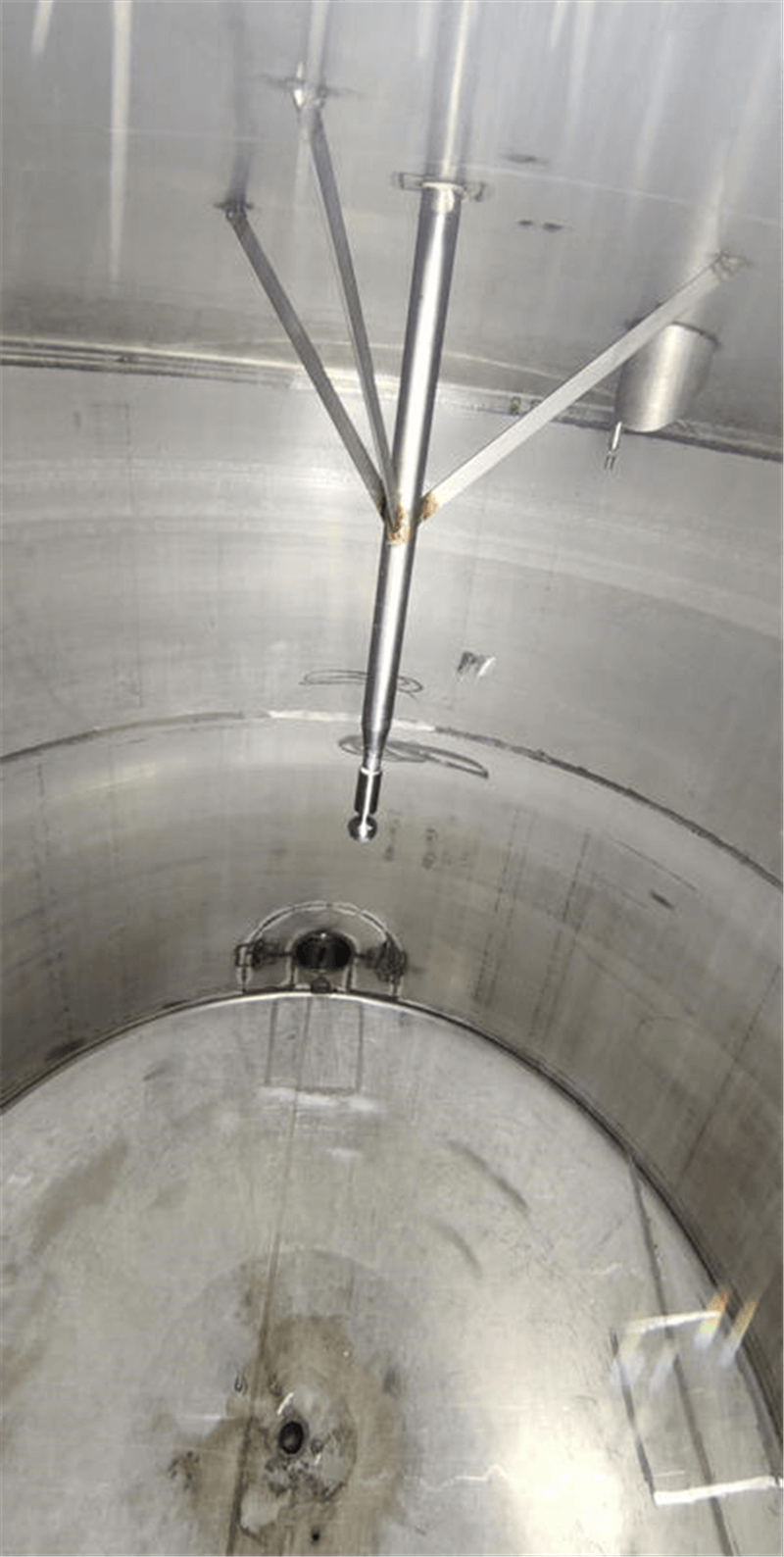

| Provision tank cleaning | CIP ball |
| Weight (kg) | 1200 |
| Condition | Used |
| Top side | |
|---|---|

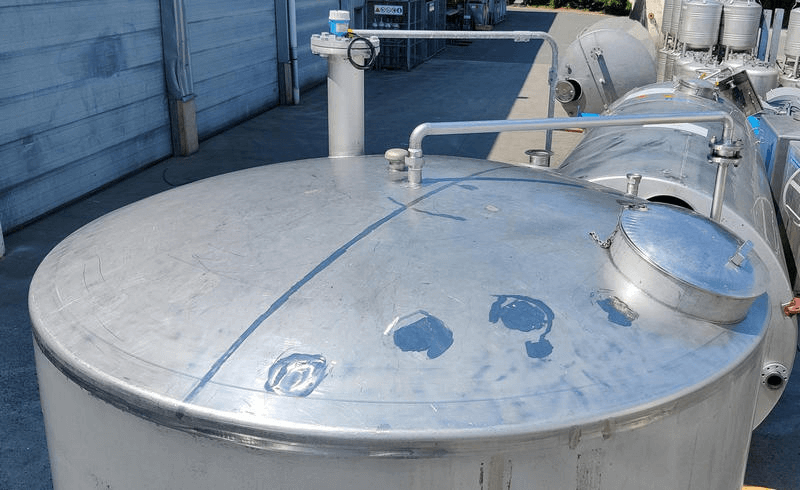

| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 4,1 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,1 |
| Bottom thickness (mm) | 4,1 |
| Periphery (mm) | 7880 |
| Cylindrical length (mm) | 2300 |
| Height bottom (mm) | 250 |
| Total height (mm) | 3750 |
| Diameter tank (mm) | 2500 |
| Width (mm) | 2510 |
| Insulation | |
|---|---|
| Insulation | No |
