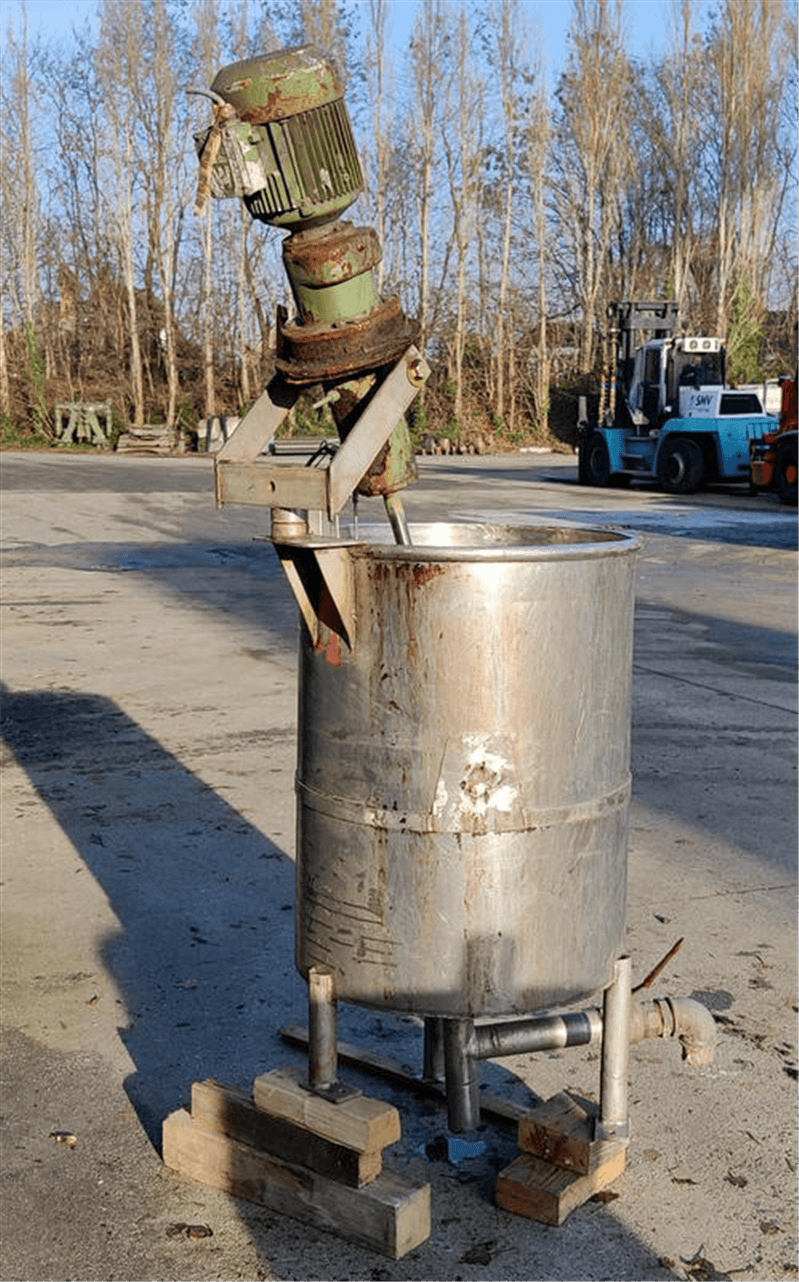

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 230 L
- In stock: 8
| General | |
|---|---|
| Item number | 03.43.BE.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Untreated |
| Number | 8 |
| Capacity (Liters) | 230 |
| Type tank | Mixing vessel |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |

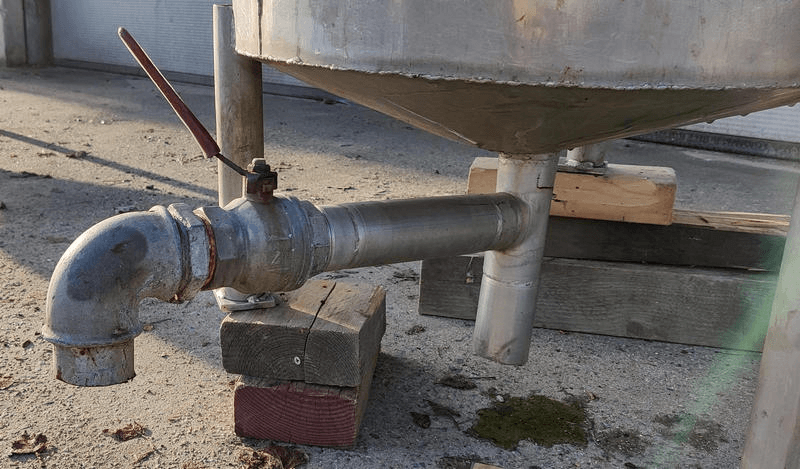

| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 60 |
| locality | B-7711 Belgium |
| Weight (kg) | 200 |
| Condition | Used |
| Top side | |
|---|---|
| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Periphery (mm) | 1910 |
| Cylindrical length (mm) | 780 |
| Height bottom (mm) | 80 |
| Total height (mm) | 2000 |
| Length (mm) | 860 |
| Diameter tank (mm) | 605 |
| Width (mm) | 1000 |
| Insulation | |
|---|---|
| Insulation | No |

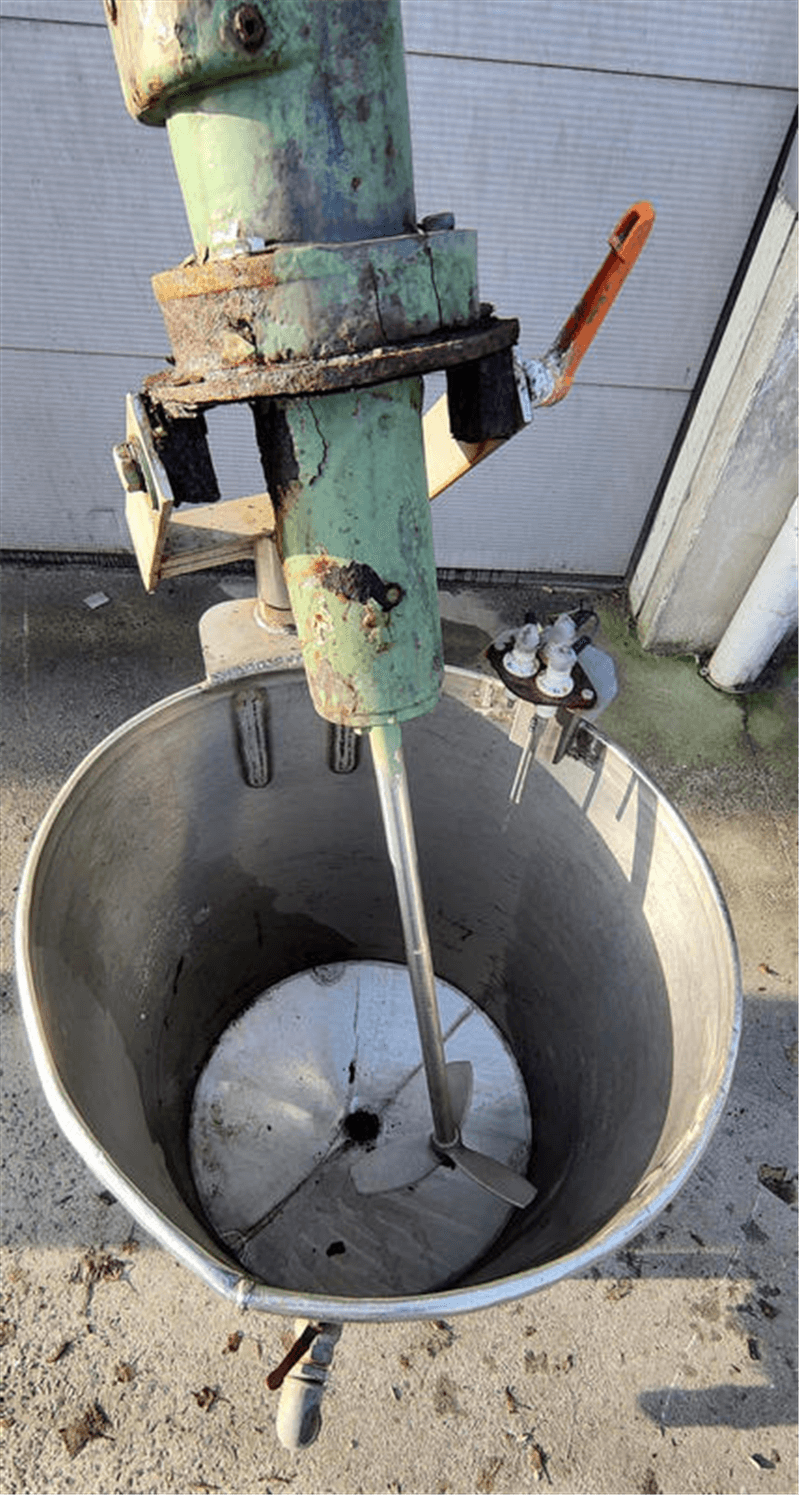

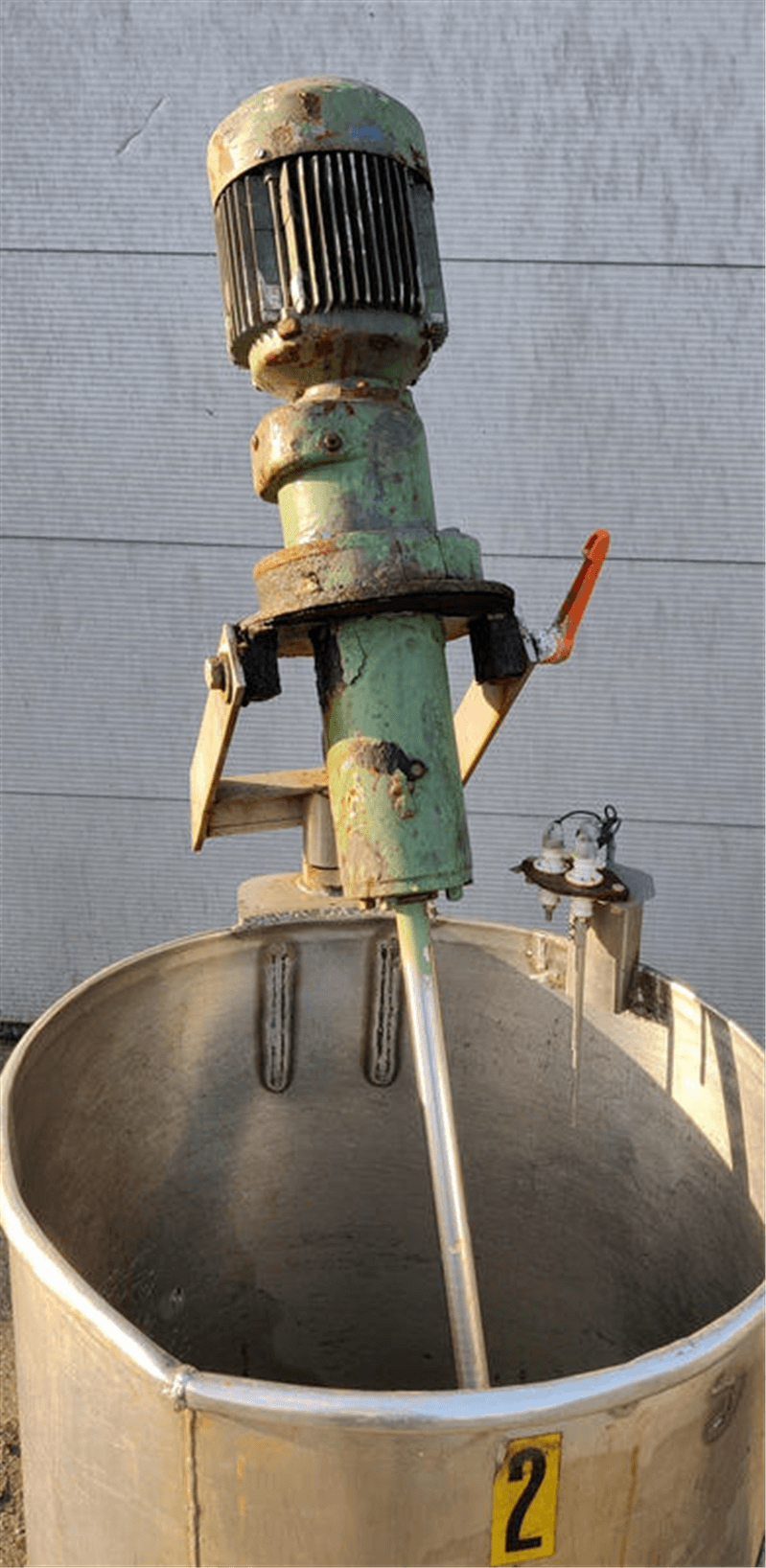

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |

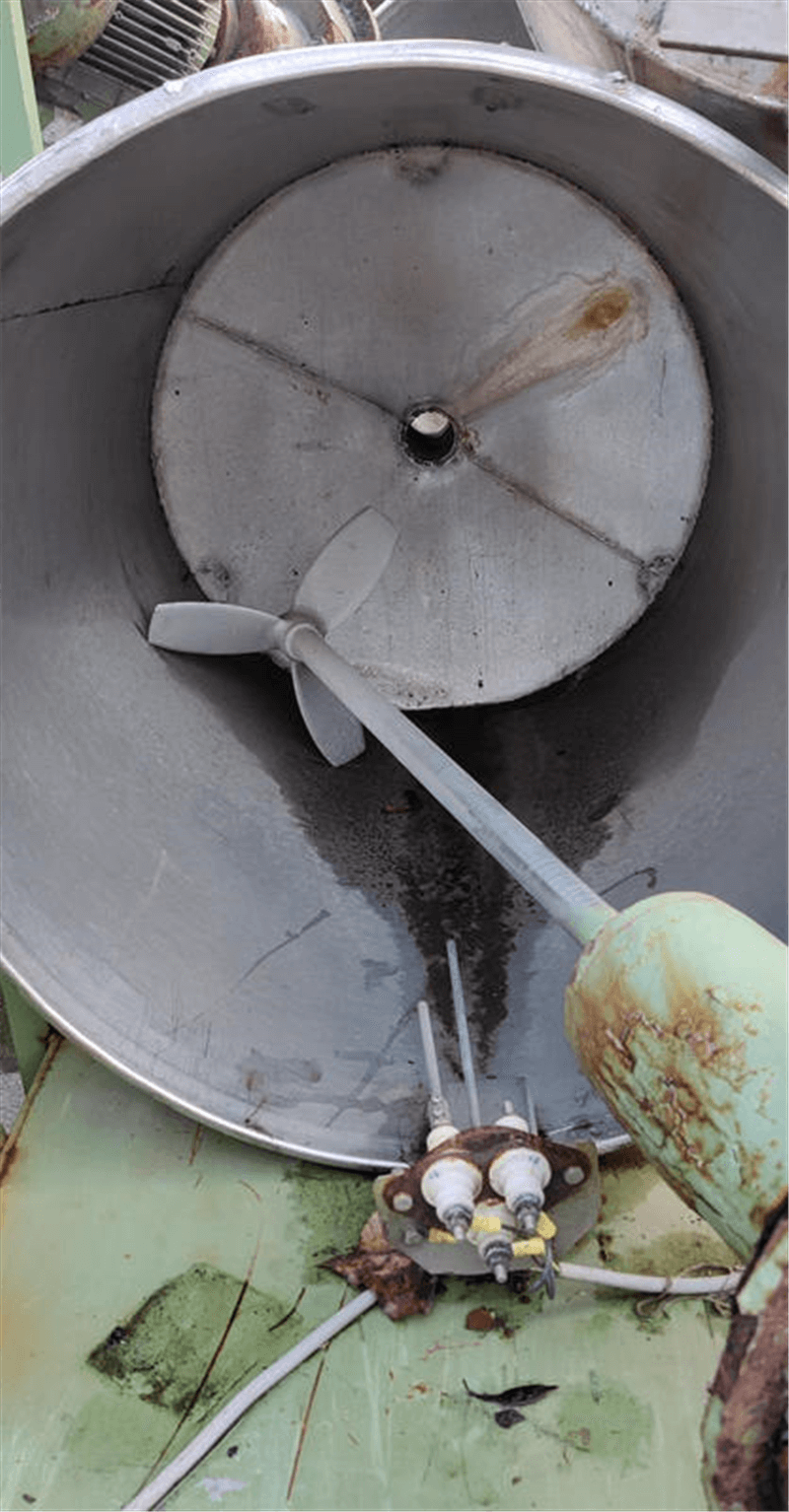

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 730 |

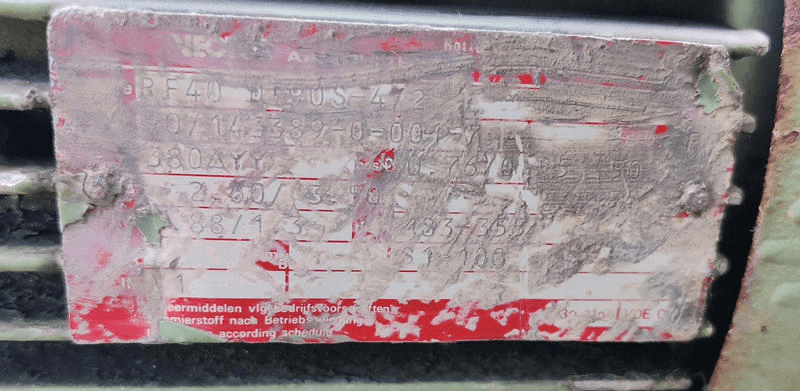

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 1,3 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | onbekend |
