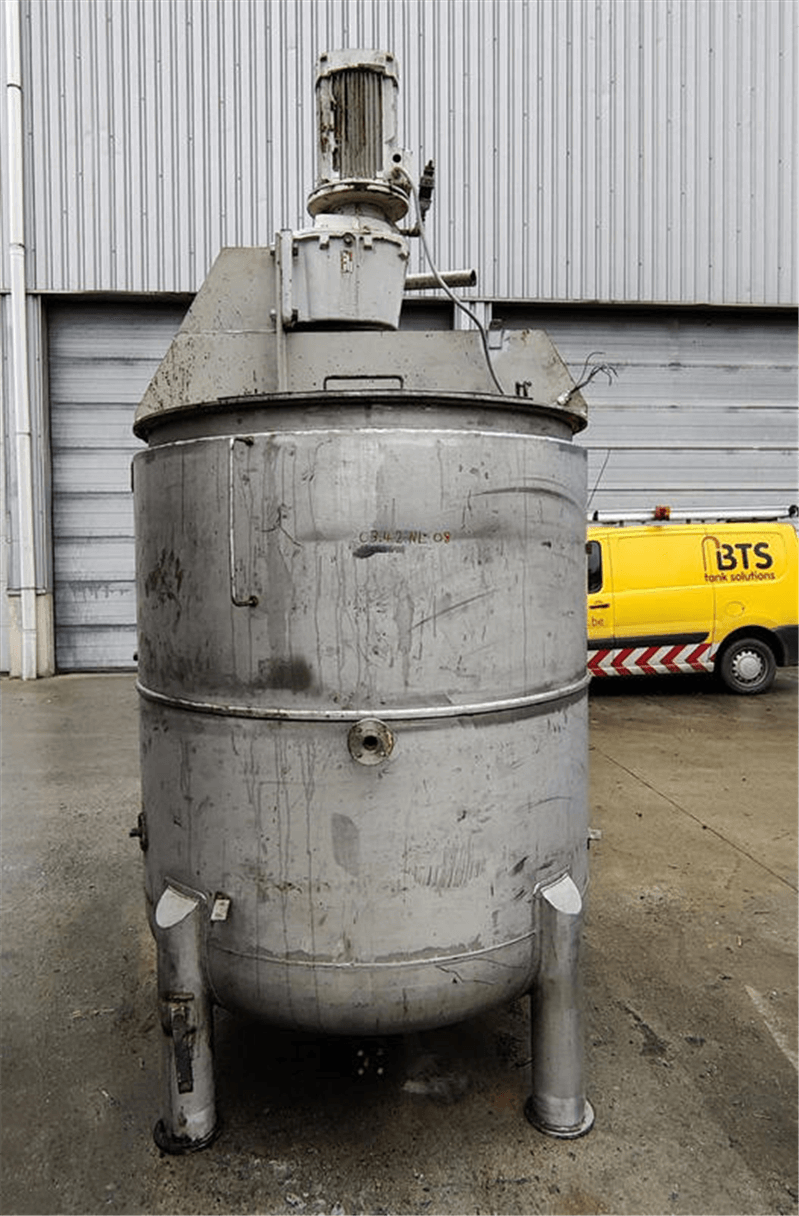

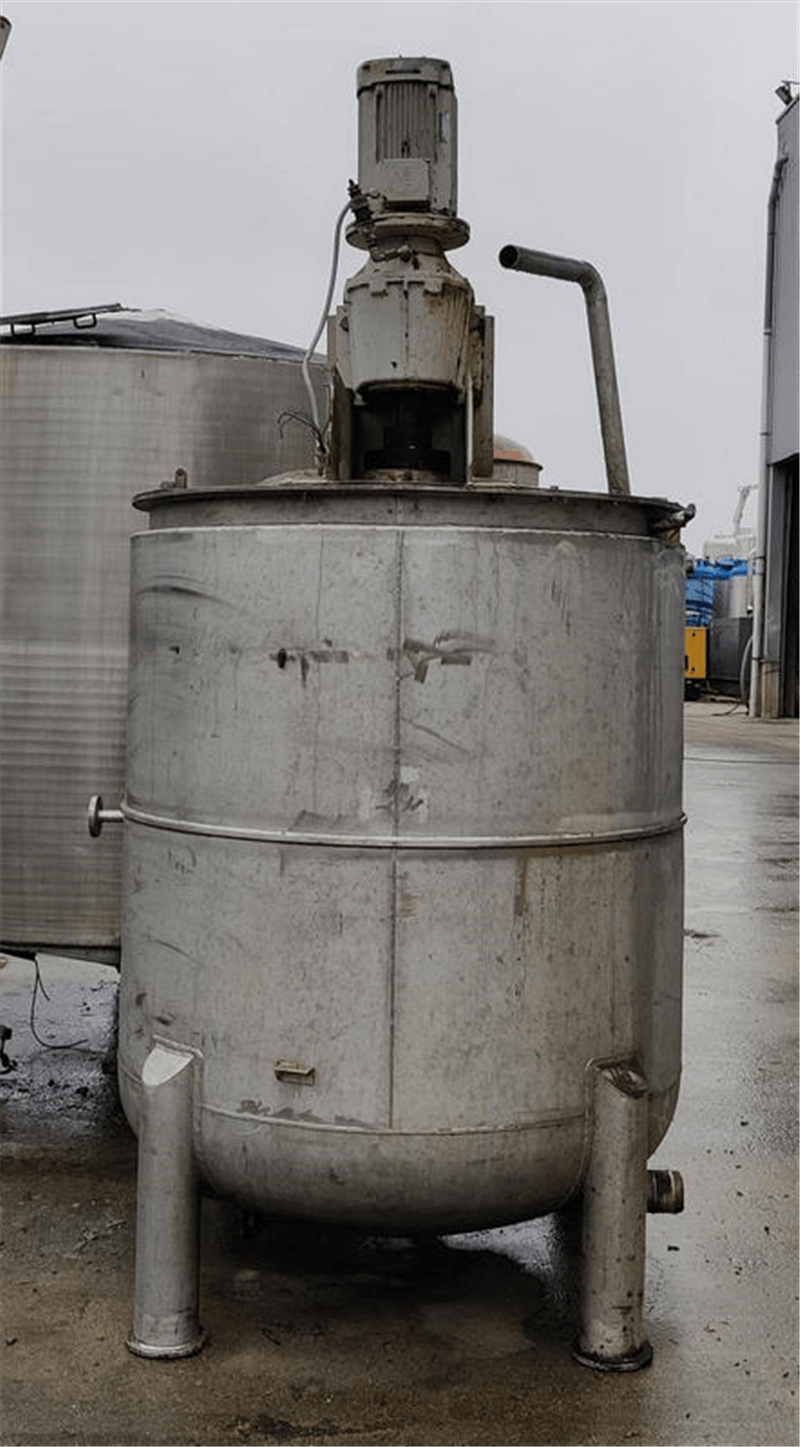

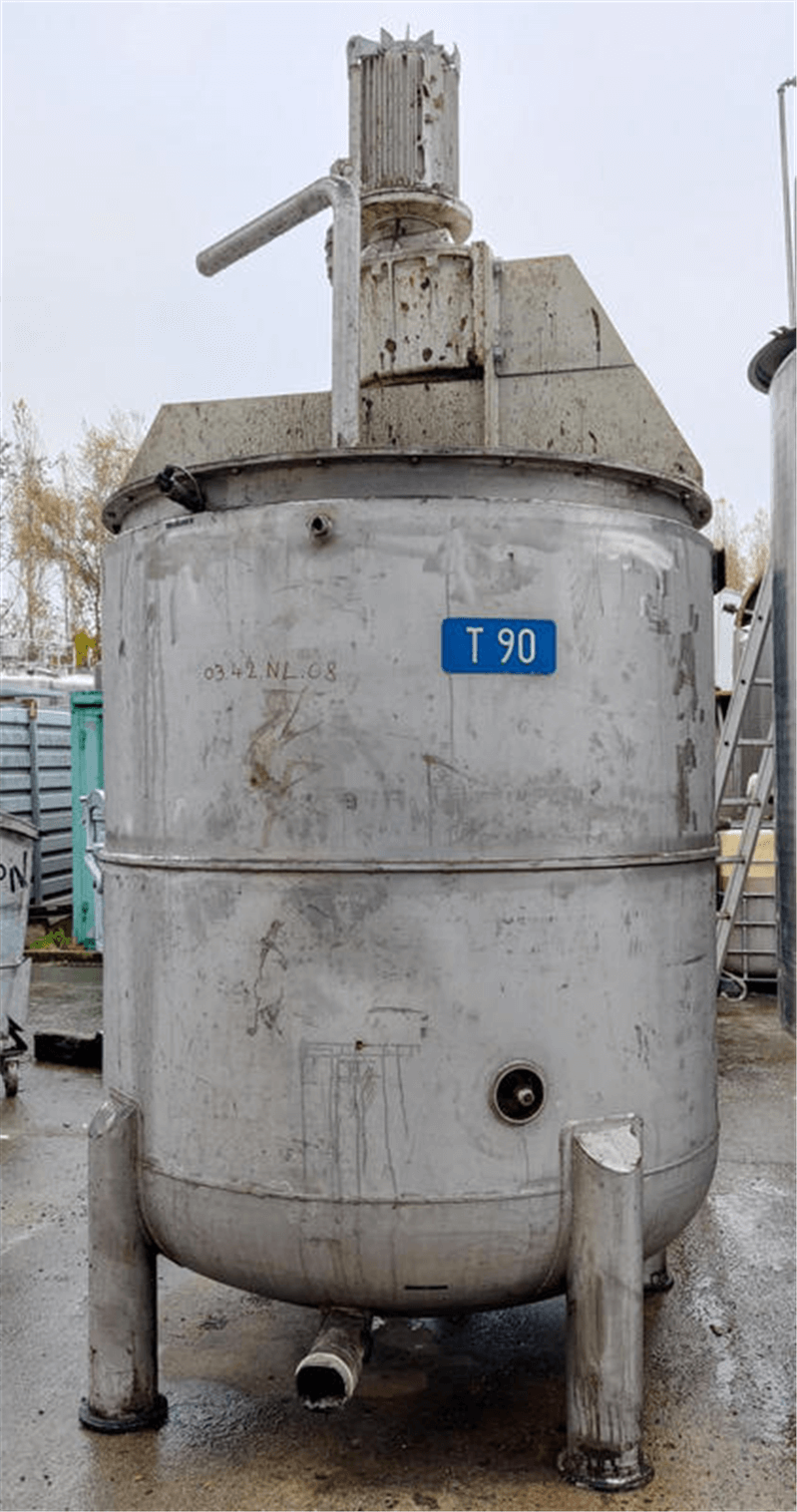

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 2800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.NL.08 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 2800 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |

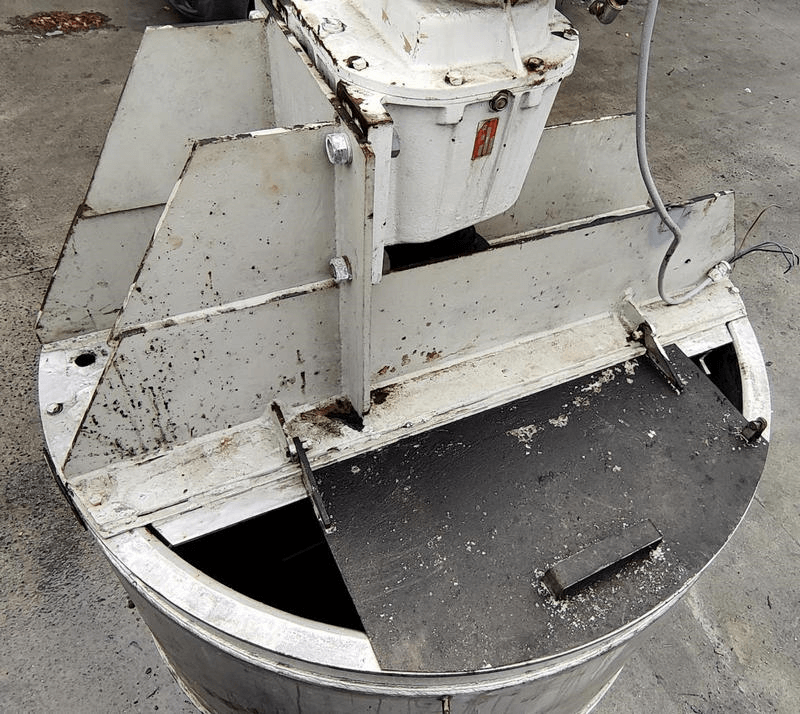

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Tank with total drain? | Yes |

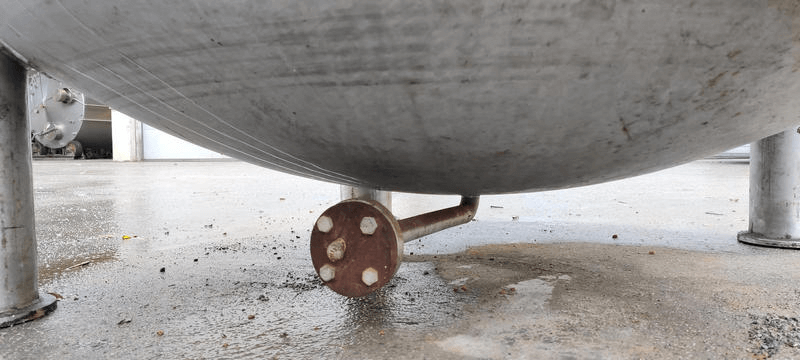

| Type of outlet (s) | DN100 |
| locality | B-7711 Belgium |
| Weight (kg) | 1500 |
| Condition | Used |

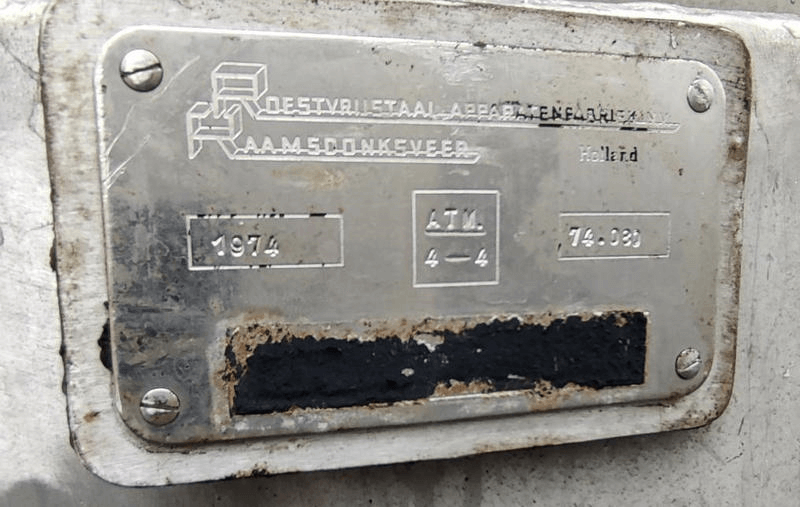

| Type plate manufacturer | Yes |
| Manufacturer | Roestvrijstaal Apparatenfabriek Raamsdoncksveer |
| Year Built | 1974 |
| Construction data available | No |
| Dimensions | |
|---|---|
| Periphery (mm) | 4860 |
| Cylindrical length (mm) | 1500 |
| Height bottom (mm) | 500 |
| Outer wall thickness (mm) | 50 |
| Outside diameter tank (mm) | 1550 |
| Total height (mm) | 3400 |
| Diameter tank (mm) | 1425 |
| Width (mm) | 2000 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 2 |
| Heating 1: Type | jacket au bain-marie |
| Heating 2: Type | jacket au bain-marie |

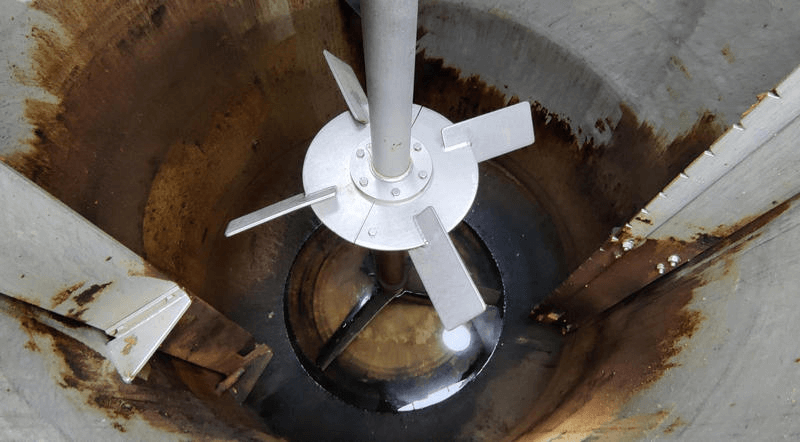

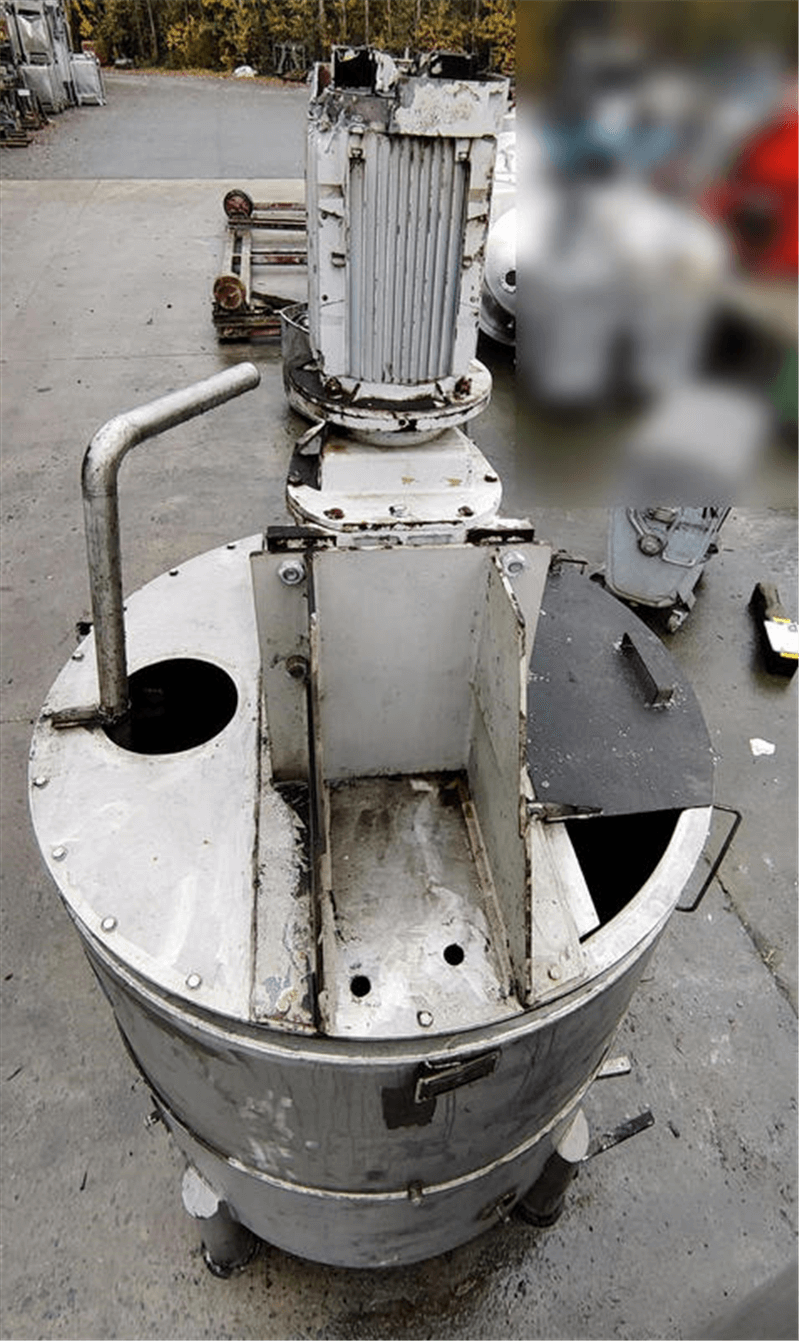

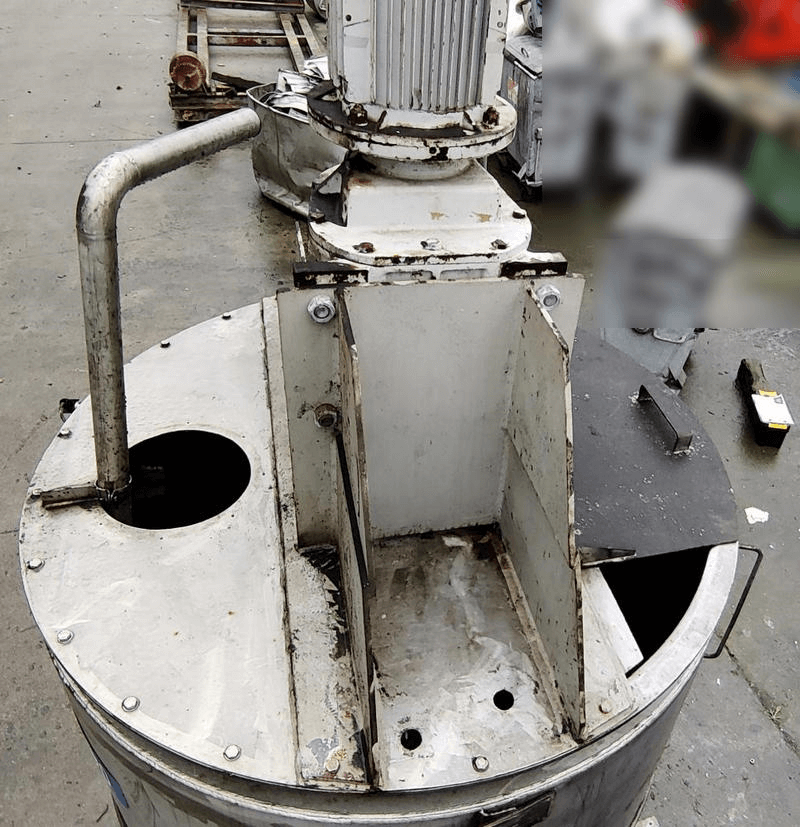

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Number of baffles | 3 |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1600 |

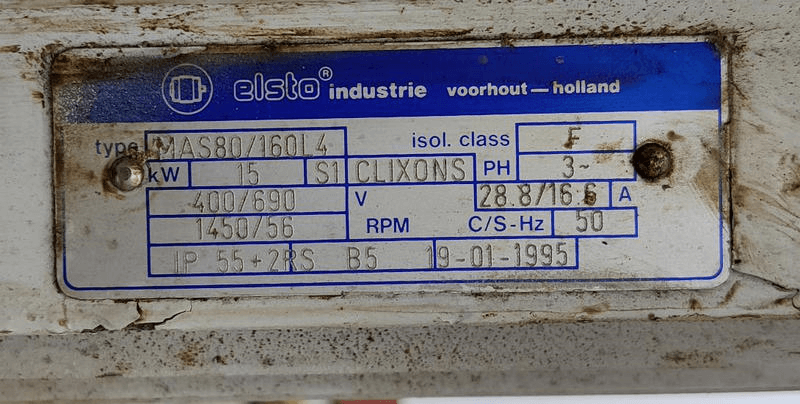

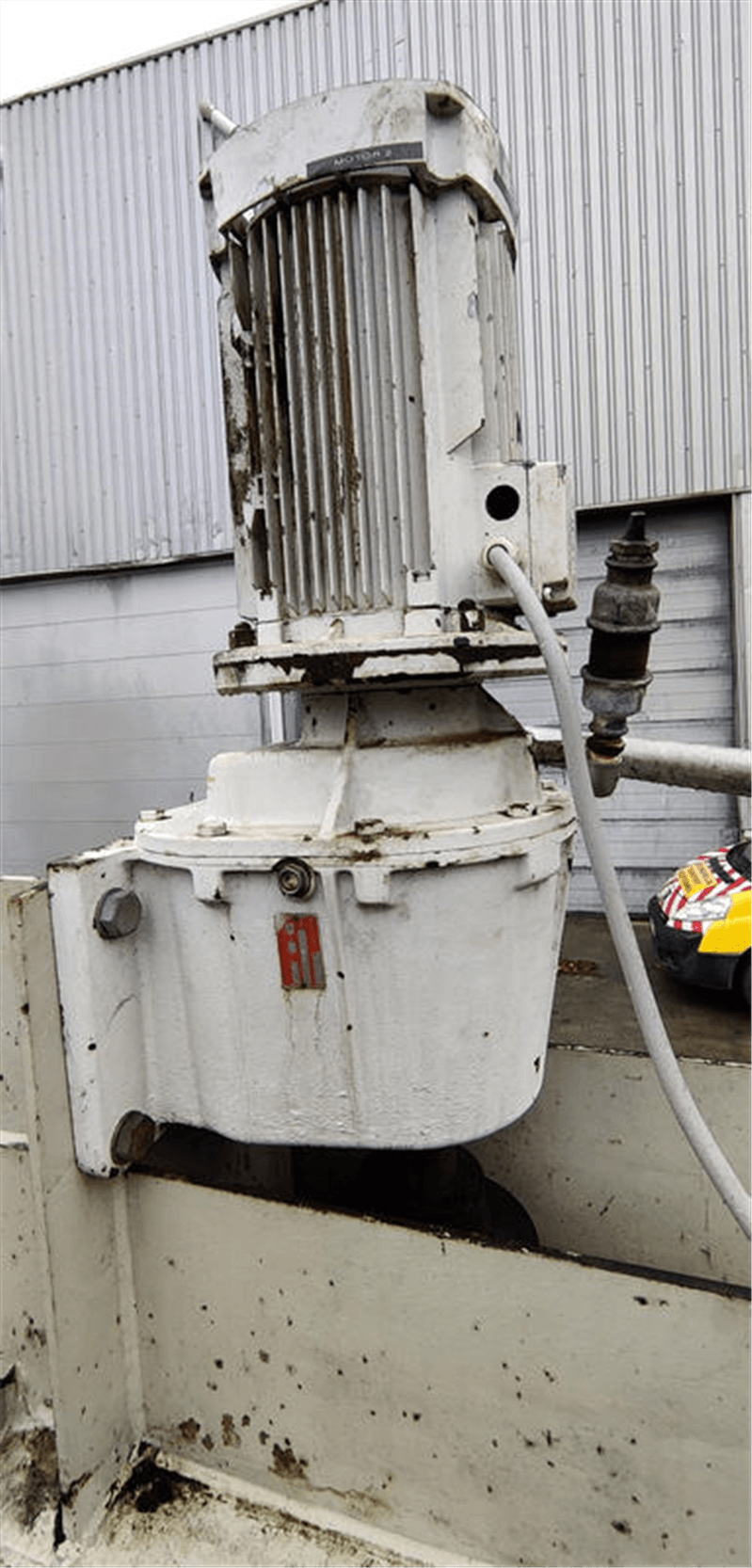

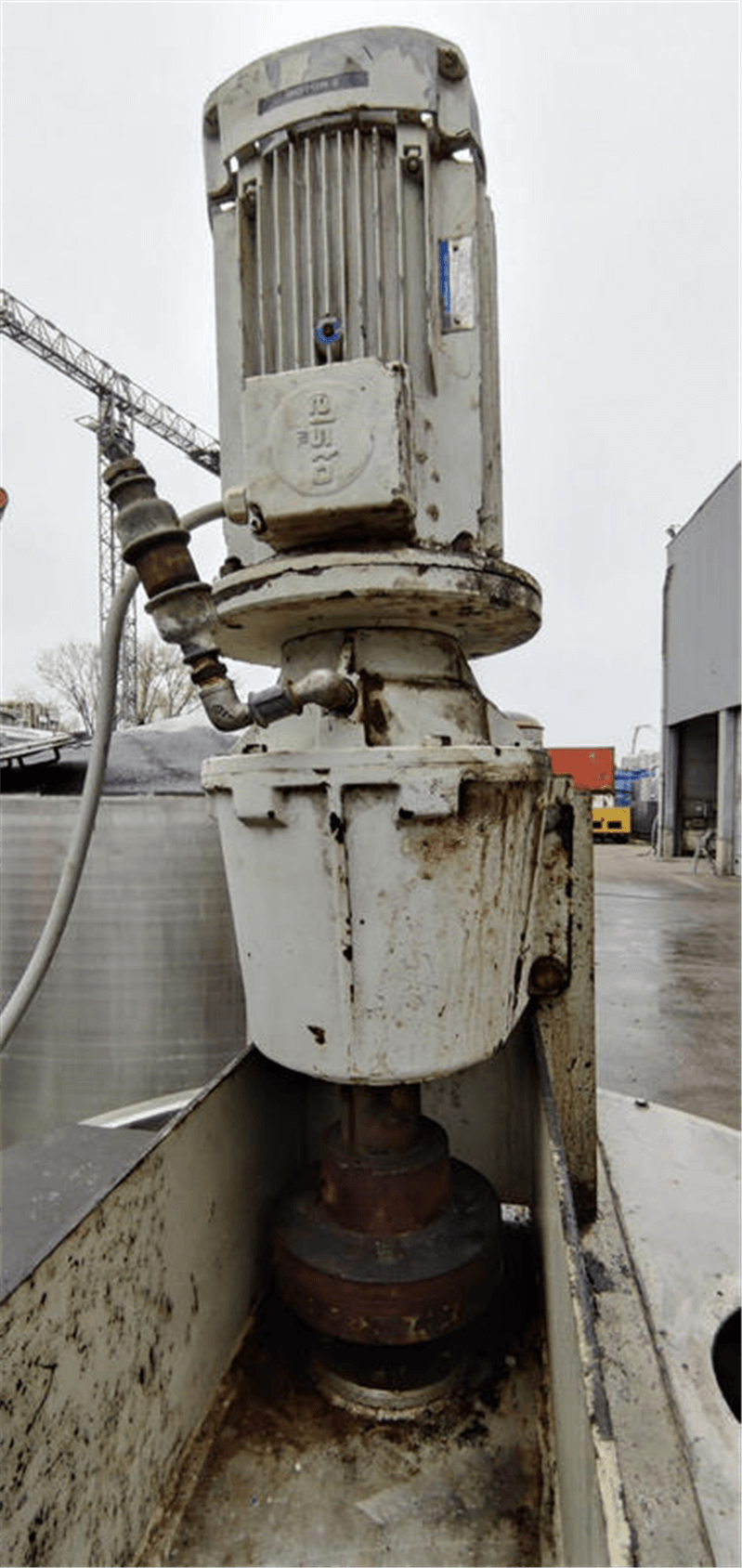

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 400/690 |
| Agitator 1: Power (kw) | 15 |

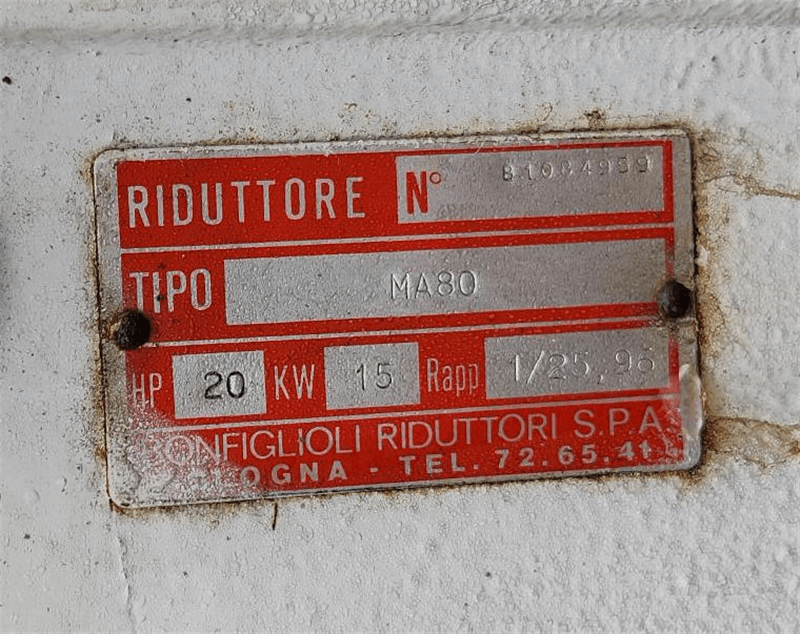

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 1/25.96 |
| Remarks | |
|---|---|
| Description (EN) | IN/OUT bain-marie : 1" |
