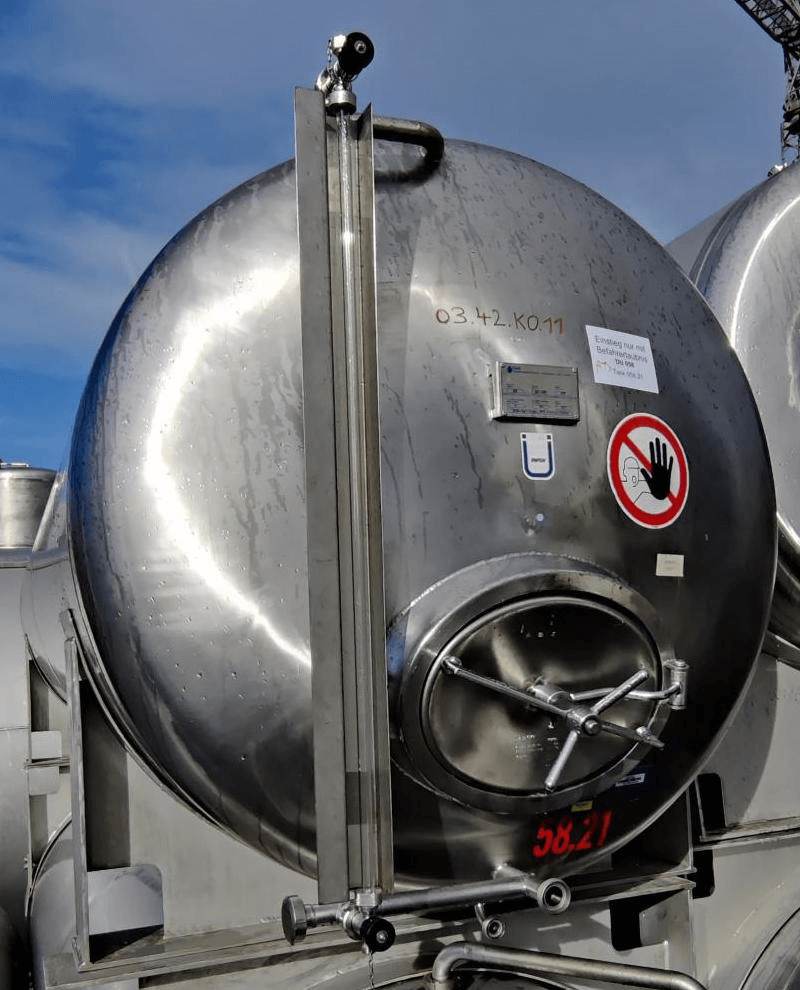

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 6000 L
- In stock: 2
| General | |
|---|---|
| Item number | 03.42.KO.11 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 2 |
| Capacity (Liters) | 6000 |
| Type tank | Storage tank |

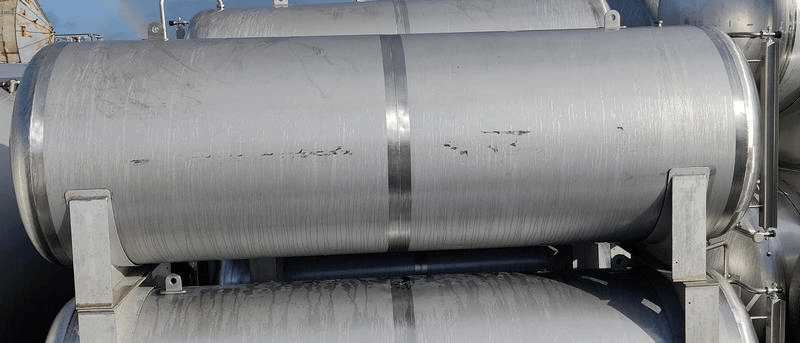

| Fixation | 2 cradles |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Tank model | Single wall |

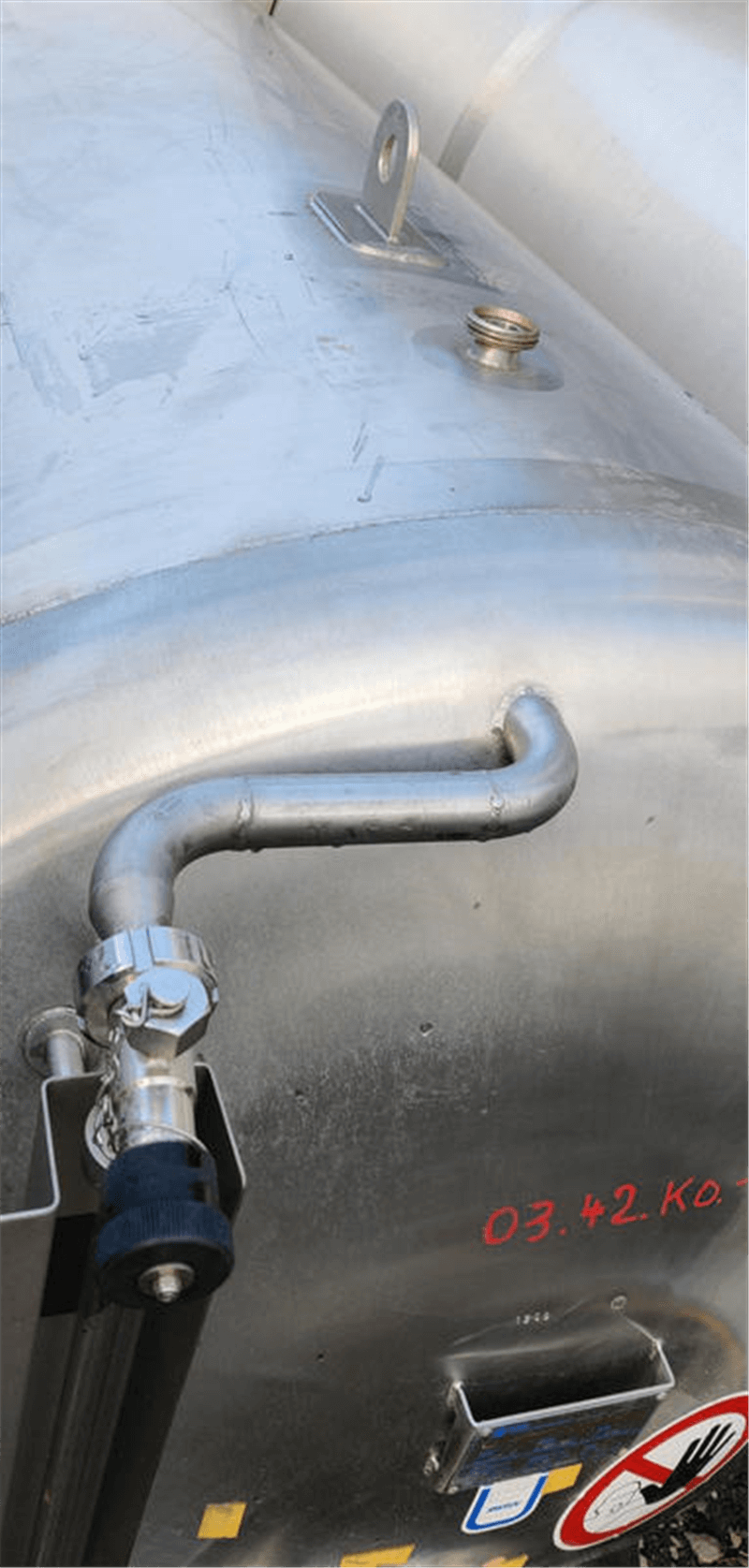

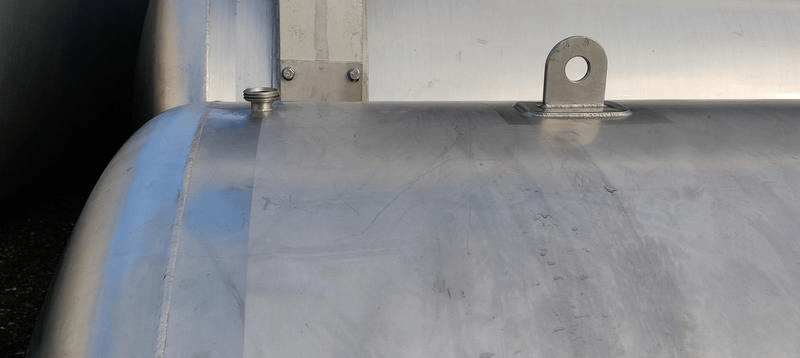

| Number lifting lugs | 2 |
| Density (kg/dm³) | 1 |

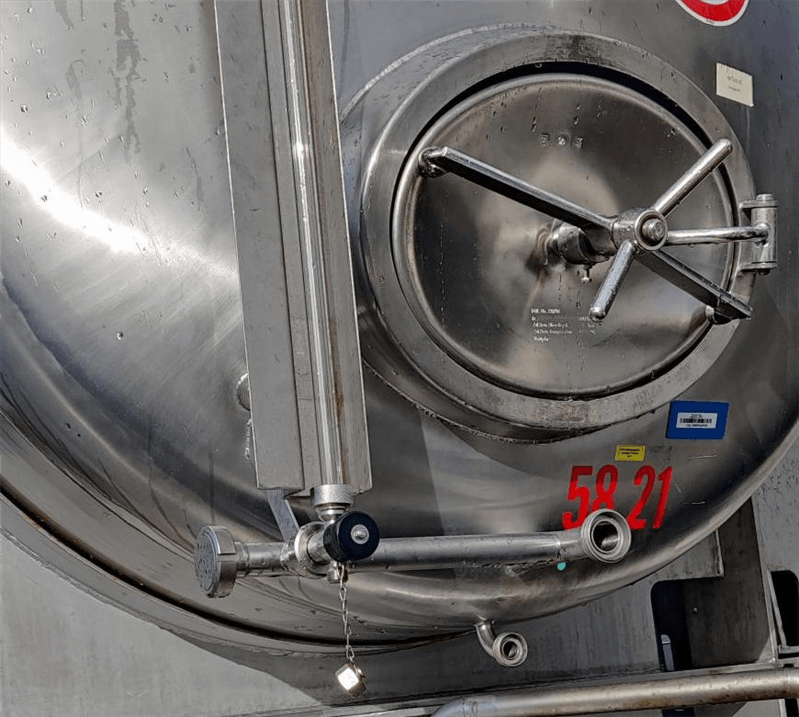

| Number of manhole | 1 |
| Position of manhole (s) | Side (bottom) |
| Dimensions of manholes | 440 x 340 |
| Tank with total drain? | Yes |
| Type of outlet (s) | DN20 |
| locality | B-7711 Belgium |
| Last application | cosmetics |
| Weight (kg) | 580 |
| Condition | Used |

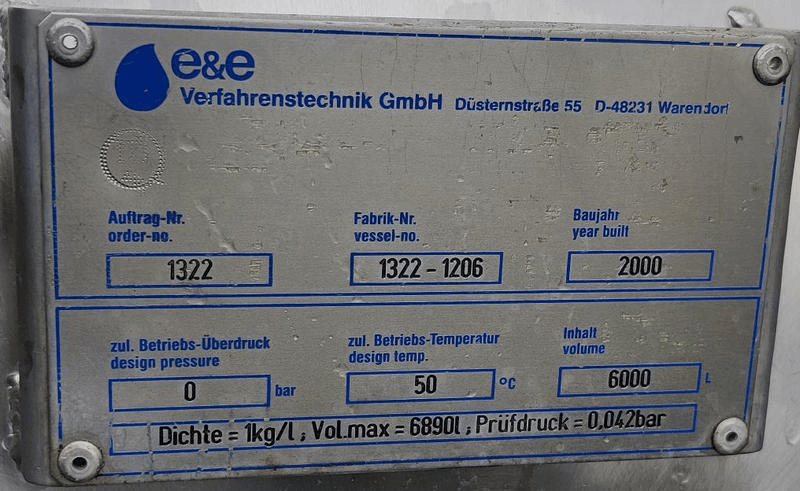

| Type plate manufacturer | Yes |
| Manufacturer | e&e Verfahrenstechnik GmbH |
| Year Built | 2000 |
| Construction data available | No |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,5 |
| Bottom thickness (mm) | 4 |
| Periphery (mm) | 4400 |
| Cylindrical length (mm) | 4000 |
| Total height (mm) | 1700 |
| Length (mm) | 4800 |
| Diameter tank (mm) | 1395 |
| Width (mm) | 1480 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | Bottom tank (to be combined with 03.42.KO.12) |
