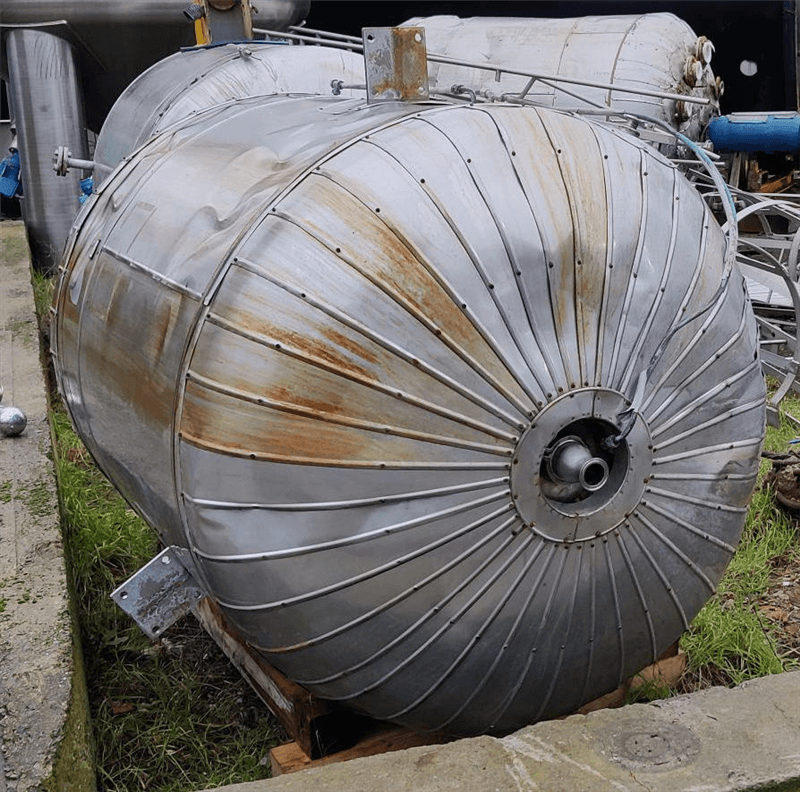

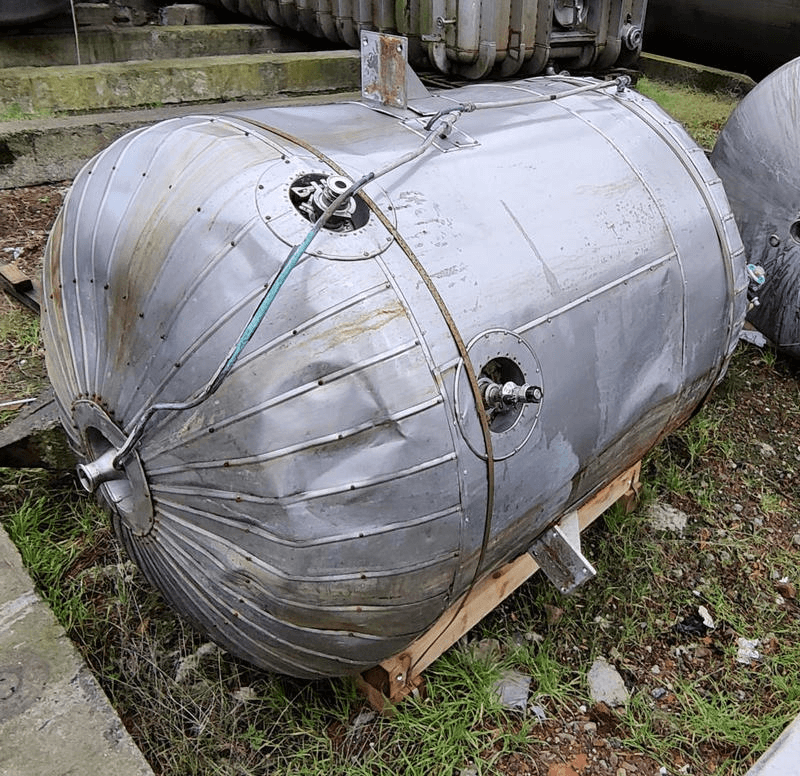

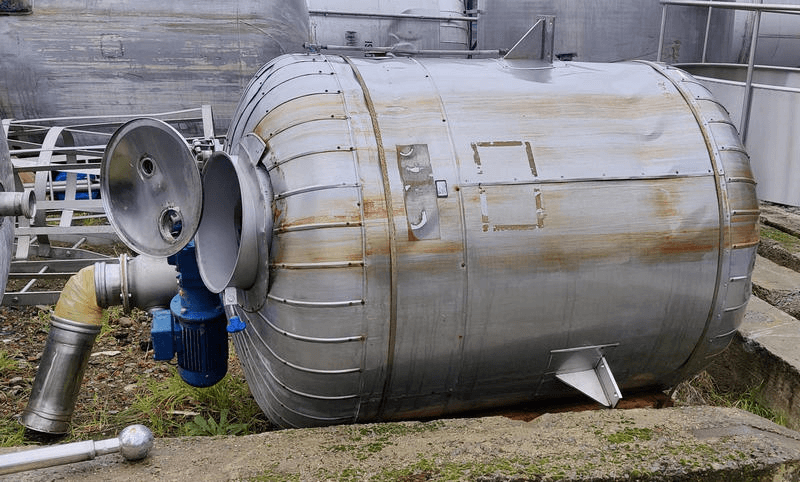

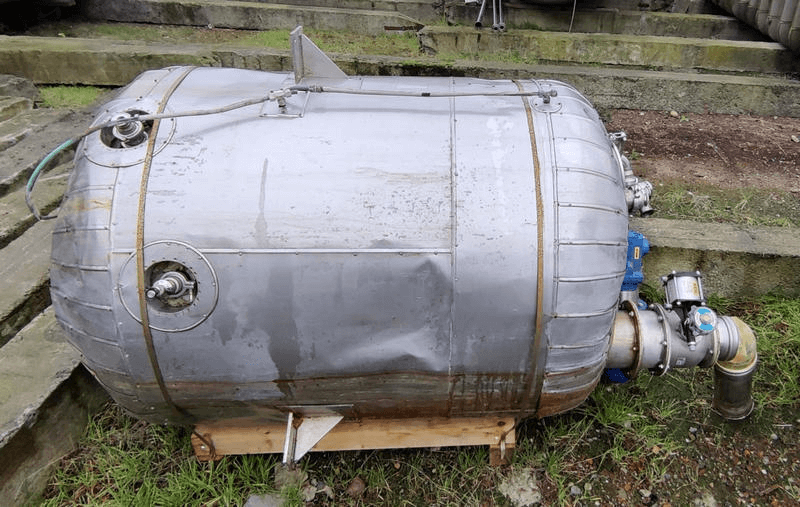

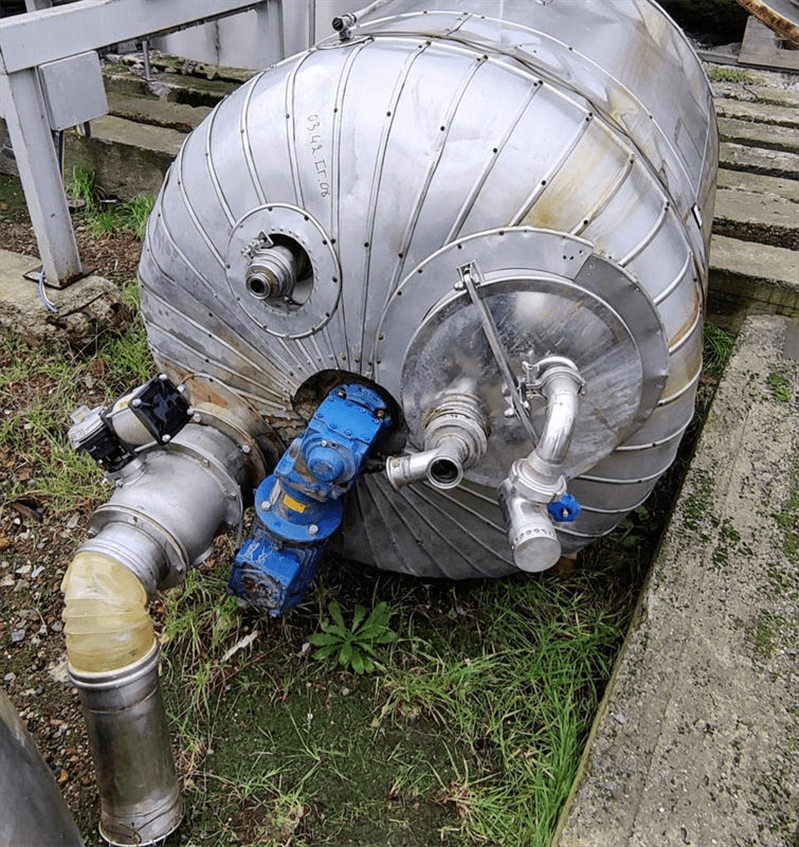

Used mixing vessel
- Material: Stainless steel 316 Ti
- Condition: Used
- Volume (in litres): 1800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.IT.08 |
| Material | Stainless steel 316 Ti |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1800 |
| Type tank | Mixing vessel |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |

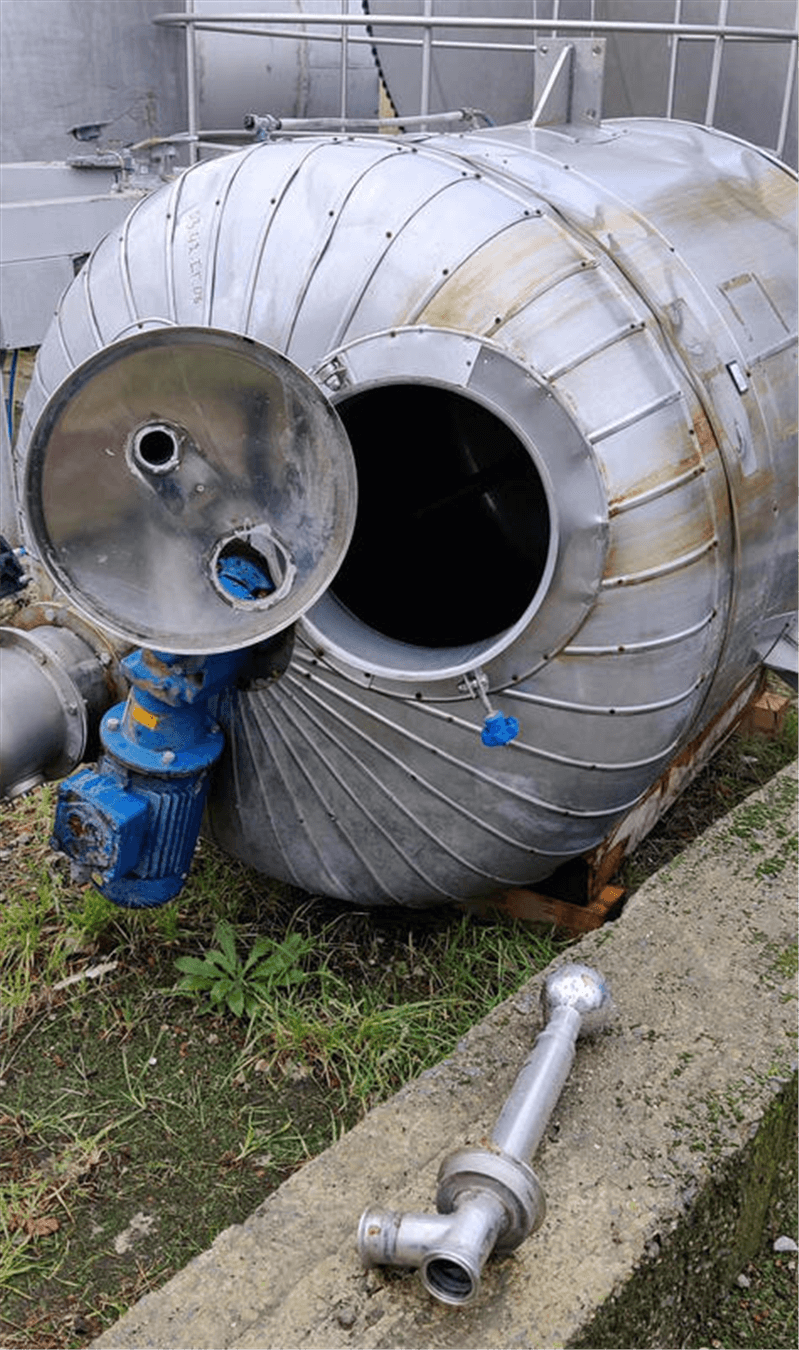

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 400 |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 42mm |
| locality | B-7711 Belgium |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 500 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 4,2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,2 |
| Bottom thickness (mm) | 4,2 |
| Periphery (mm) | 4200 |
| Cylindrical length (mm) | 1300 |
| Height bottom (mm) | 300 |
| Outside diameter tank (mm) | 1340 |
| Total height (mm) | 2600 |
| Length (mm) | 1900 |
| Diameter tank (mm) | 1200 |
| Width (mm) | 1600 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 70 |
| Finishing insulation | Rivited sheet cladding |

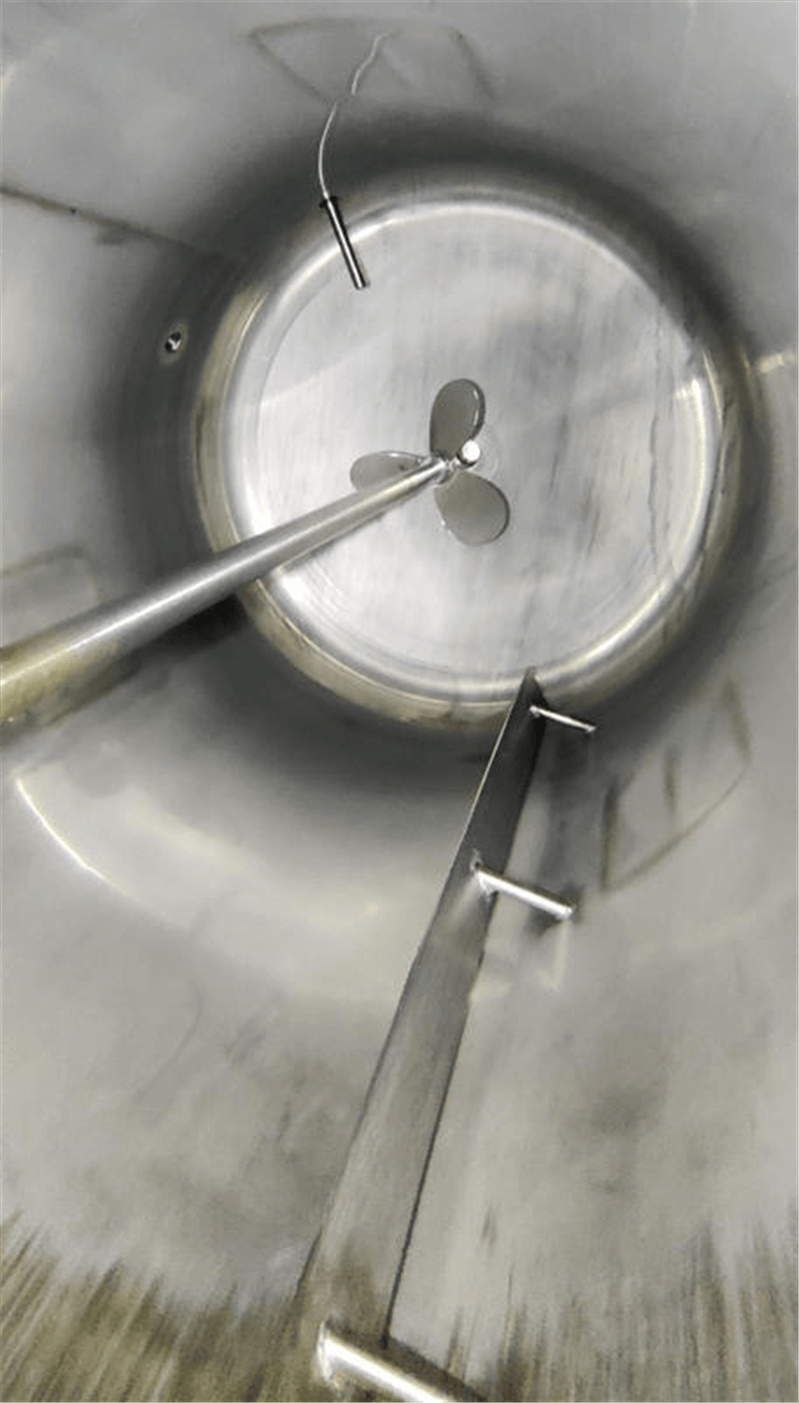

| Agitators | |
|---|---|
| Number of agitators | 1 |

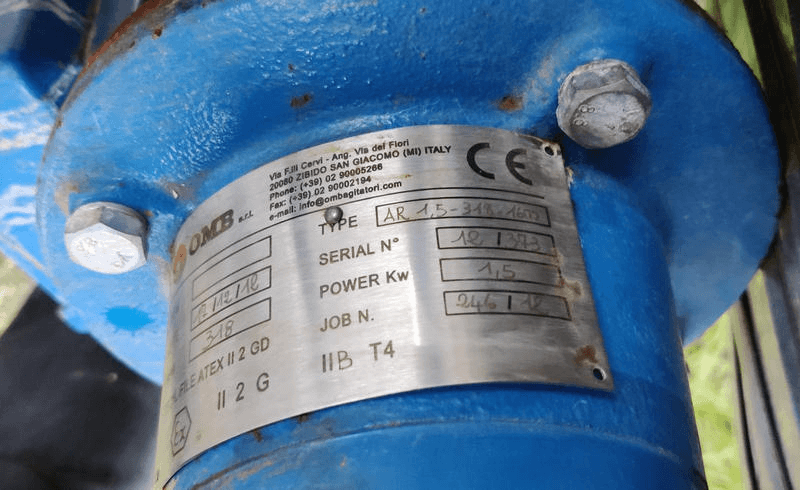

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Number of baffles | 1 |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1400 |

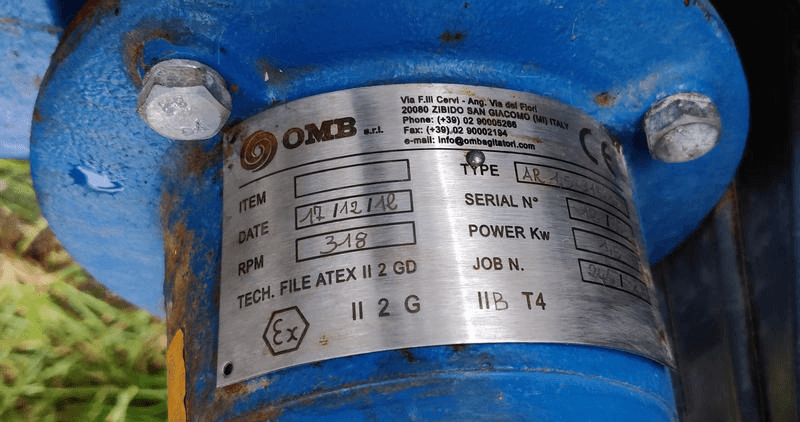

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | Yes |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 1,5 |

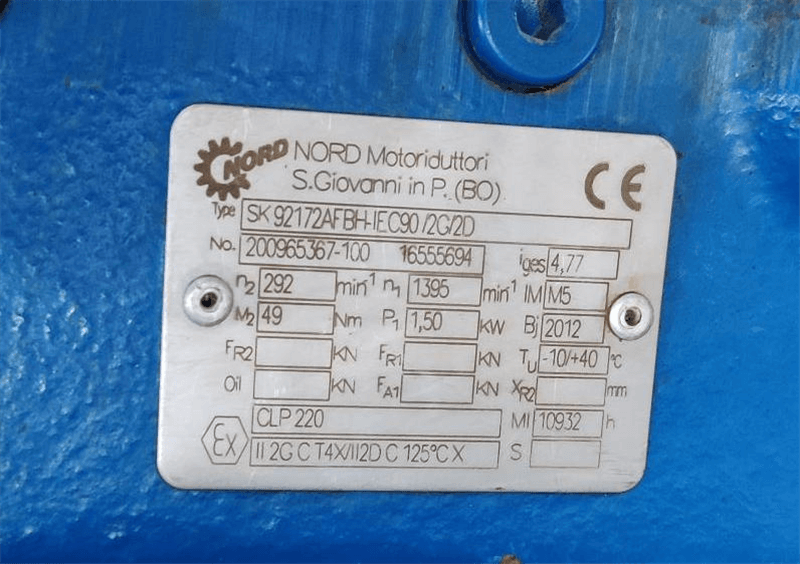

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 318 |
| Remarks | |
|---|---|

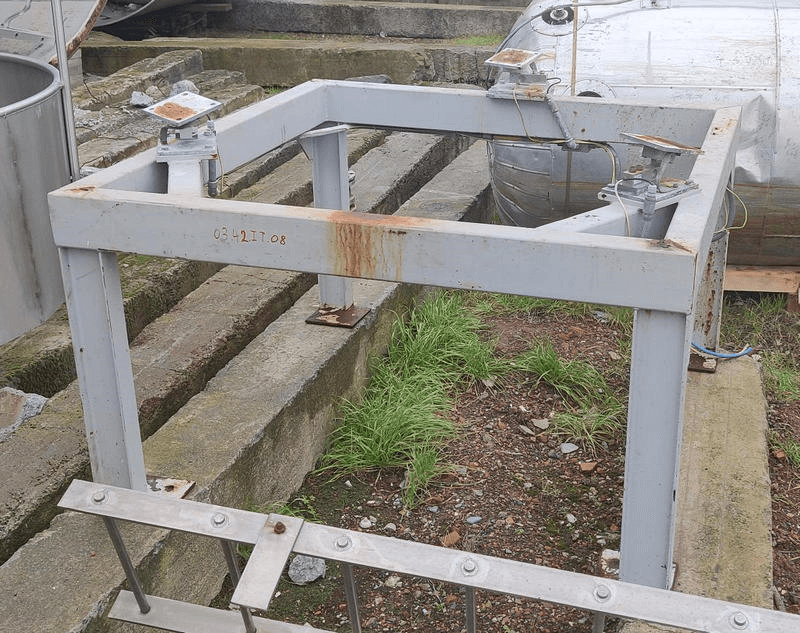

| Description (EN) | Mounting frame (4 feet) available. |
