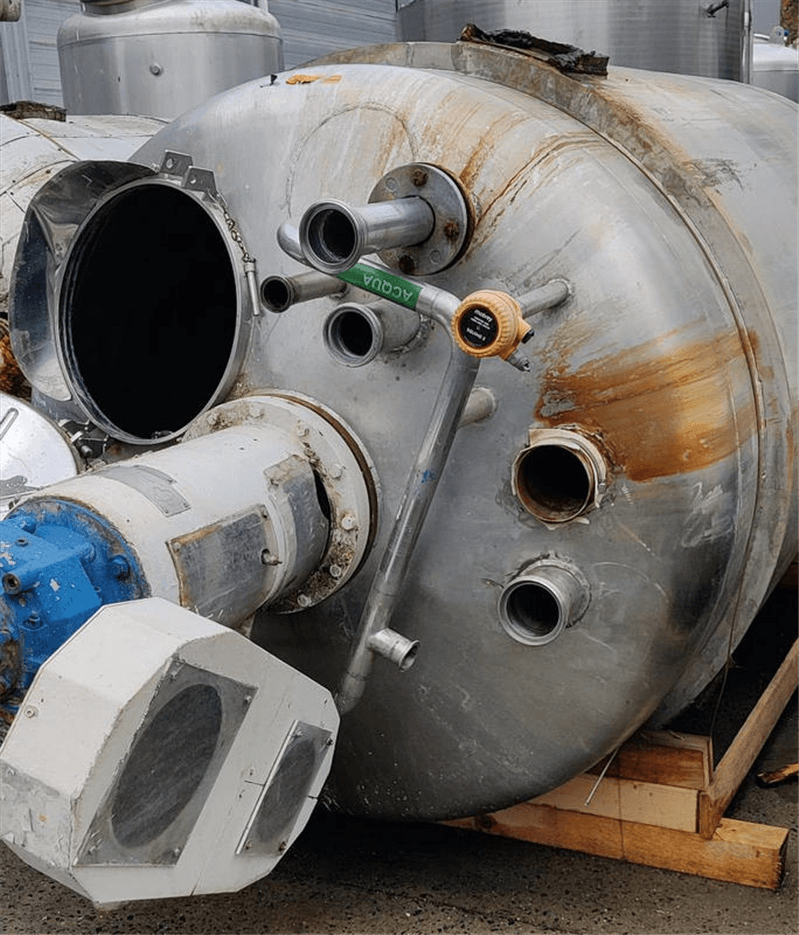

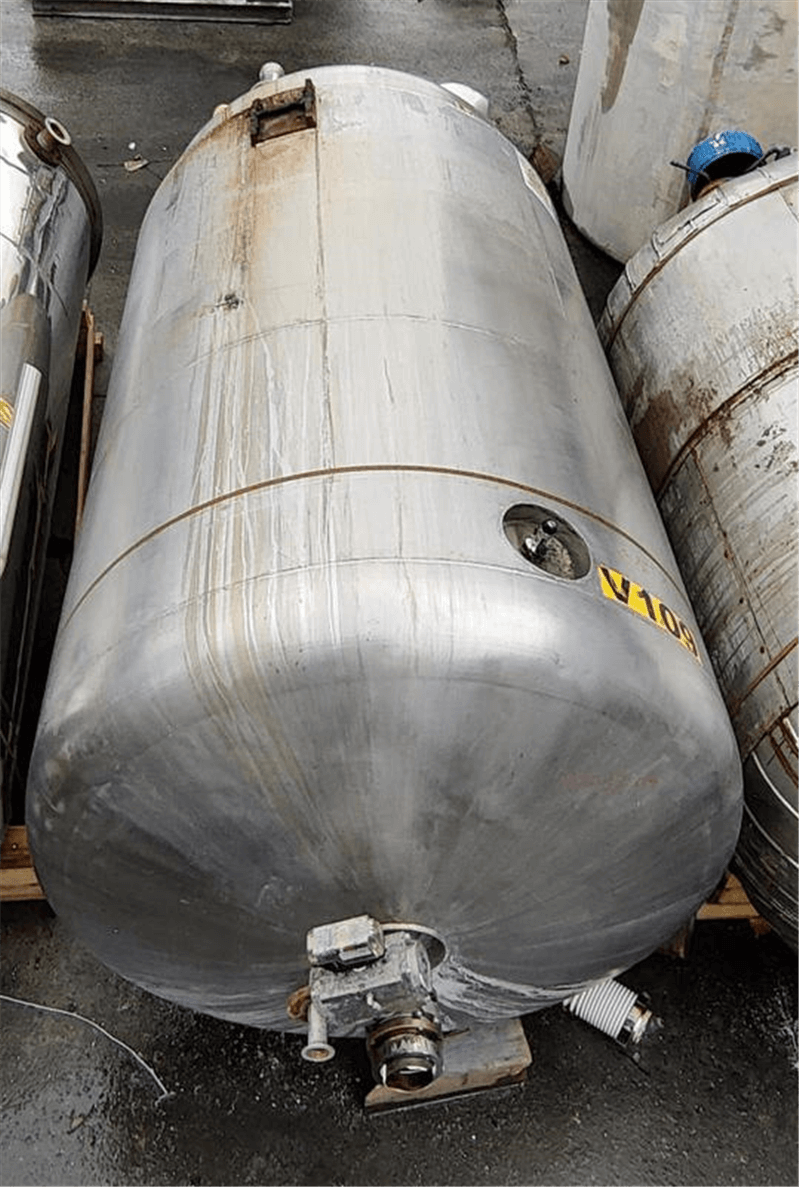

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 6200 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.IT.04 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 6200 |
| Type tank | Mixing vessel |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

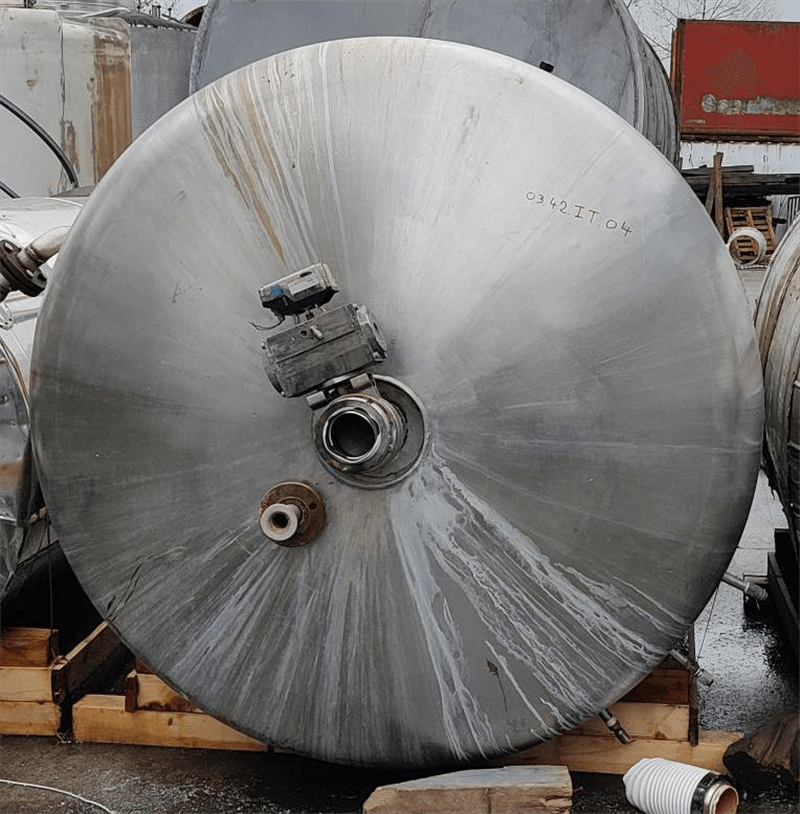

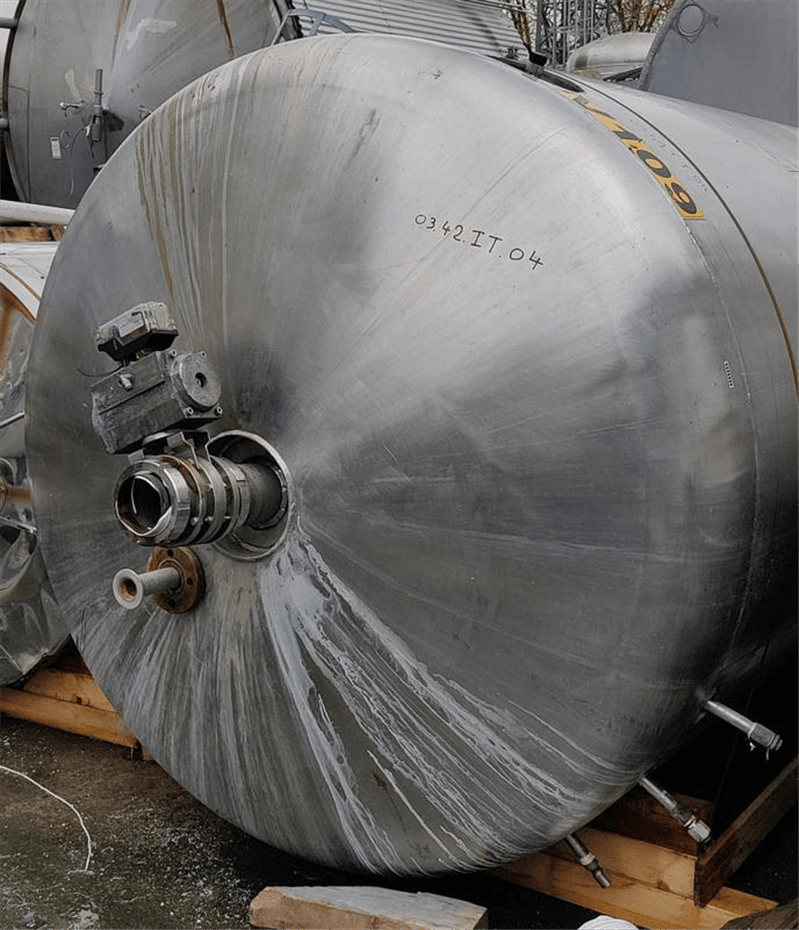

| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia. 500 |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 110mm |
| locality | B-7711 Belgium |

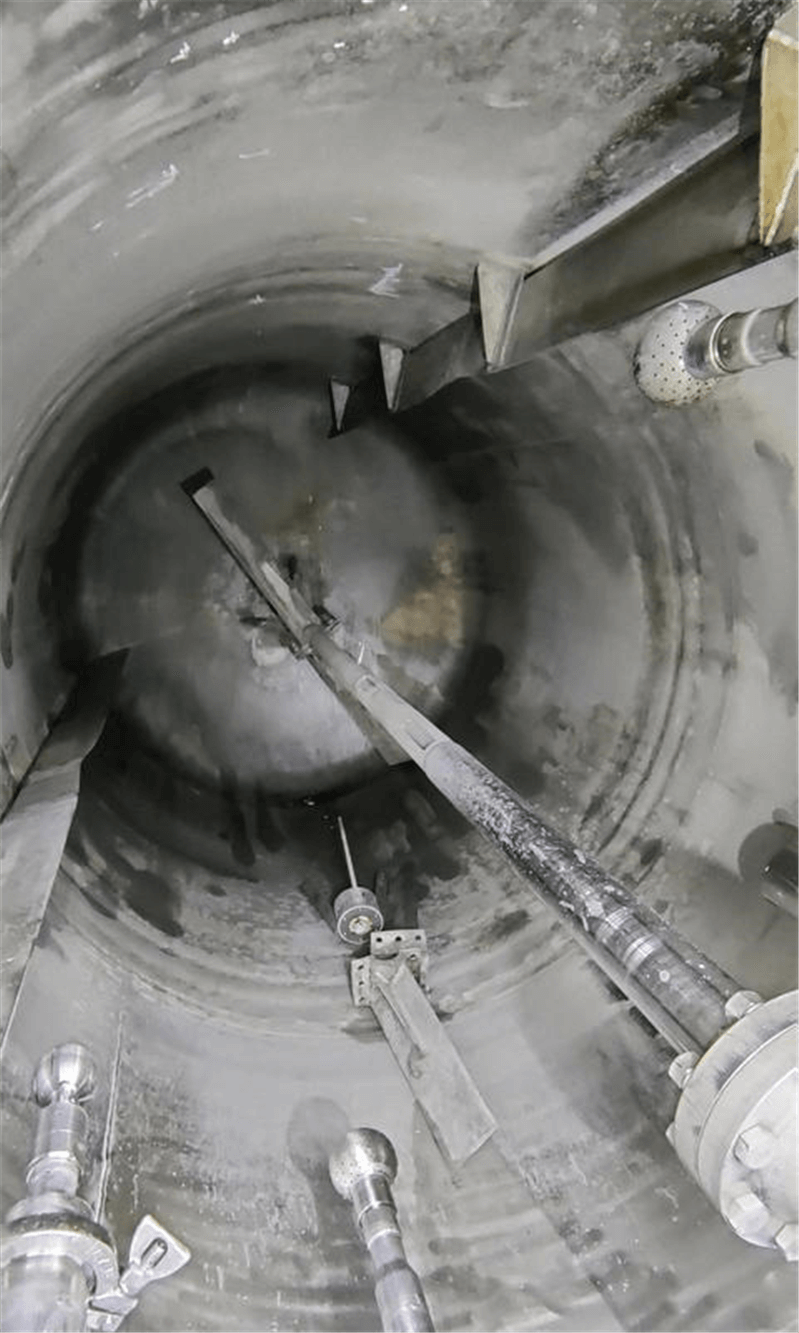

| Provision tank cleaning | CIP ball |
| Weight (kg) | 1500 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 4 |
| Periphery (mm) | 5400 |
| Cylindrical length (mm) | 2600 |
| Height bottom (mm) | 400 |
| Outer wall thickness (mm) | 50 |
| Total height (mm) | 4600 |
| Length (mm) | 3400 |
| Diameter tank (mm) | 1600 |
| Width (mm) | 1800 |
| Remarks | |
|---|---|

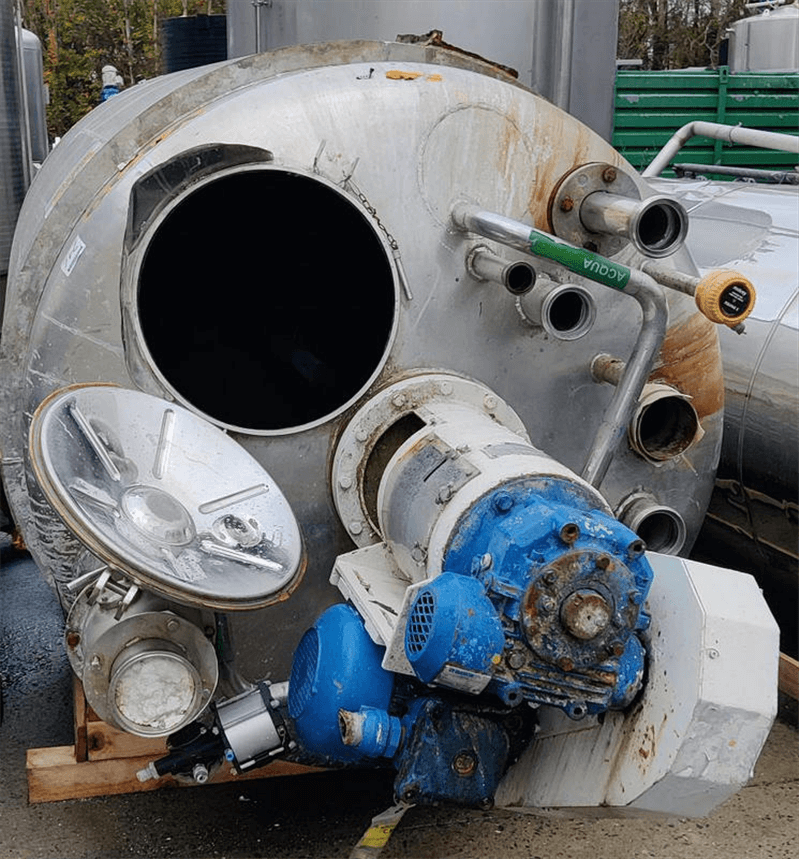

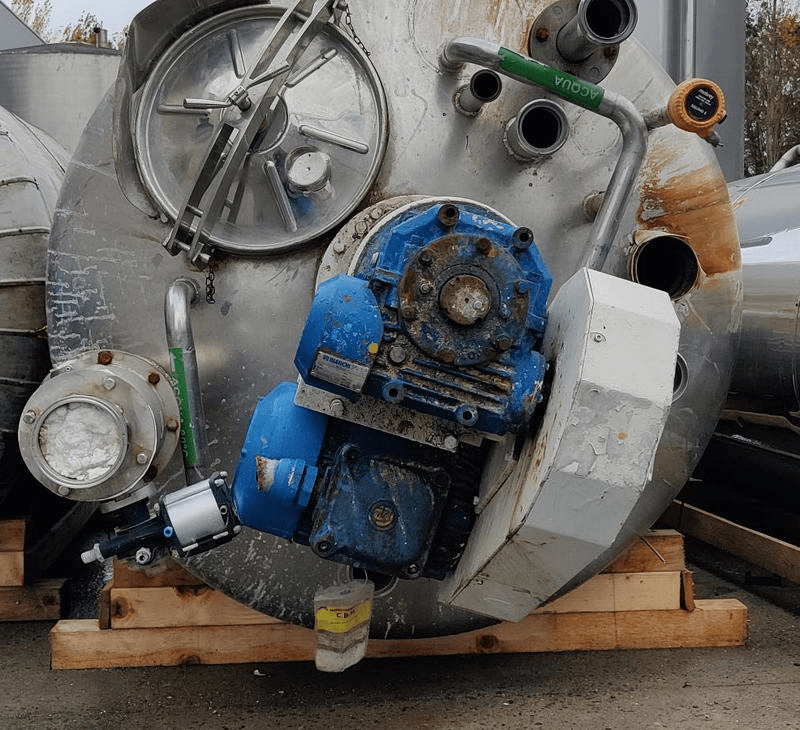

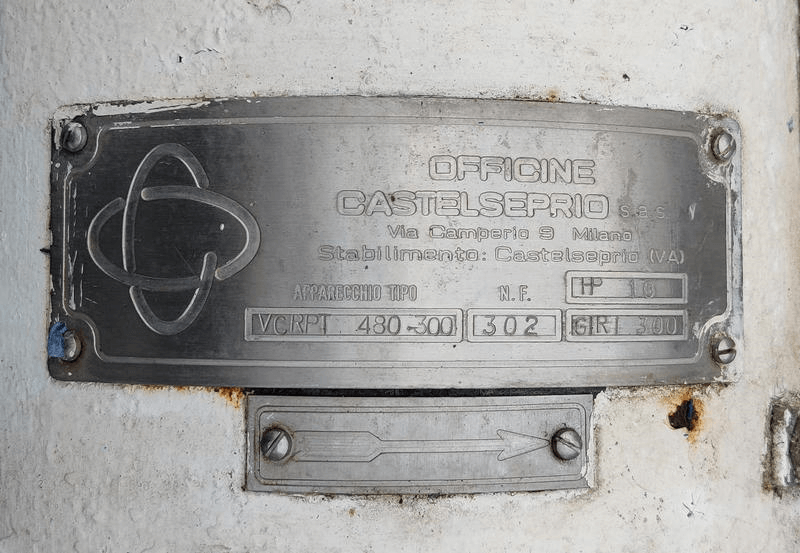

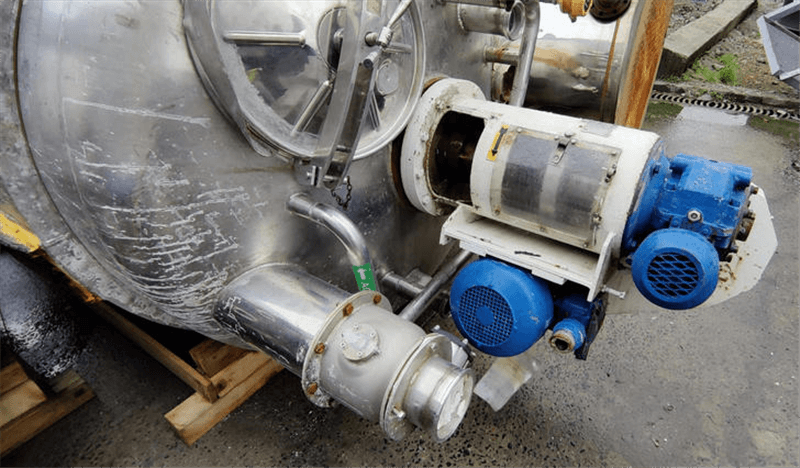

| Description (EN) | Power mixing unit : 10HP (= 7.3 kW) --- IN/OUT bain marie : DN32-flange |
