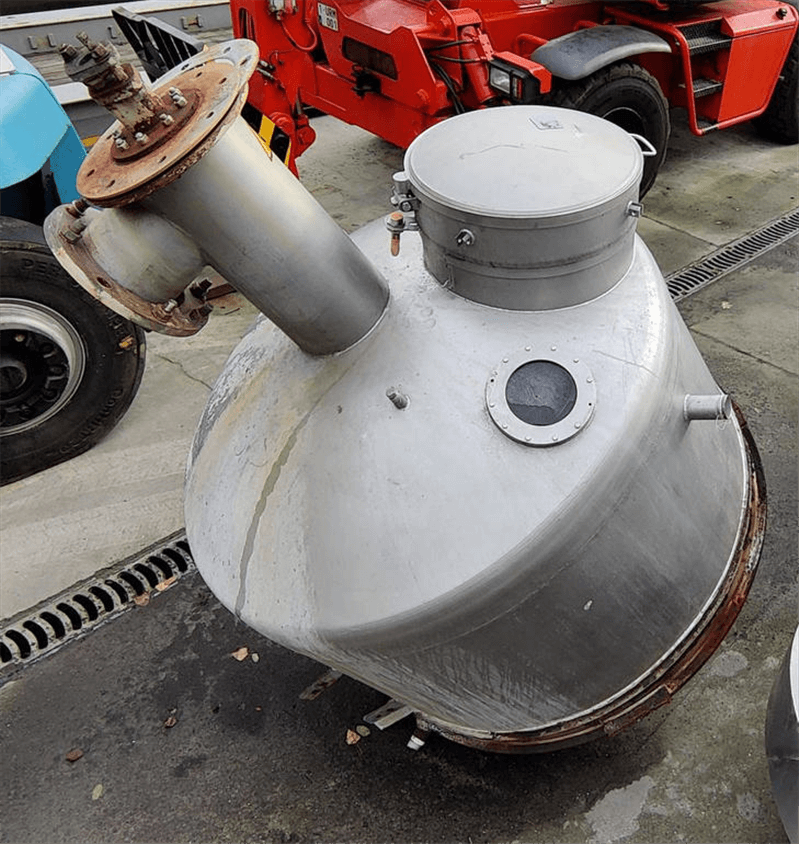

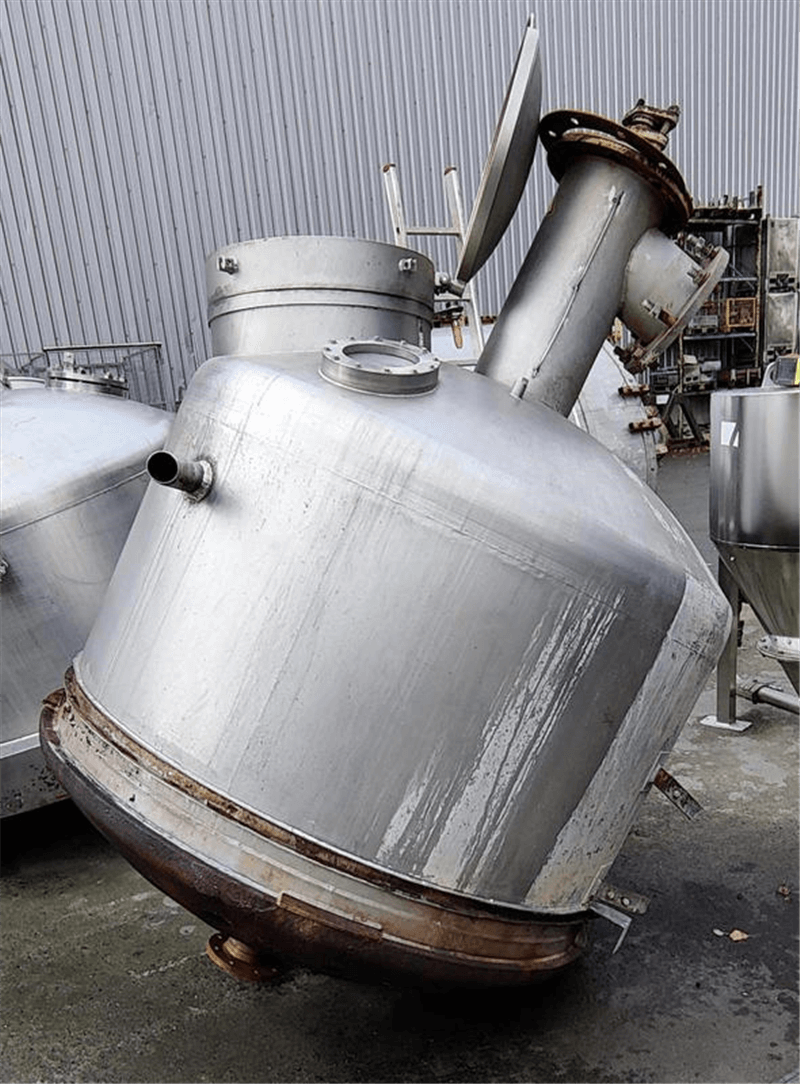

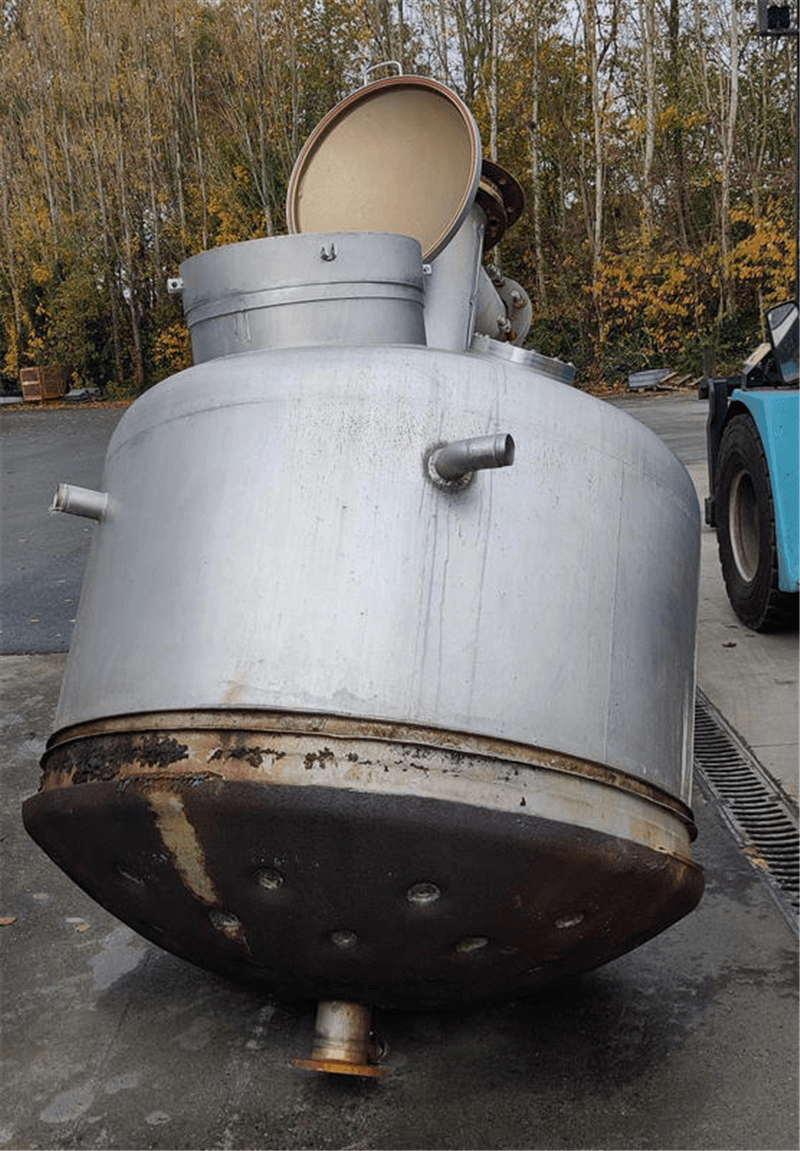

Used reactor tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.AL.04 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1500 |
| Type tank | Reactor tank |
| Fixation | NON |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |

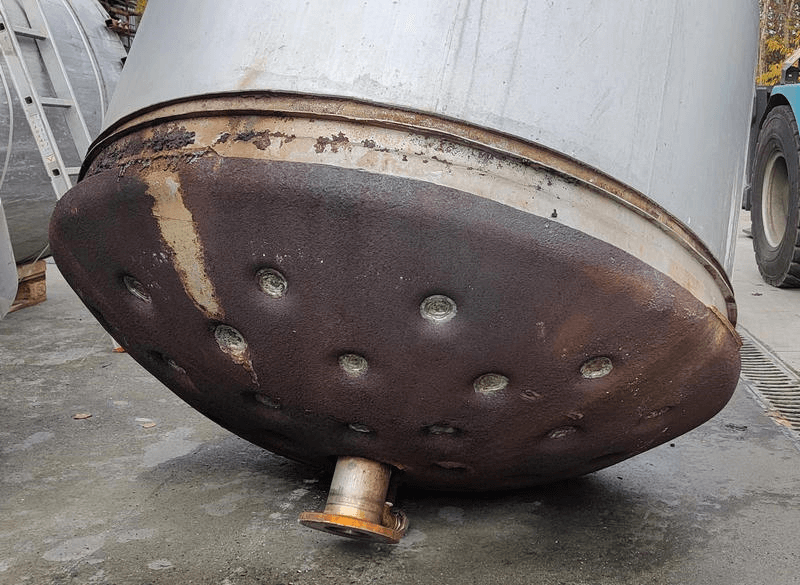

| Tank model | Jacketed (Heating/Cooling) |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 500 |
| Tank with total drain? | Yes |
| Type of outlet (s) | DN100 |
| locality | B-7711 Belgium |
| Weight (kg) | 400 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Periphery (mm) | 4430 |
| Cylindrical length (mm) | 800 |
| Height bottom (mm) | 300 |
| Total height (mm) | 2100 |
| Diameter tank (mm) | 1400 |
| Width (mm) | 2100 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |

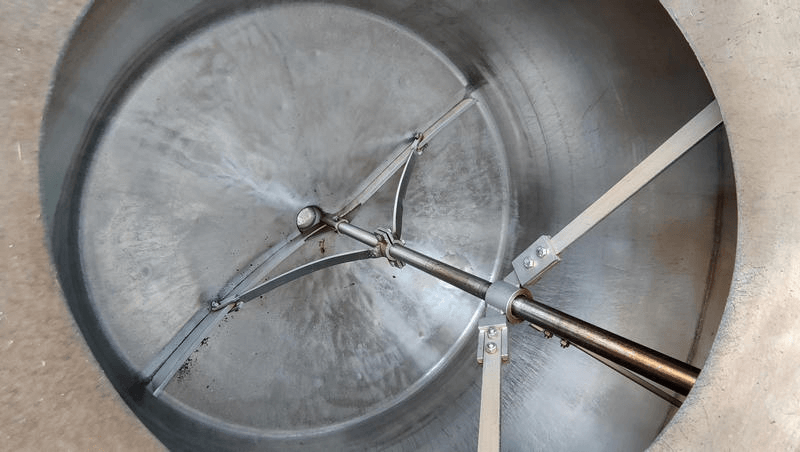

| Agitator 1: stirring element type | Anchor |
| Agitator 1: Length (mm) | 1400 |
| Remarks | |
|---|---|
| Description (EN) | no motor / no fixation-frame |
