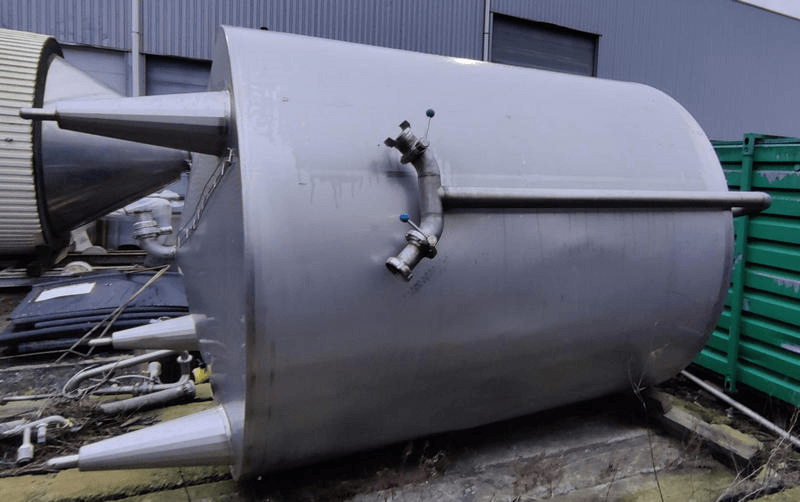

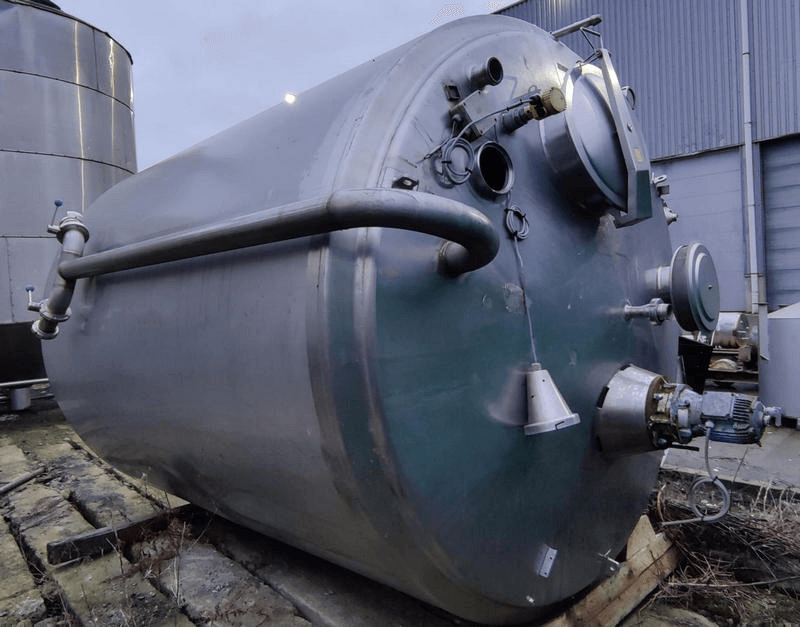

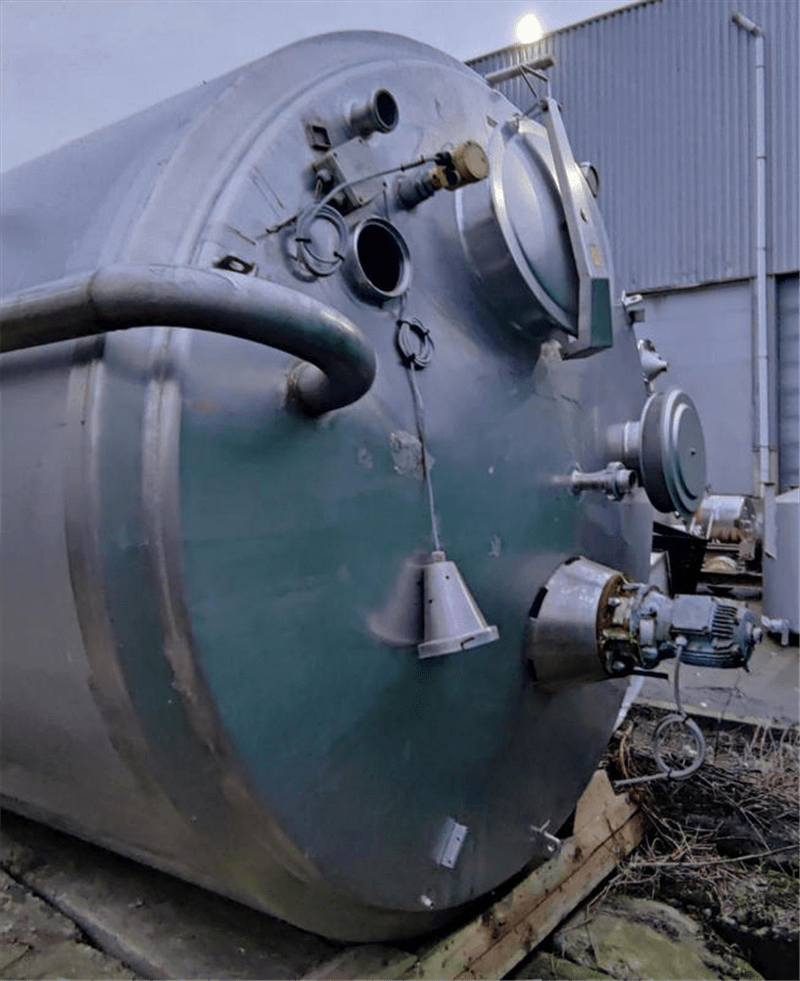

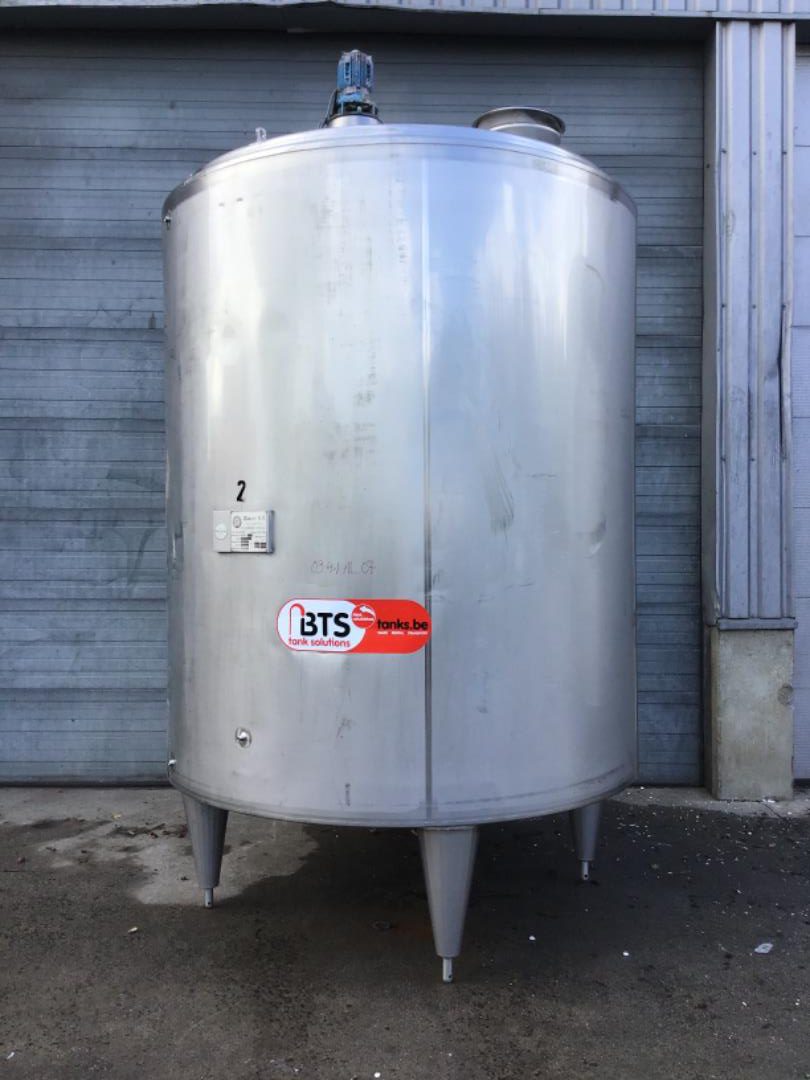

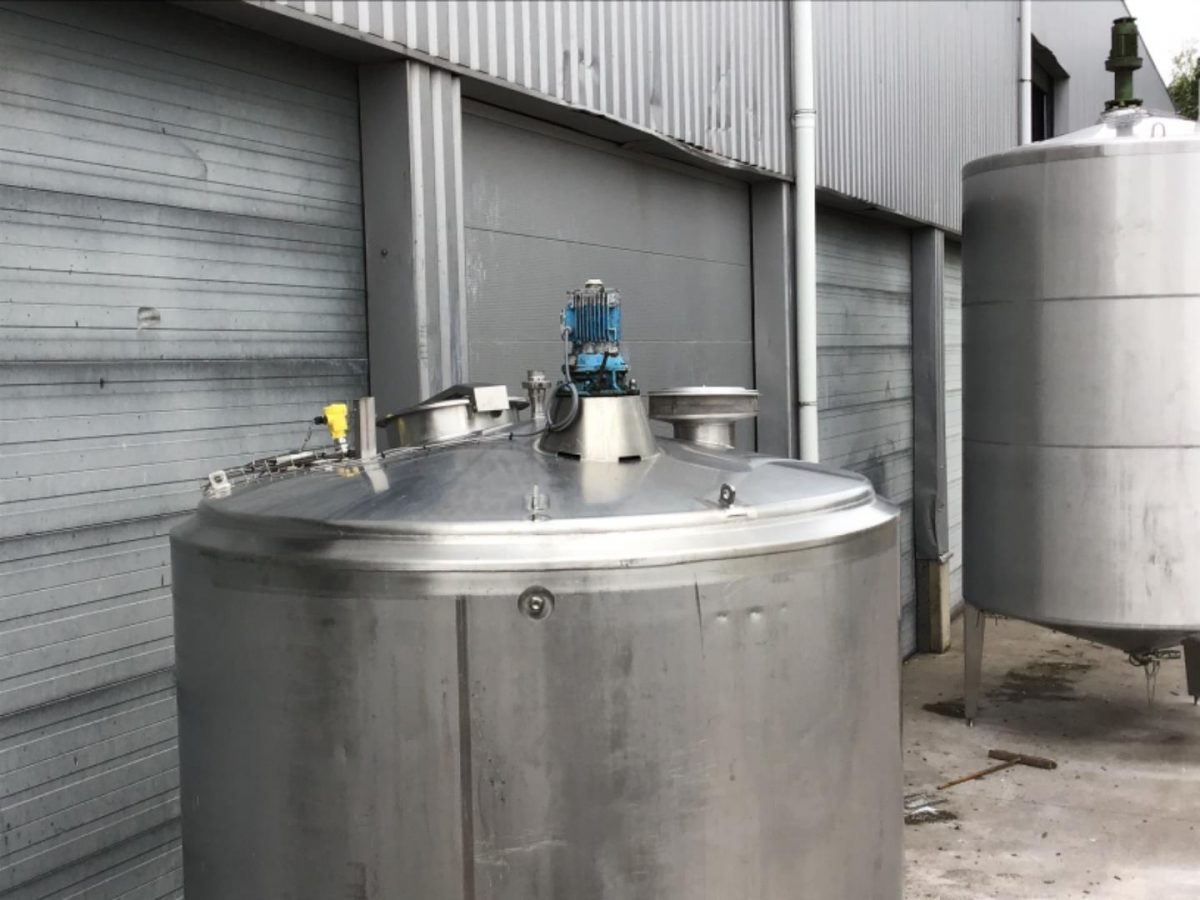

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 8000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.41.AL.07 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 8000 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

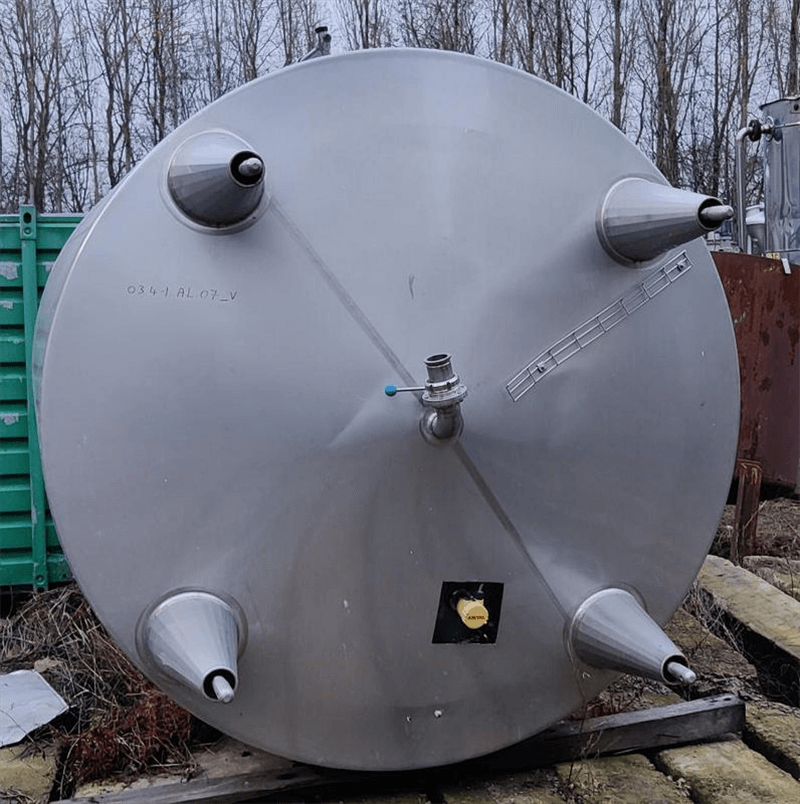

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | Ø450 mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | Butterfly valve |
| Diameter of outlet (mm) | DN65 |
| locality | B-7711 Belgium |
| Provision tank cleaning | CIP ball |
| Condition | Used |

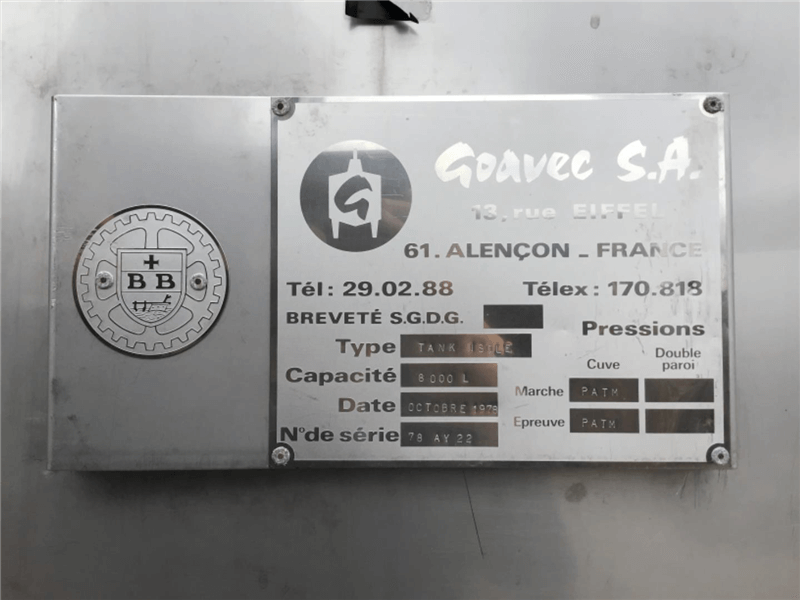

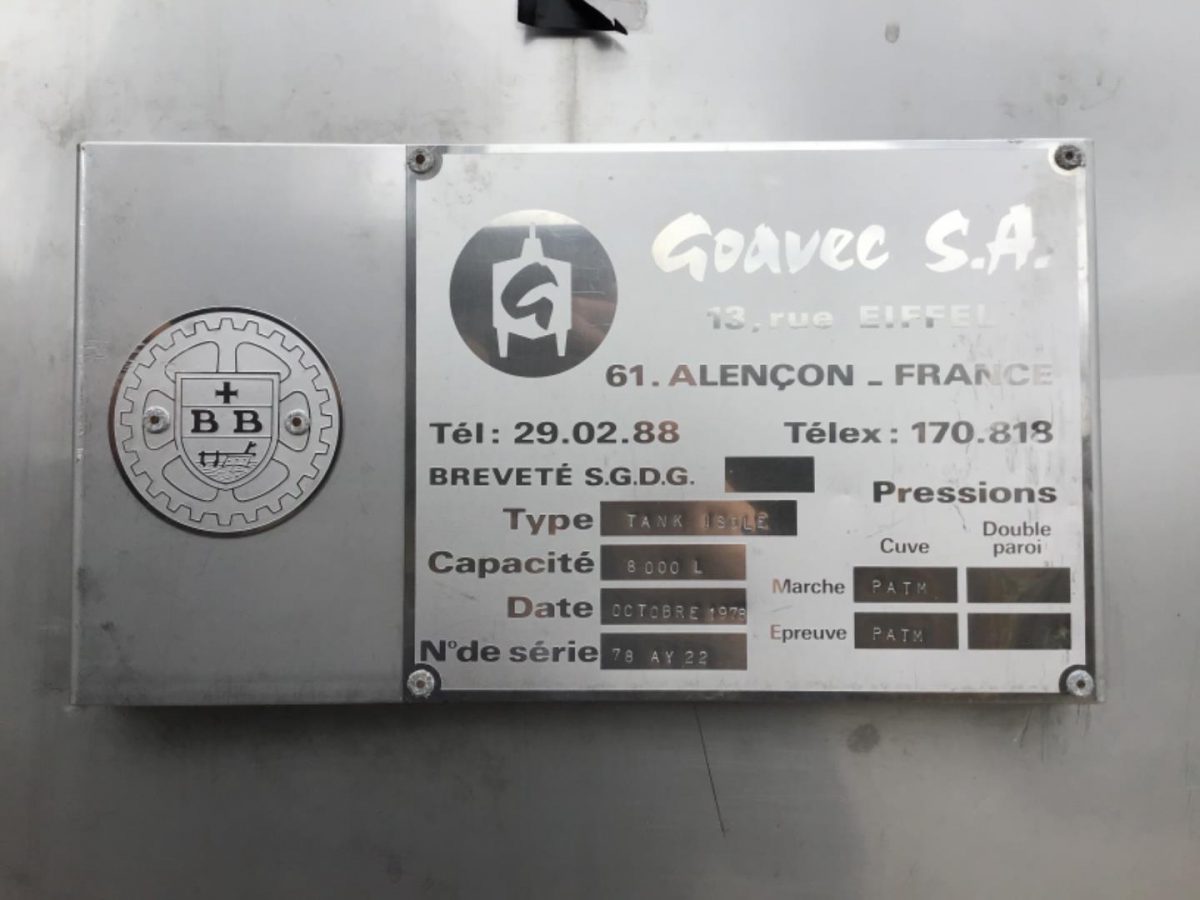

| Type plate manufacturer | Yes |
| Year Built | 1978 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,2 |
| Bottom thickness (mm) | 2,2 |
| Total height (mm) | 3800 |
| Diameter tank (mm) | 2200 |
| Width (mm) | 2260 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Finishing insulation | fully welded cladding |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Engine Type | electric motor |

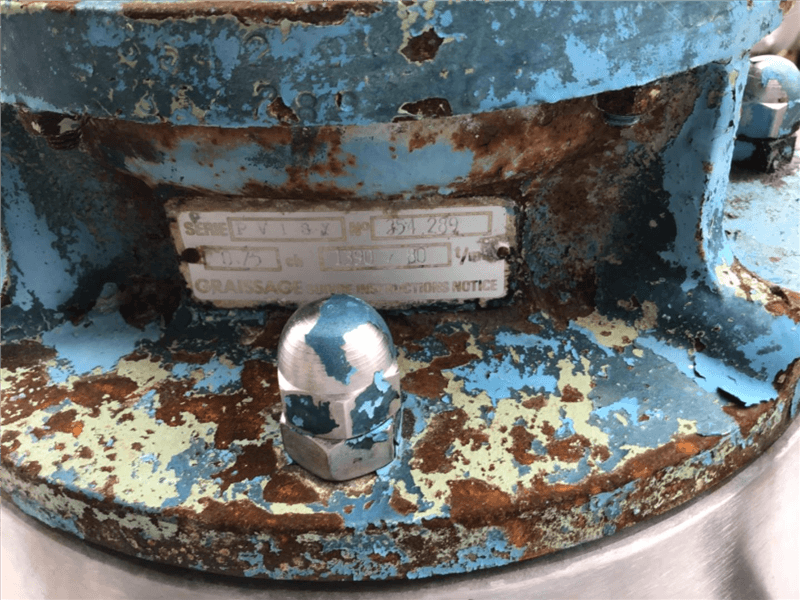

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 1390/80 |
| Remarks | |
|---|---|

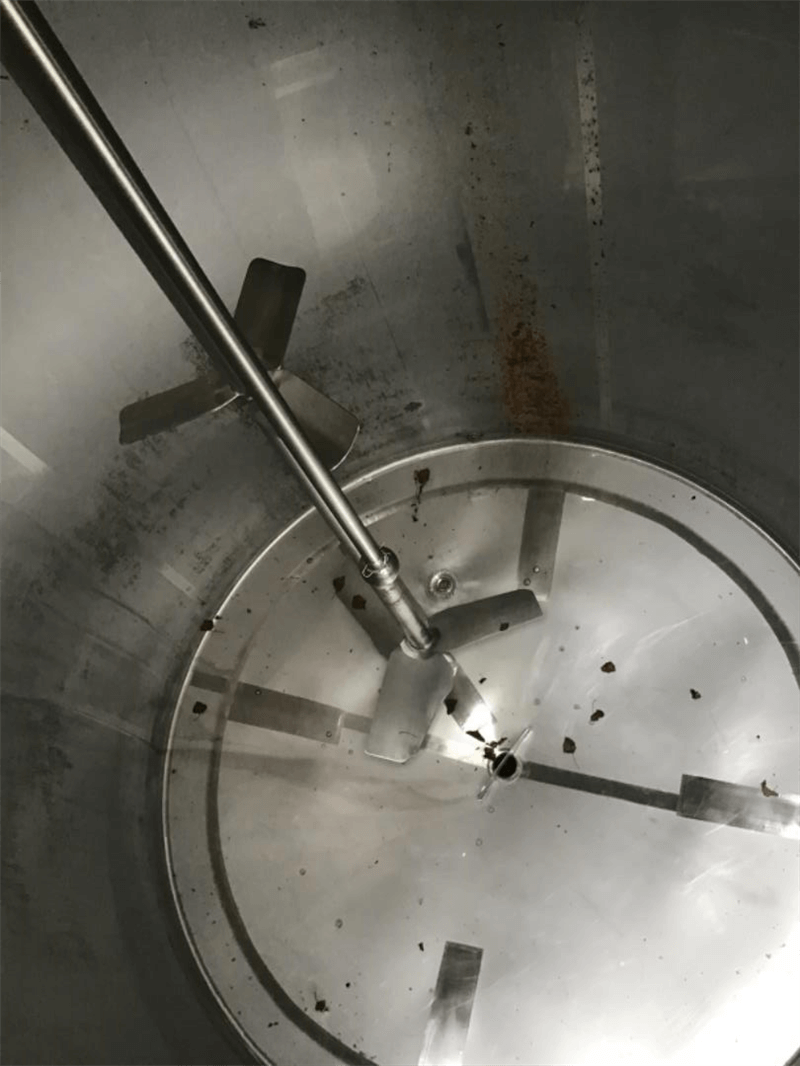

| Description (EN) | Used mixing tank with double axial propeller - Stainless Steel 304 - 8000L |
