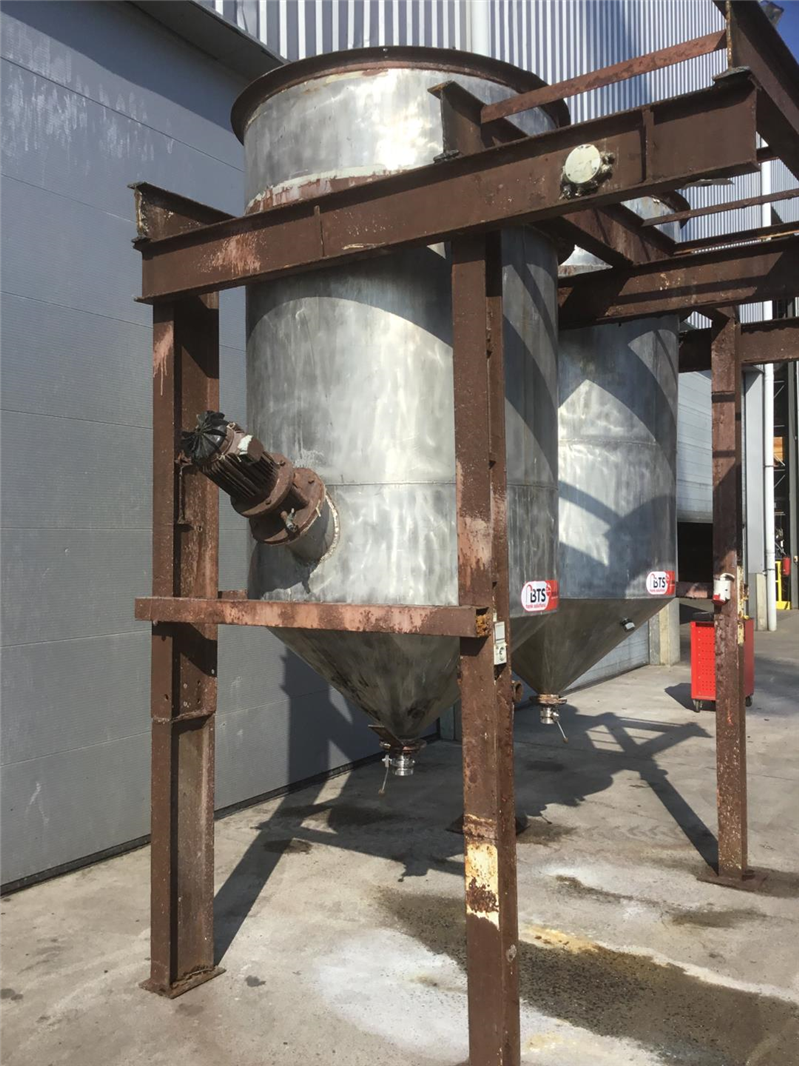

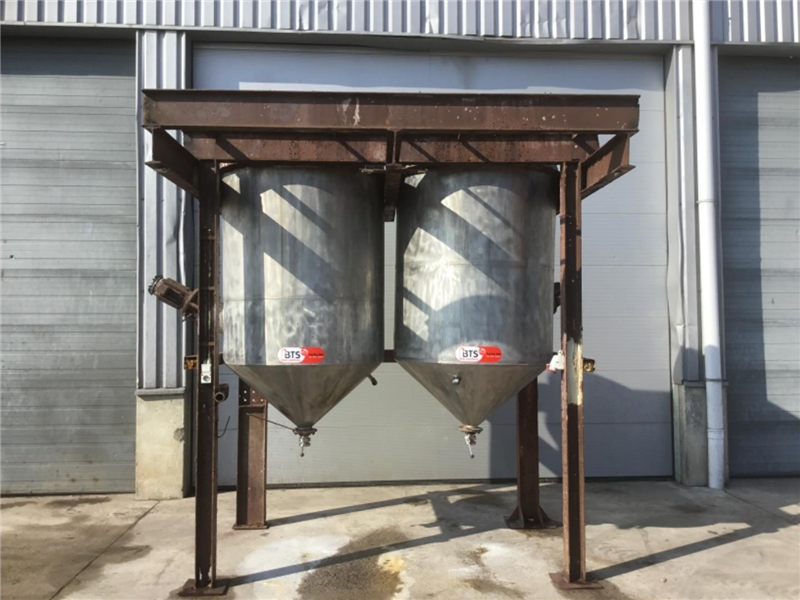

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 2650 L
- In stock: 2
| General | |
|---|---|
| Item number | 03.39.IE.07 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 2 |
| Capacity (Liters) | 2650 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |

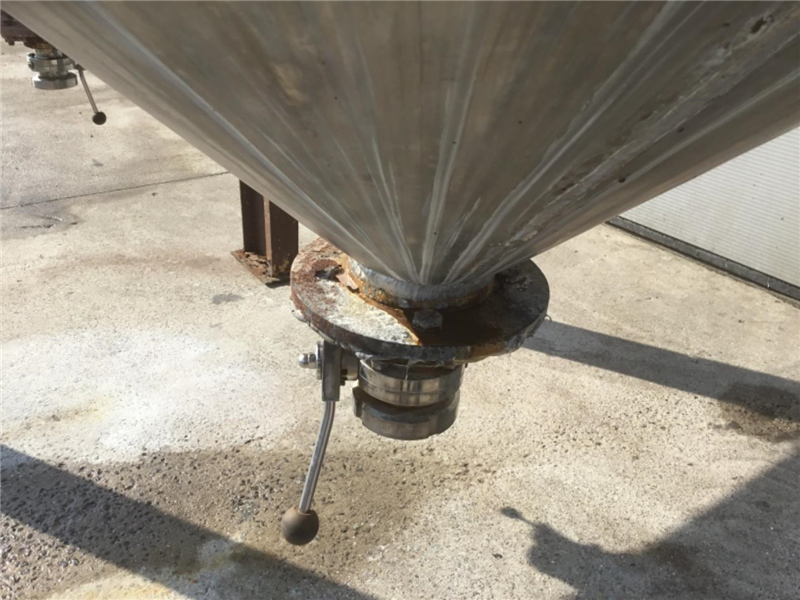

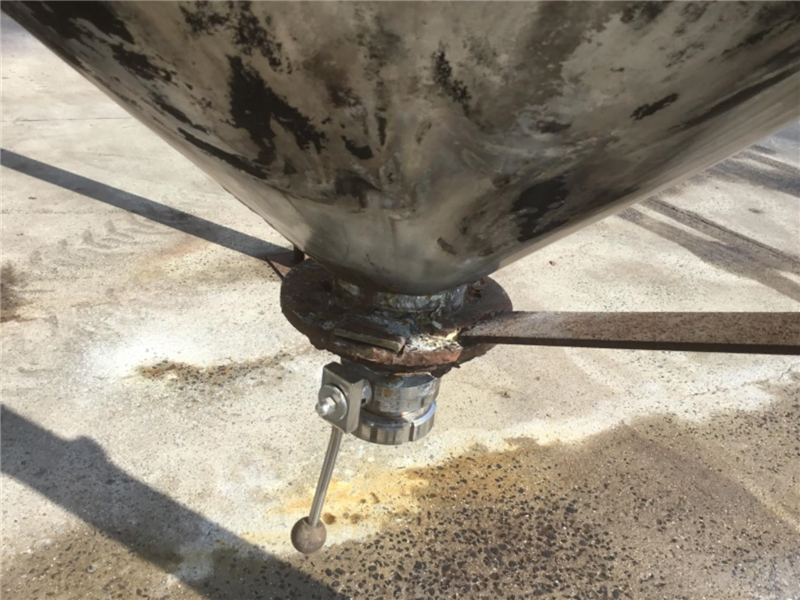

| Tank with total drain? | Yes |
| Type of outlet (s) | SMS |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|

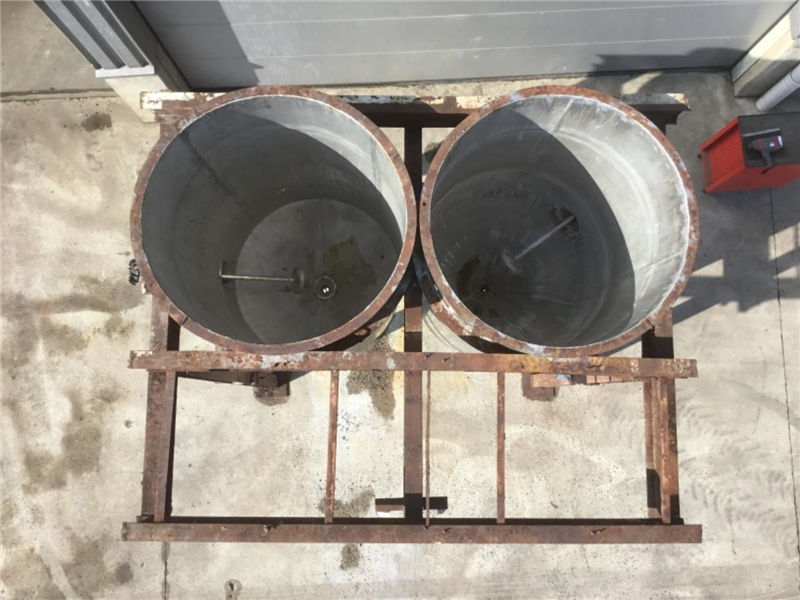

| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 3 |
| Cylindrical length (mm) | 2000 |
| Height bottom (mm) | 550 |
| Total height (mm) | 3560 |
| Length (mm) | 3600 |
| Diameter tank (mm) | 1700 |
| Width (mm) | 2500 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|

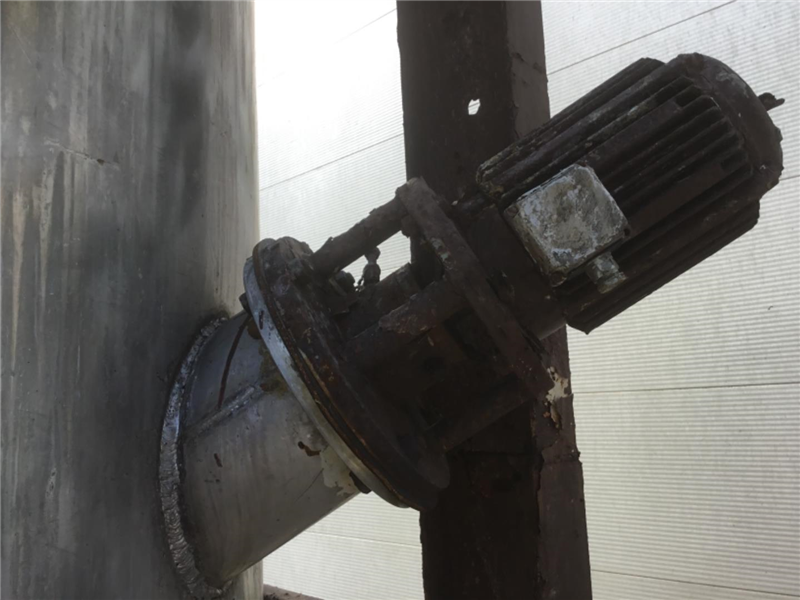

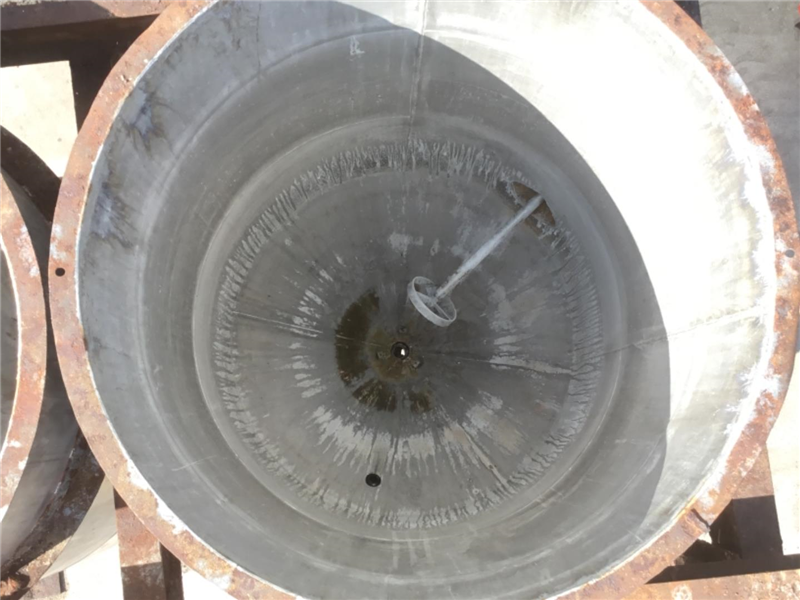

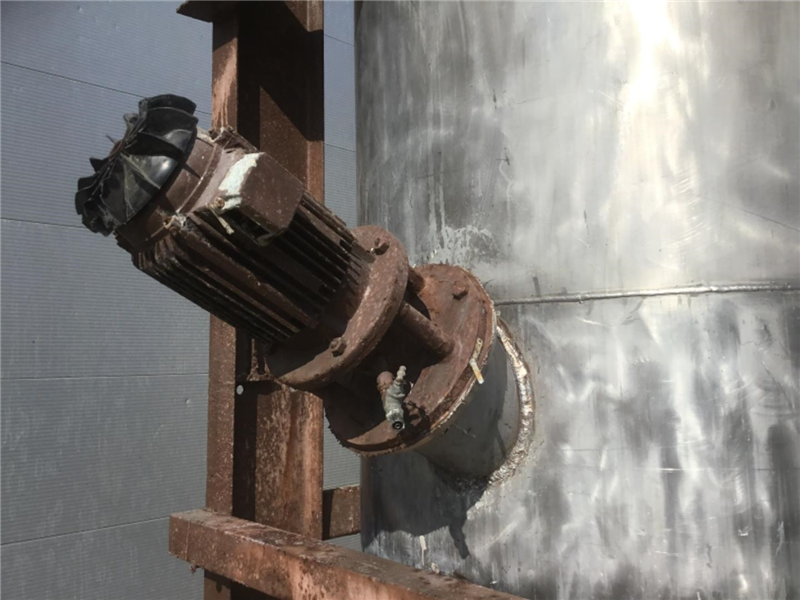

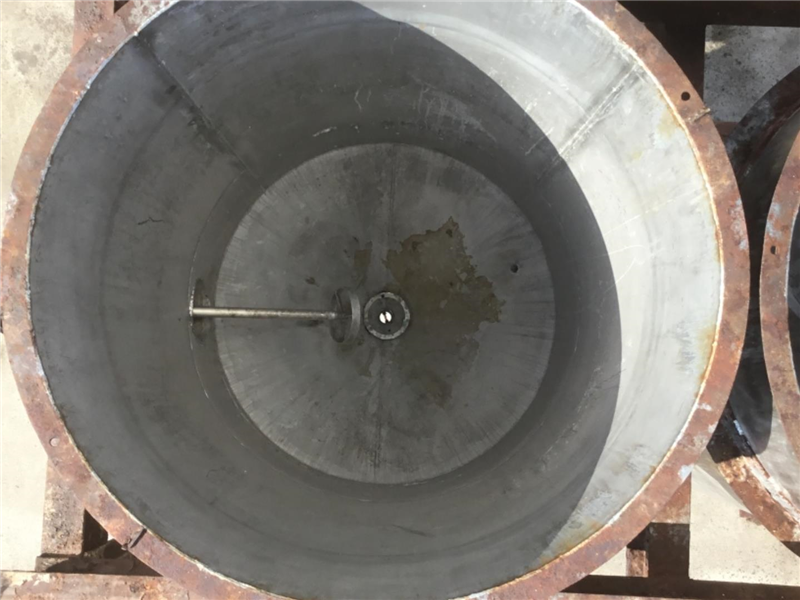

| Number of agitators | 1 |
| Agitator 1: Position | Side -entry |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: Length (mm) | 600 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 220/380 |
