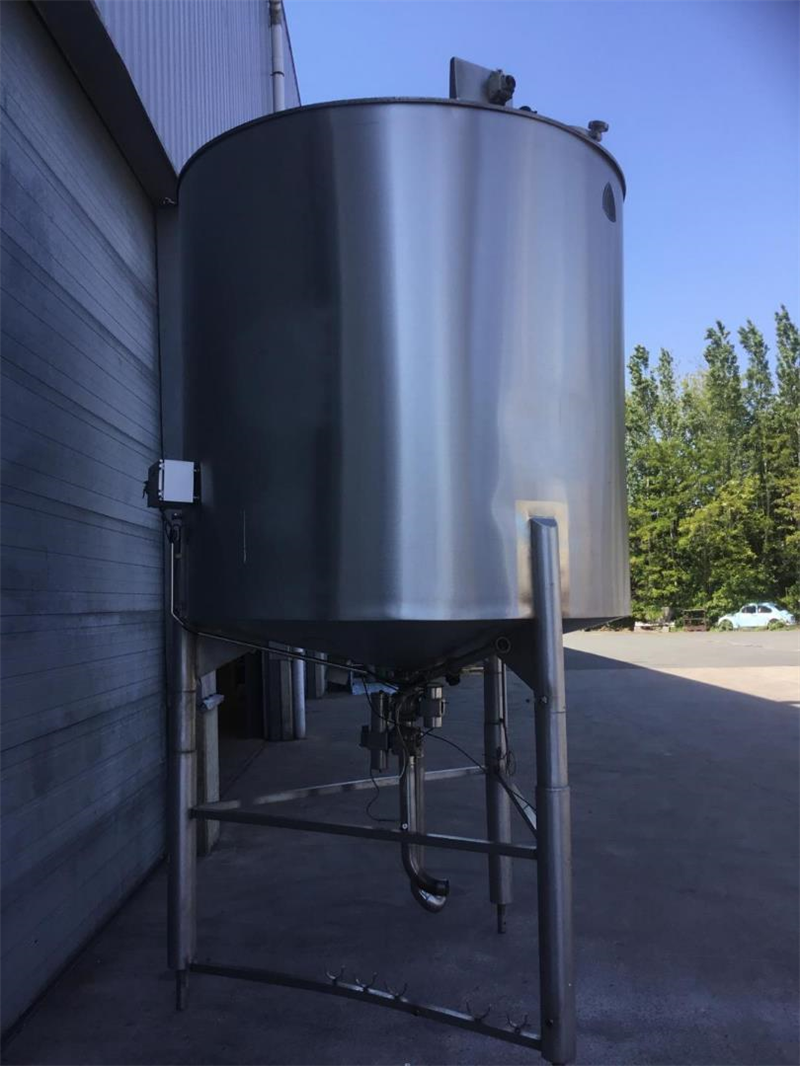

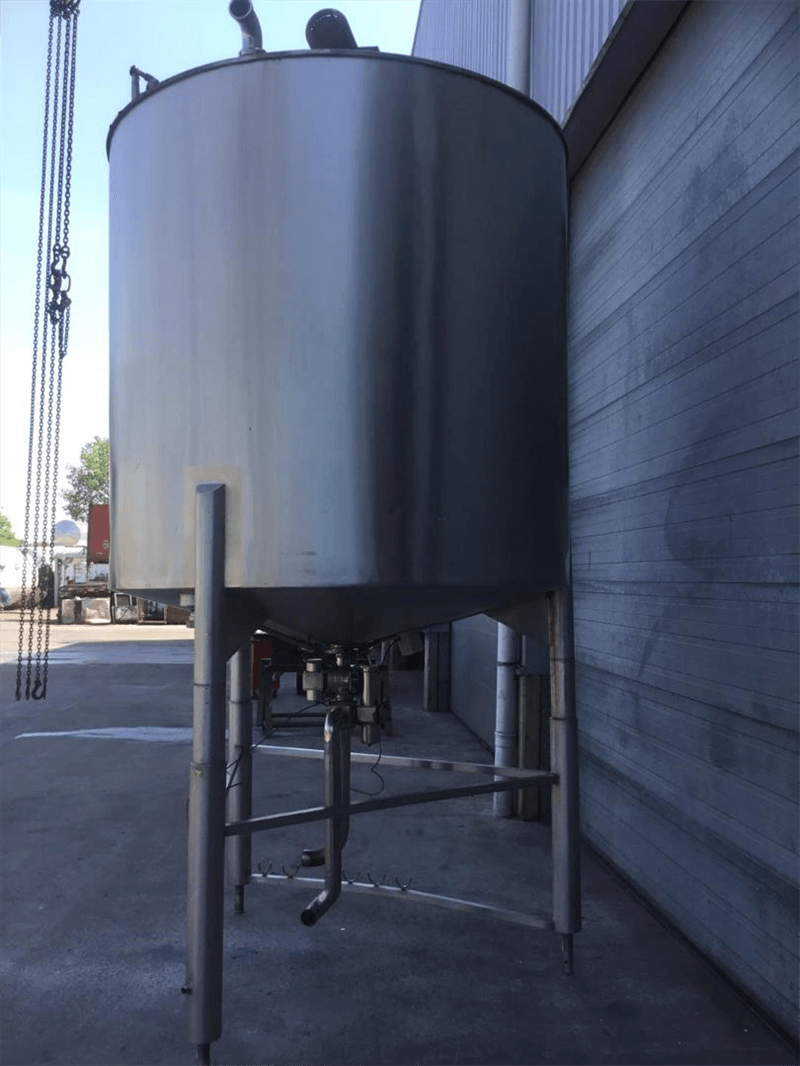

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 7000 L
- In stock: 1
| General | |
|---|---|

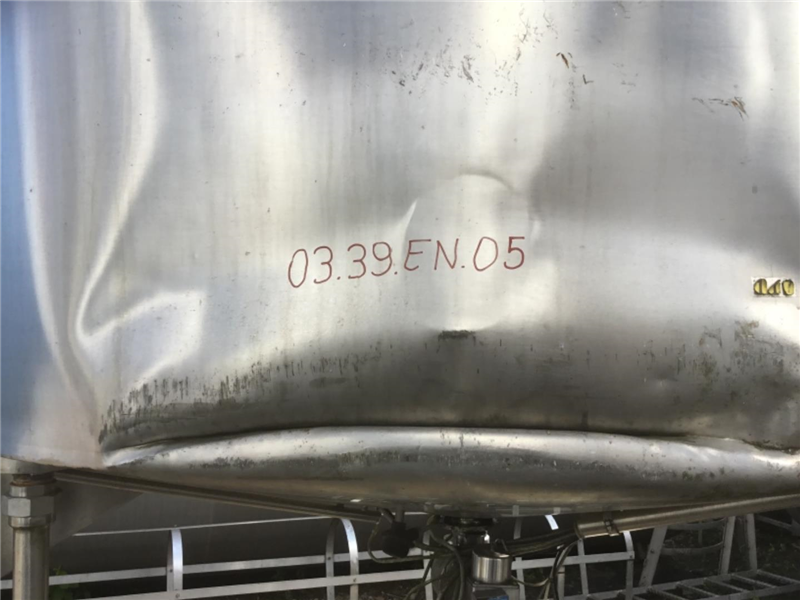

| Item number | 03.39.EN.05 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 7000 |
| Type tank | Mixing vessel |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 500 |

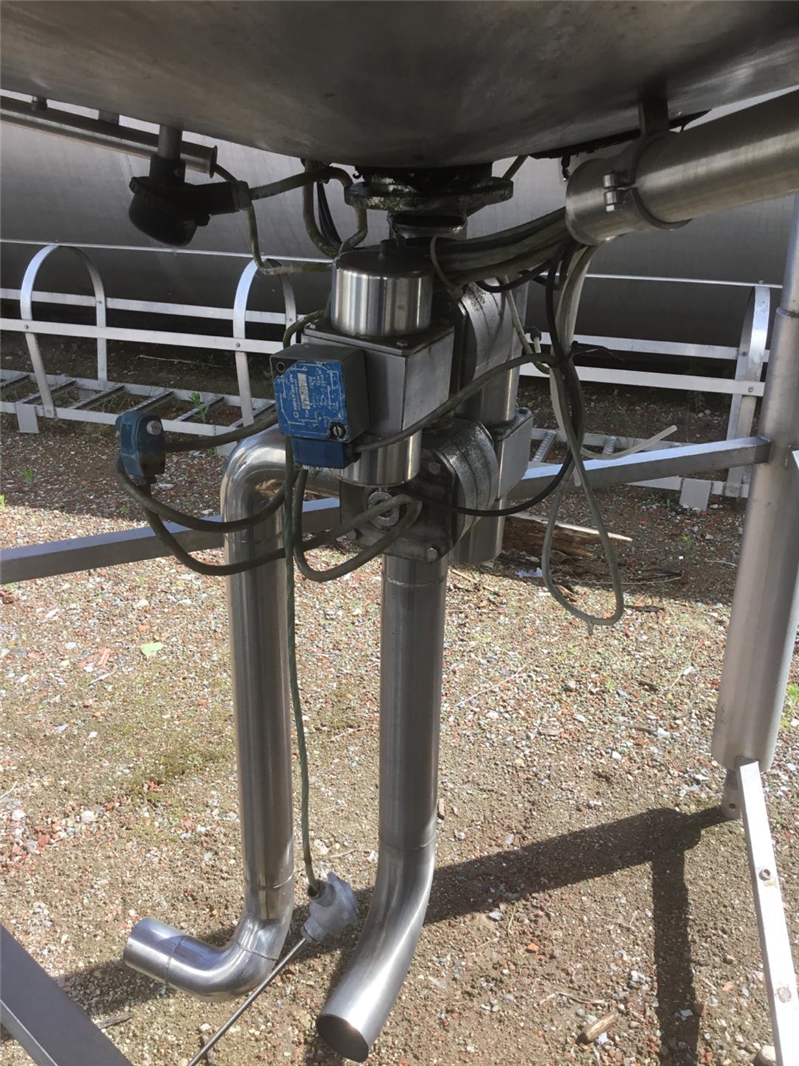

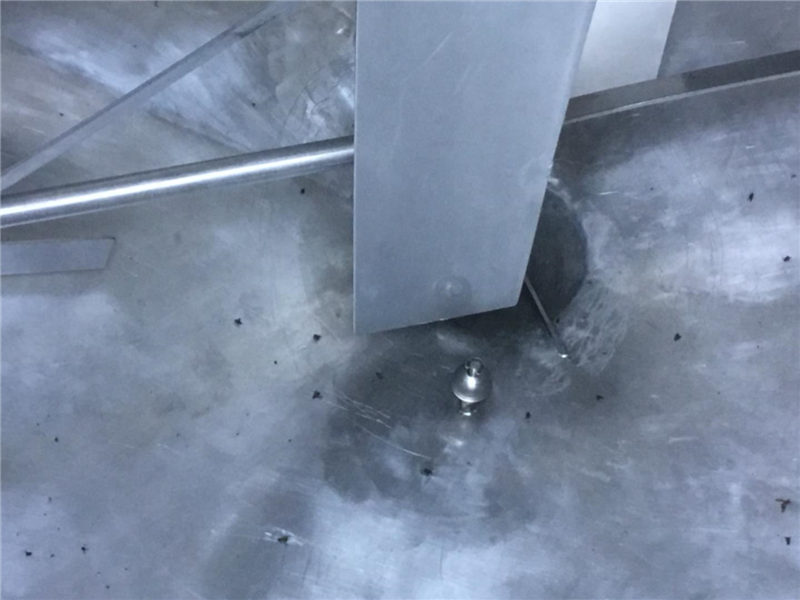

| Tank with total drain? | Yes |
| Type of outlet (s) | Buis |
| Diameter of outlet (mm) | 70 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | Rotating spray head |
| Weight (kg) | 600 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |

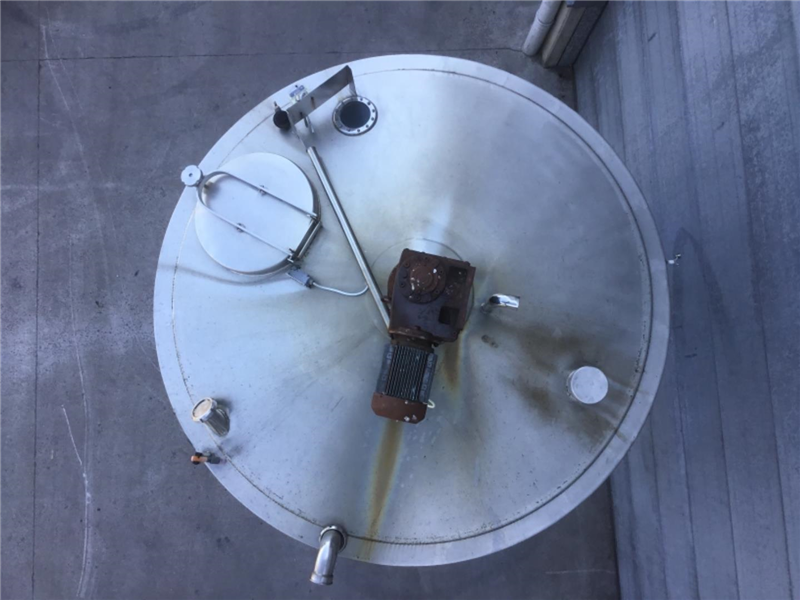

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,5 |
| Bottom thickness (mm) | 2,5 |
| Periphery (mm) | 6790 |
| Cylindrical length (mm) | 2000 |
| Height bottom (mm) | 300 |
| Outside diameter tank (mm) | 2160 |
| Total height (mm) | 4400 |
| Diameter tank (mm) | 2040 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Thickness (mm) | 60 |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |
| Agitators | |
|---|---|
| Number of agitators | 1 |

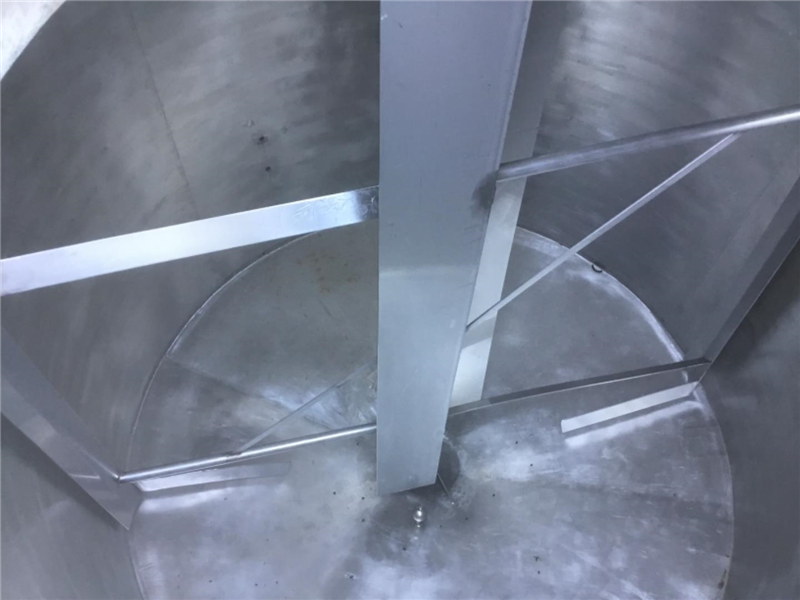

| Agitator 1: Type | anchor without scrapers |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Material | Stainless steel 304 |
| Agitator 1: stirring element type | Anchor |
| Agitator 1: Length (mm) | 2200 |

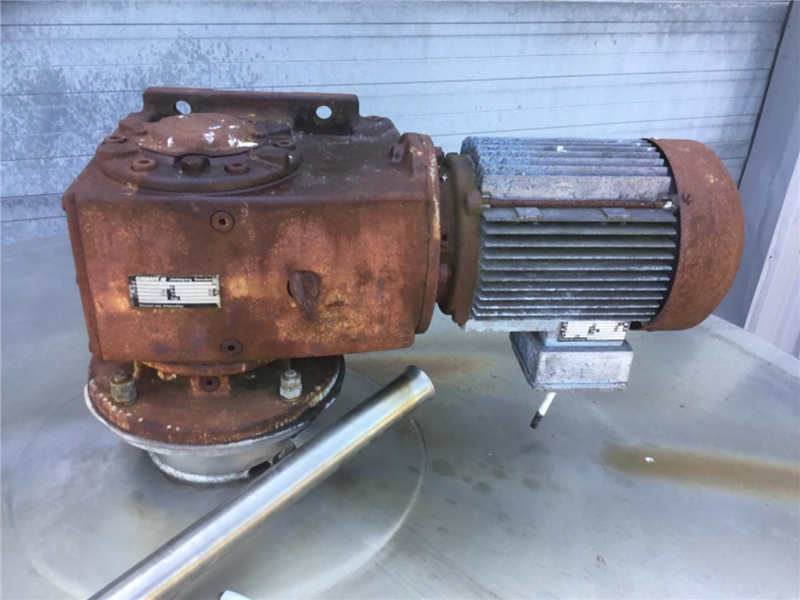

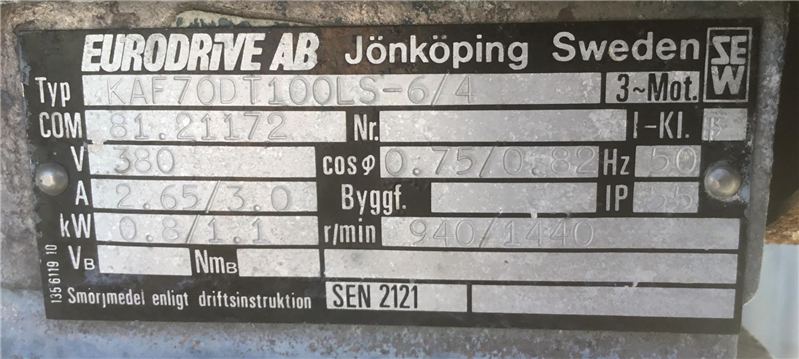

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 0,75 |

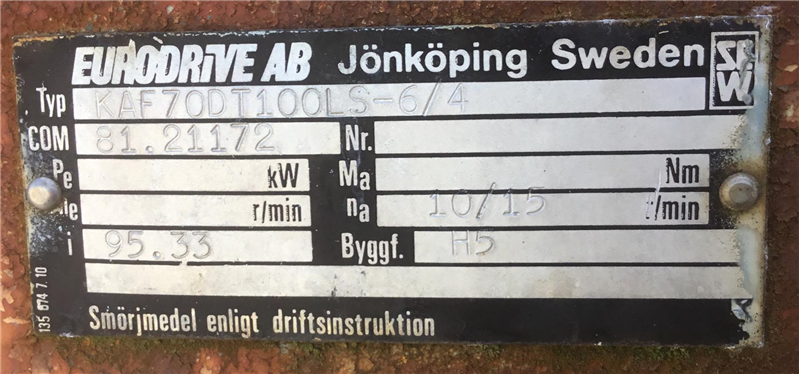

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 1,5 |
