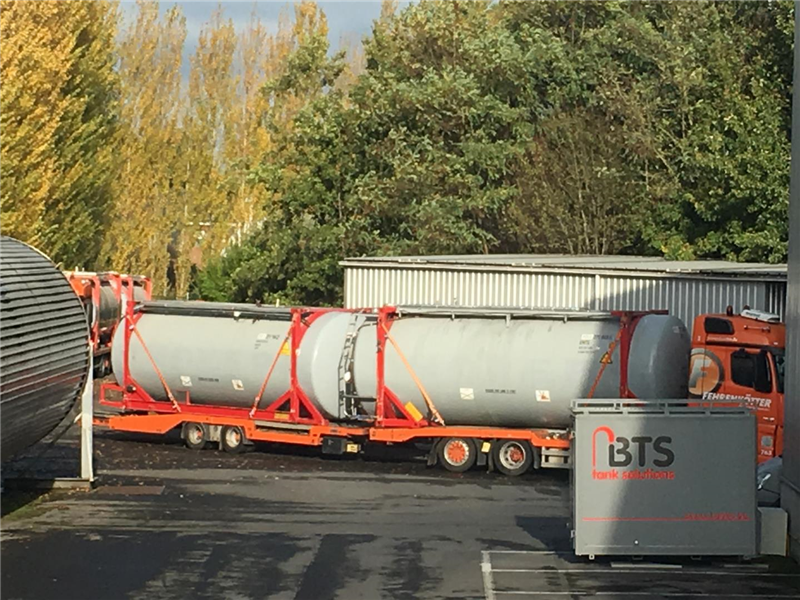

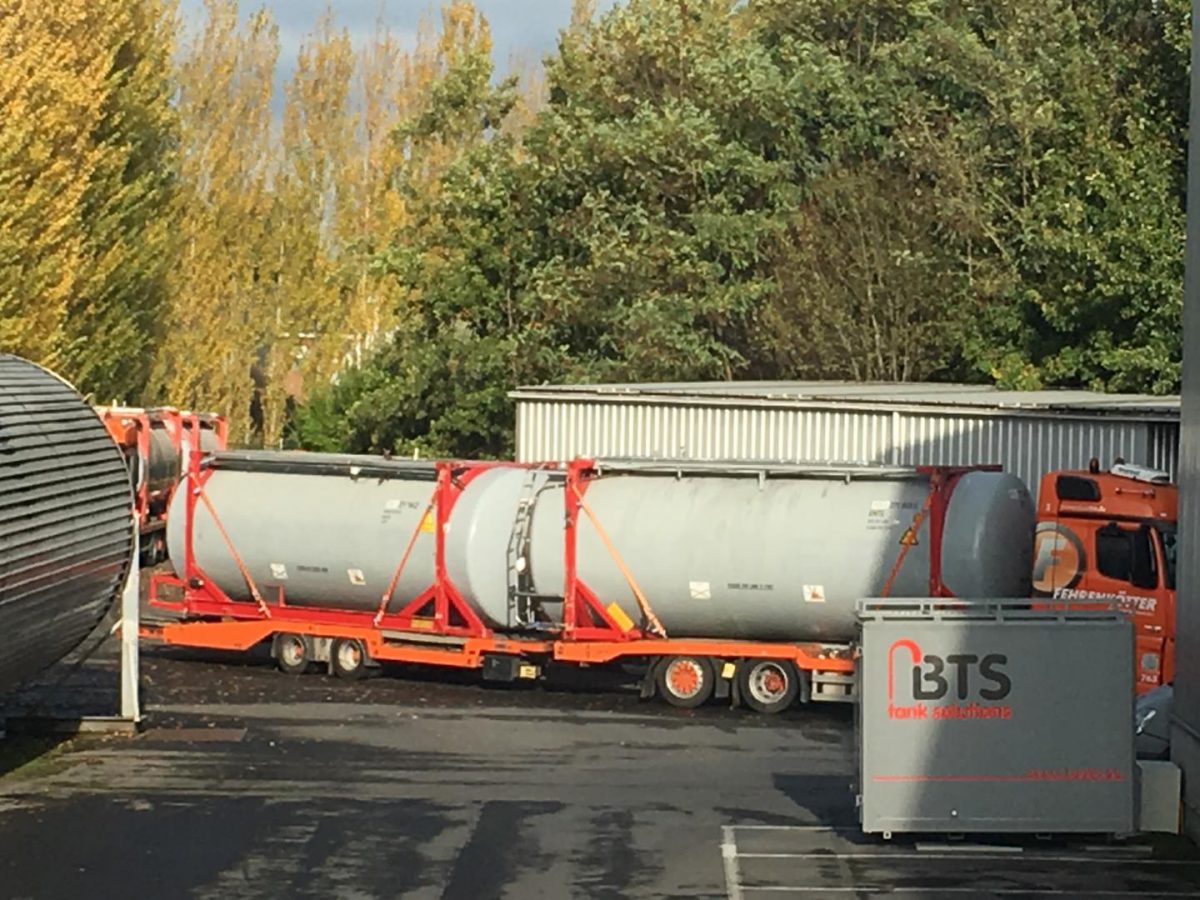

Used mobile tank/container Rented
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 35180 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.39.AE.02 |
| Material | Stainless steel 316 |

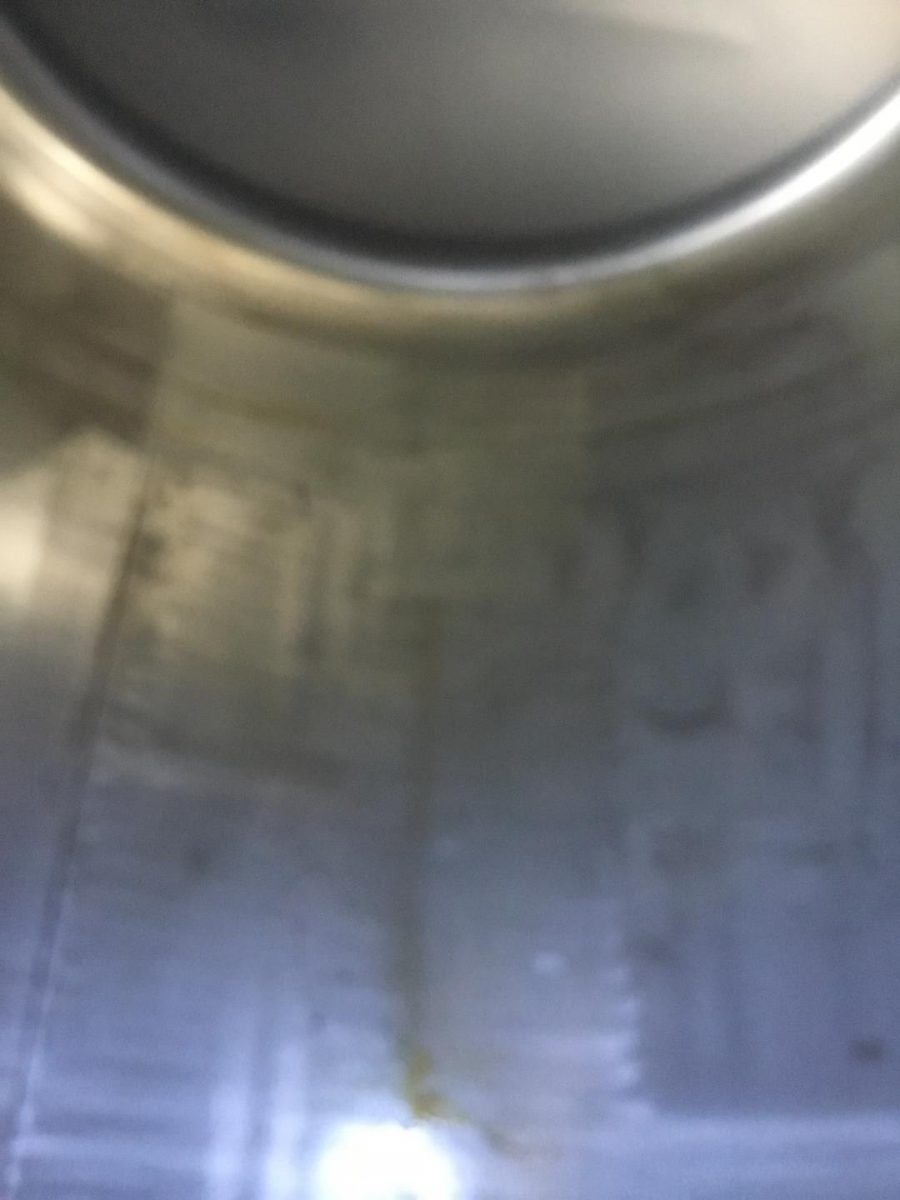

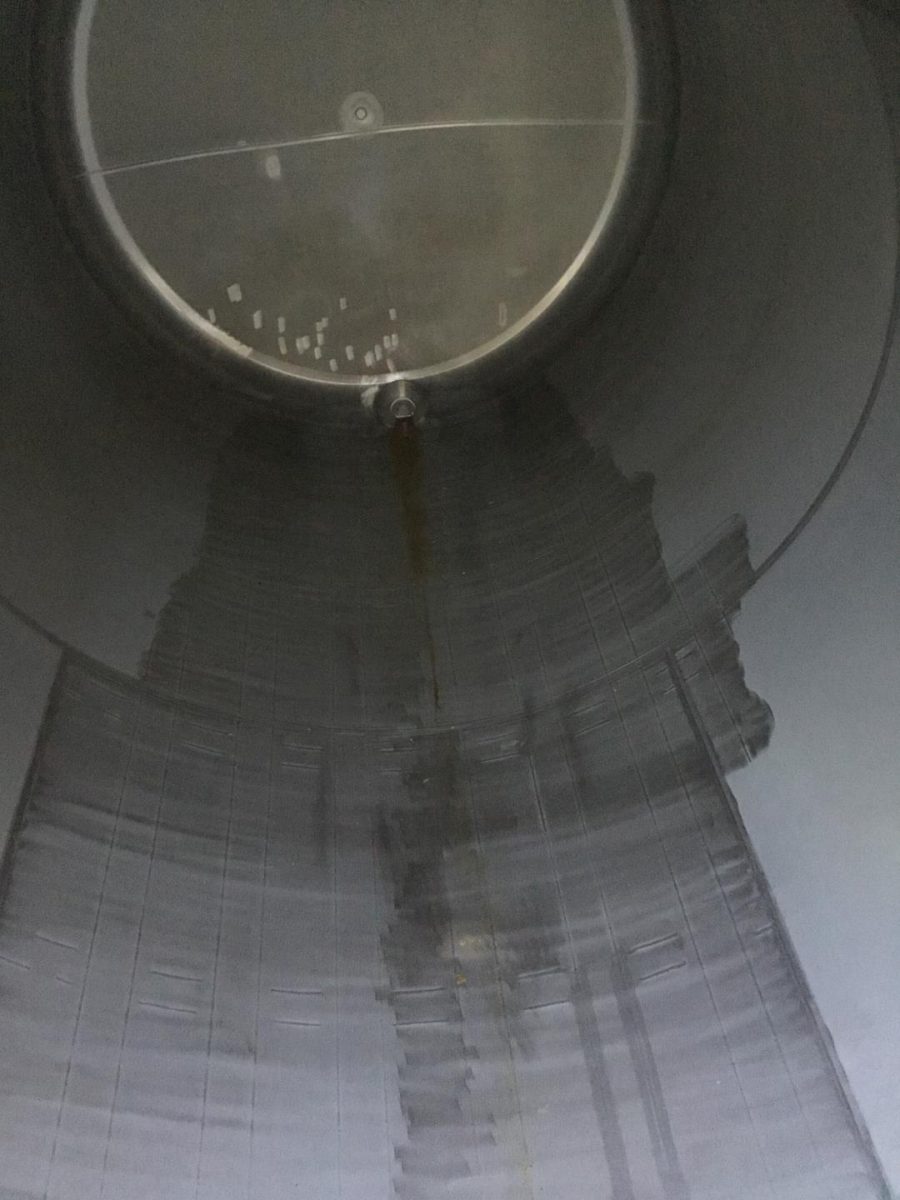

| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 35180 |

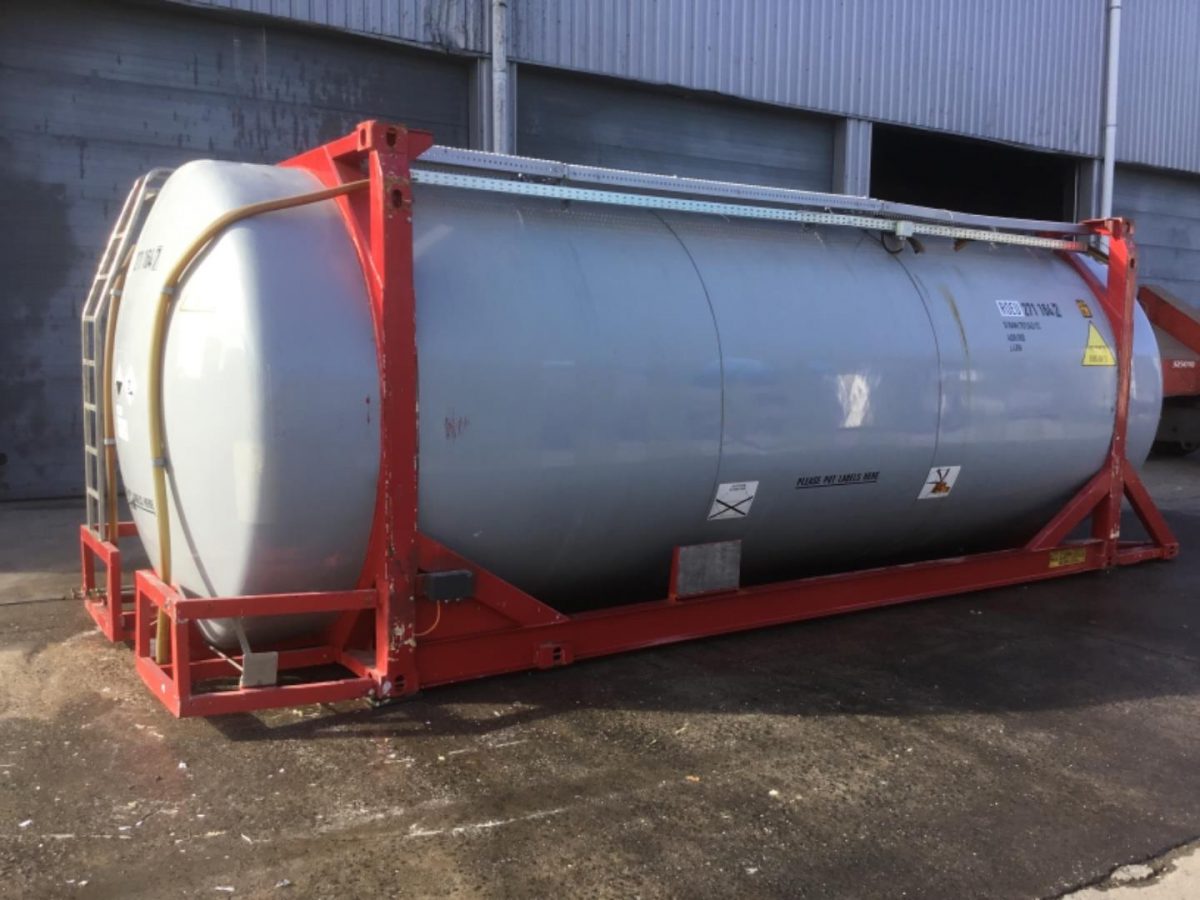

| Type tank | Mobile tank/container |
| Size | Swap-tank |
| Fixation | chassis |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 4 |

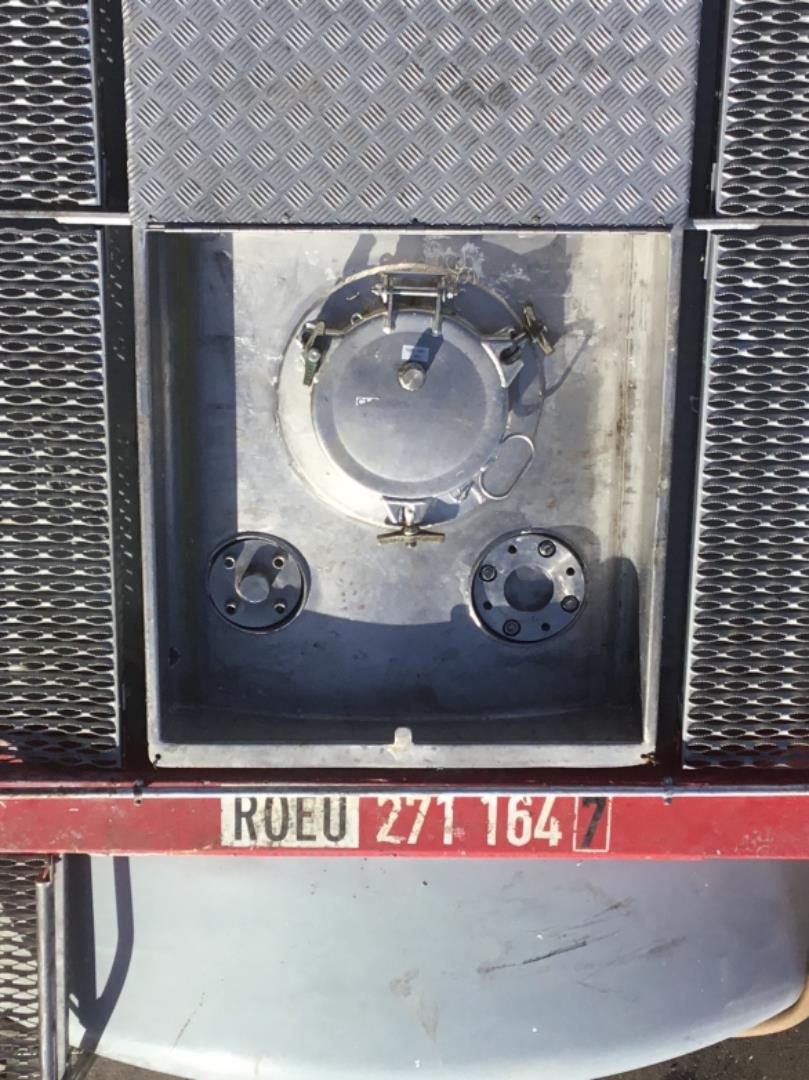

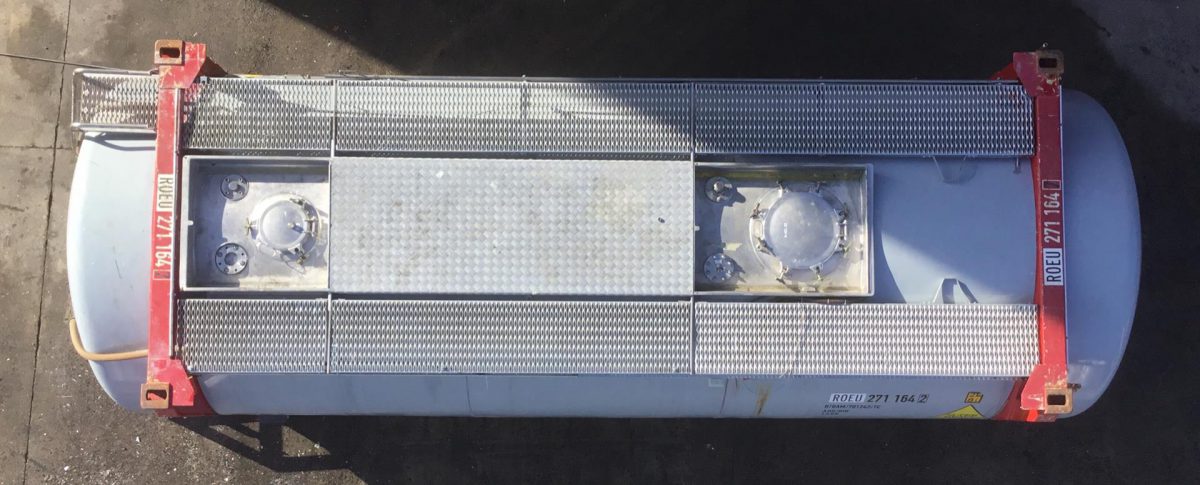

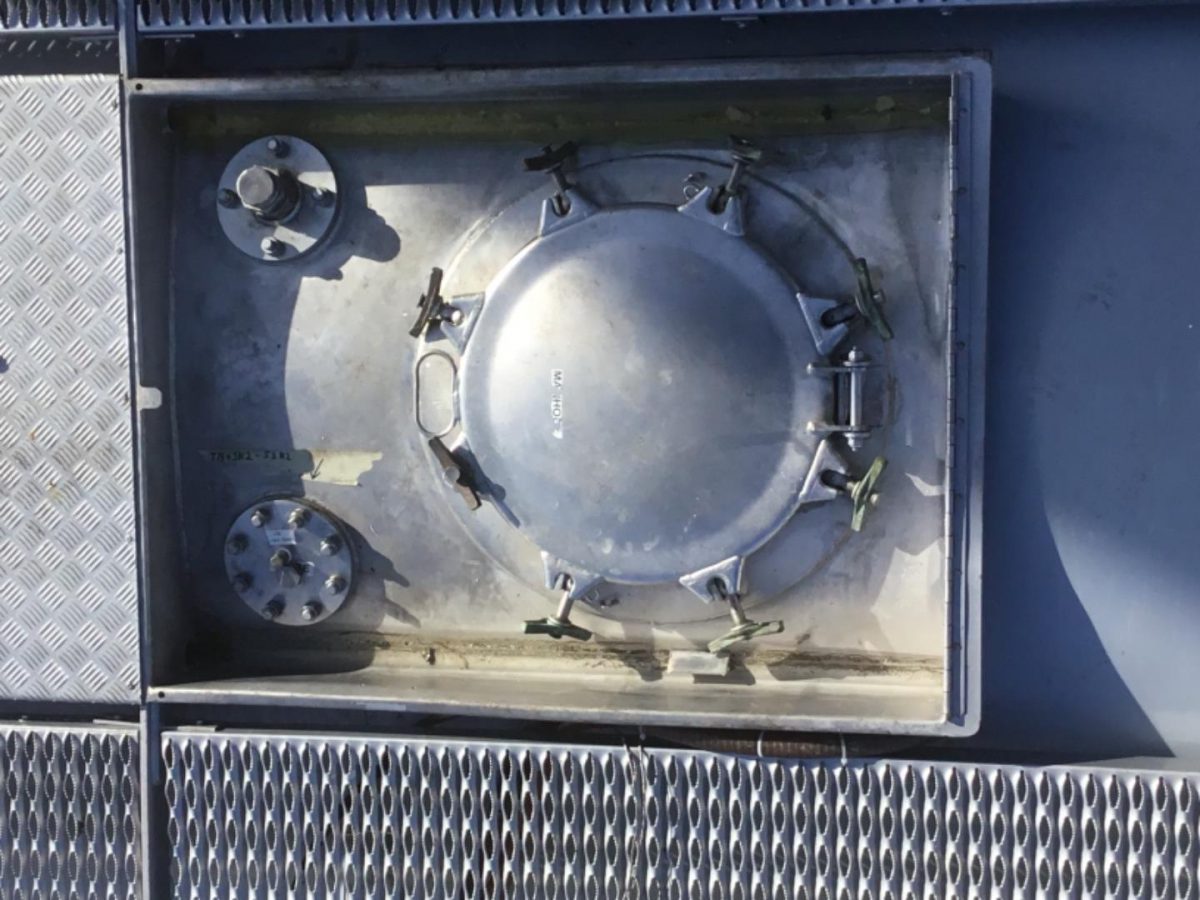

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 500 |
| Tank with total drain? | Yes |
| Type of outlet (s) | nippel |
| Diameter of outlet (mm) | 88 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 4350 |
| Condition | Used |
| Type plate manufacturer | Yes |
| Manufacturer | Containers and Pressure Vessels Ltd. Ireland |
| Year Built | 1998 |
| Design Code | 9707 |
| Construction data available | No |
| Working temperature (° C) | 125 |
| Appendix 1 | reinigingsattest_17082020.pdf |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,3 |
| Bottom thickness (mm) | 5 |
| Cylindrical length (mm) | 7000 |
| Height bottom (mm) | 400 |
| Outside diameter tank (mm) | 2500 |
| Total height (mm) | 2685 |
| Length (mm) | 7800 |
| Width (mm) | 2530 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Synthetic |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | thermplate/pillowplate |
| Heating 1: Max. service pressure | 3 |
| Heating 1: Max. test pressure | 4,5 |
| Heating 1: Max. design pressure °C | 125 |
| Remarks | |
|---|---|

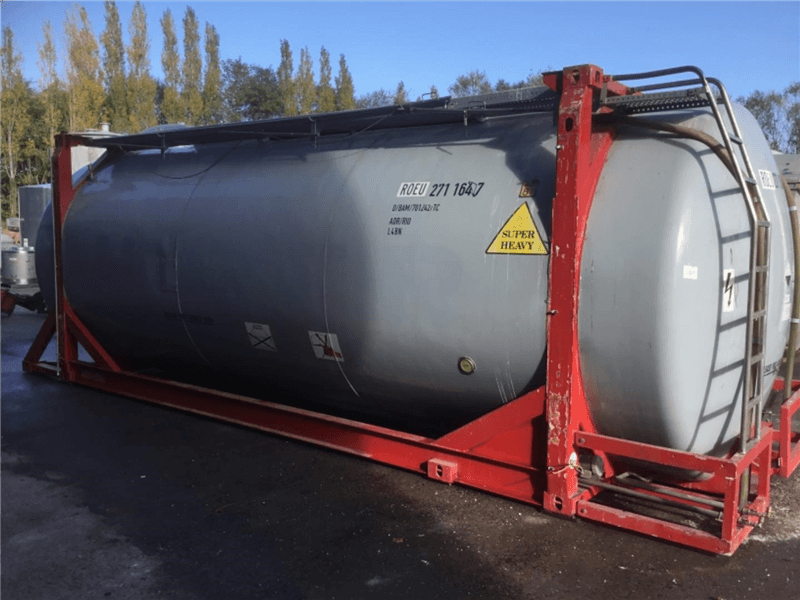

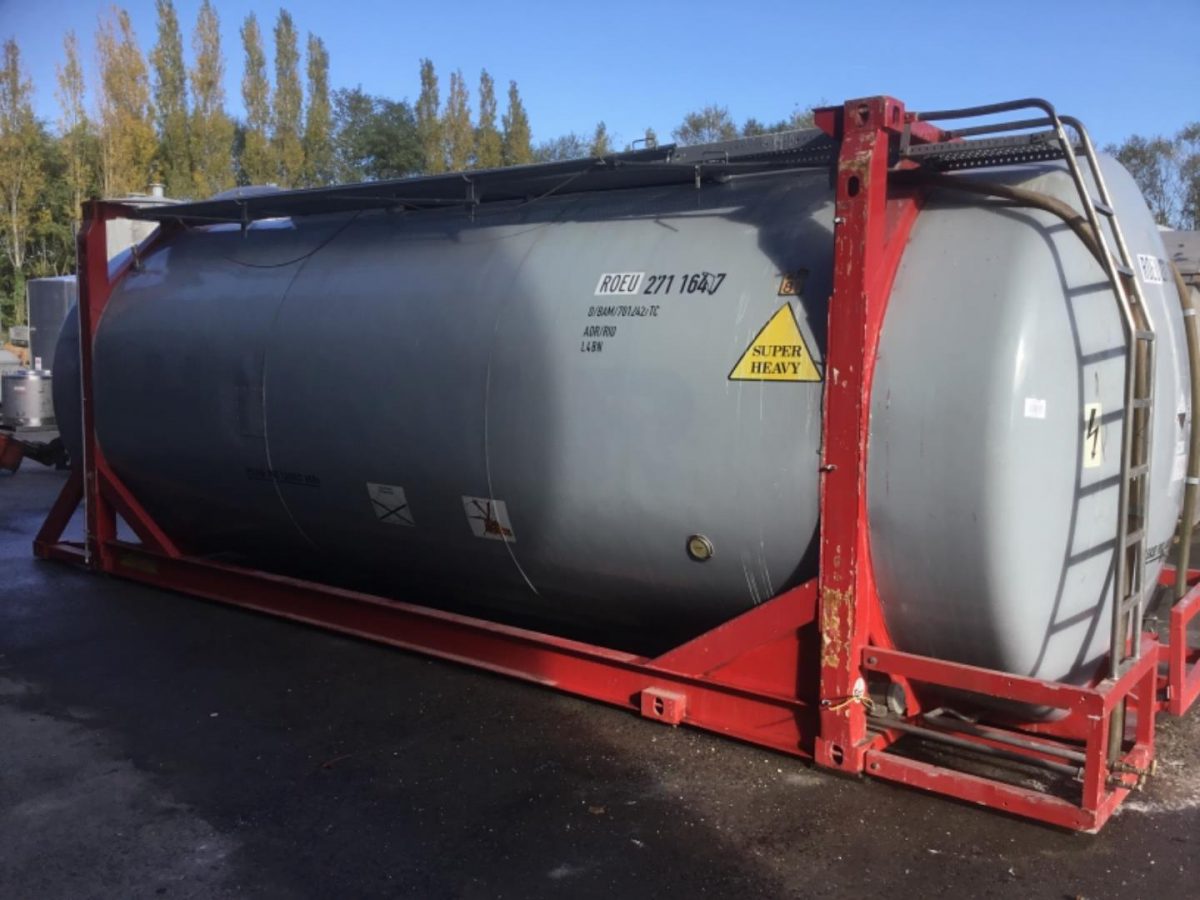

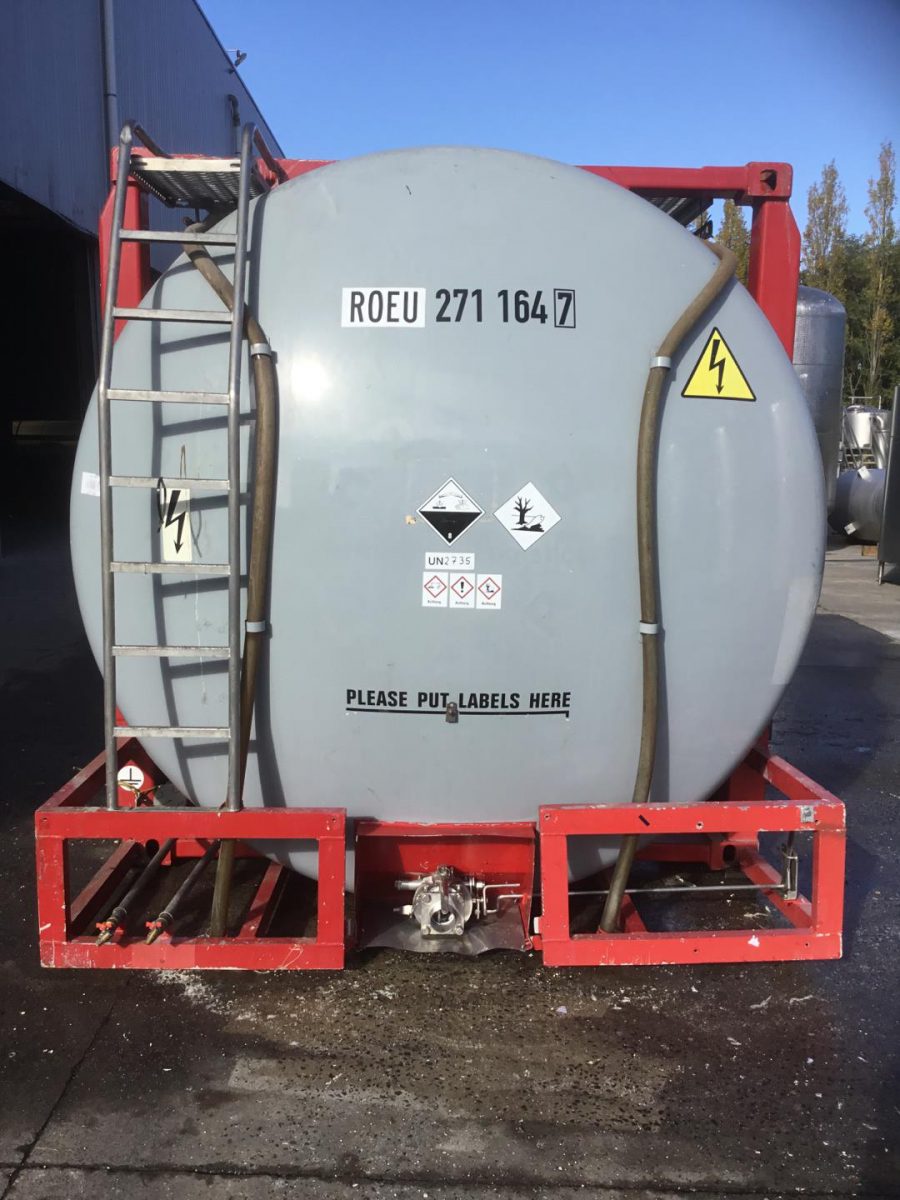

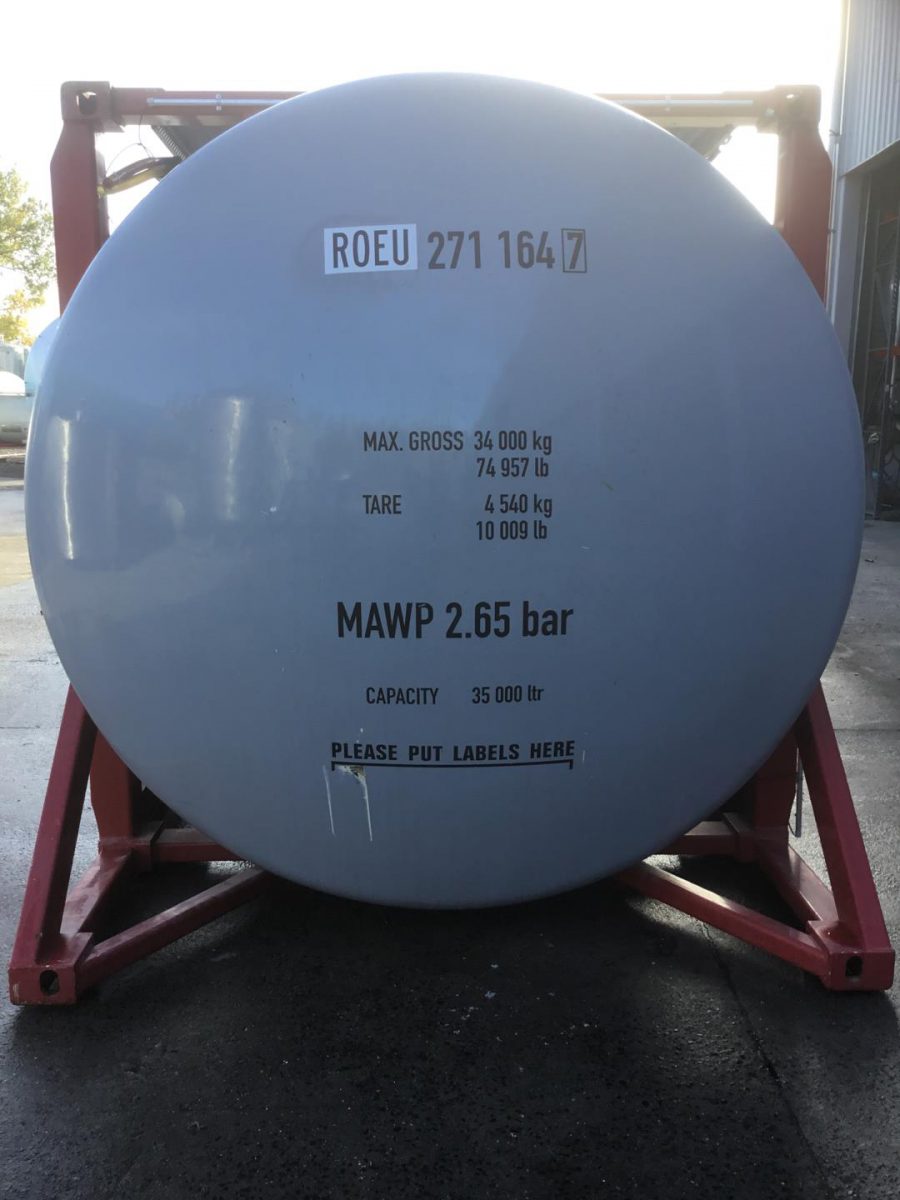

| Description (EN) | Tank number ROEU 271164-7 • welded foot plates |
