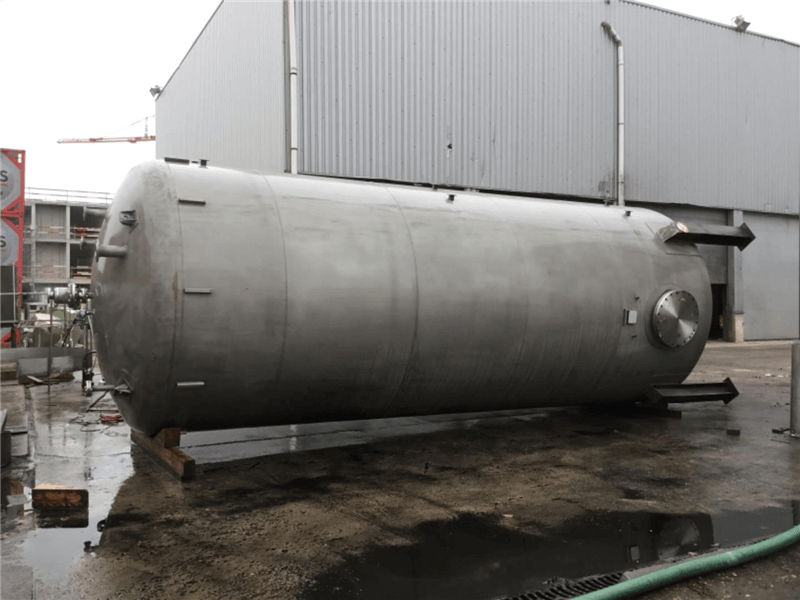

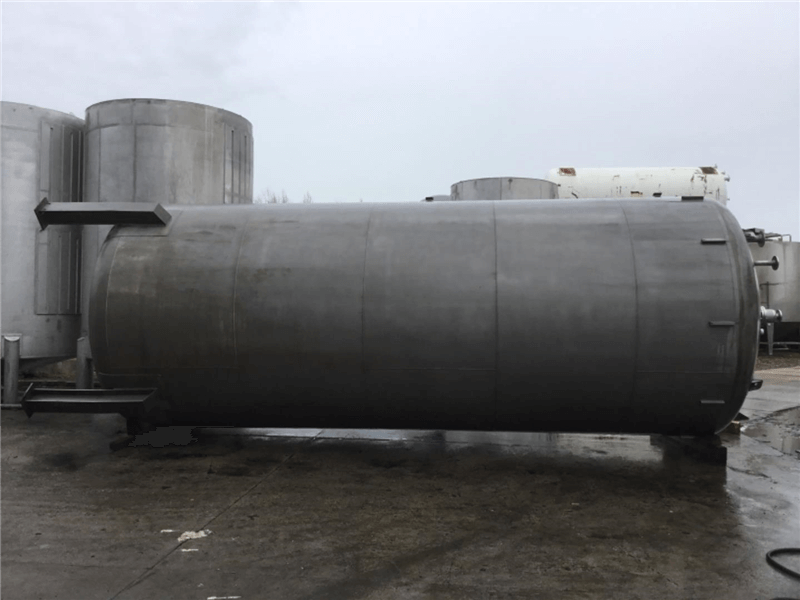

Used pressure tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 52000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.38.FS.03 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 52000 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 4 |
| Design pressure tank ( Barg) | 4 |
| Test pressure tank (Barg) | 5,2 |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

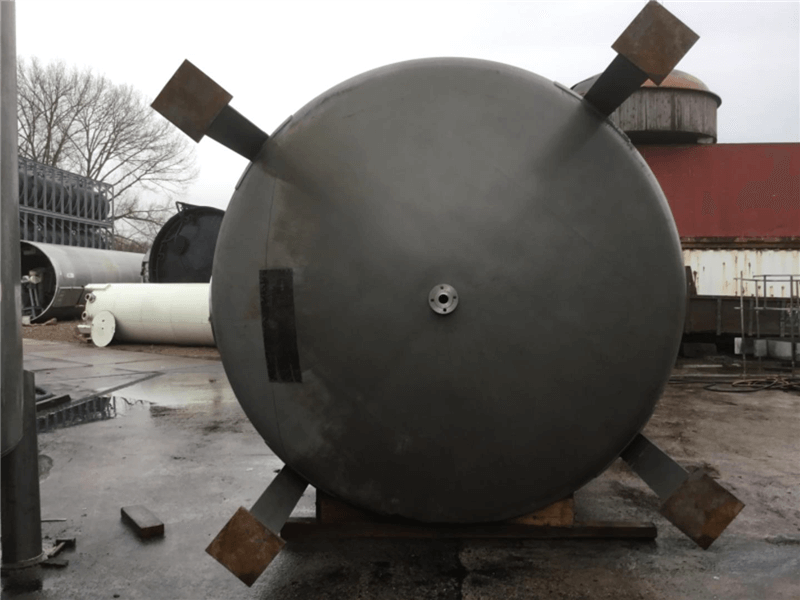

| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 4 |
| Number of manhole | 2 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 600 |
| Tank with total drain? | Yes |
| Type of outlet (s) | Flens |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 6000 |
| Condition | Used |

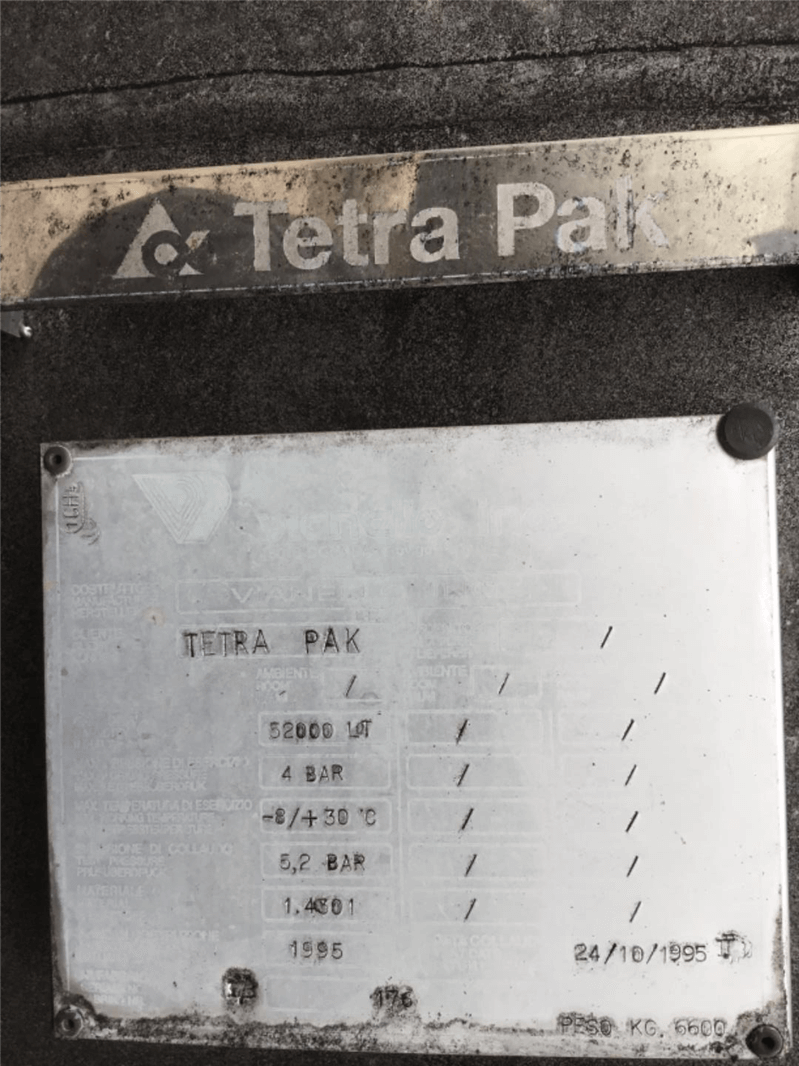

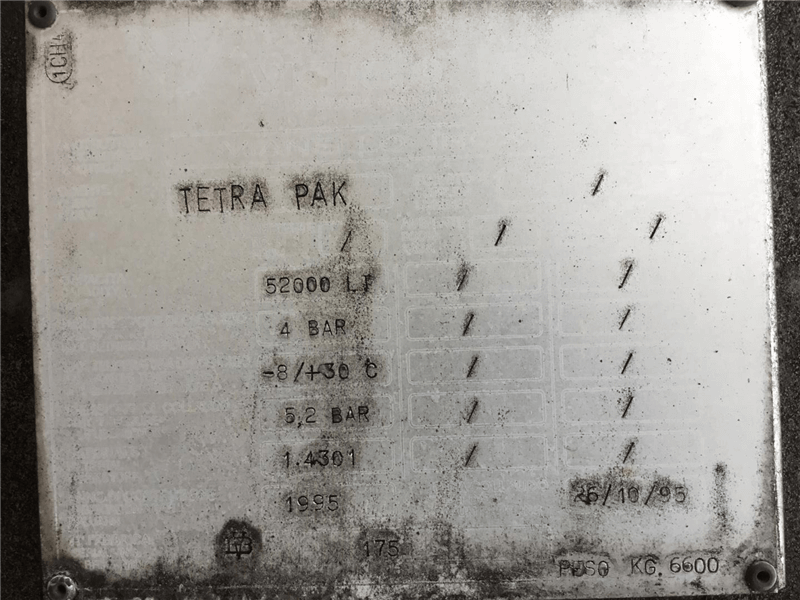

| Type plate manufacturer | Yes |
| Manufacturer | Vianello inox |
| Year Built | 1995 |

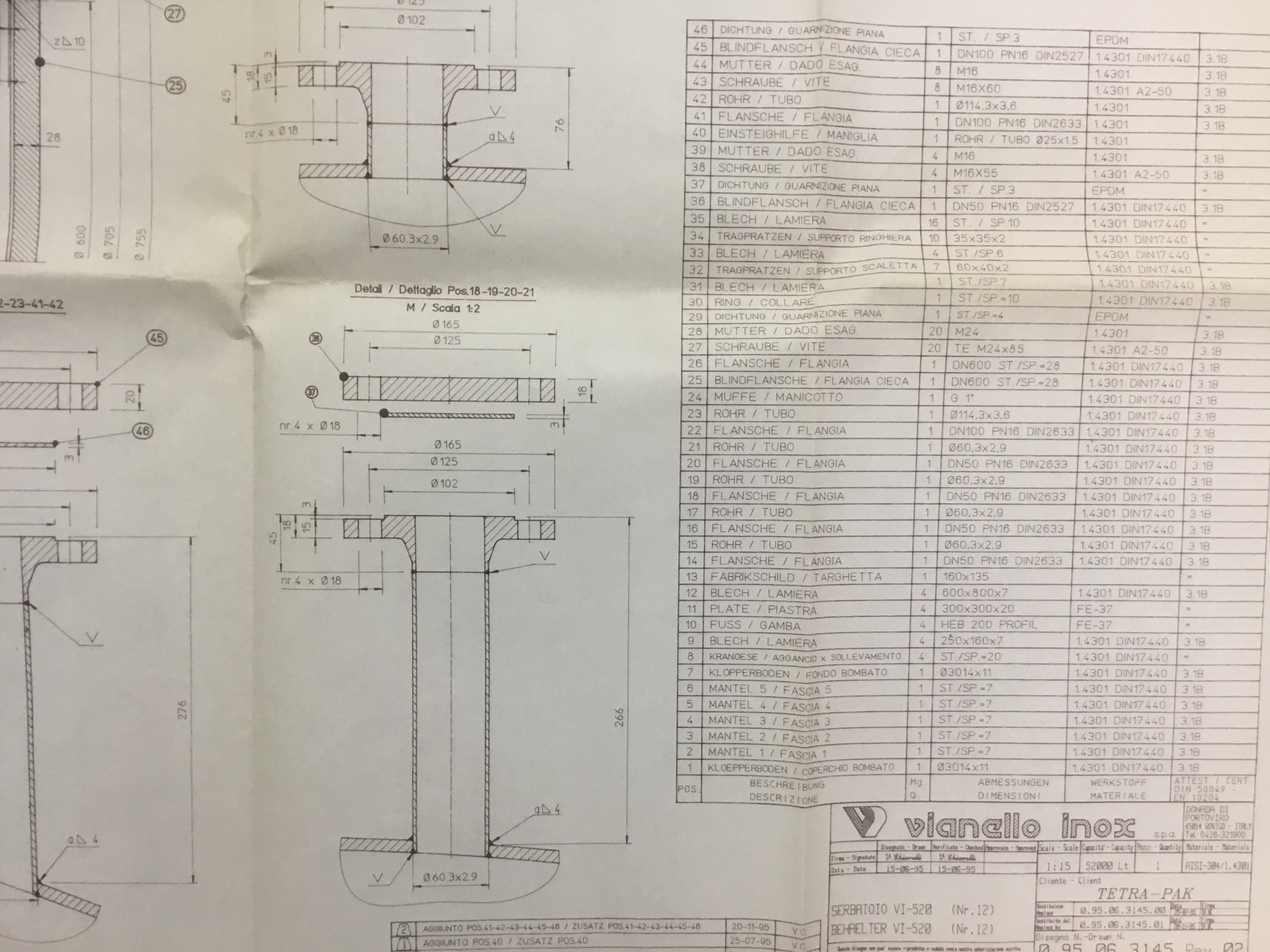

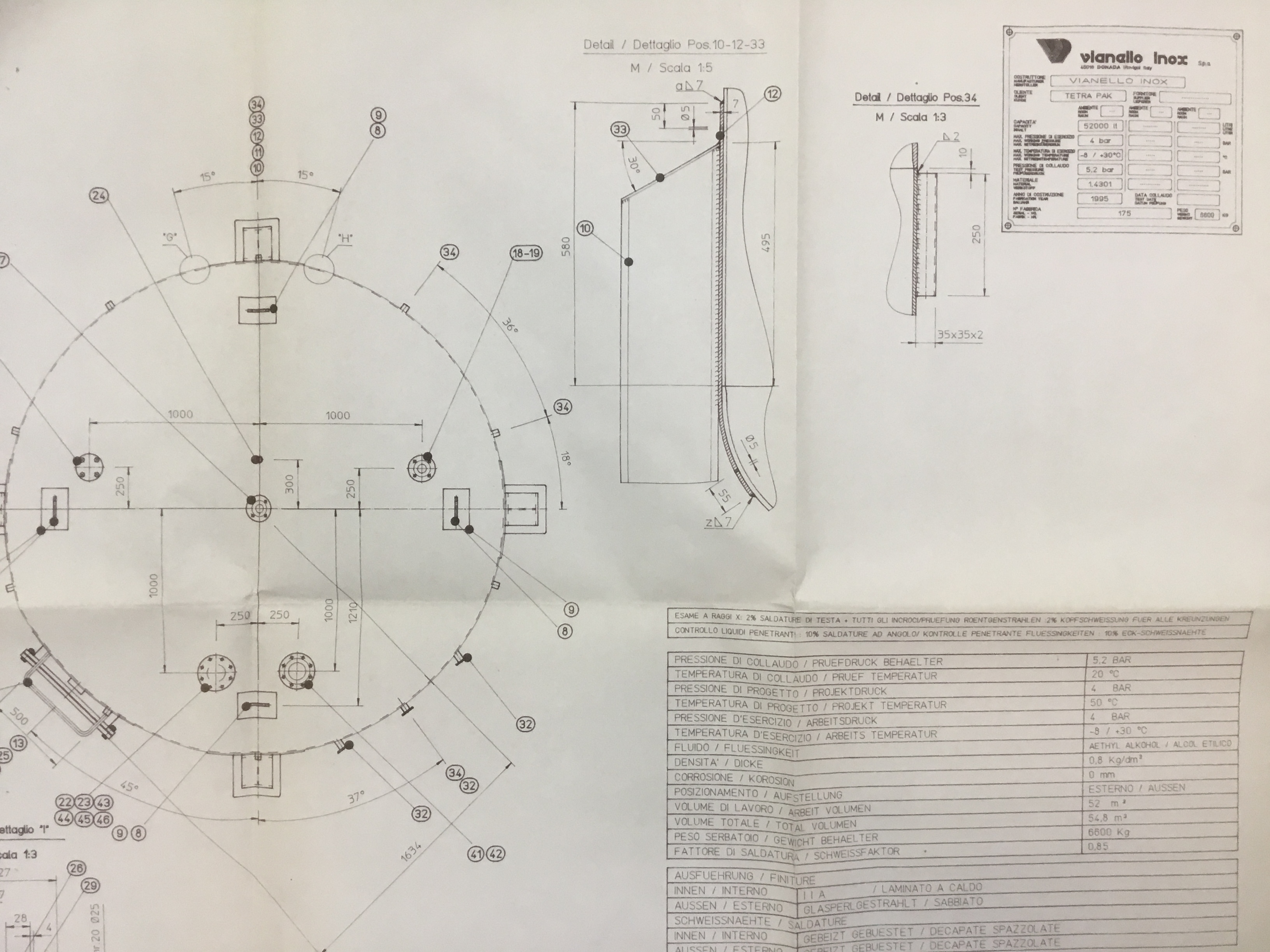

| Construction data available | Yes |
| Working temperature (° C) | 30 |
| Appendix 1 | 0338FS03_Front.JPG |
| Appendix 2 | 0338FS03_top.JPG |
| Appendix 3 | 0338FS03_type.JPG |
| Appendix 4 | 0338FS03_list.JPG |
| Appendix 5 | 0338FS03_tube.JPG |

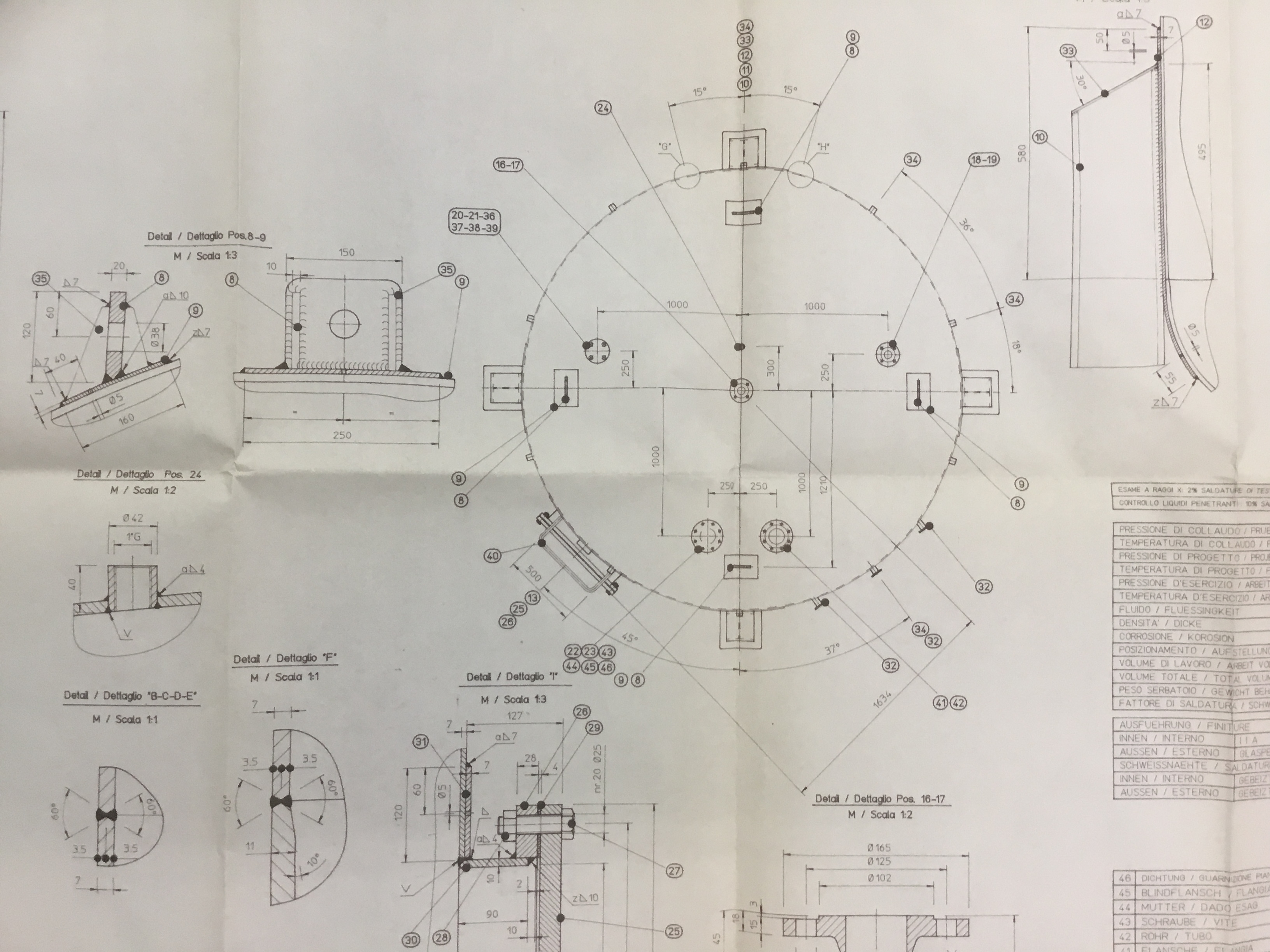

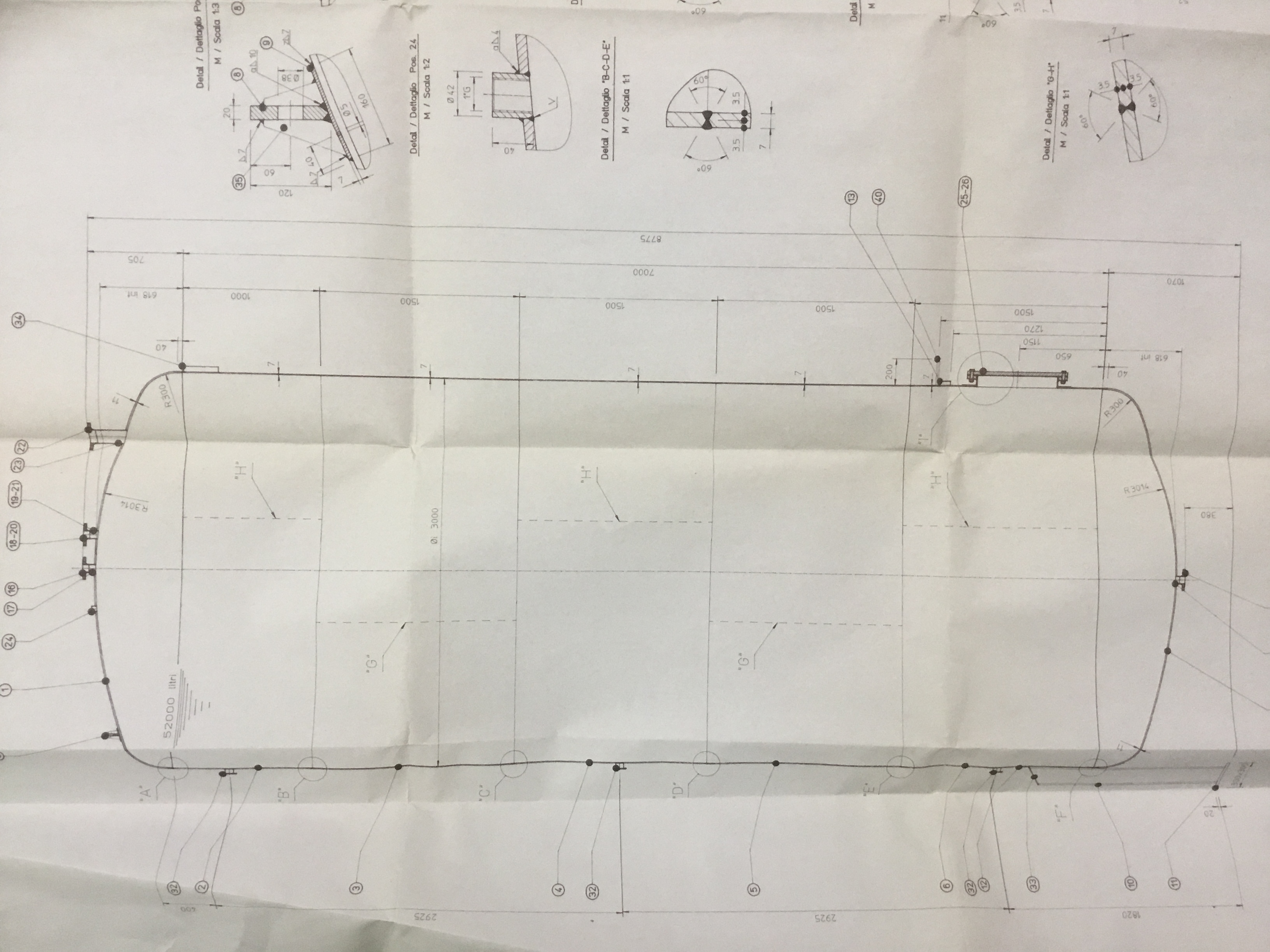

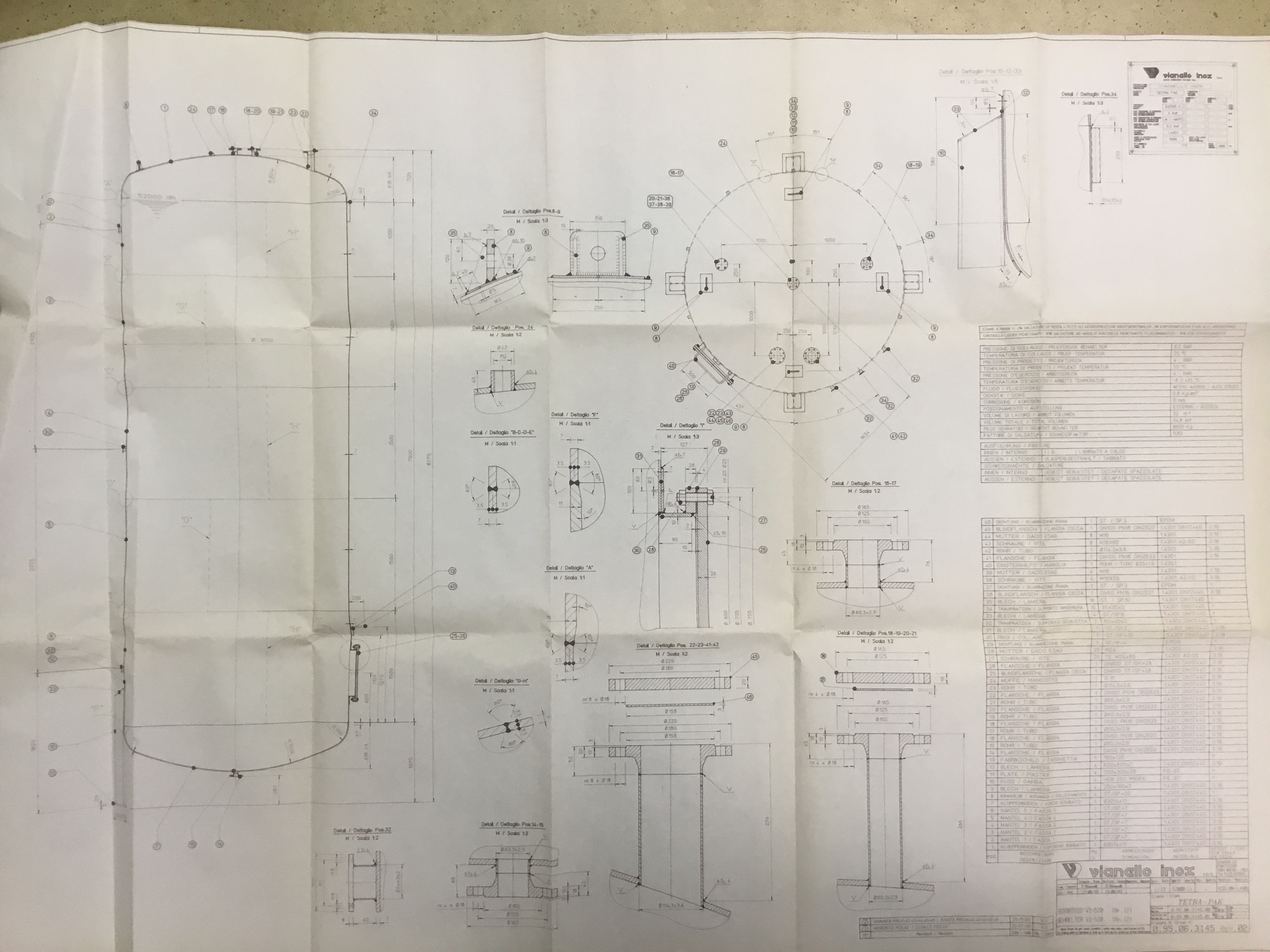

| Appendix 6 | 0338FS03_planA0.JPG |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 11 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 7,1 |
| Bottom thickness (mm) | 11 |
| Cylindrical length (mm) | 7000 |
| Height bottom (mm) | 6000 |
| Total height (mm) | 8800 |
| Diameter tank (mm) | 3000 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

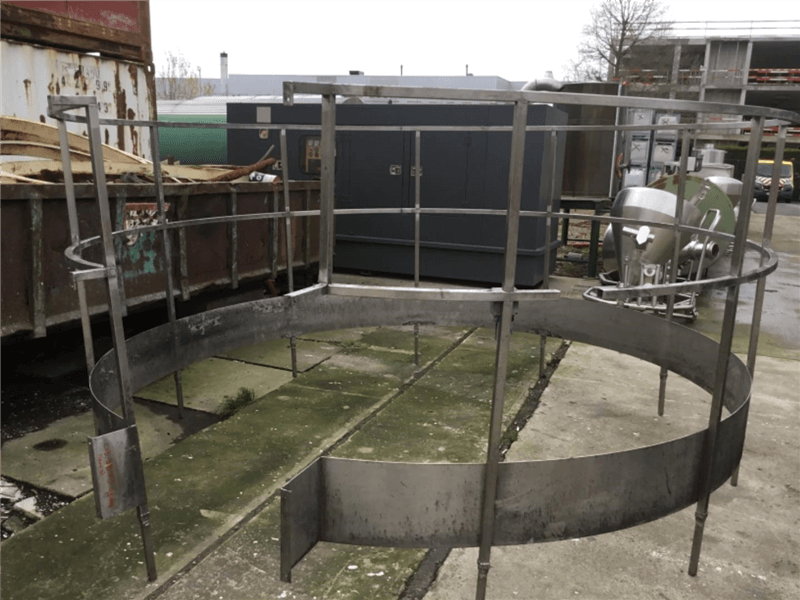

| Description (EN) | • attention: the tank is not 100% clean internally! • Manufacturer's file available per tank, N ° fabrications 175 • stainless steel railing available |
