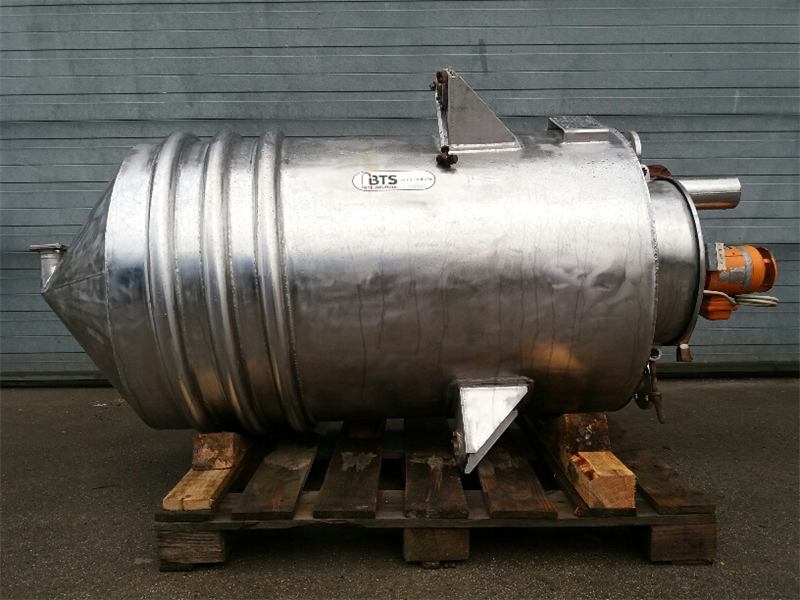

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 650 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.36.BH.15 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 650 |
| Type tank | Mixing vessel |

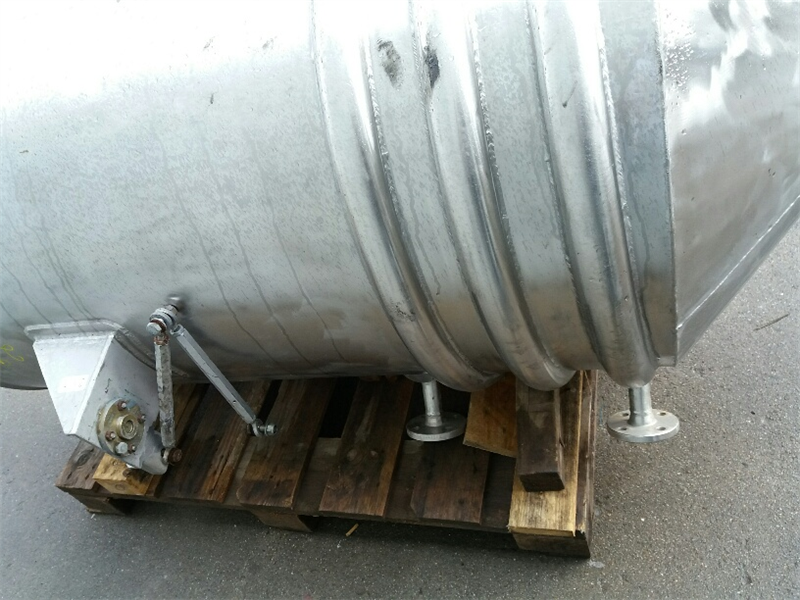

| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

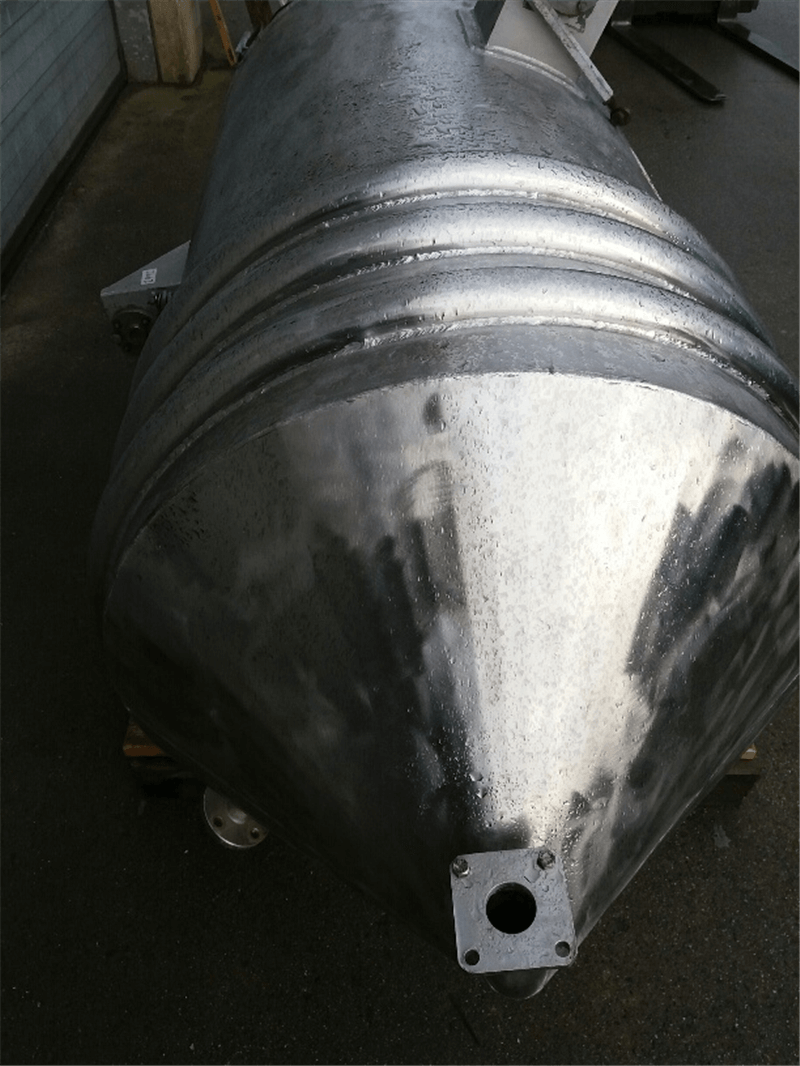

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 400 |
| Tank with total drain? | Yes |
| Type of outlet (s) | vierkante flens DN40 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 650 |
| Condition | Used |
| Type plate manufacturer | No |
| Manufacturer | SCHALLEX APPARATEBAU |
| Year Built | 1988 |
| Construction data available | No |
| Working temperature (° C) | 120 |
| Drawing 1 | t0336BH15.pdf |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,5 |
| Cylindrical length (mm) | 1250 |
| Total height (mm) | 2300 |
| Length (mm) | 1100 |
| Diameter tank (mm) | 790 |
| Width (mm) | 1100 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |

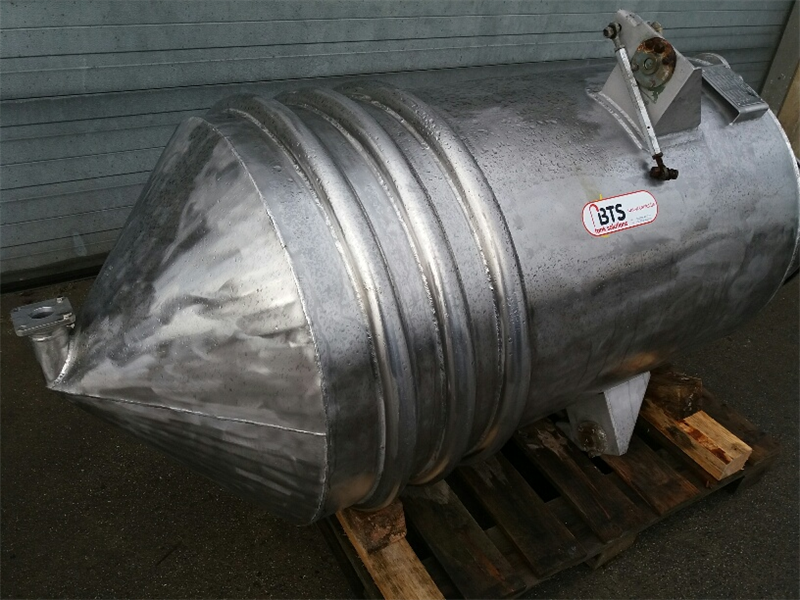

| Heating 1: Type | Halfpipe |
| Heating 1: Max. service pressure | 6 |
| Heating 1: Max. design pressure °C | 150 |
| Agitators | |
|---|---|

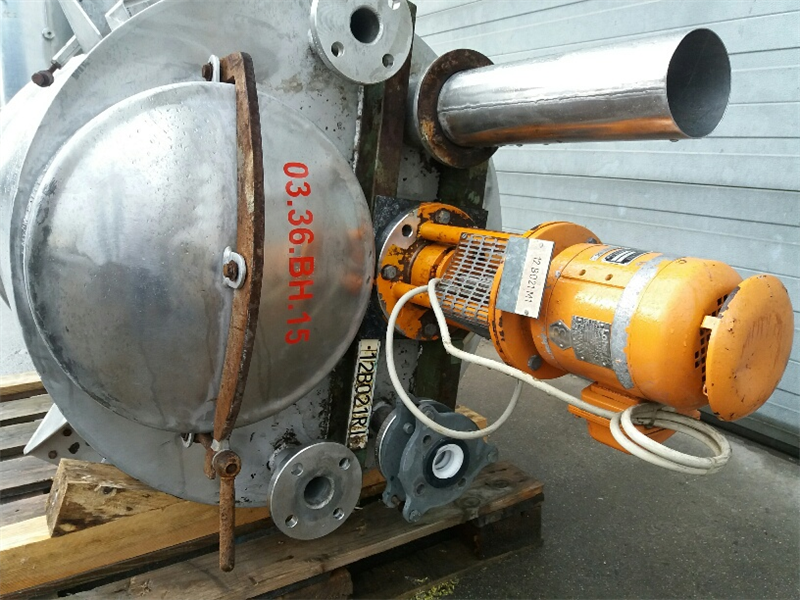

| Number of agitators | 1 |
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 316 |
| Agitator 1: stirring element type | Propeller |

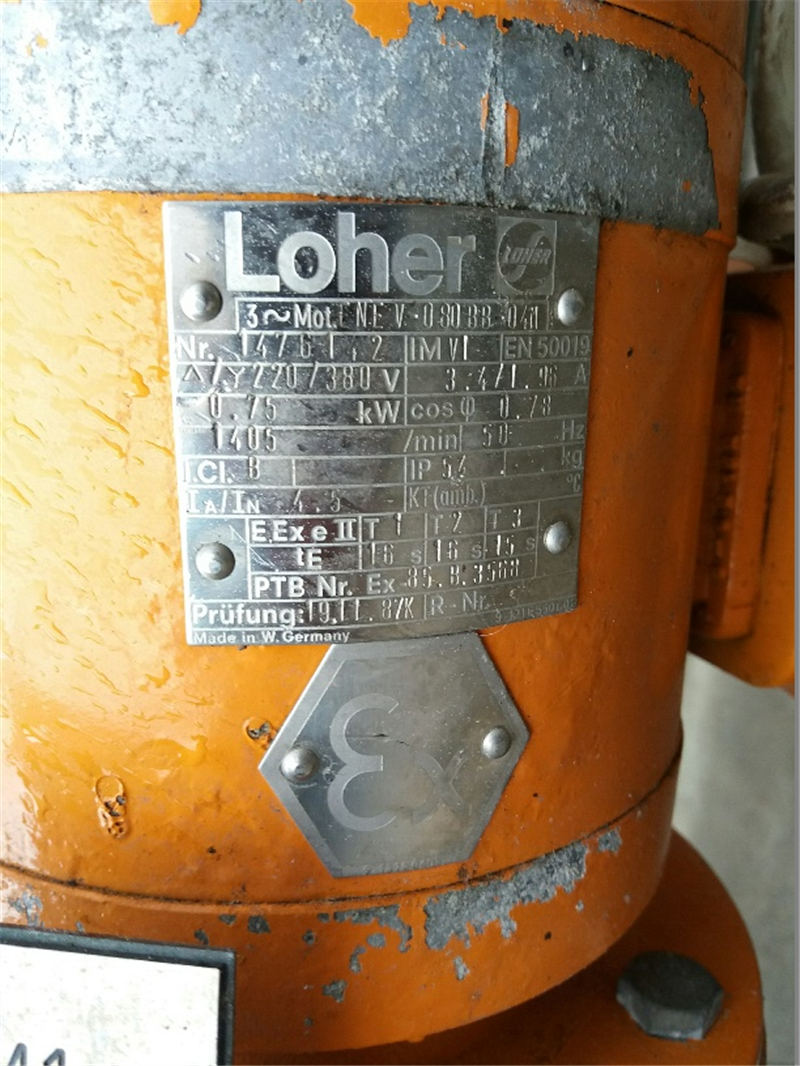

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | Yes |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 0,75 |

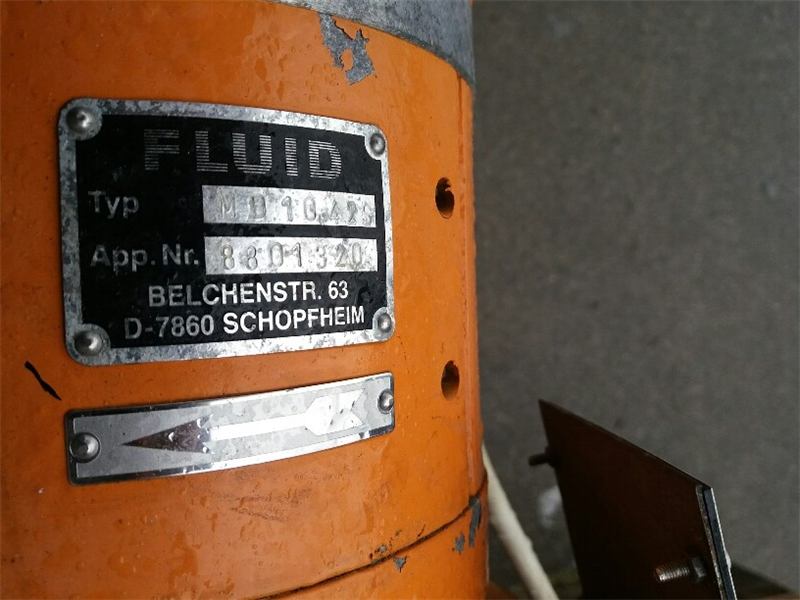

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 1405 |
