Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 4800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.35.NE.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 4800 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

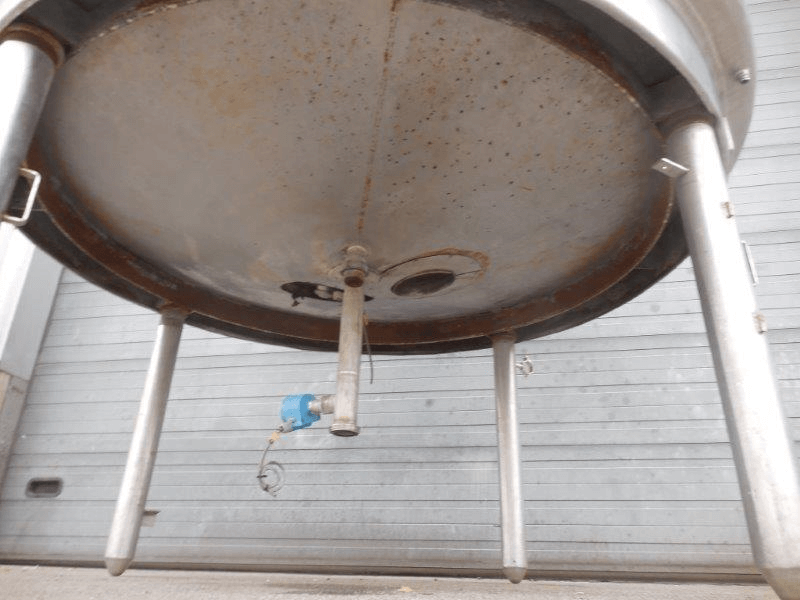

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number of manhole | 1 |

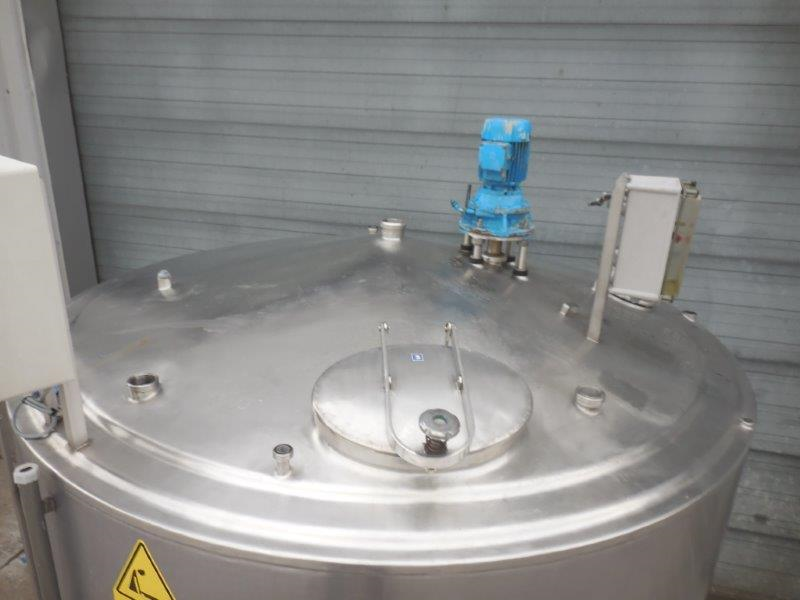

| Position of manhole (s) | Top |
| Tank with total drain? | Yes |
| Type of outlet (s) | DIN |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Last application | Food |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
.jpg)
.jpg)
.jpg)
.jpg)
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 1,7 |
| Periphery (mm) | 7020 |
| Cylindrical length (mm) | 1400 |
| Slope bottom (°) | 15 |
| Height bottom (mm) | 250 |
| Outside diameter tank (mm) | 2234 |
| Total height (mm) | 3230 |
| Diameter tank (mm) | 2050 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 100 |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Heating 1: Max. service pressure | 0,5 |
| Agitators | |
|---|---|
| Number of agitators | 1 |

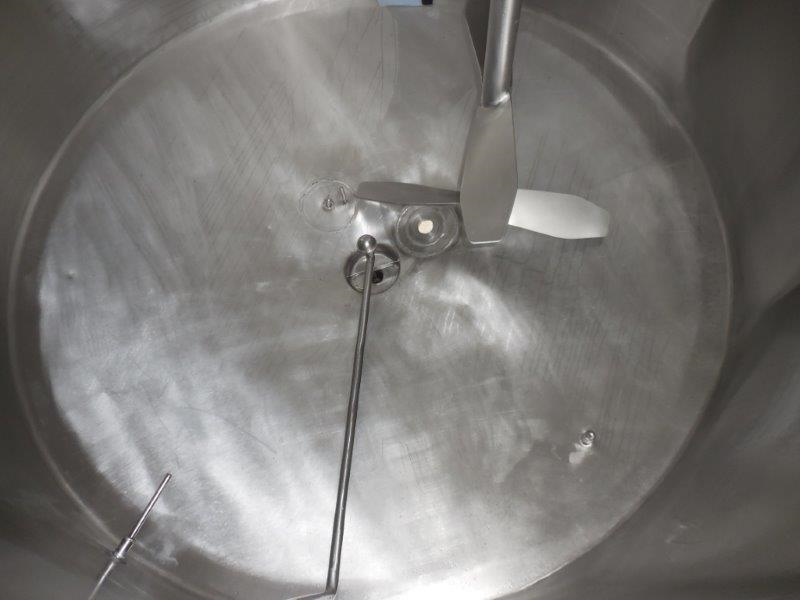

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 304 |

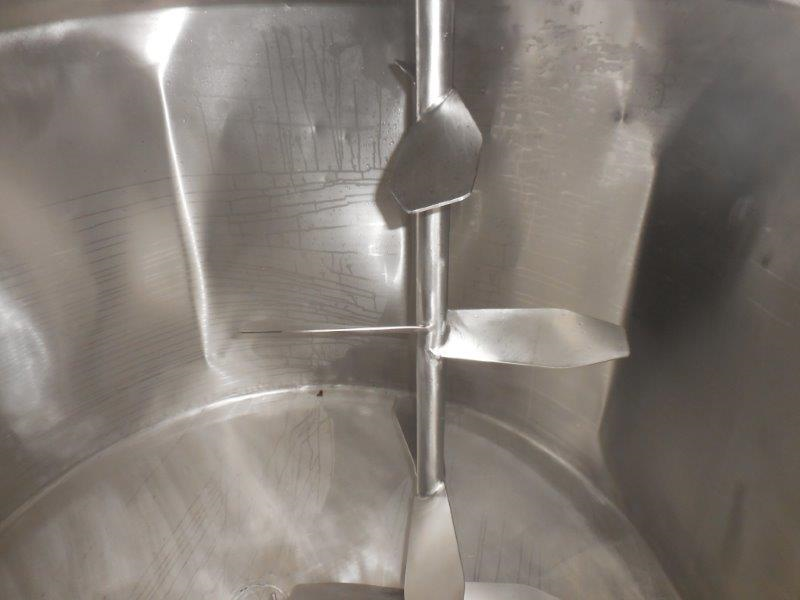

| Agitator 1: stirring element type | Blade stirrer/Cross paddles |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 0,55 |

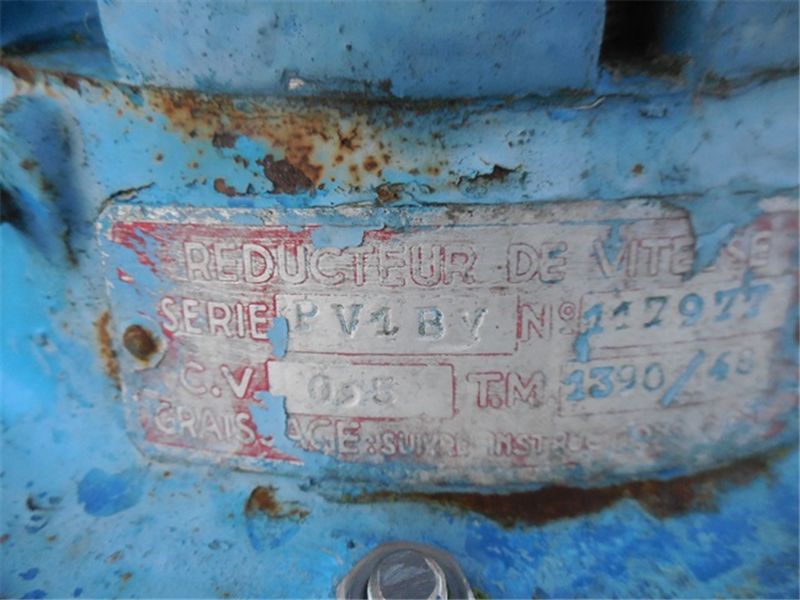

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 48 |
