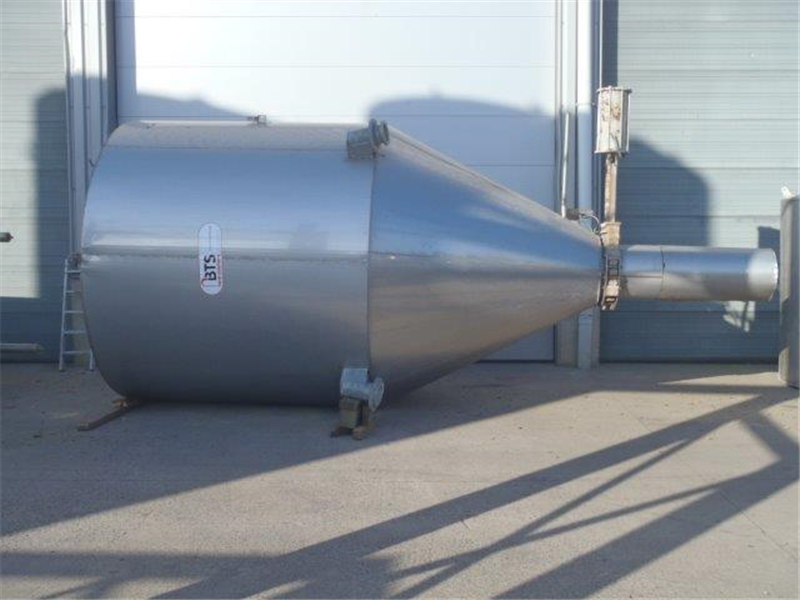

Used silo
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 15000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.34.NR.04 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 15000 |
| Type tank | Silo |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

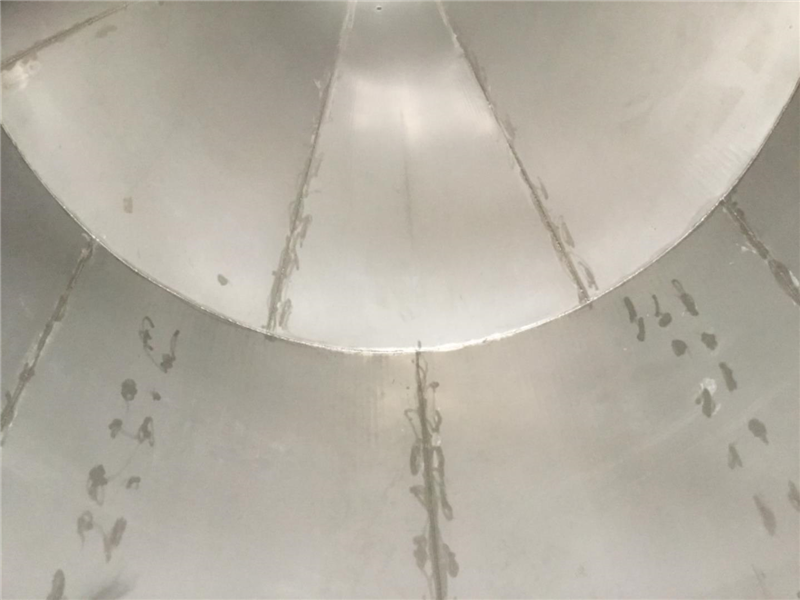

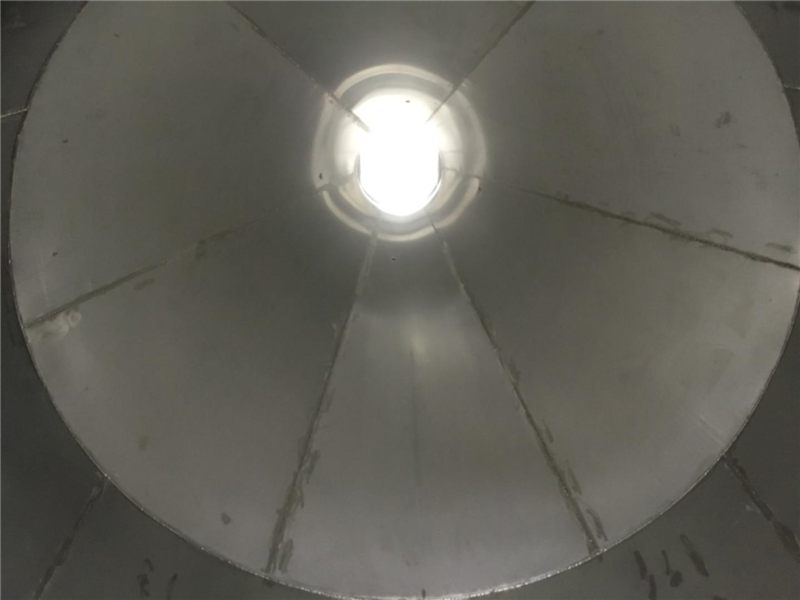

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

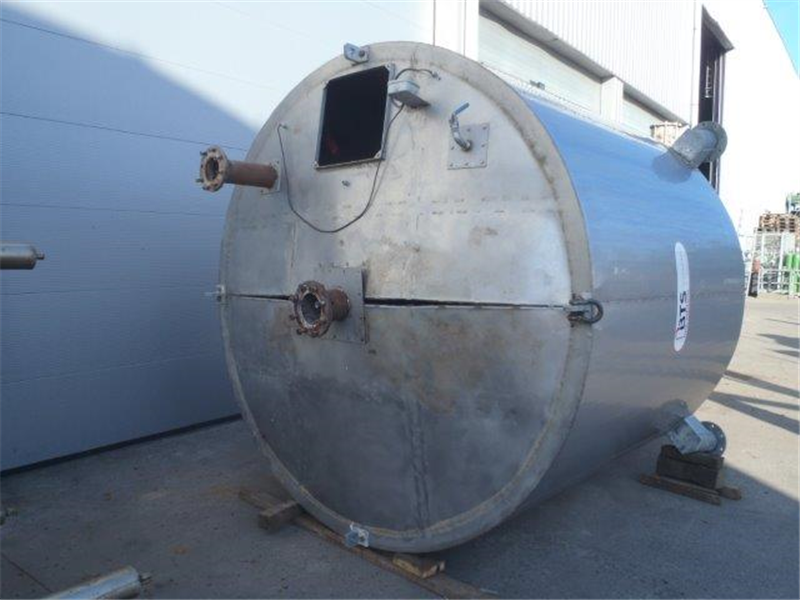

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 500x500mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | meskantafsluiter |
| Diameter of outlet (mm) | 500 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 2400 |
| Condition | Used |
| Type plate manufacturer | No |
| Drawing 1 | t0334NR04.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,1 |
| Cylindrical length (mm) | 2420 |
| Slope bottom (°) | 60 |
| Height bottom (mm) | 1980 |
| Outside diameter tank (mm) | 2670 |
| Total height (mm) | 6420 |
| Diameter tank (mm) | 2500 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 80 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Stainless steel 304 |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | electrical tracing |
| Remarks | |
|---|---|

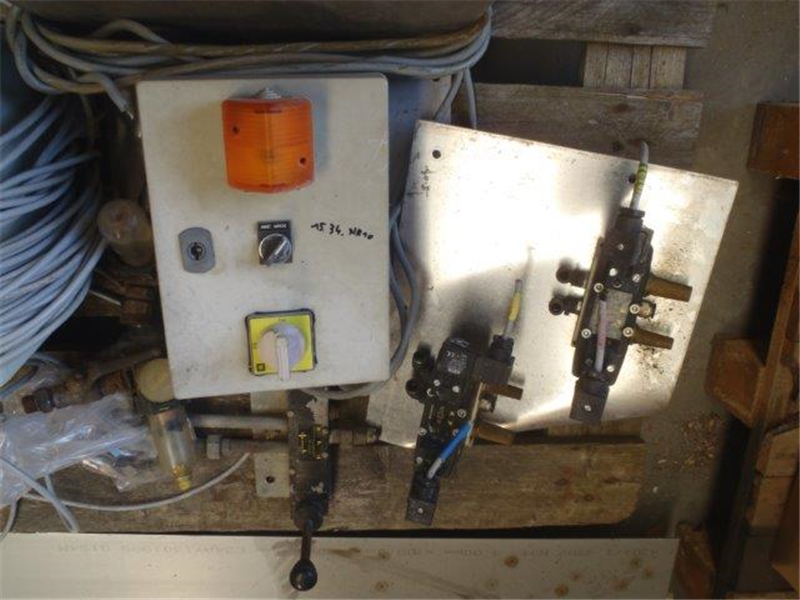

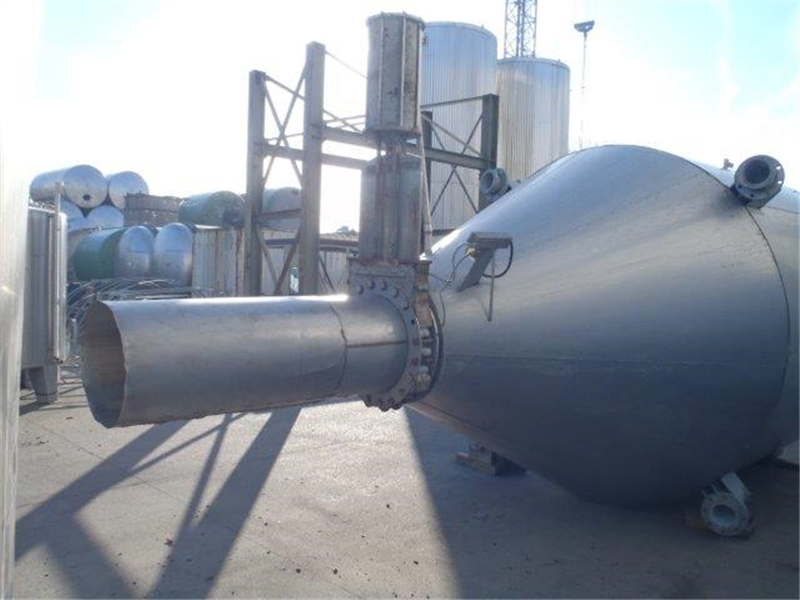

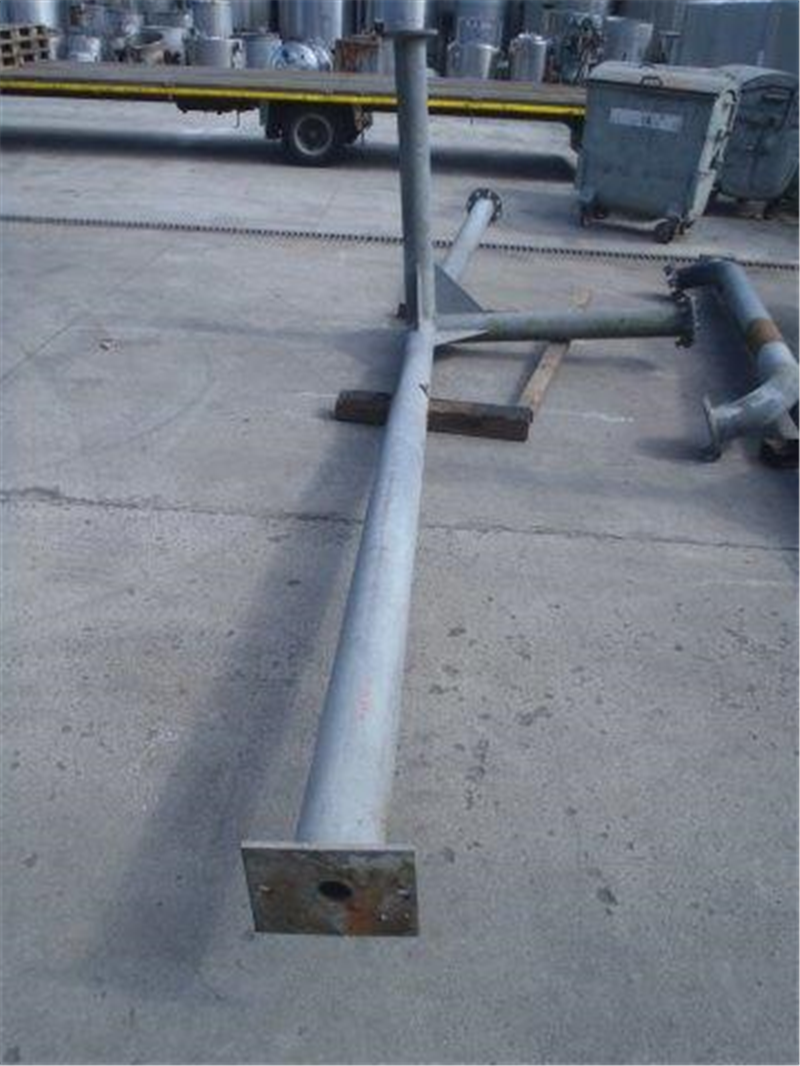

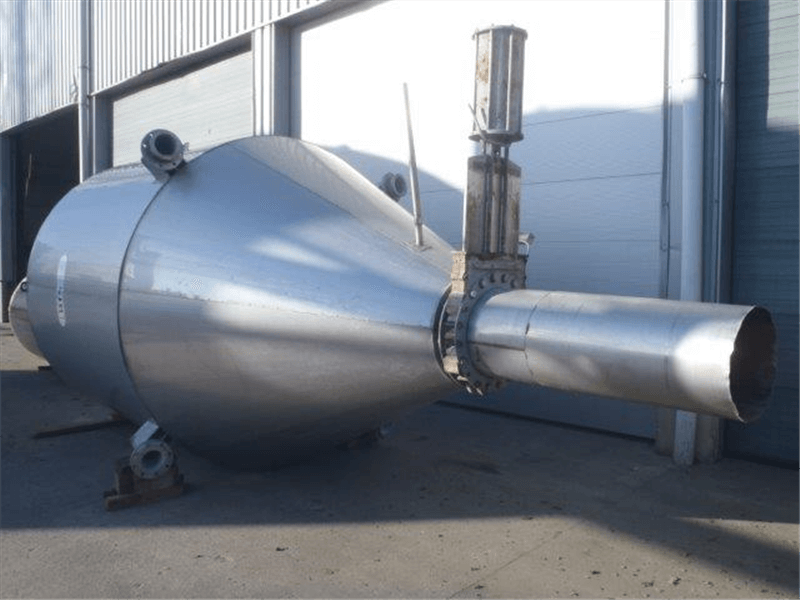

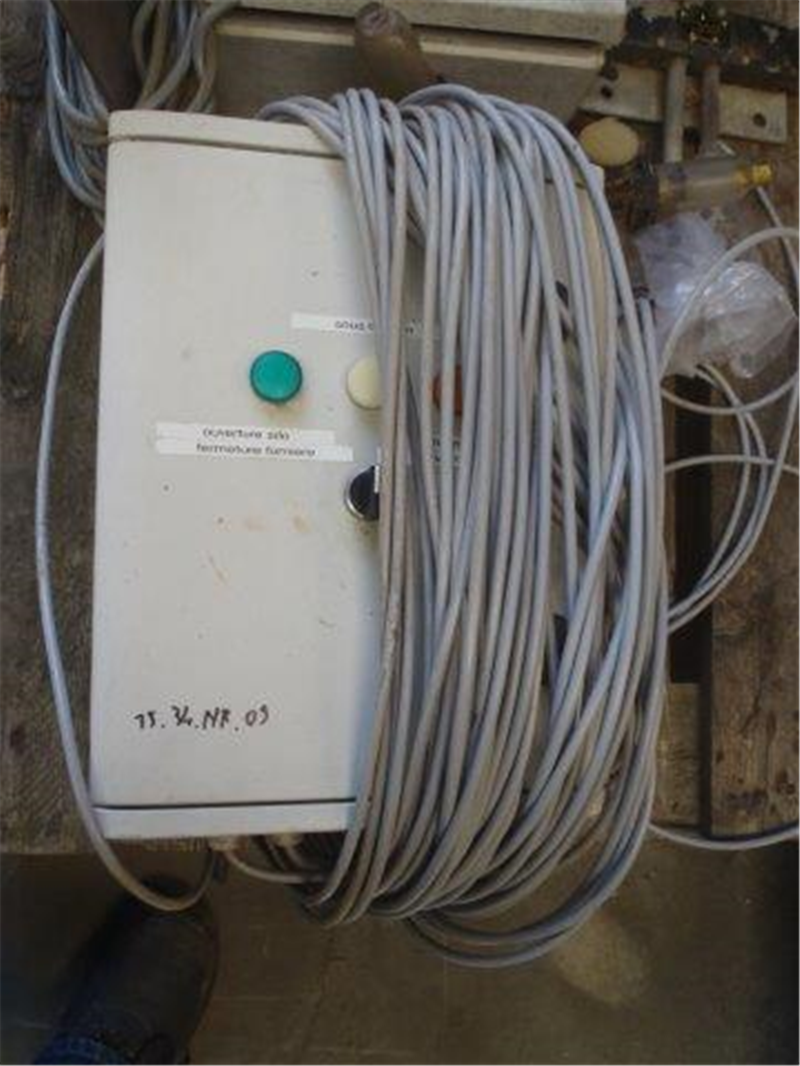

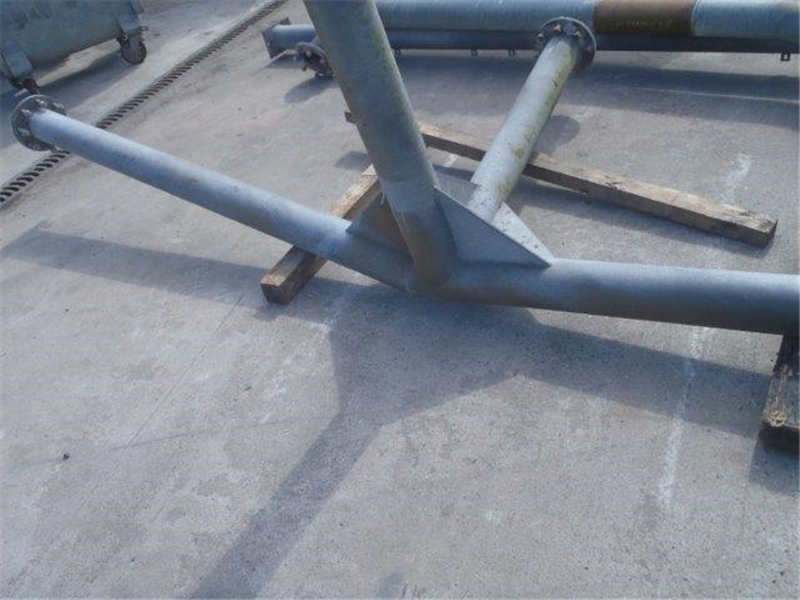

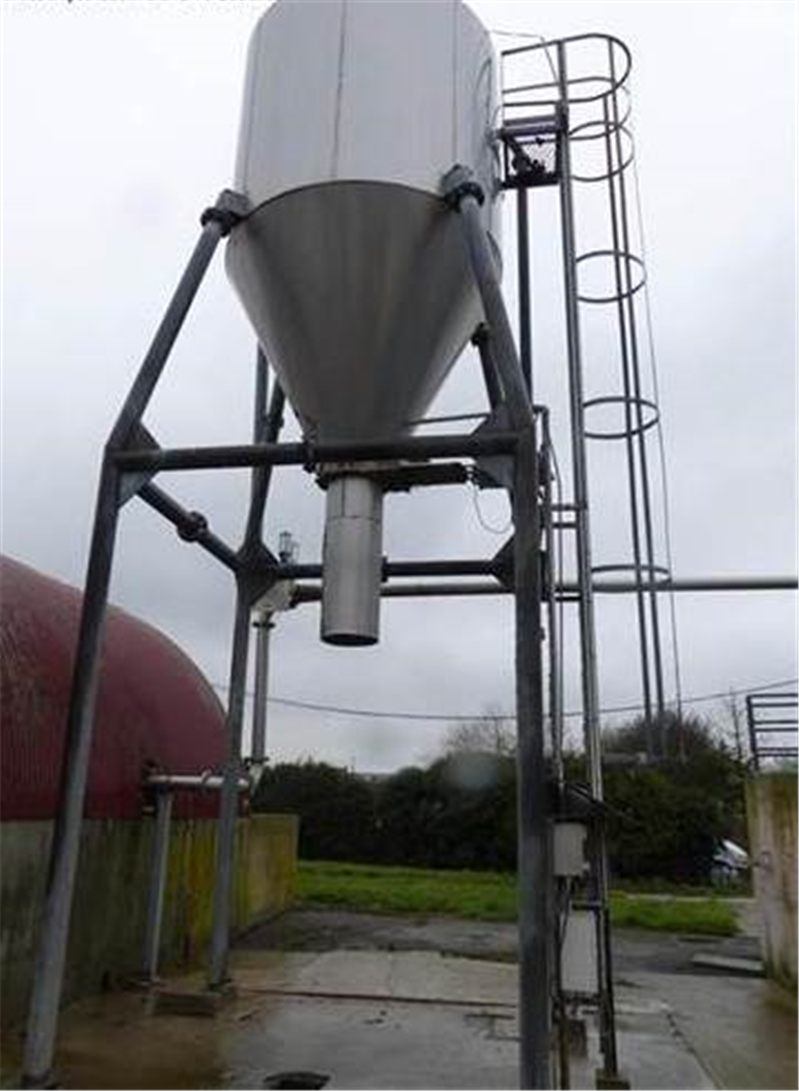

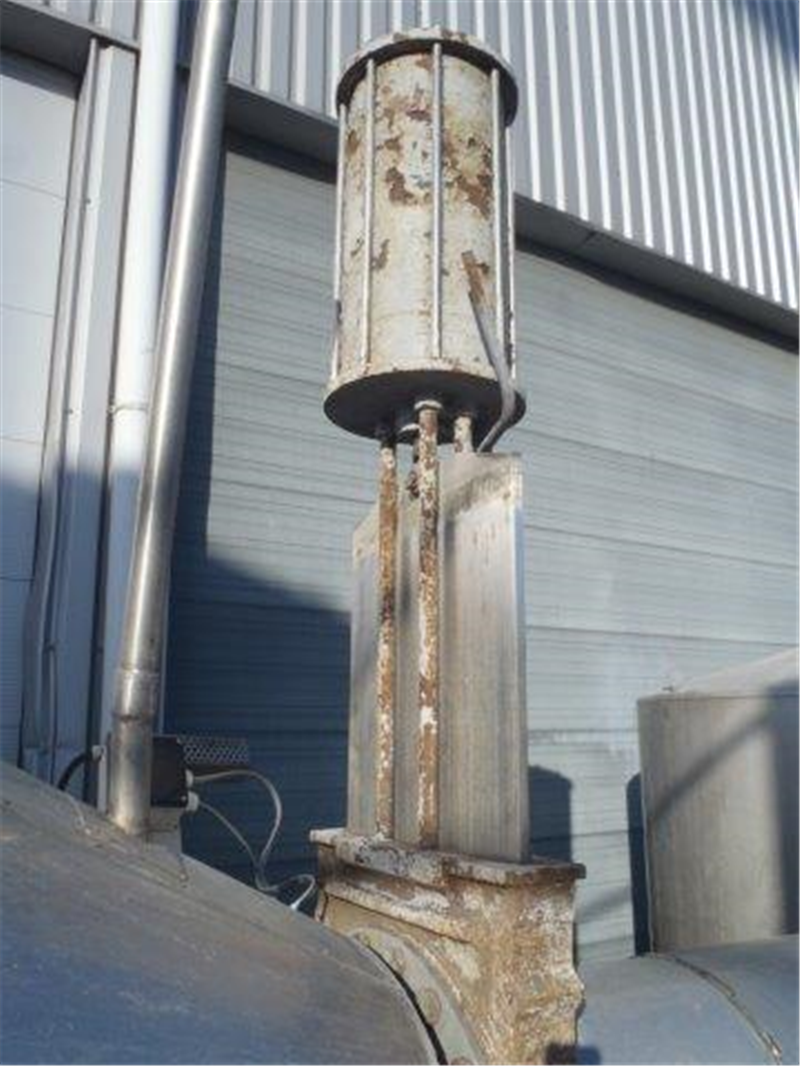

| Description (EN) | Height of the silo 4400 mm + chute 1000mm Height under emptying 3000mm, distance between feets: 3000 mm With frame and 1 guillotine valve used for emptying Valve controler included |
