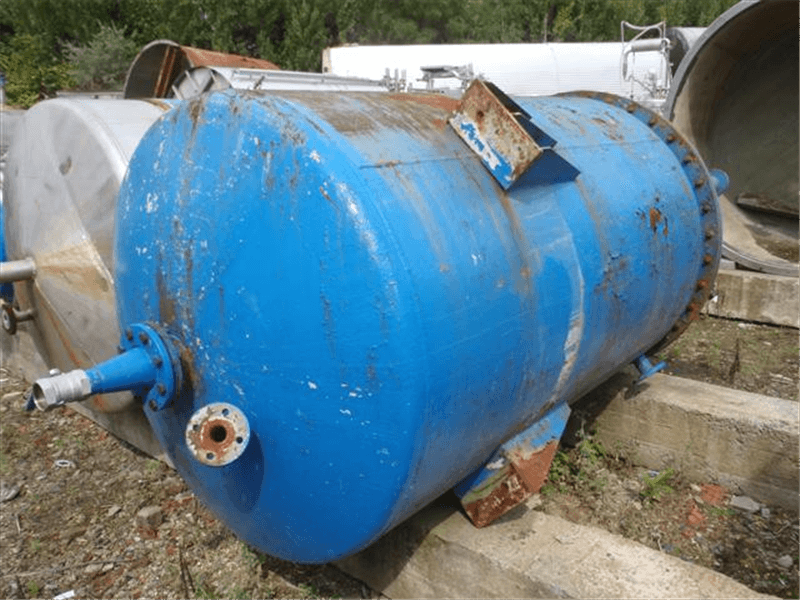

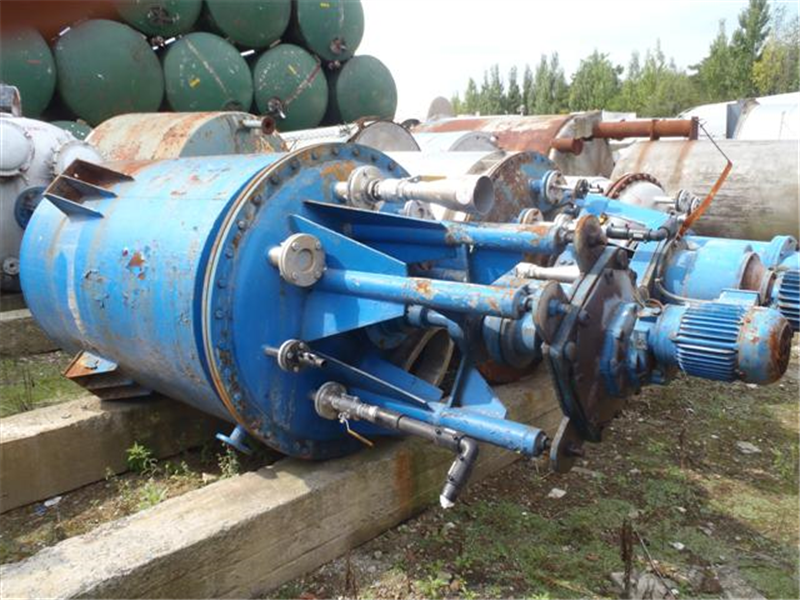

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 2250 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.31.SP.03 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 2250 |
| Type tank | Mixing vessel |

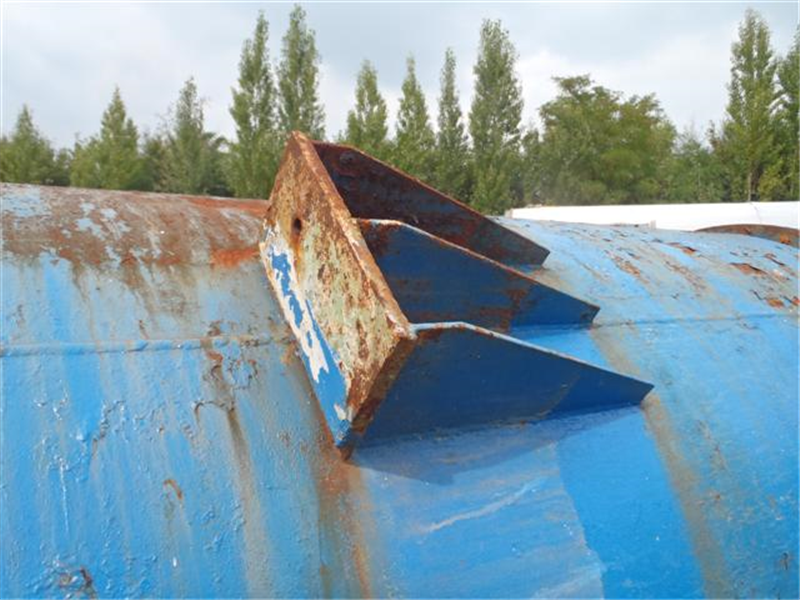

| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |

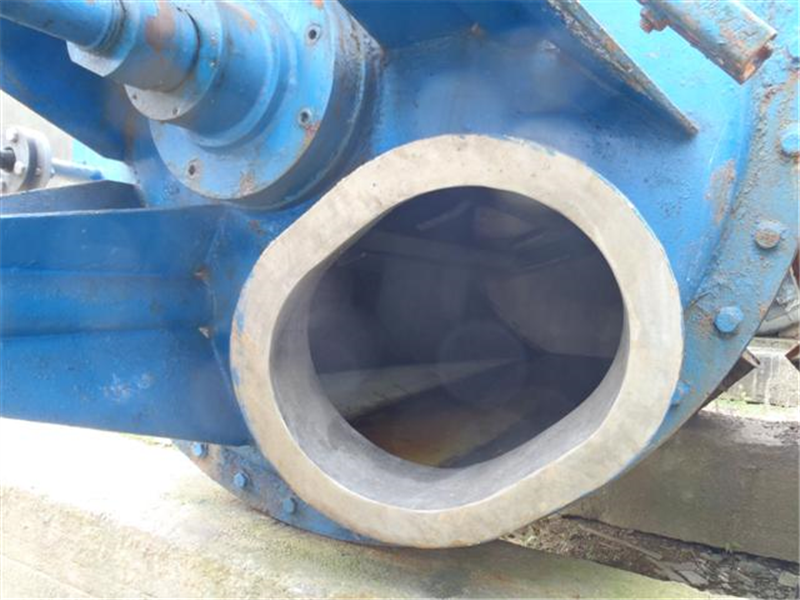

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Tank with total drain? | Yes |

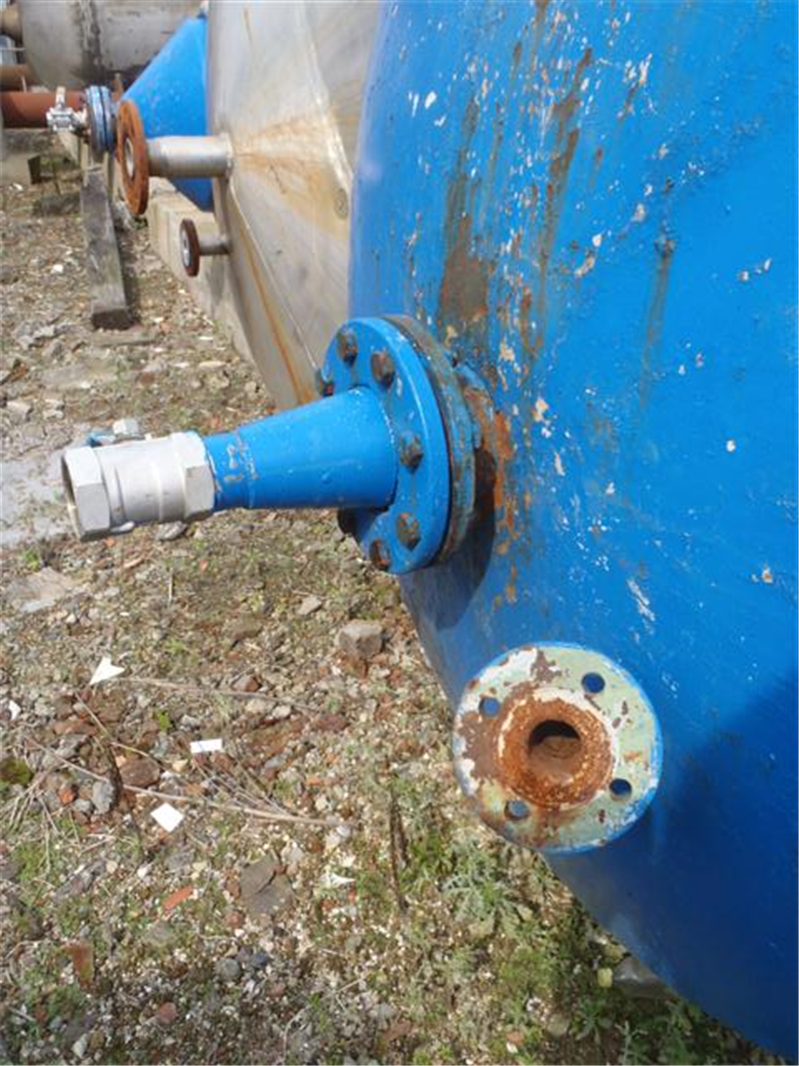

| Type of outlet (s) | Flens DN80 |
| Diameter of outlet (mm) | 80 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Partly open |

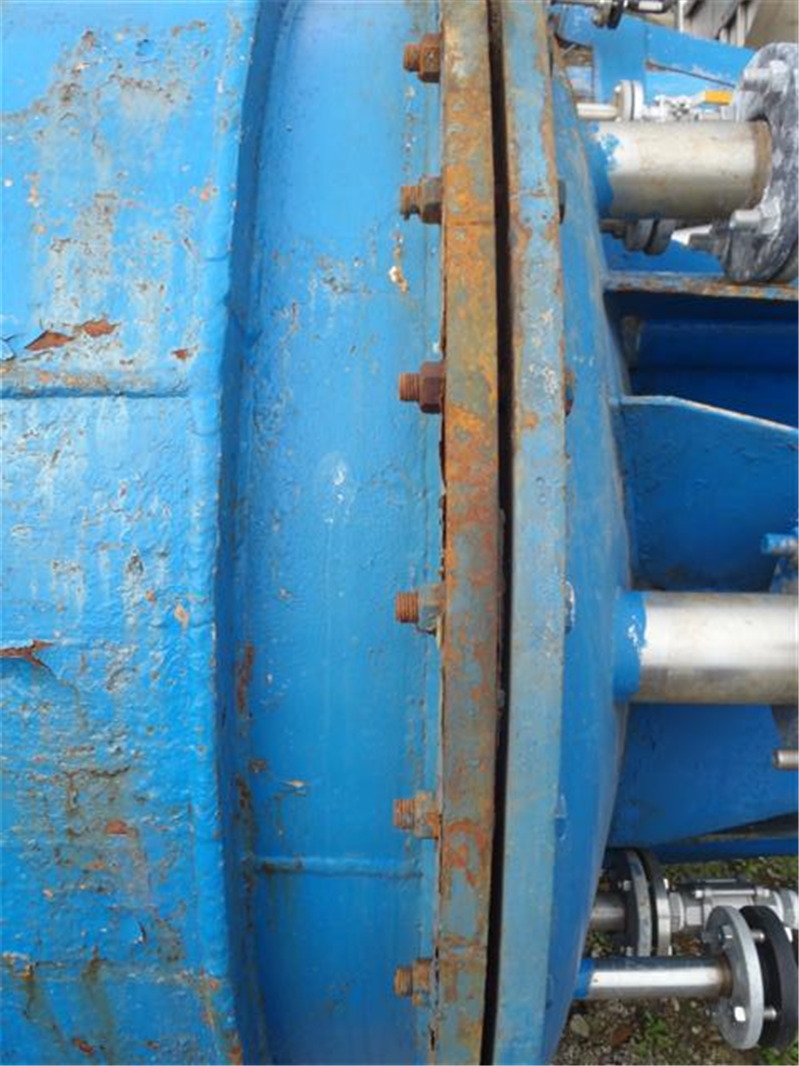

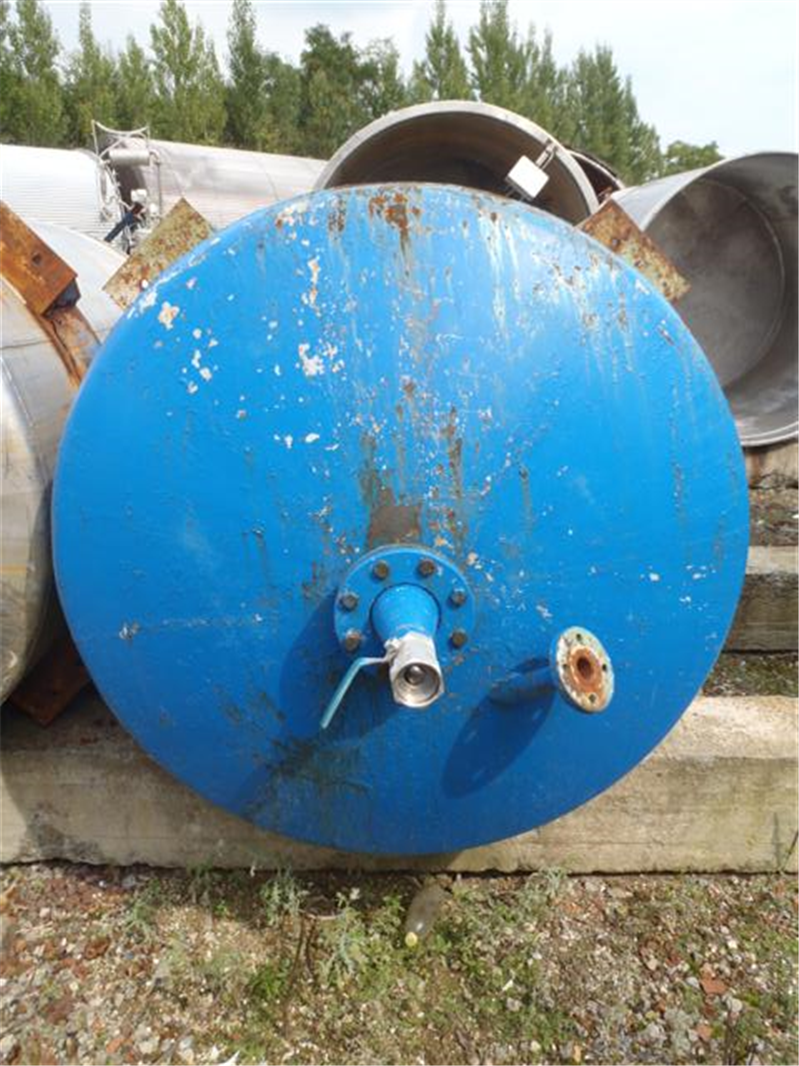

| Detail top side | Bolted cover |
| Dimensions | |
|---|---|
| Periphery (mm) | 4098 |
| Outside diameter tank (mm) | 1300 |
| Total height (mm) | 5220 |
| Diameter tank (mm) | 1200 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |

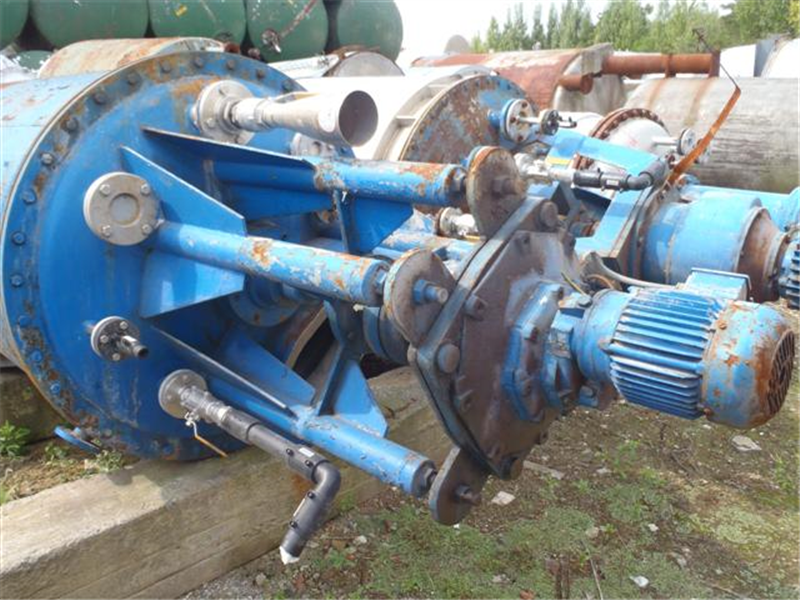

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: Number of baffles | 2 |
| Agitator 1: Material | Stainless steel 316 |

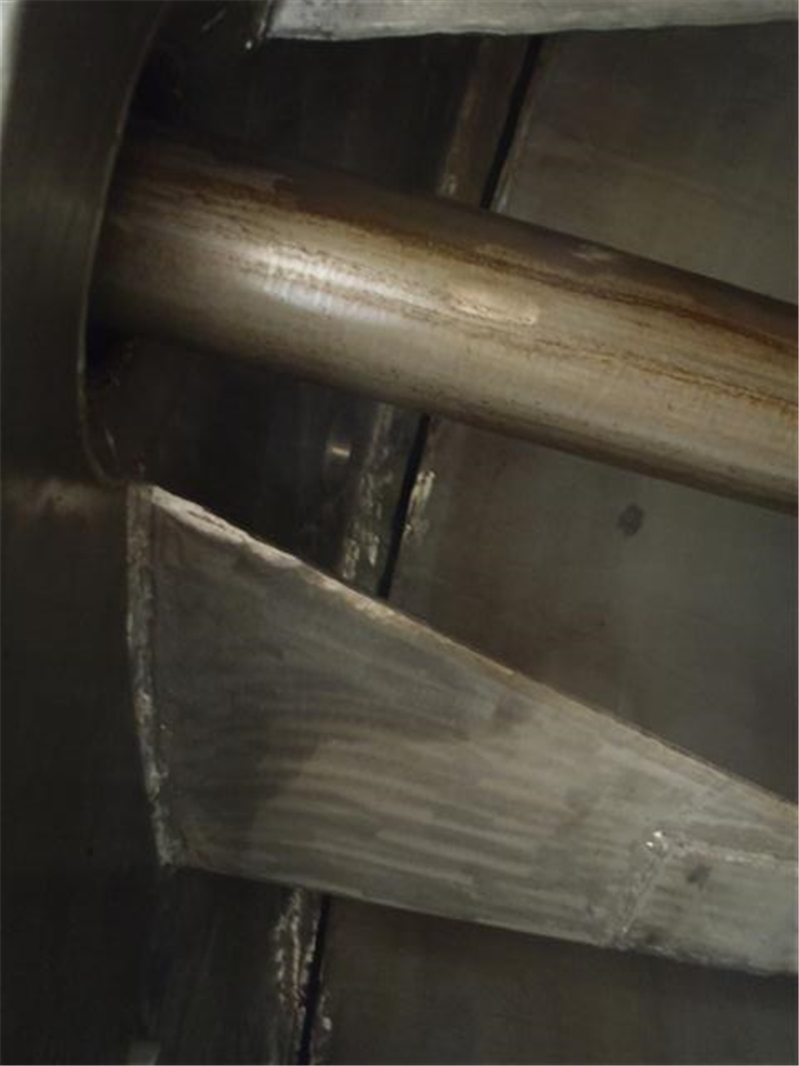

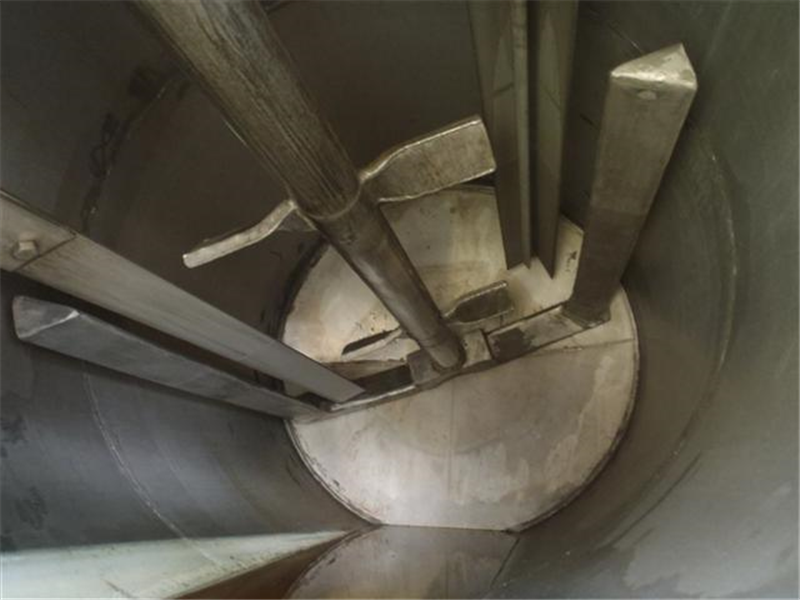

| Agitator 1: stirring element type | Anchor |

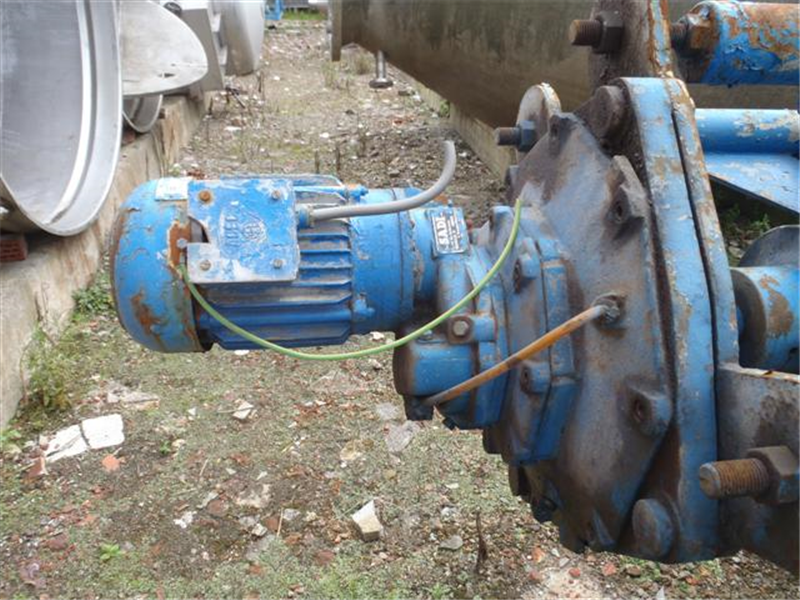

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Atex/Ex? | No |
| Agitator 1: Power (kw) | 4 |

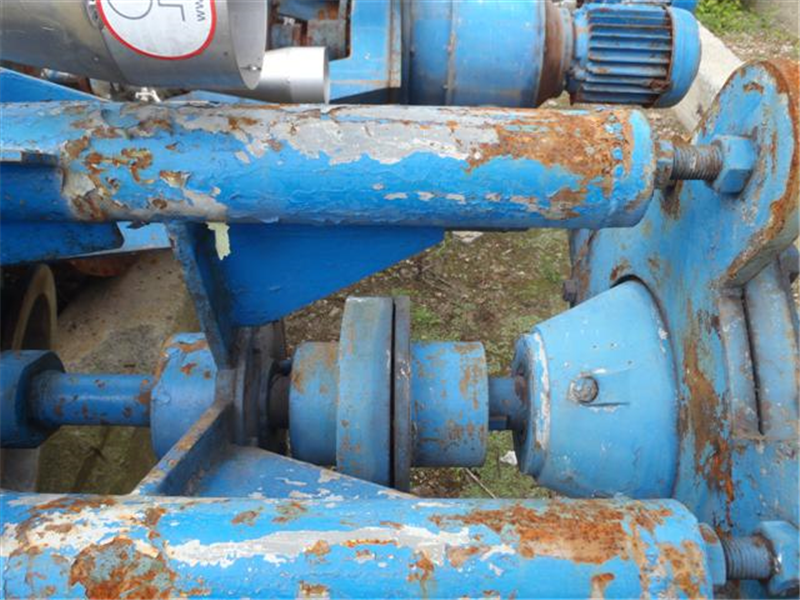

| Agitator 1: Drive Type | Reductor |
